Installing Service Bracket: Removal

WARNING: This page is about a different car, the 2017 Infiniti Q50. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove front combination lamp. Refer to REMOVAL AND INSTALLATION .

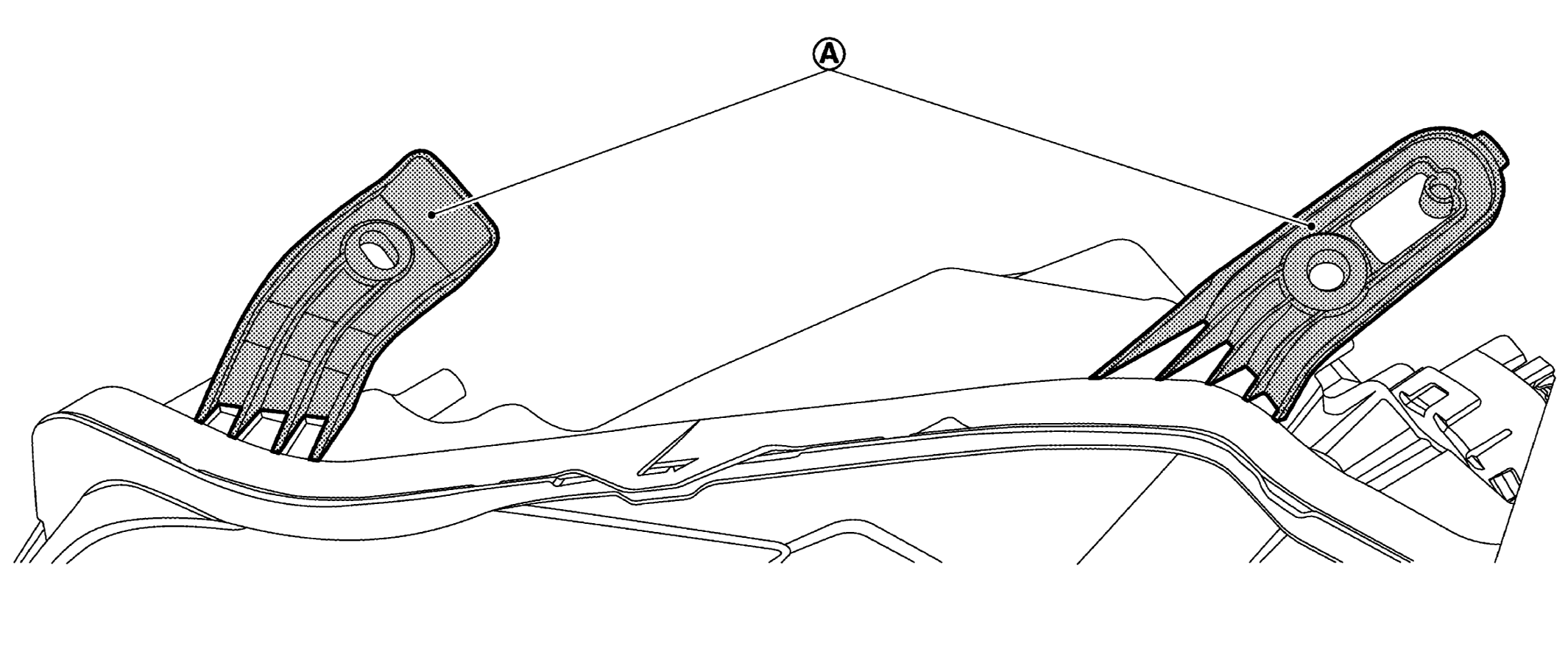

  2. If part MARU-A-W is damaged, cut the whole part from fixing section to the front combination lamp housing, then shape the cutting surface with sandpaper.
    G09159689Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION:

    Be careful to not shape the cutting surface more than necessary, and shape while adjusting with the new service brackets to be installed.
