Installing Service Bracket: Installation

WARNING: This page is about a different car, the 2017 Infiniti Q50. However, it is still accessible from the selected car via links, so may be relevant.

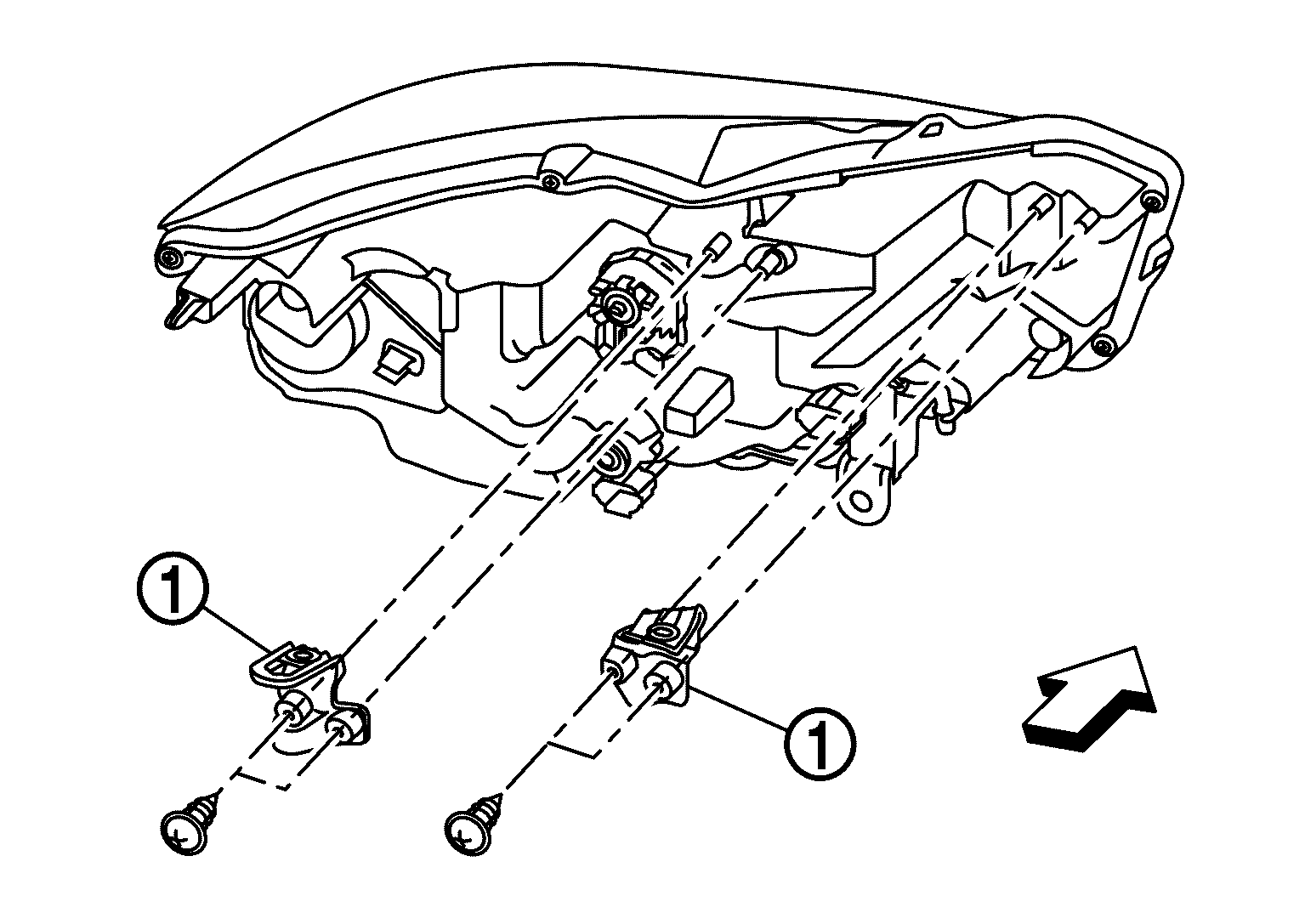

Install service brackets WHITE-1 to front combination lamp housing with screws.

GNSJMLIA4371ZZ-371Courtesy of NISSAN NORTH AMERICA, INC.
ARROW : Vehicle front
