Aiming Adjustment Screw
WARNING: This page is about a different car, the 2017 Infiniti Q50. However, it is still accessible from the selected car via links, so may be relevant.

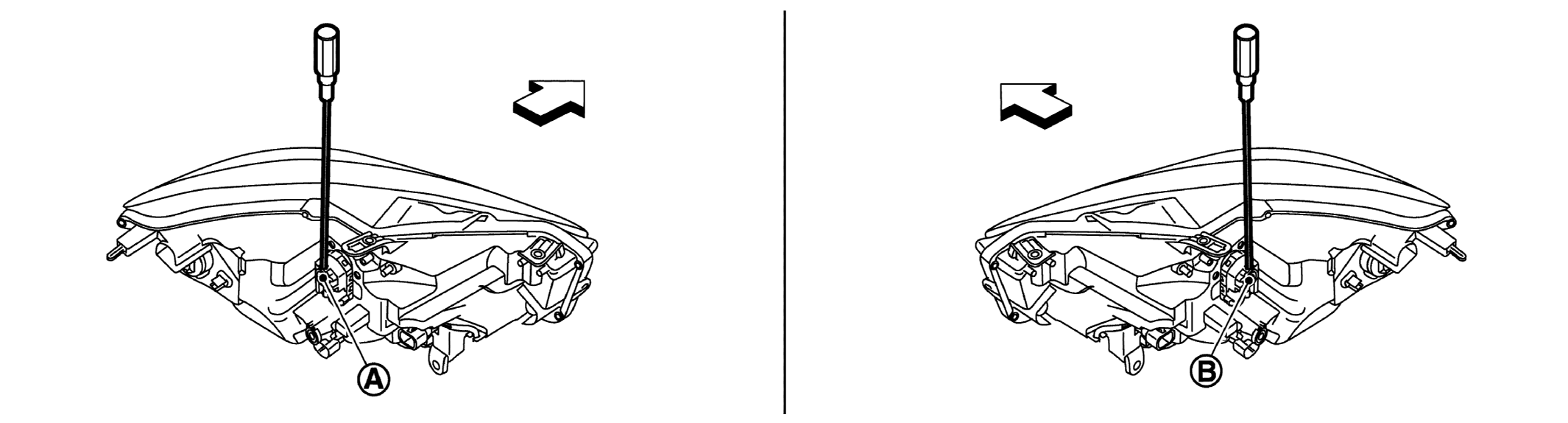

| Headlamp LH (UP/DOWN) adjustment screw |
Headlamp RH (UP/DOWN) adjustment screw |
||||
| : Vehicle front | |||||
| Adjustment screw | Screwdriver rotation | Facing direction | |
|---|---|---|---|
| Headlamp LH (UP/DOWN) | Clockwise | UP | |
| Counterclockwise | DOWN | ||
| Headlamp RH (UP/DOWN) | Clockwise | DOWN | |
| Counterclockwise | UP | ||
For aiming adjustment procedure, refer to AIMING ADJUSTMENT PROCEDURE .
