Wiring Diagram - Ignition Power Supply -

GNSJRMWJ1861GB-861

Courtesy of NISSAN NORTH AMERICA, INC.

GNSJRMWJ1862GB-862

Courtesy of NISSAN NORTH AMERICA, INC.

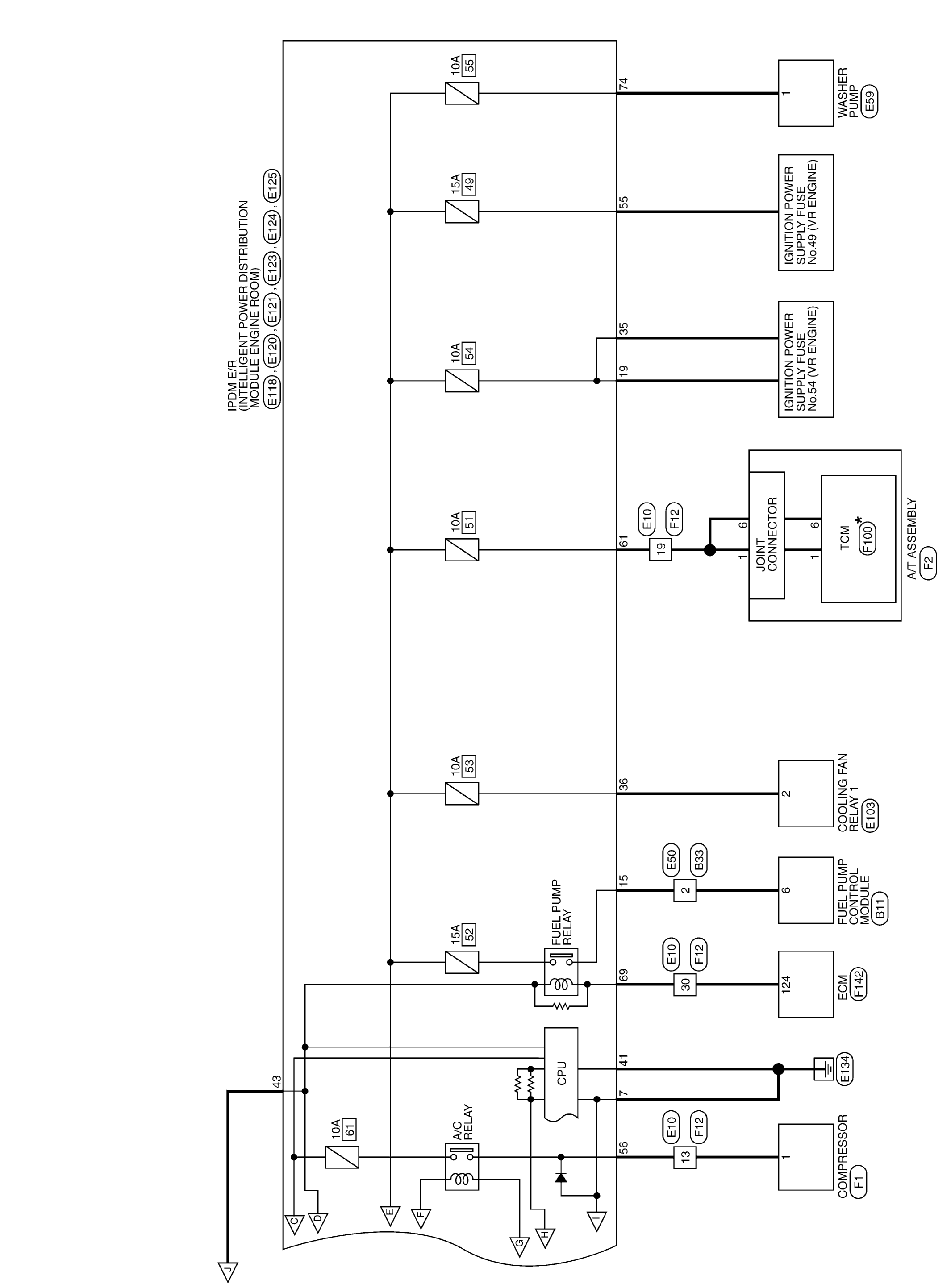

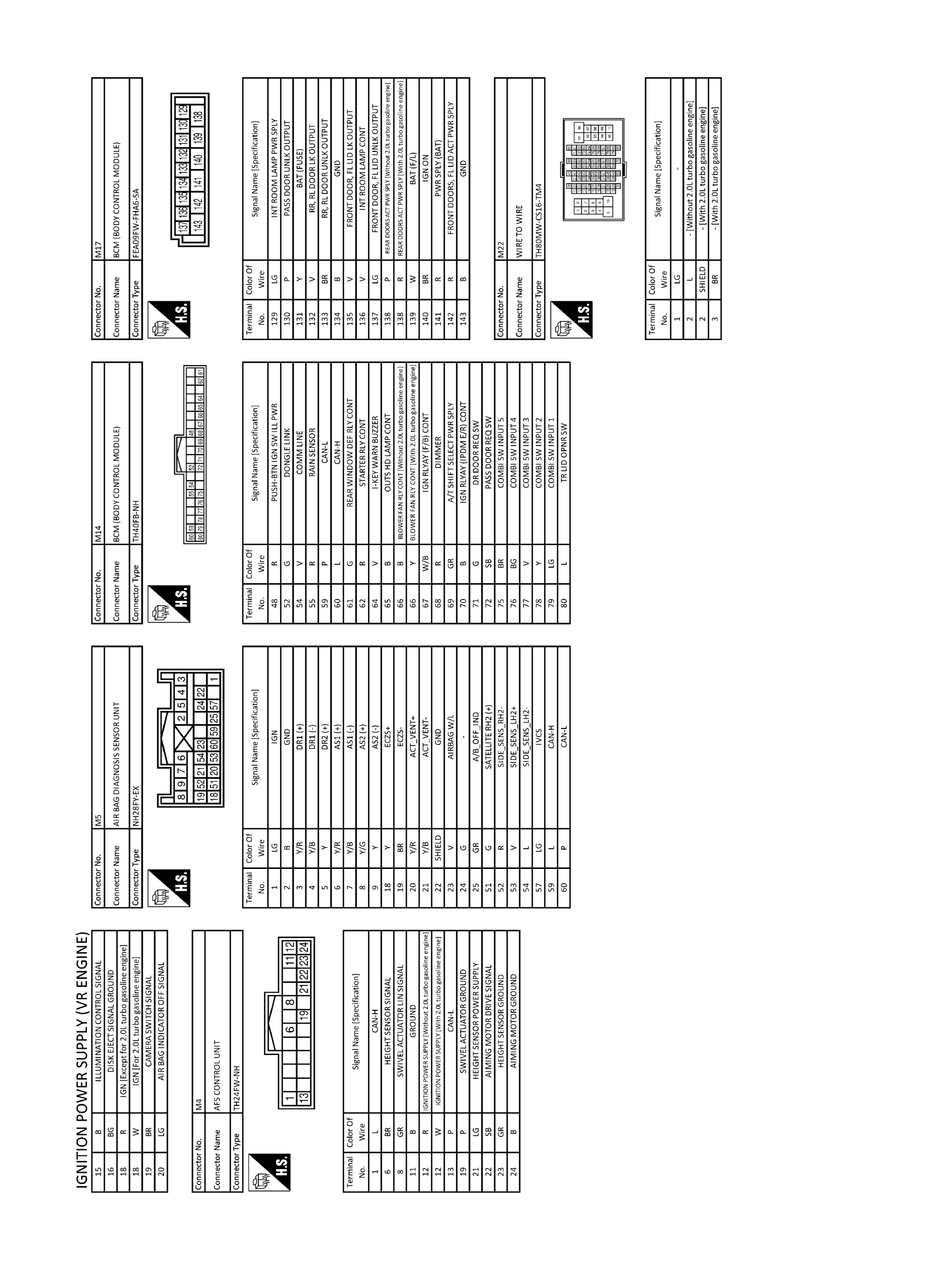

GNSJRMWJ1863GB-863

Courtesy of NISSAN NORTH AMERICA, INC.

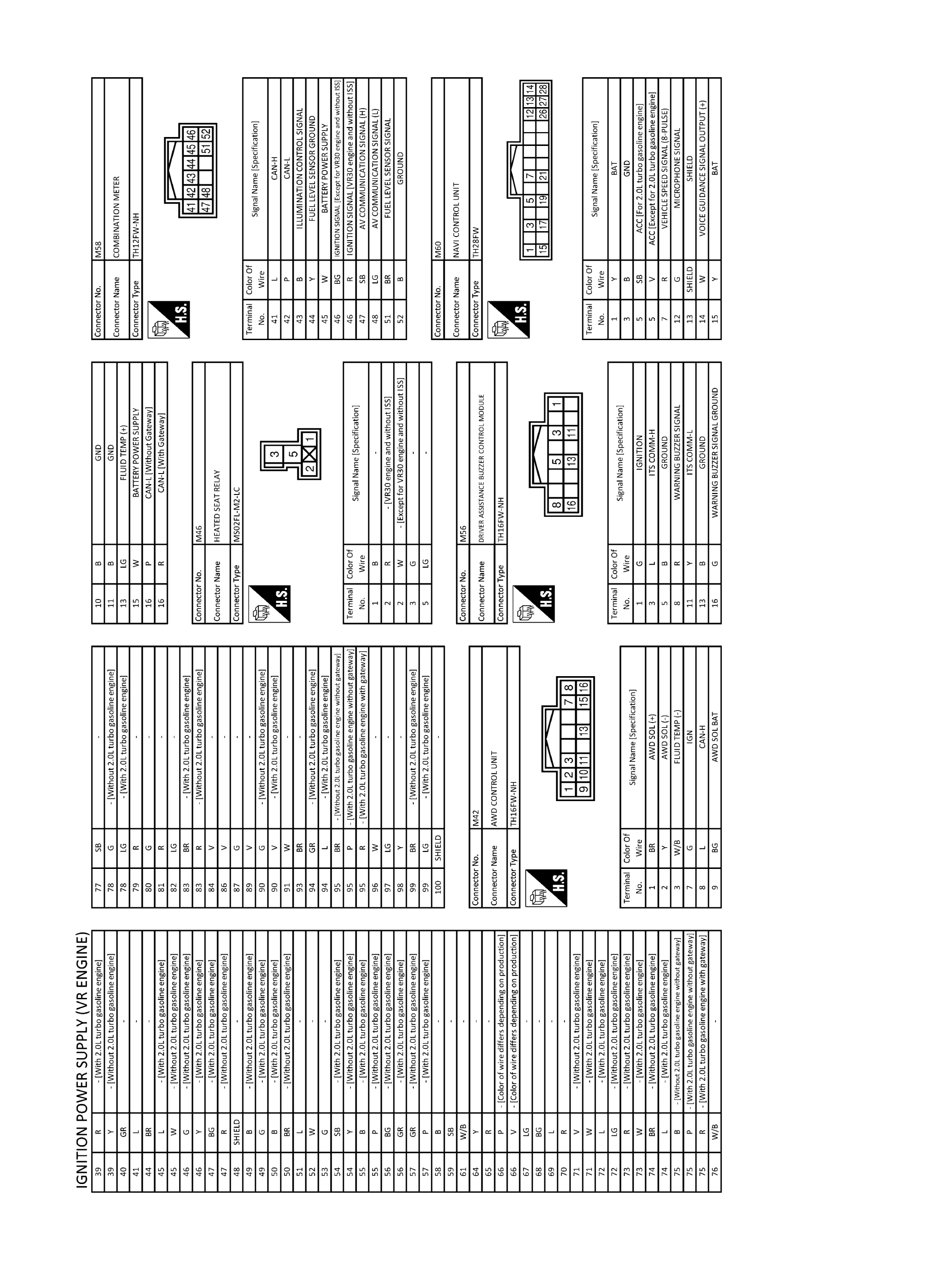

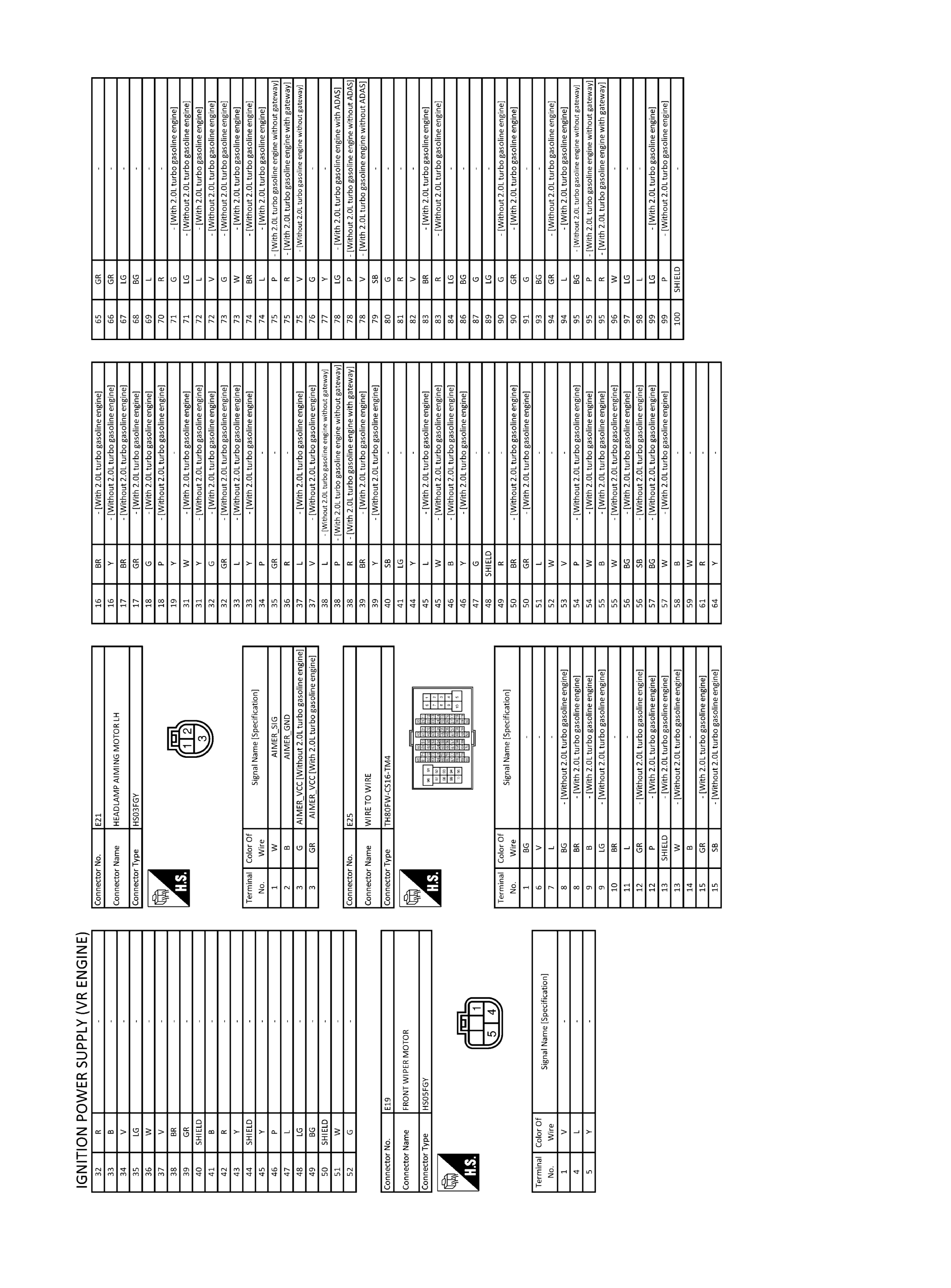

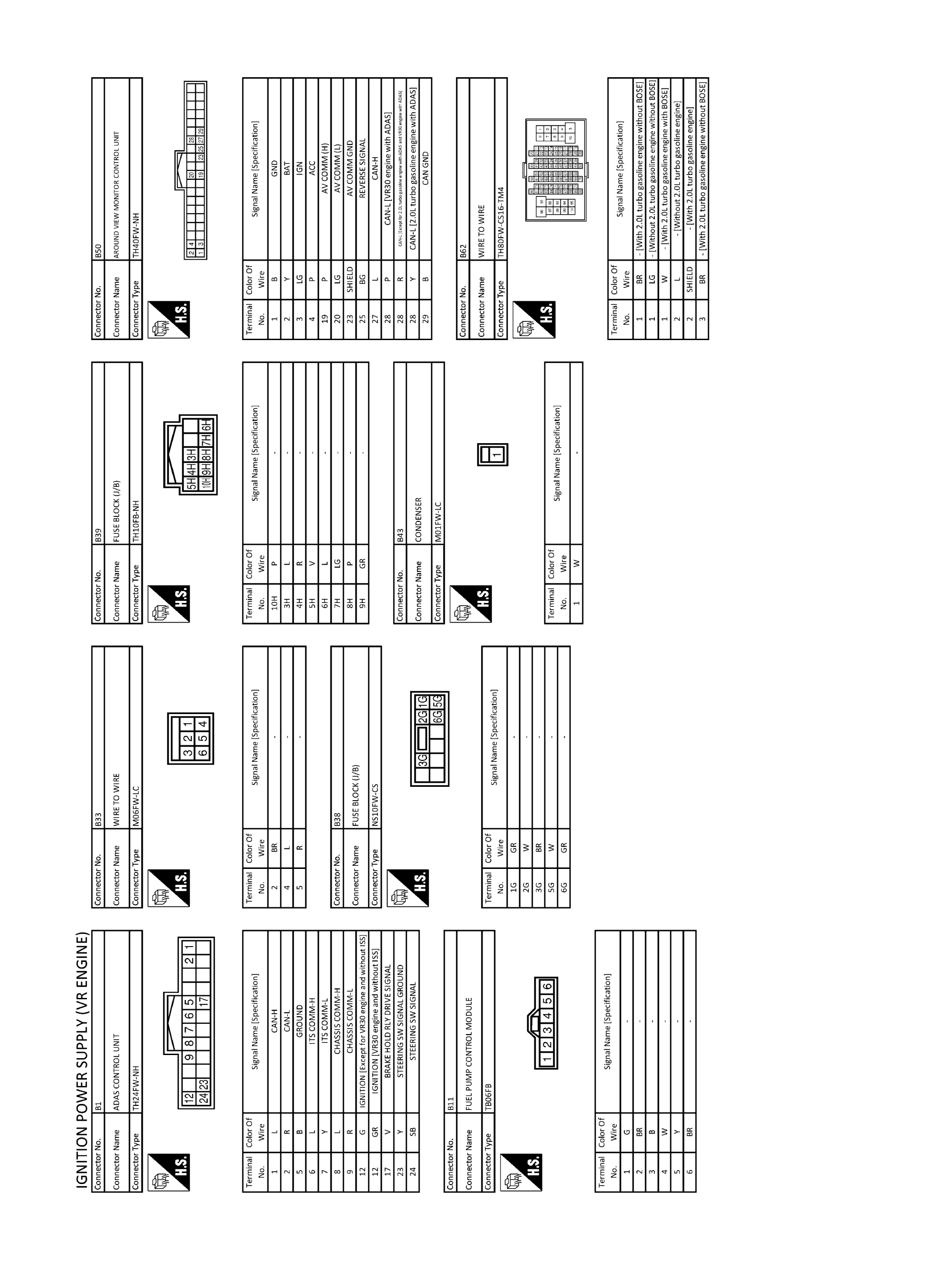

GNSJRMWJ1864GB-864

Courtesy of NISSAN NORTH AMERICA, INC.

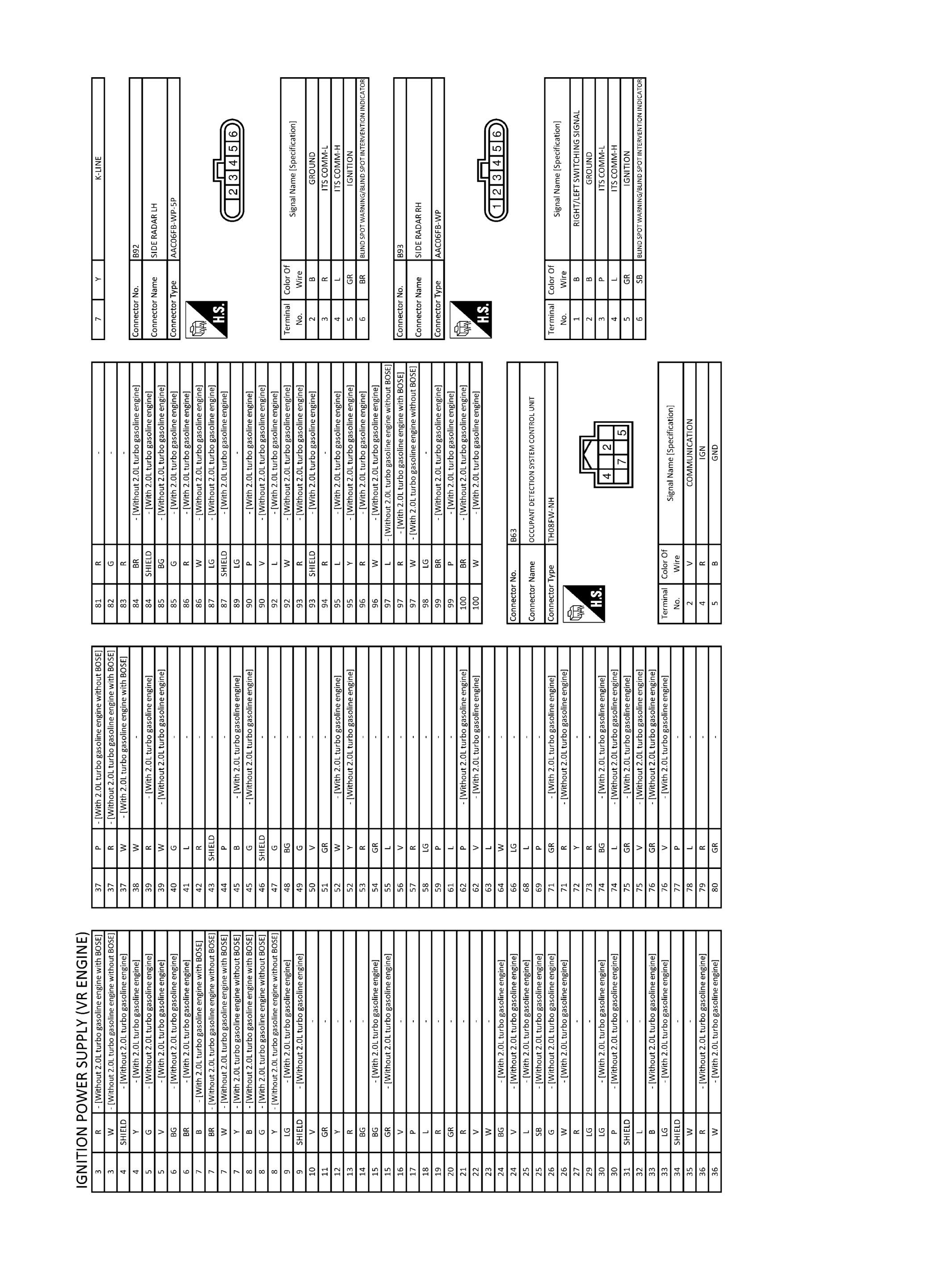

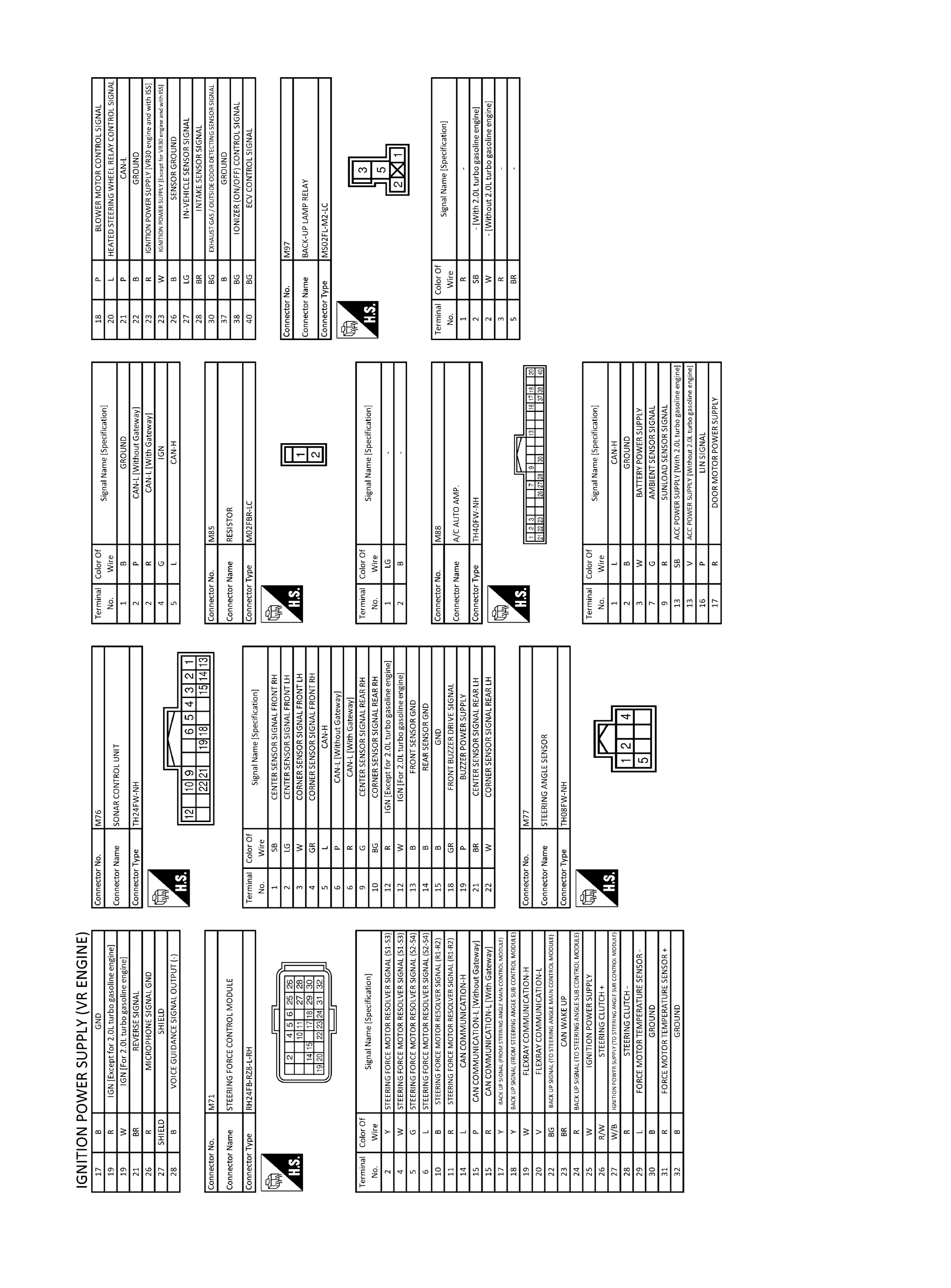

GNSJRMWJ1865GB-865

Courtesy of NISSAN NORTH AMERICA, INC.

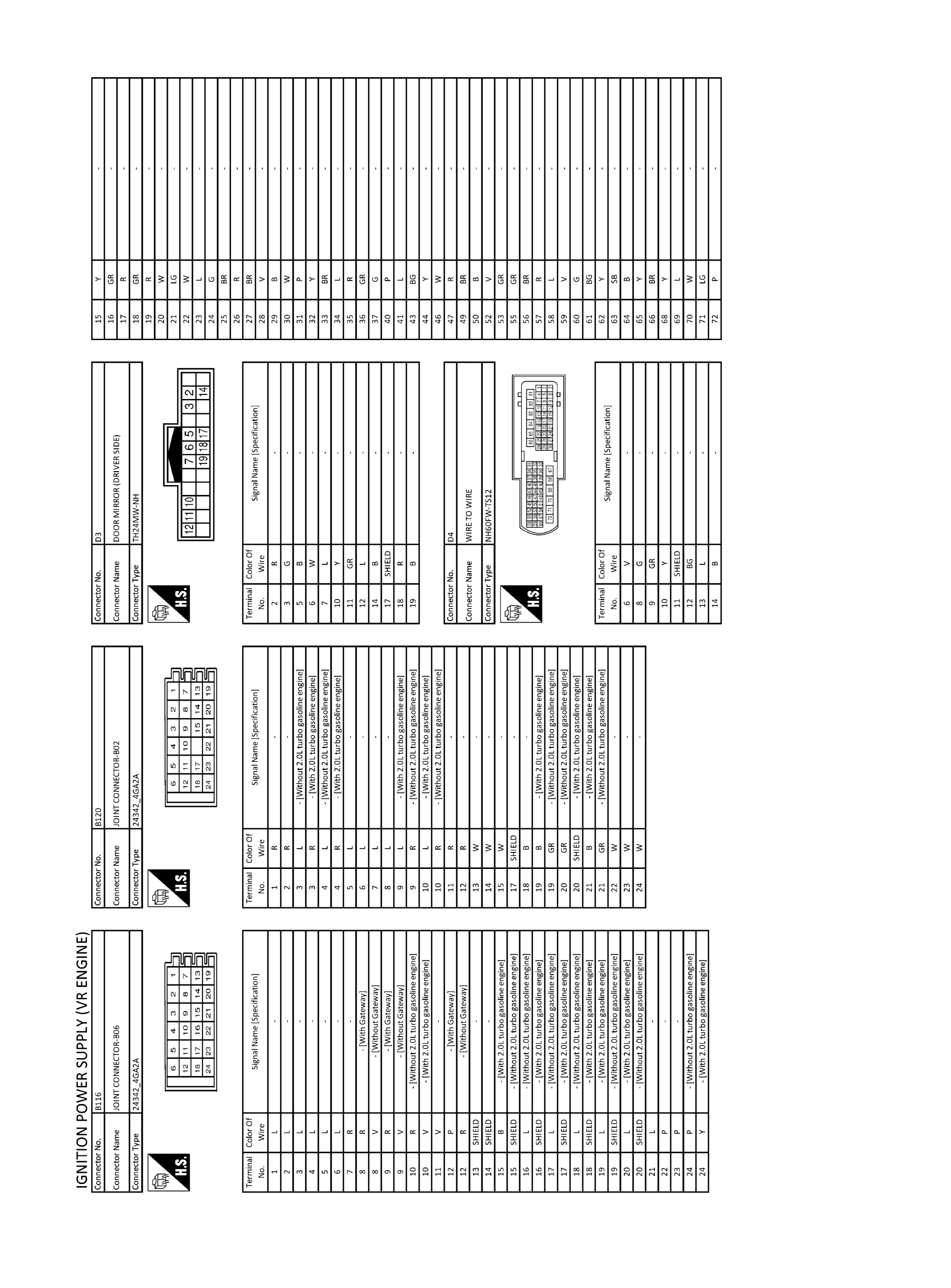

GNSJRMWJ1866GB-866

Courtesy of NISSAN NORTH AMERICA, INC.

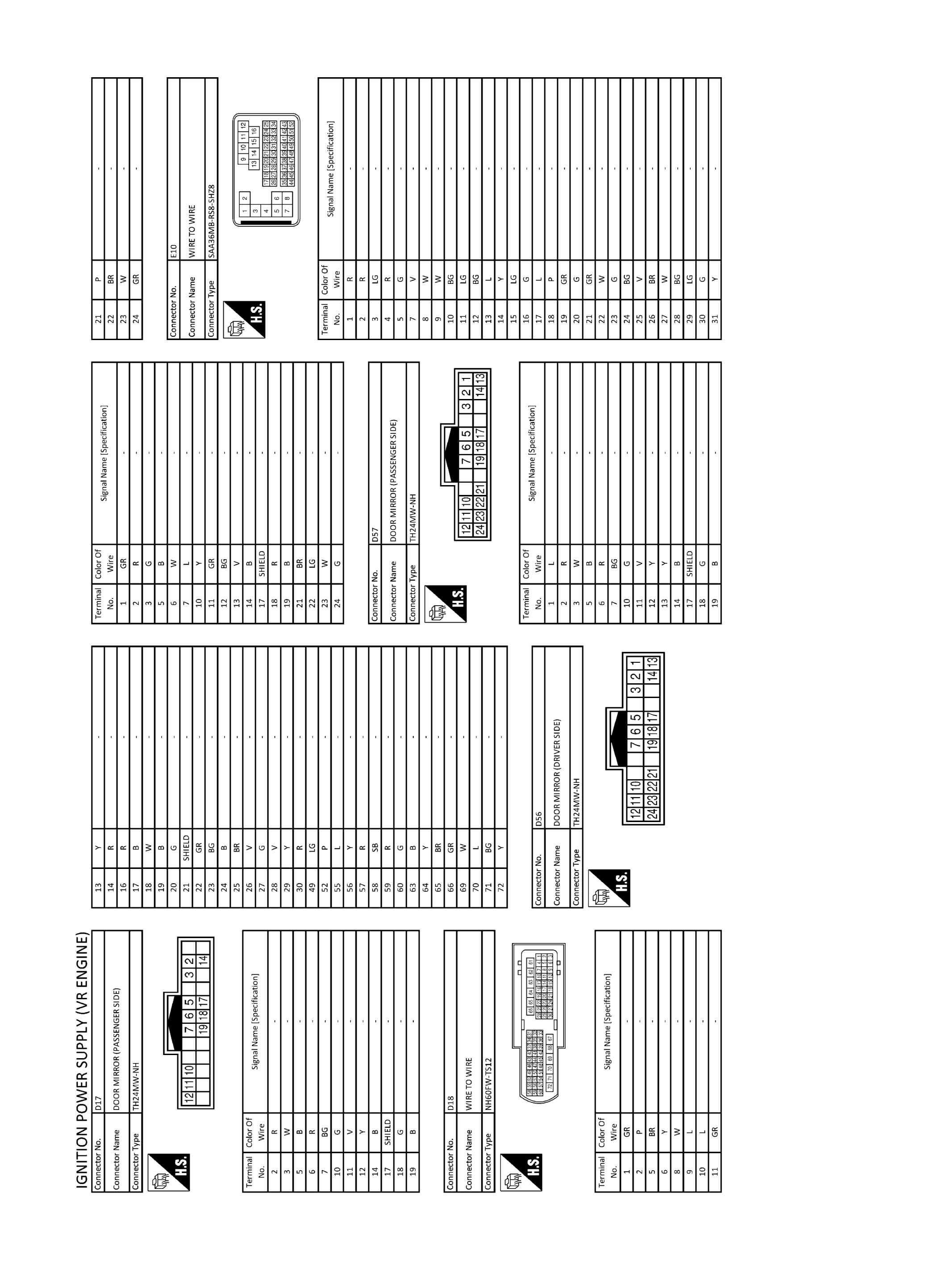

GNSJRMWJ1867GB-867

Courtesy of NISSAN NORTH AMERICA, INC.

GNSJRMWJ1868GB-868

Courtesy of NISSAN NORTH AMERICA, INC.

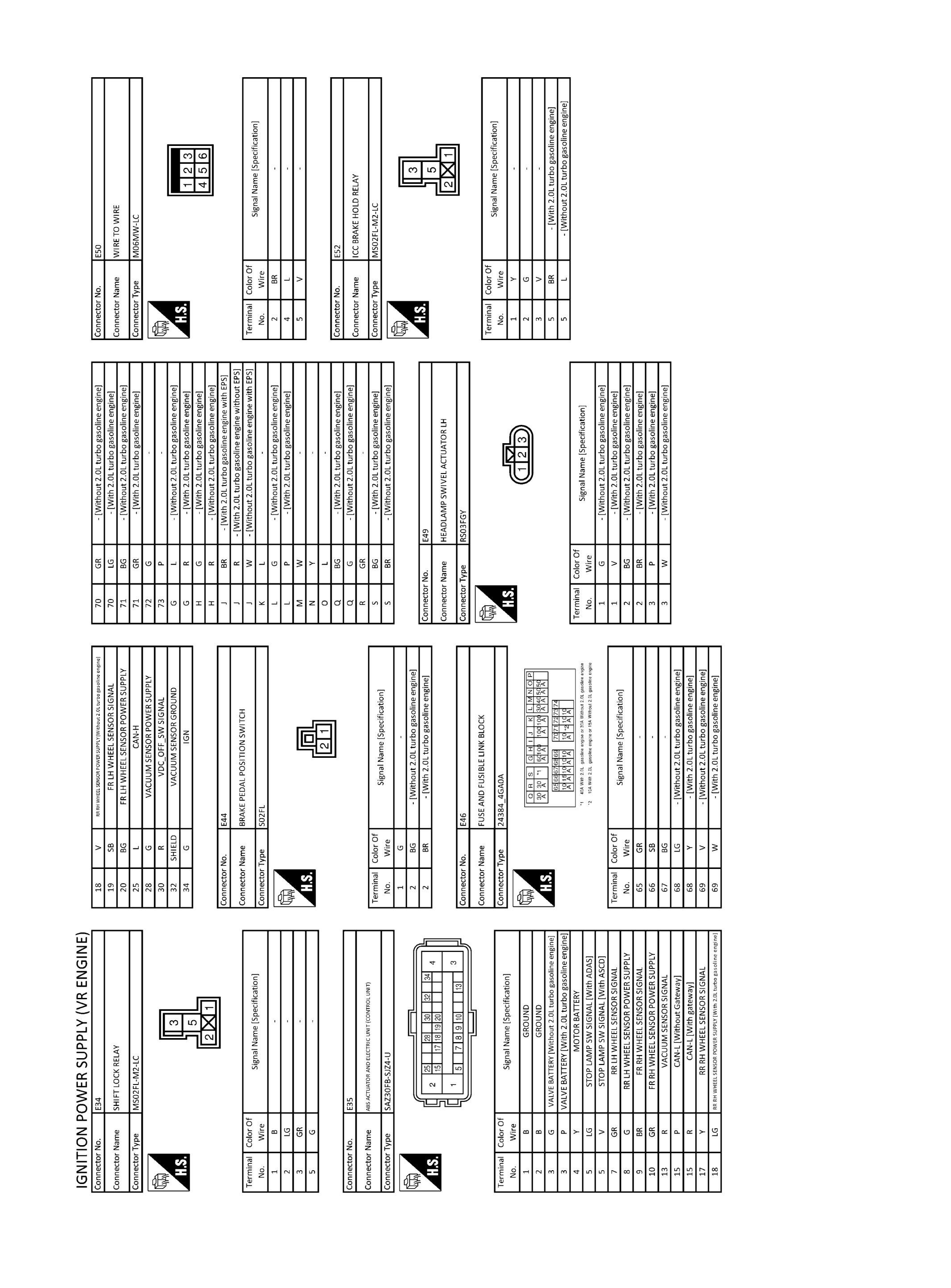

GNSJRMWJ1869GB-869

Courtesy of NISSAN NORTH AMERICA, INC.

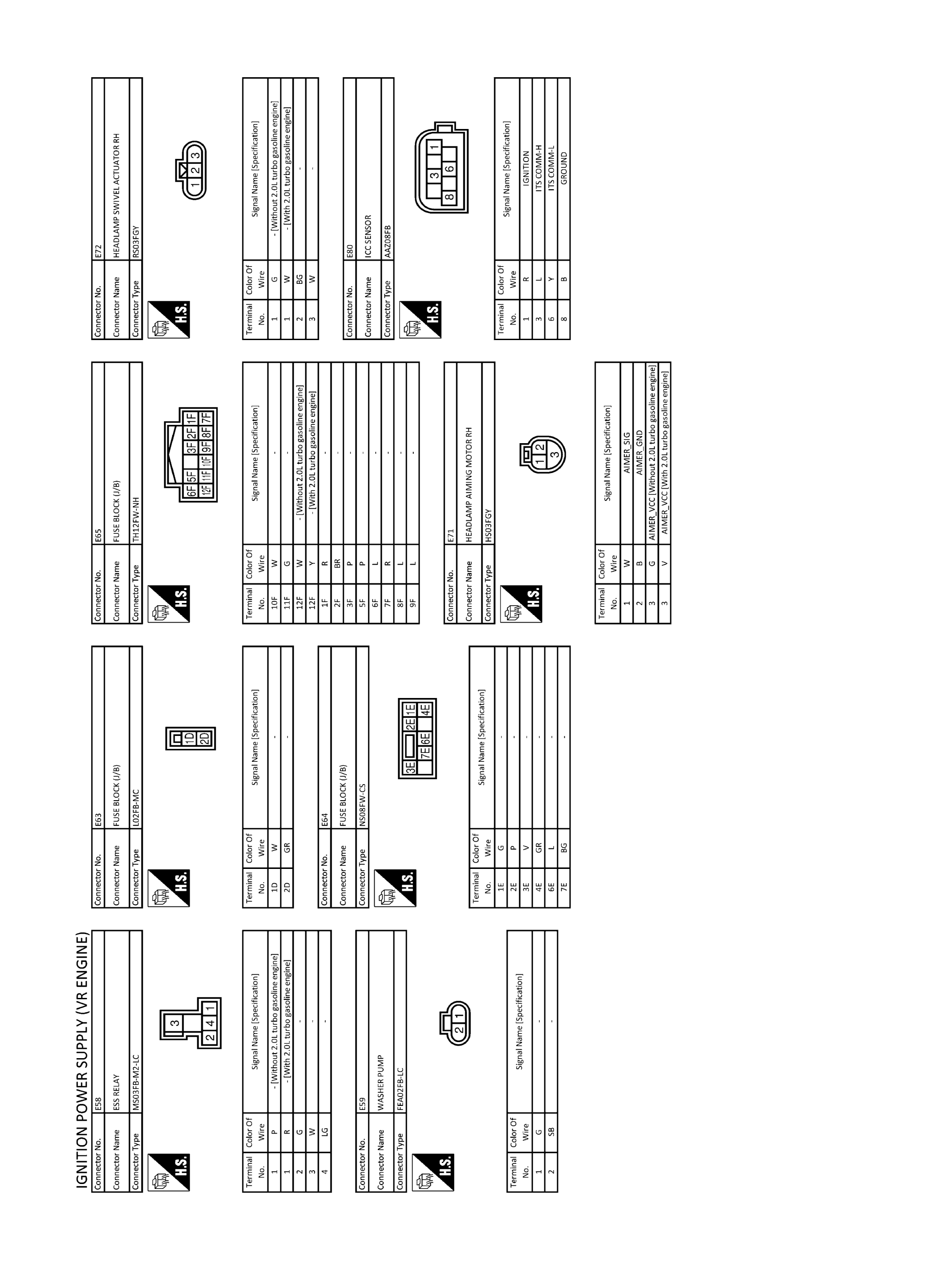

GNSJRMWJ1870GB-870

Courtesy of NISSAN NORTH AMERICA, INC.

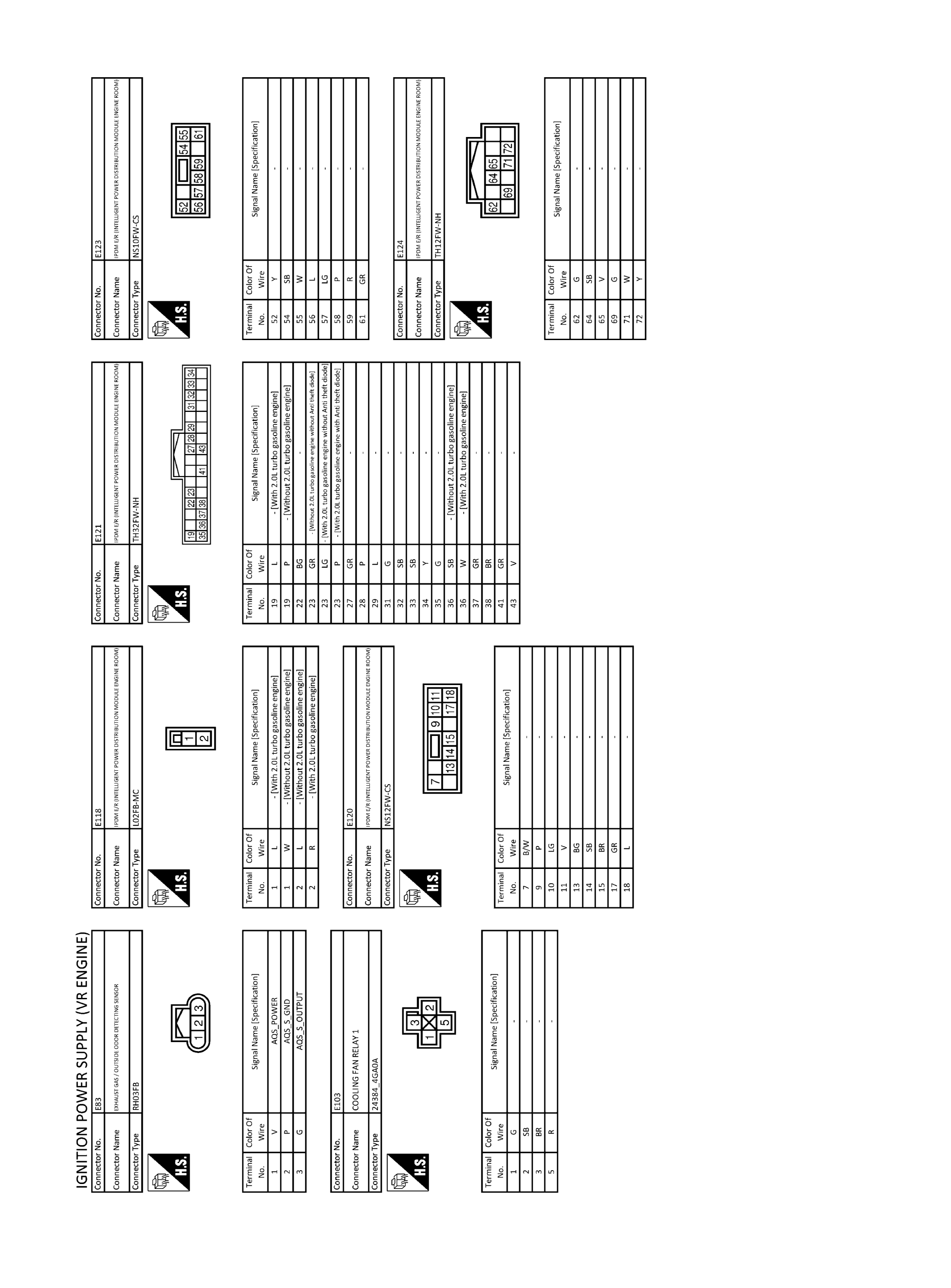

GNSJRMWJ1871GB-871

Courtesy of NISSAN NORTH AMERICA, INC.

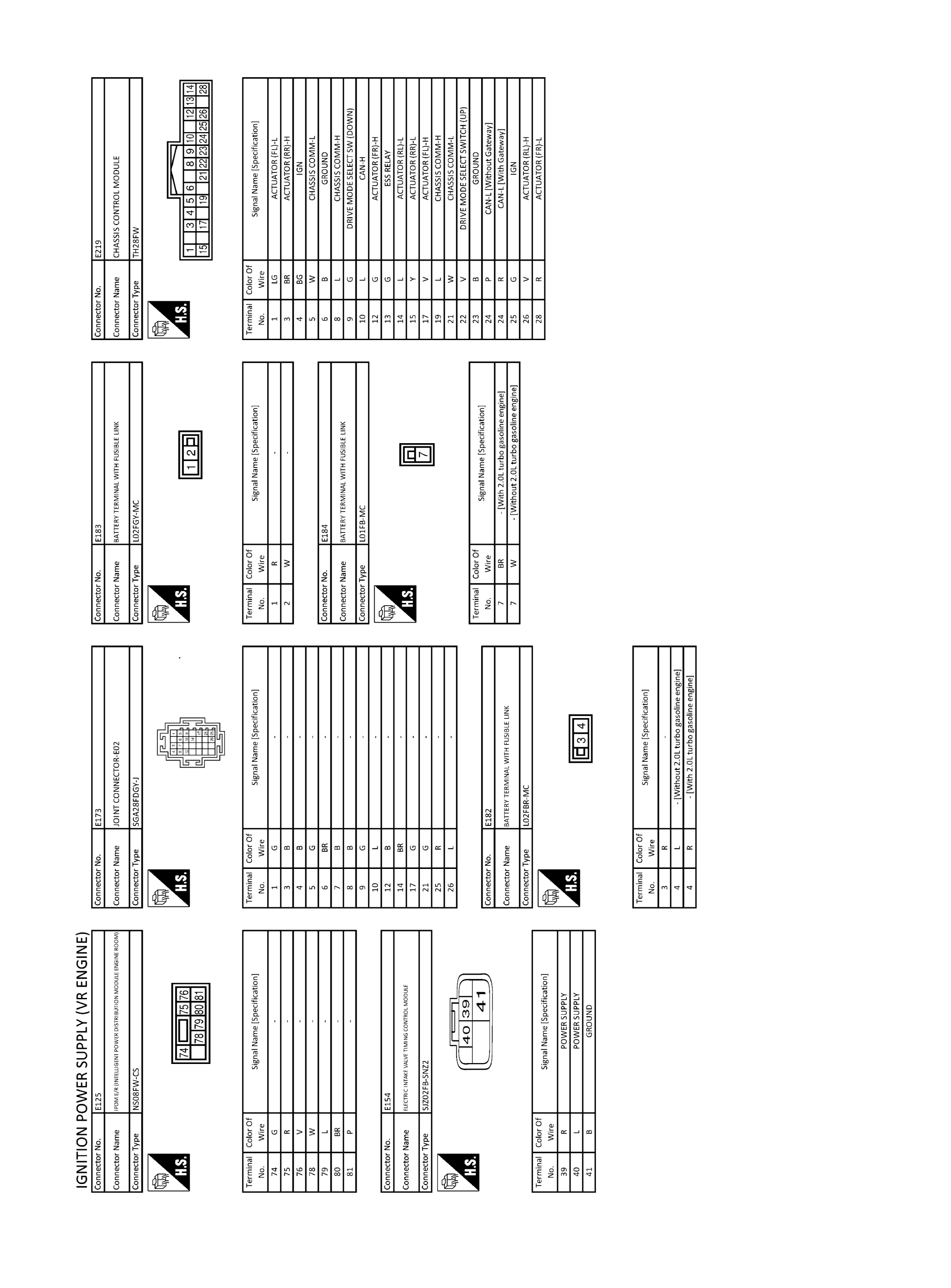

GNSJRMWJ1872GB-872

Courtesy of NISSAN NORTH AMERICA, INC.

GNSJRMWJ1873GB-873

Courtesy of NISSAN NORTH AMERICA, INC.

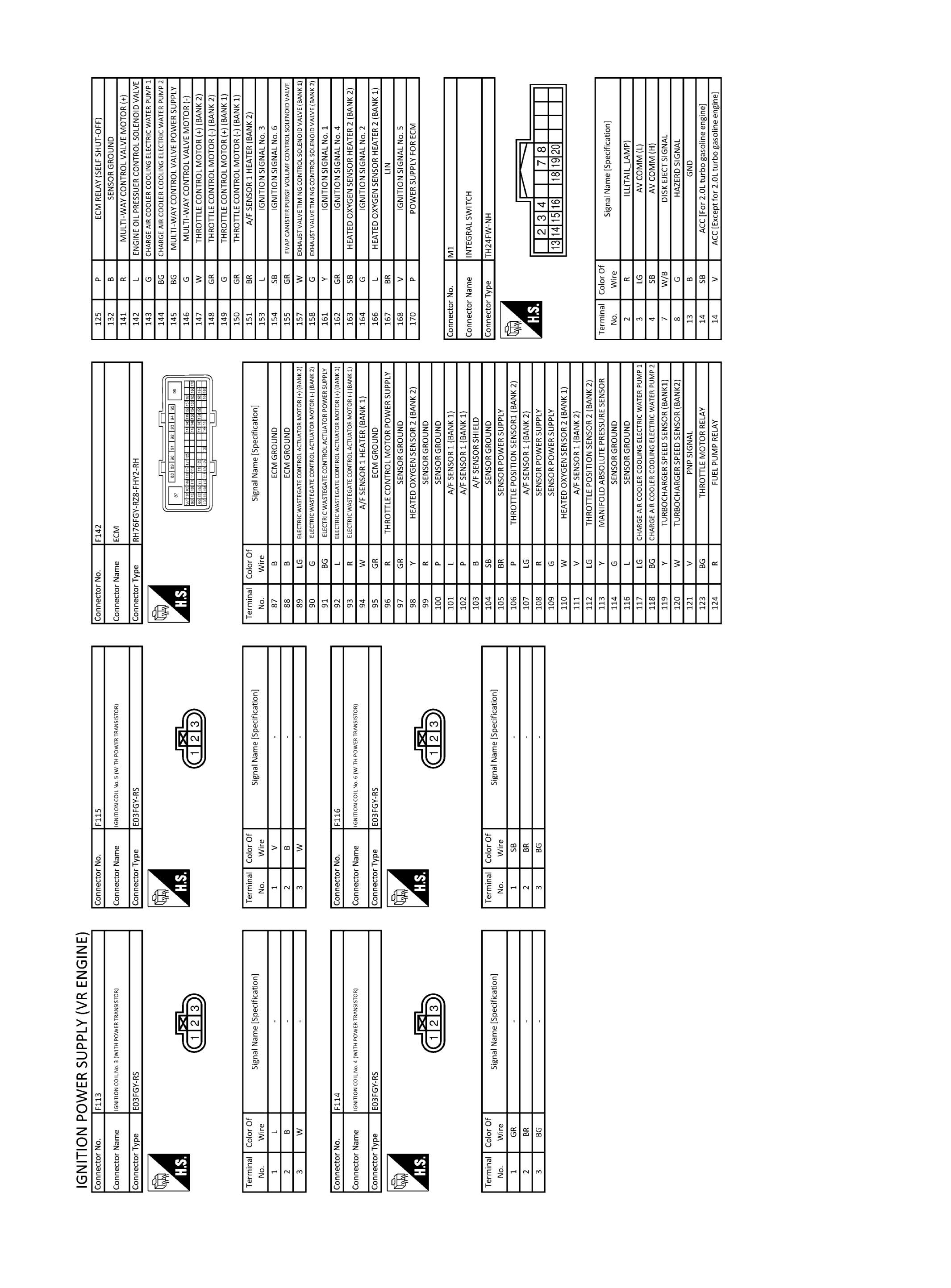

GNSJRMWJ1874GB-874

Courtesy of NISSAN NORTH AMERICA, INC.

GNSJRMWJ1875GB-875

Courtesy of NISSAN NORTH AMERICA, INC.

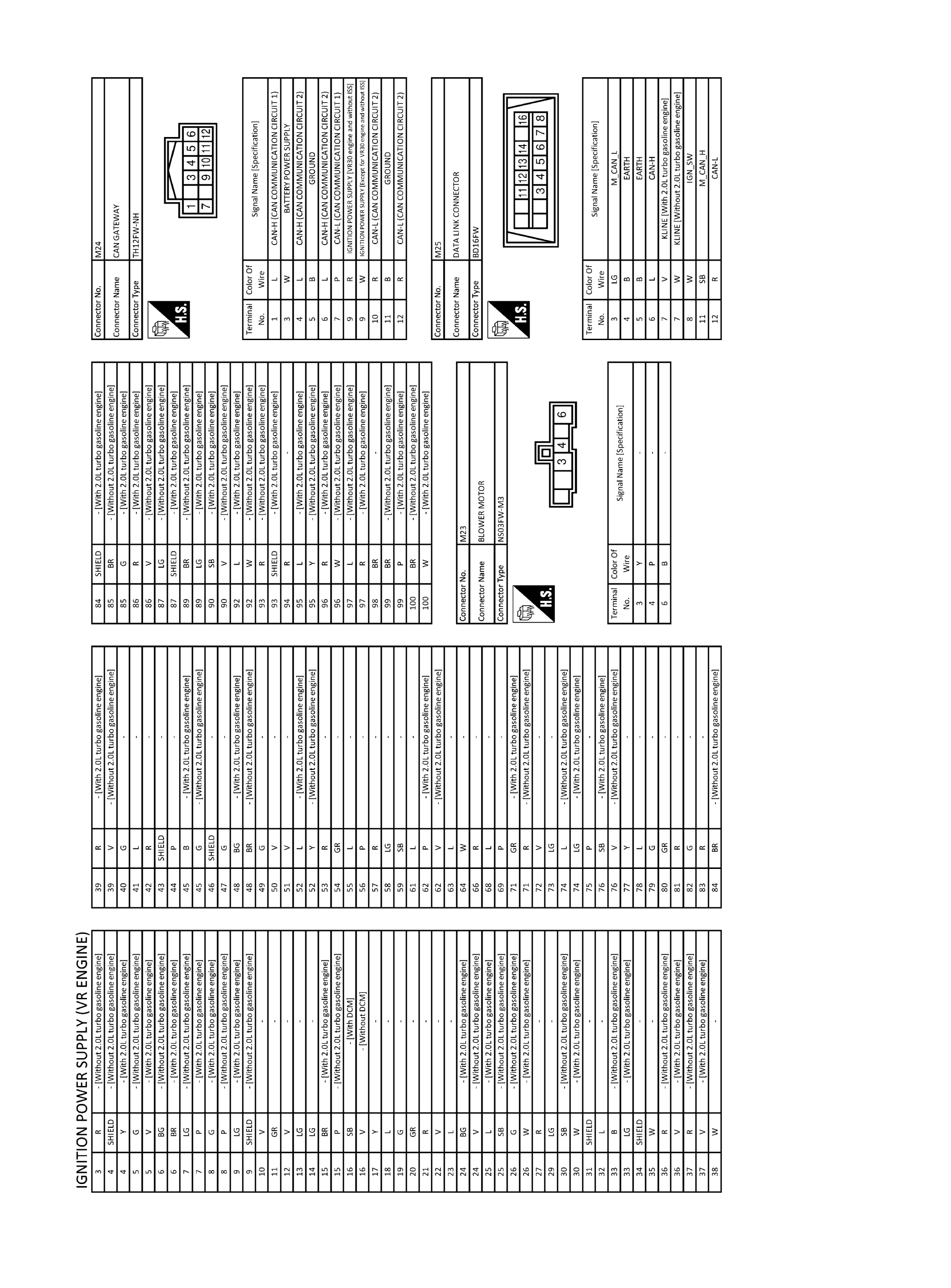

GNSJRMWJ1876GB-876

Courtesy of NISSAN NORTH AMERICA, INC.

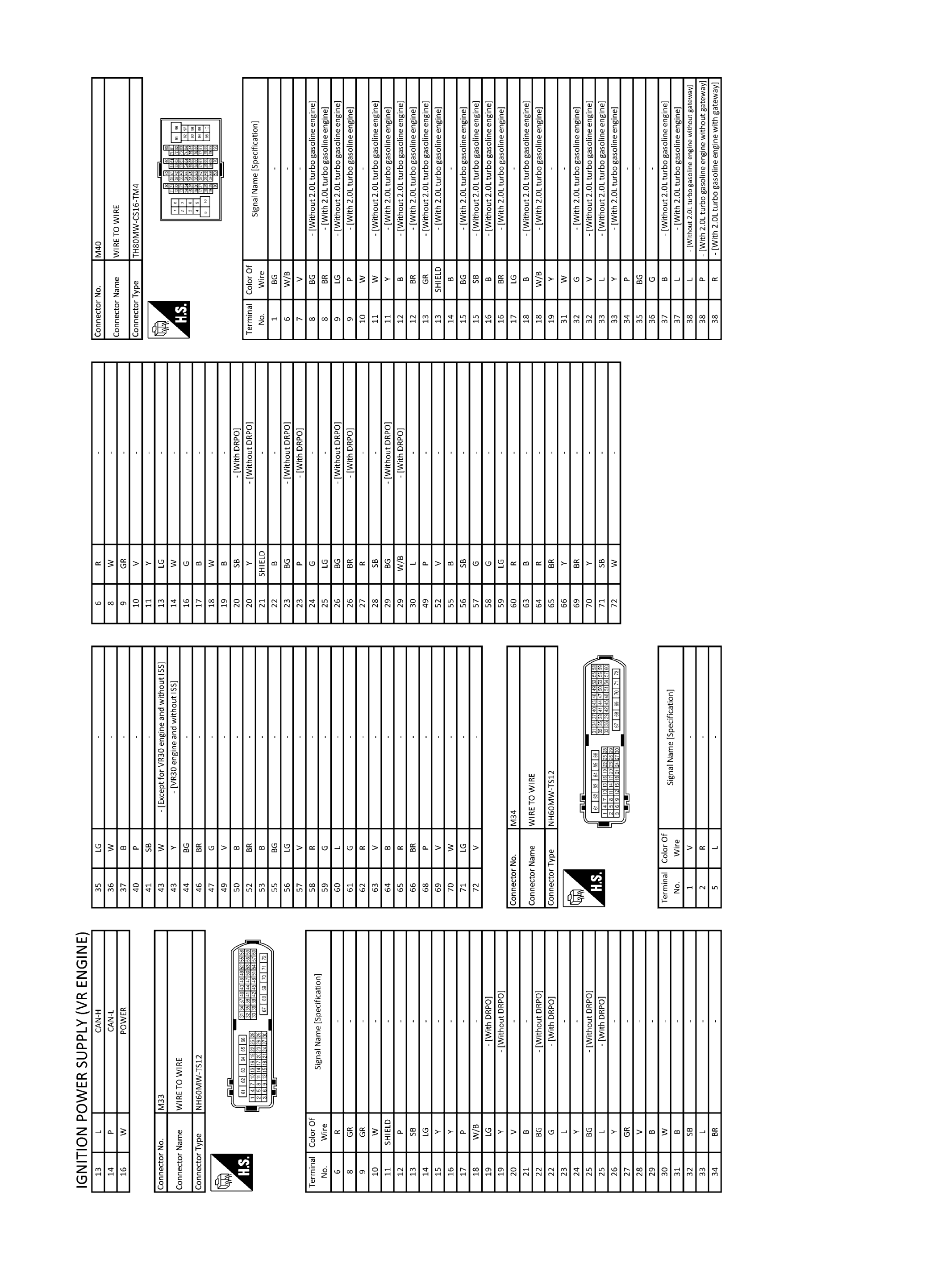

GNSJRMWJ1877GB-877

Courtesy of NISSAN NORTH AMERICA, INC.

GNSJRMWJ1878GB-878

Courtesy of NISSAN NORTH AMERICA, INC.

GNSJRMWJ1879GB-879

Courtesy of NISSAN NORTH AMERICA, INC.

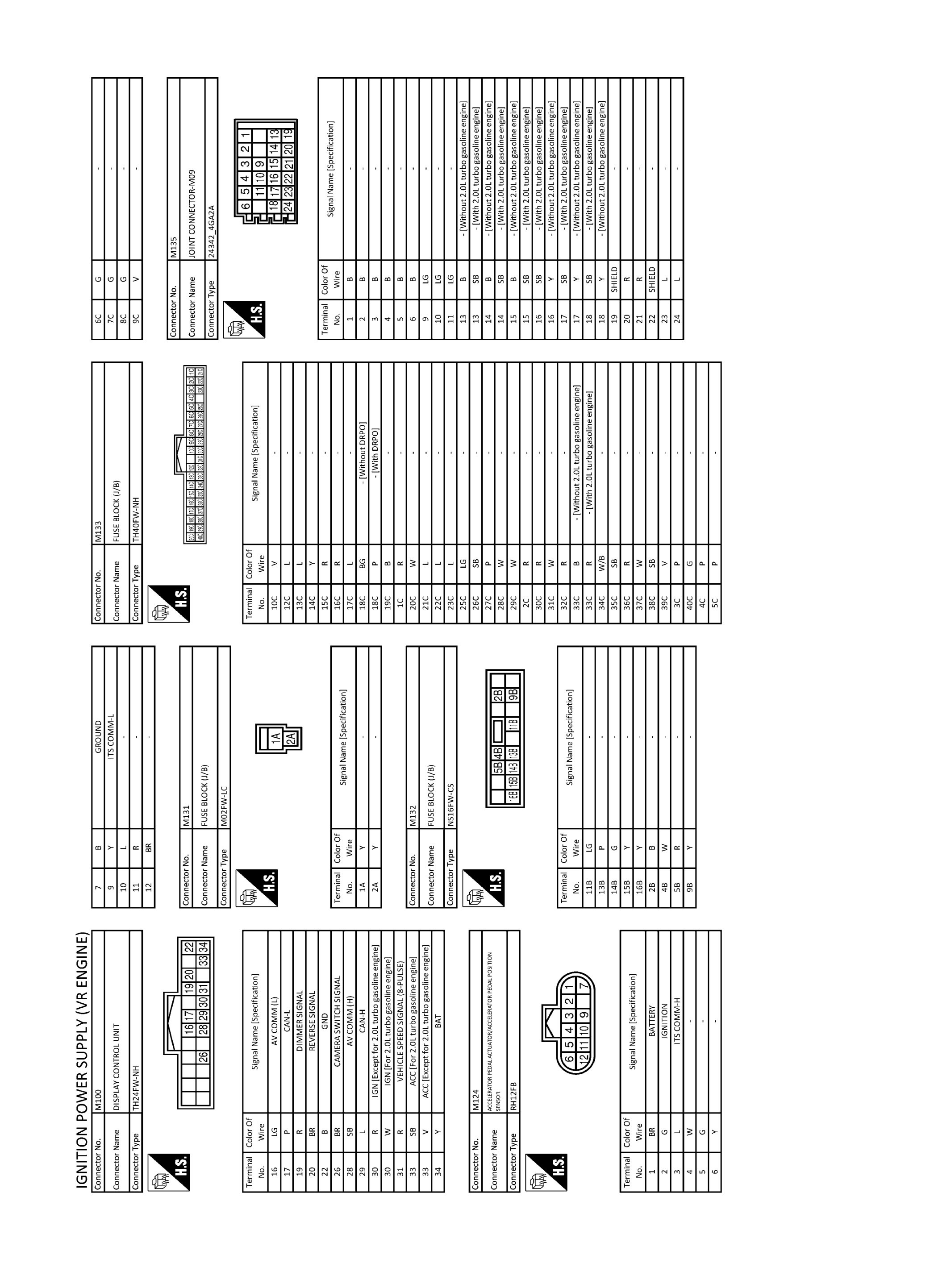

GNSJRMWJ1880GB-880

Courtesy of NISSAN NORTH AMERICA, INC.

GNSJRMWJ1881GB-881

Courtesy of NISSAN NORTH AMERICA, INC.

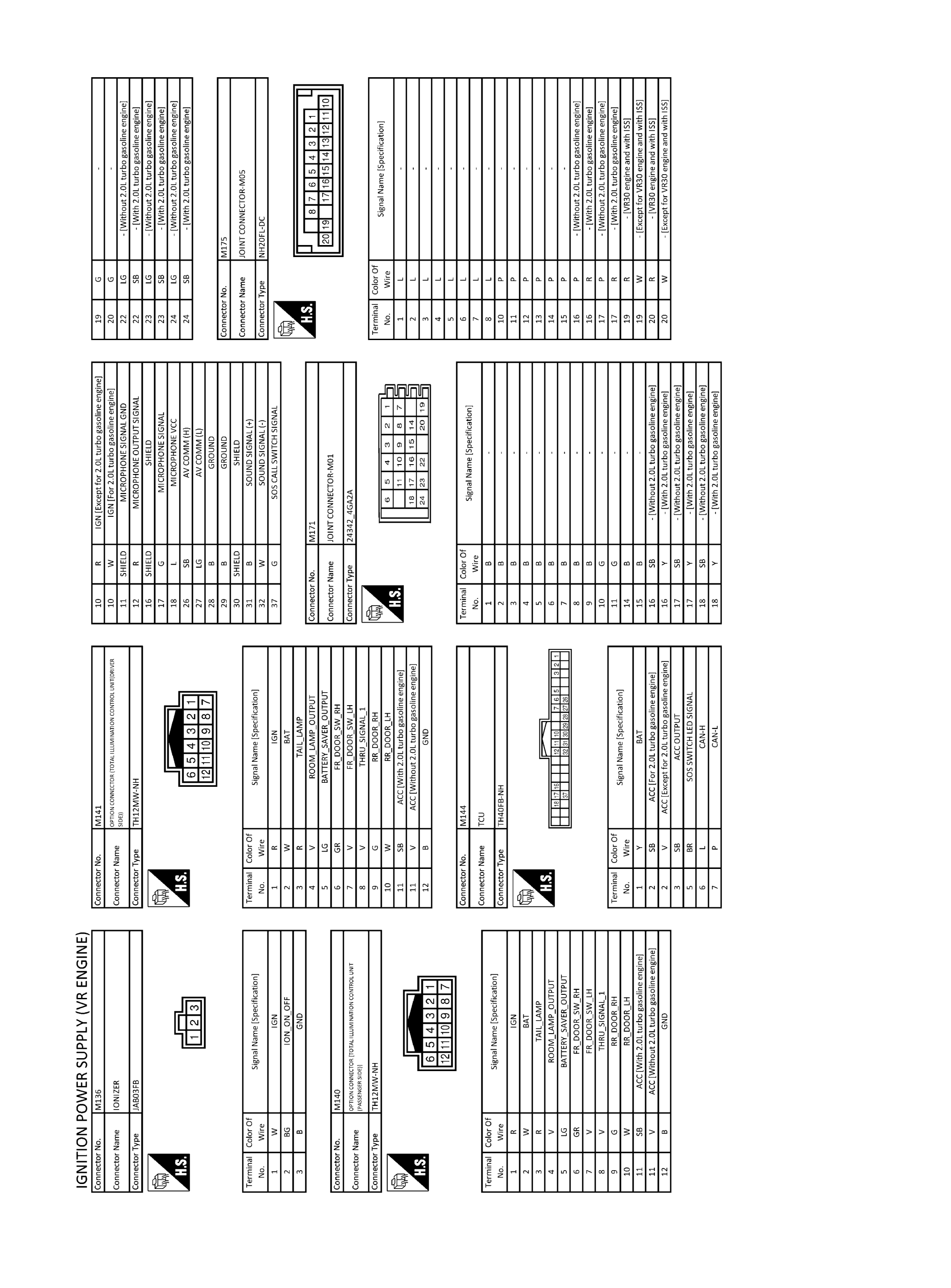

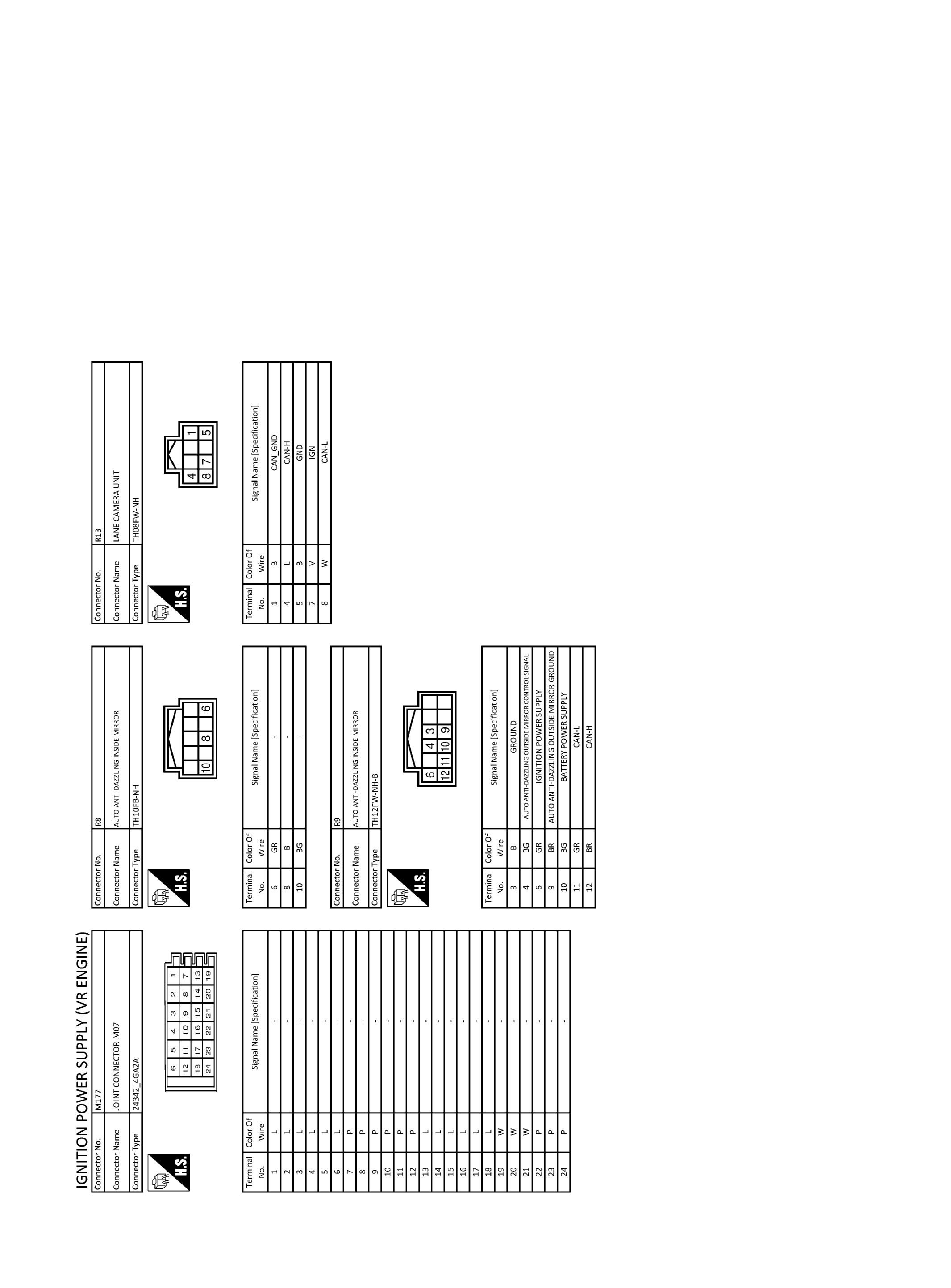

GNSJRMWJ1882GB-882

Courtesy of NISSAN NORTH AMERICA, INC.
