Wiring Diagram - Accessory Power Supply -

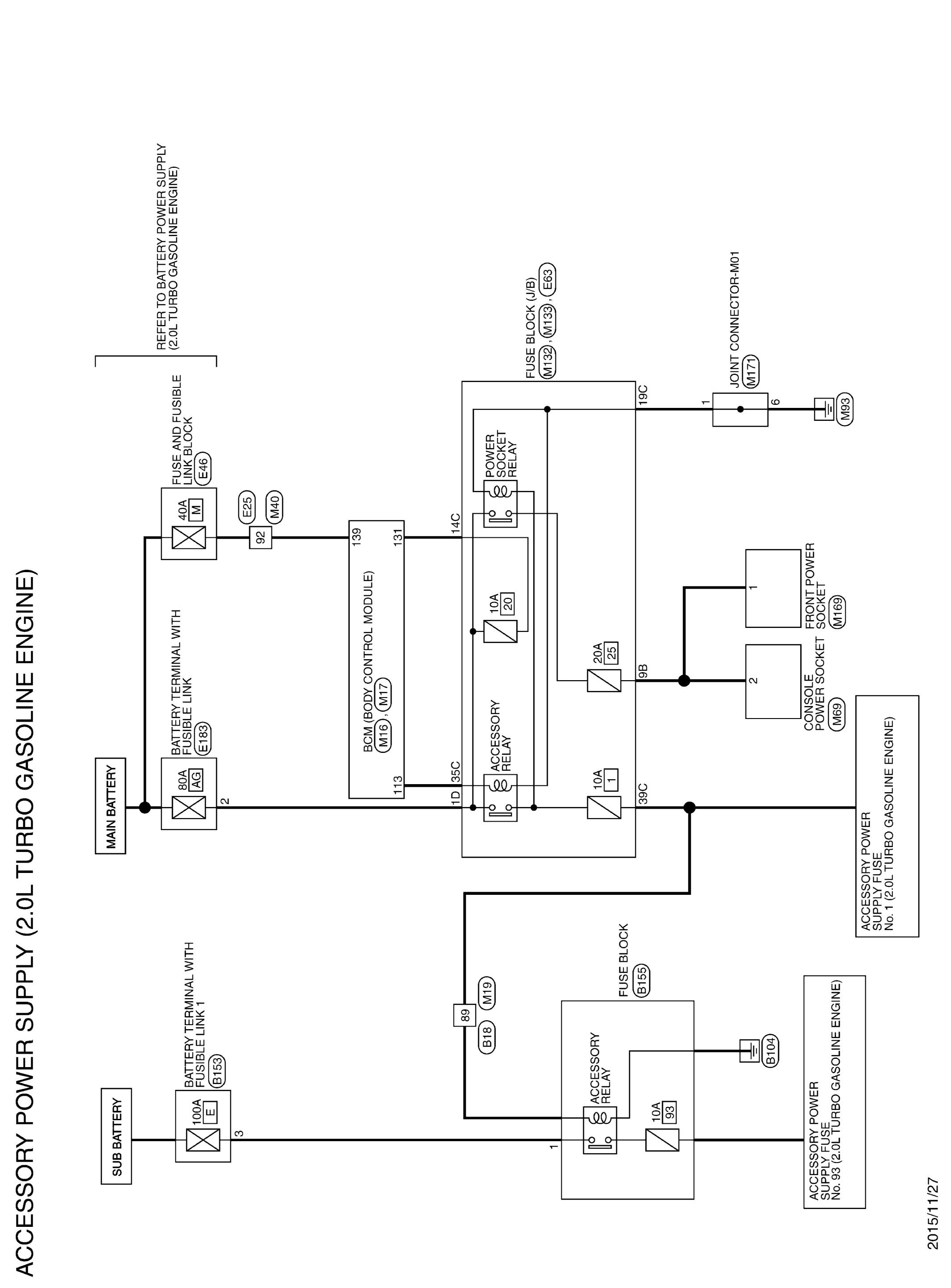

GNSJRMWJ1851GB-851Courtesy of NISSAN NORTH AMERICA, INC.

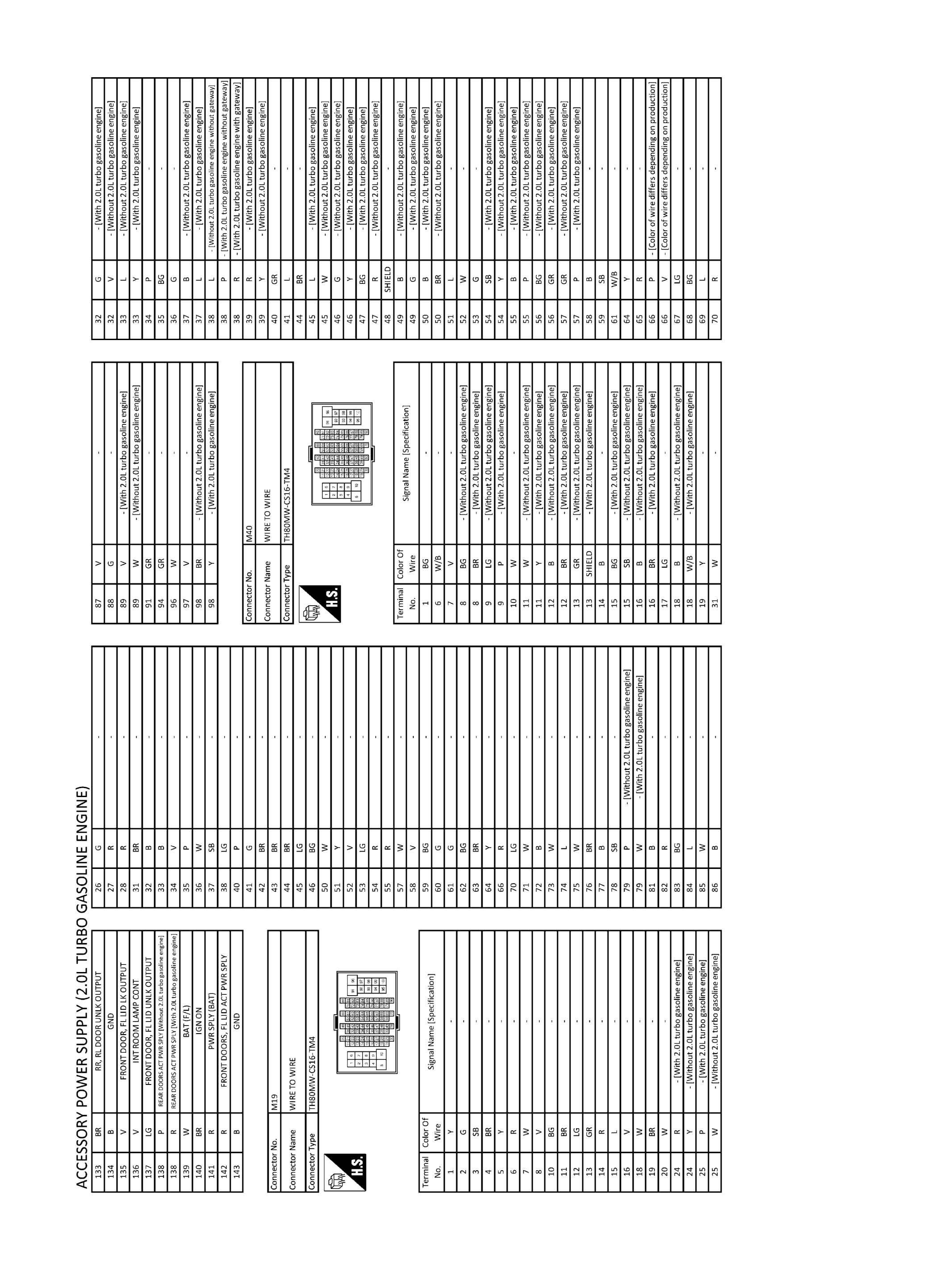

GNSJRMWJ1852GB-852Courtesy of NISSAN NORTH AMERICA, INC.

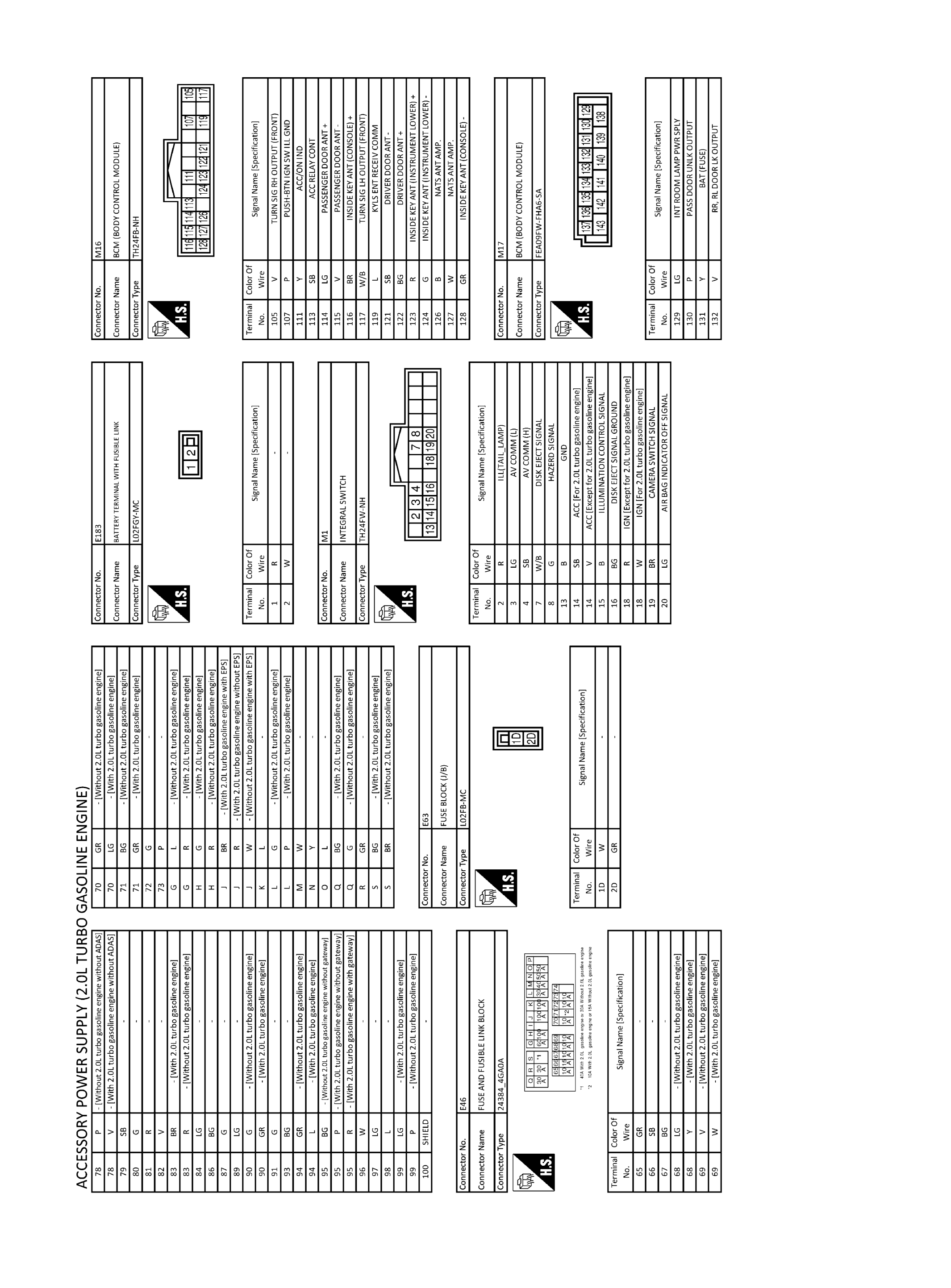

GNSJRMWJ1853GB-853Courtesy of NISSAN NORTH AMERICA, INC.

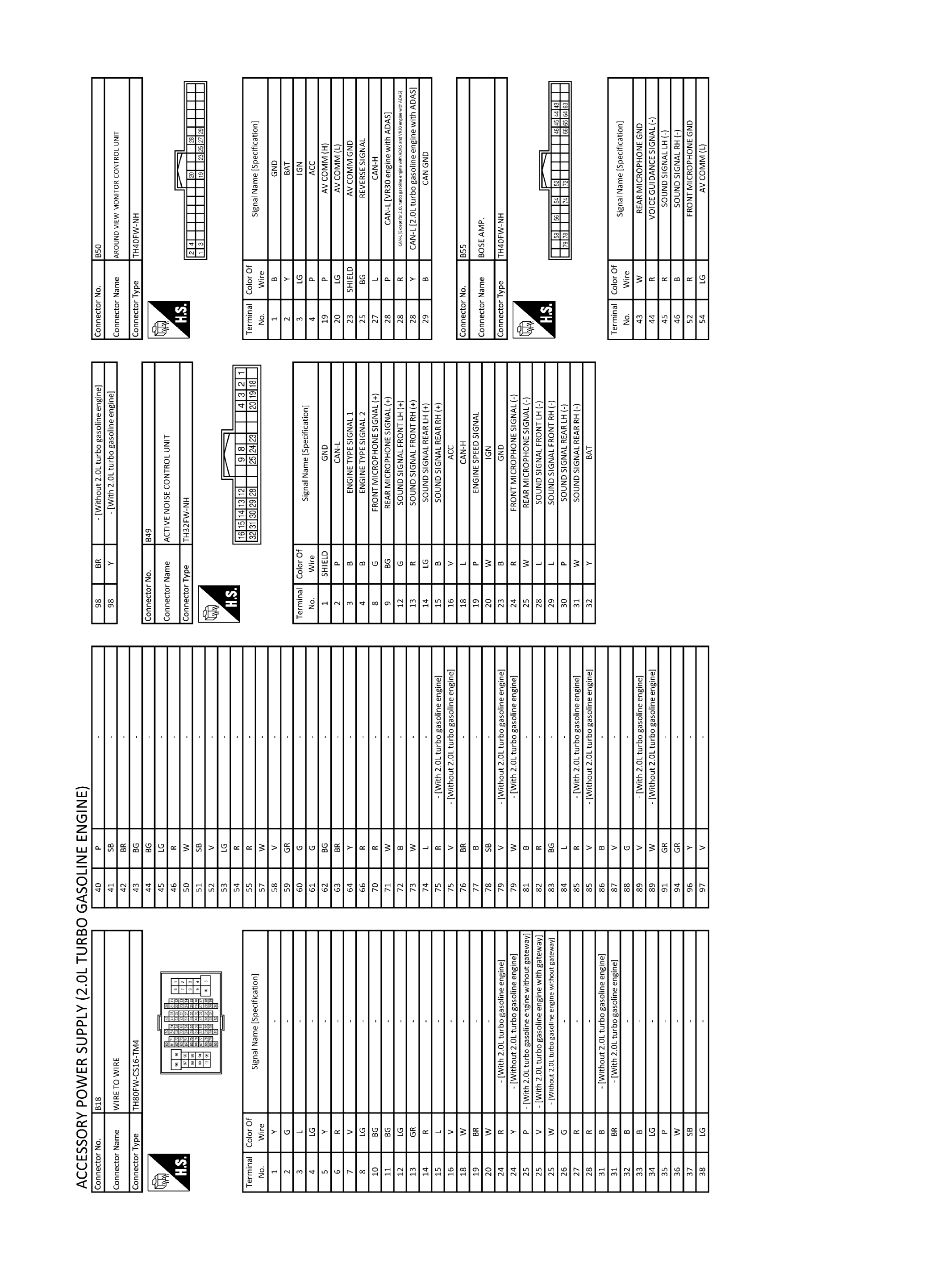

GNSJRMWJ1854GB-854Courtesy of NISSAN NORTH AMERICA, INC.

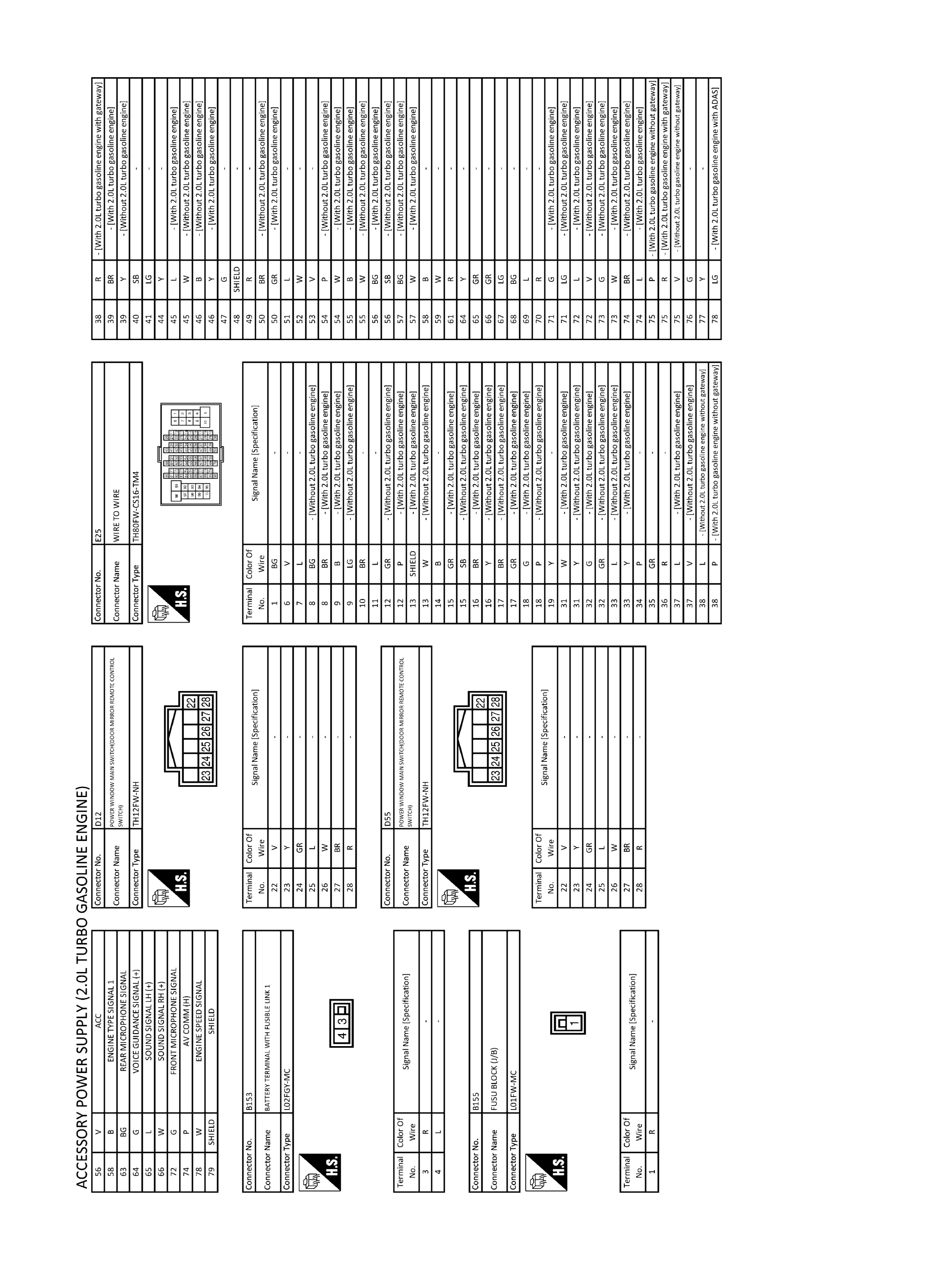

GNSJRMWJ1855GB-855Courtesy of NISSAN NORTH AMERICA, INC.

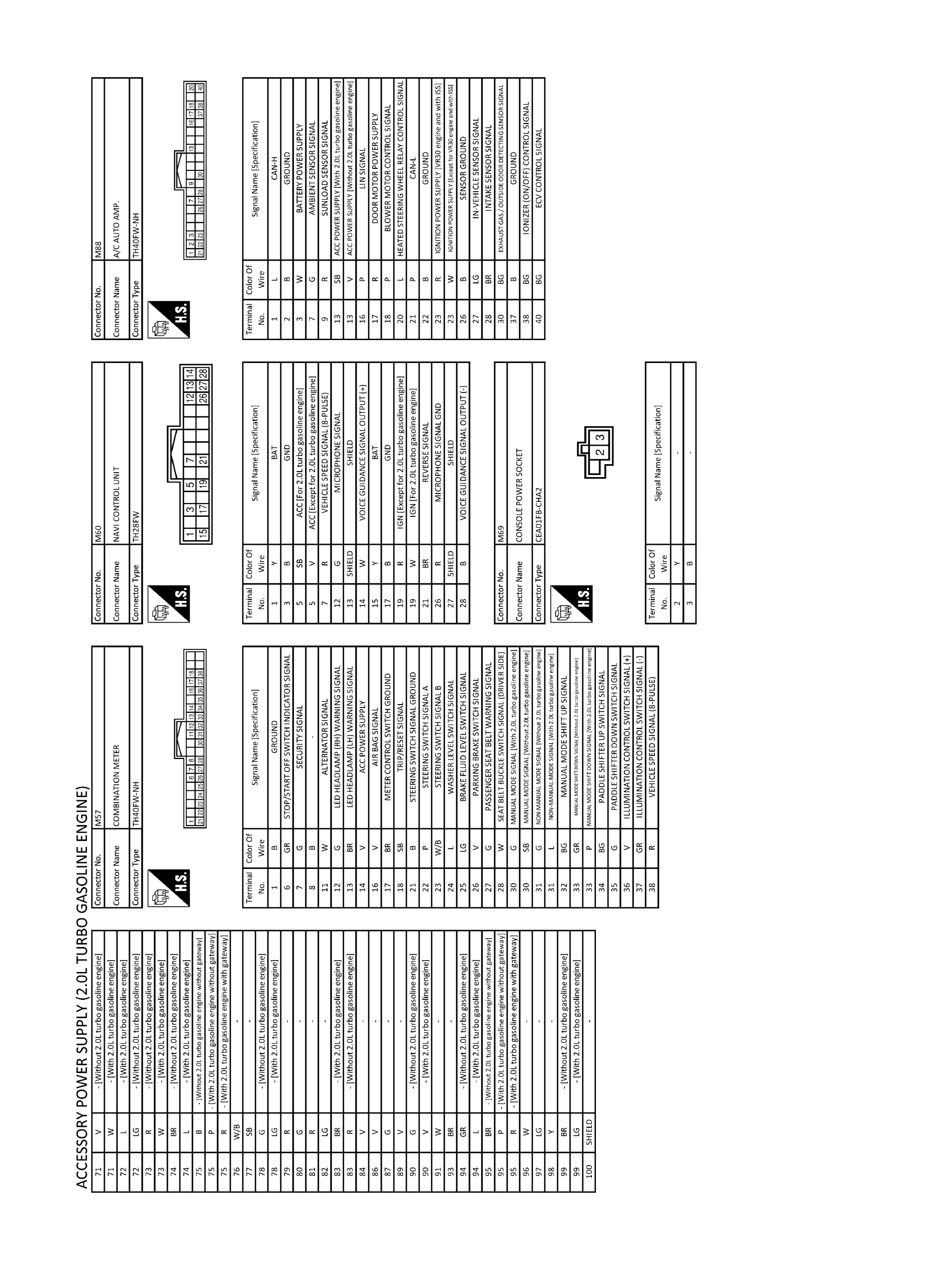

GNSJRMWJ1856GB-856Courtesy of NISSAN NORTH AMERICA, INC.

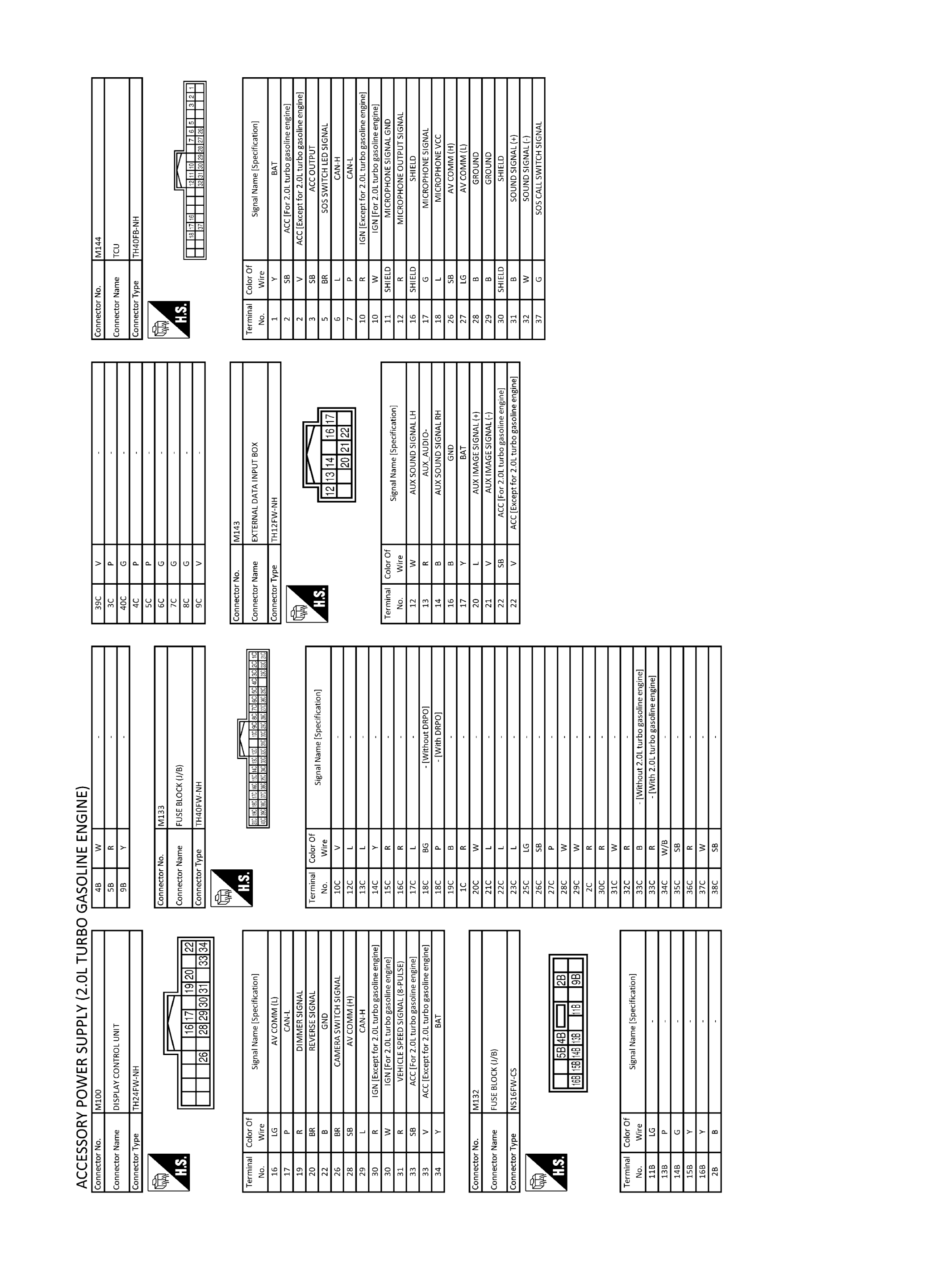

GNSJRMWJ1857GB-857Courtesy of NISSAN NORTH AMERICA, INC.

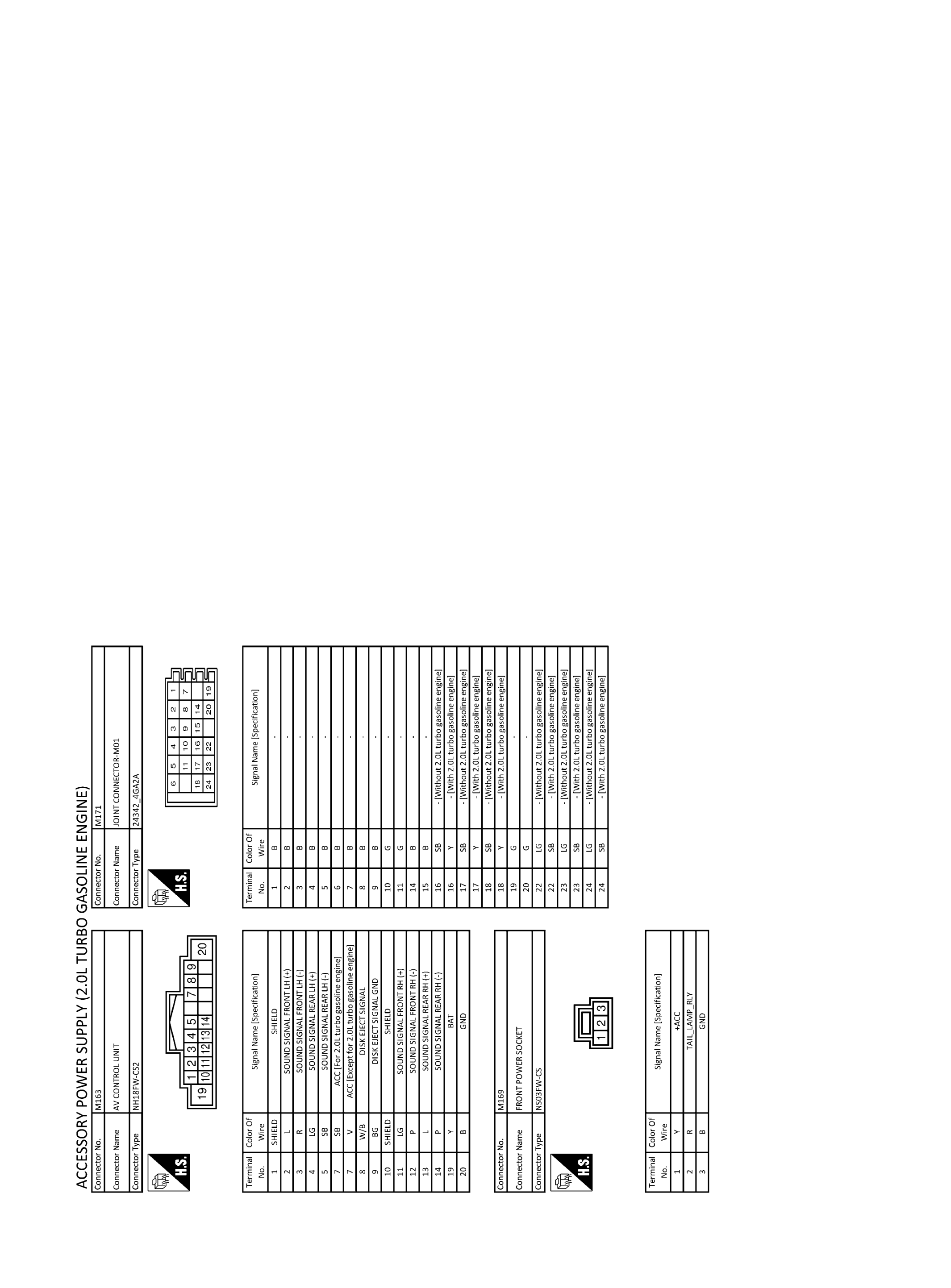

GNSJRMWJ1858GB-858Courtesy of NISSAN NORTH AMERICA, INC.
