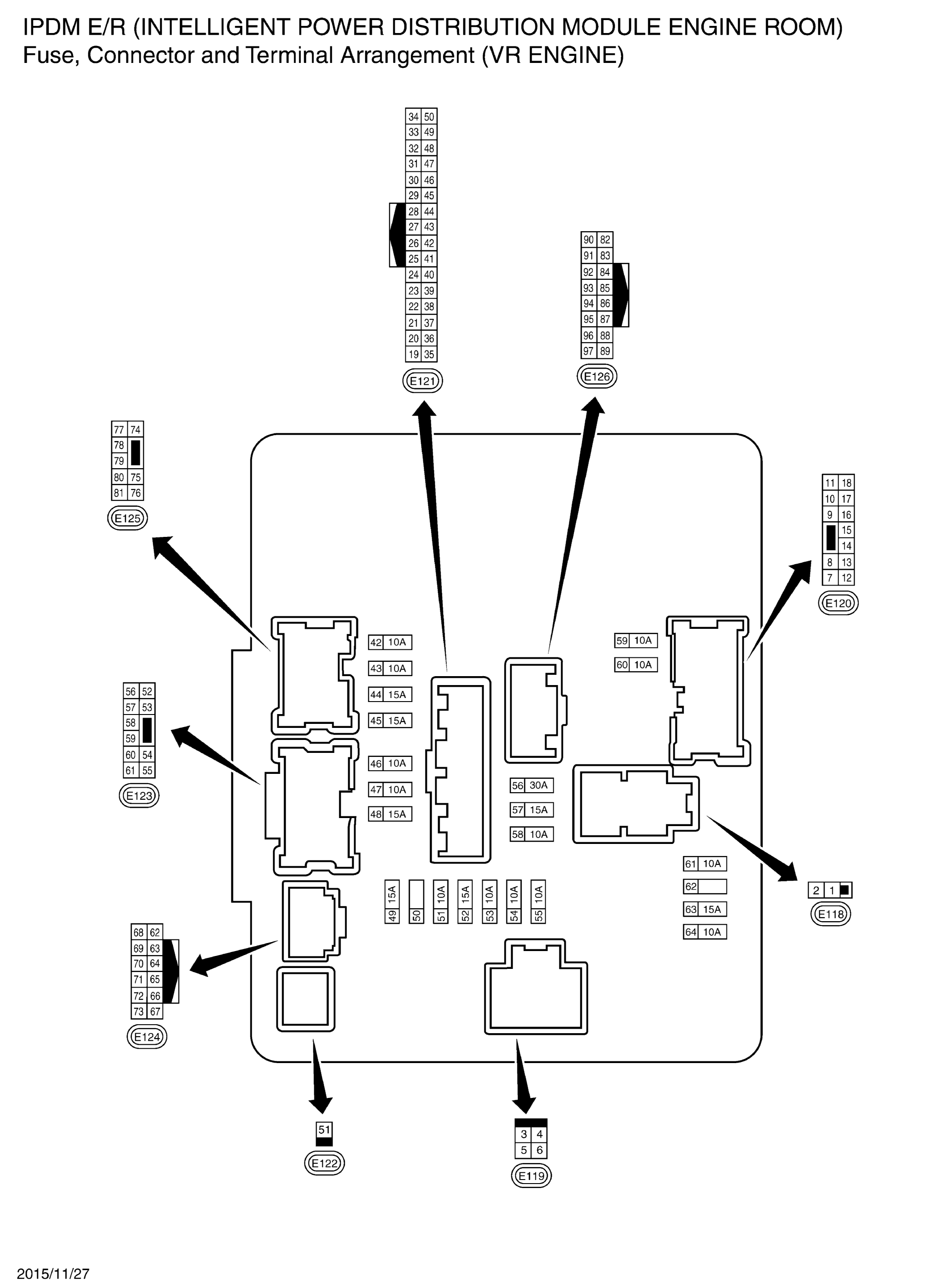

Fuse, Connector And Terminal Arrangement: VR30DDTT

GNSJRMWJ1925GB-925

Courtesy of NISSAN NORTH AMERICA, INC.
