Infiniti
>>
2016
>>
Q50 Base, RWD
>>
Repair and Diagnosis
>>
Electrical
>>
Motors, Switches, Relays
>>
Power Supply, Ground & Circuit Elements (Except Hybrid)
>>
Wiring Diagram
>>

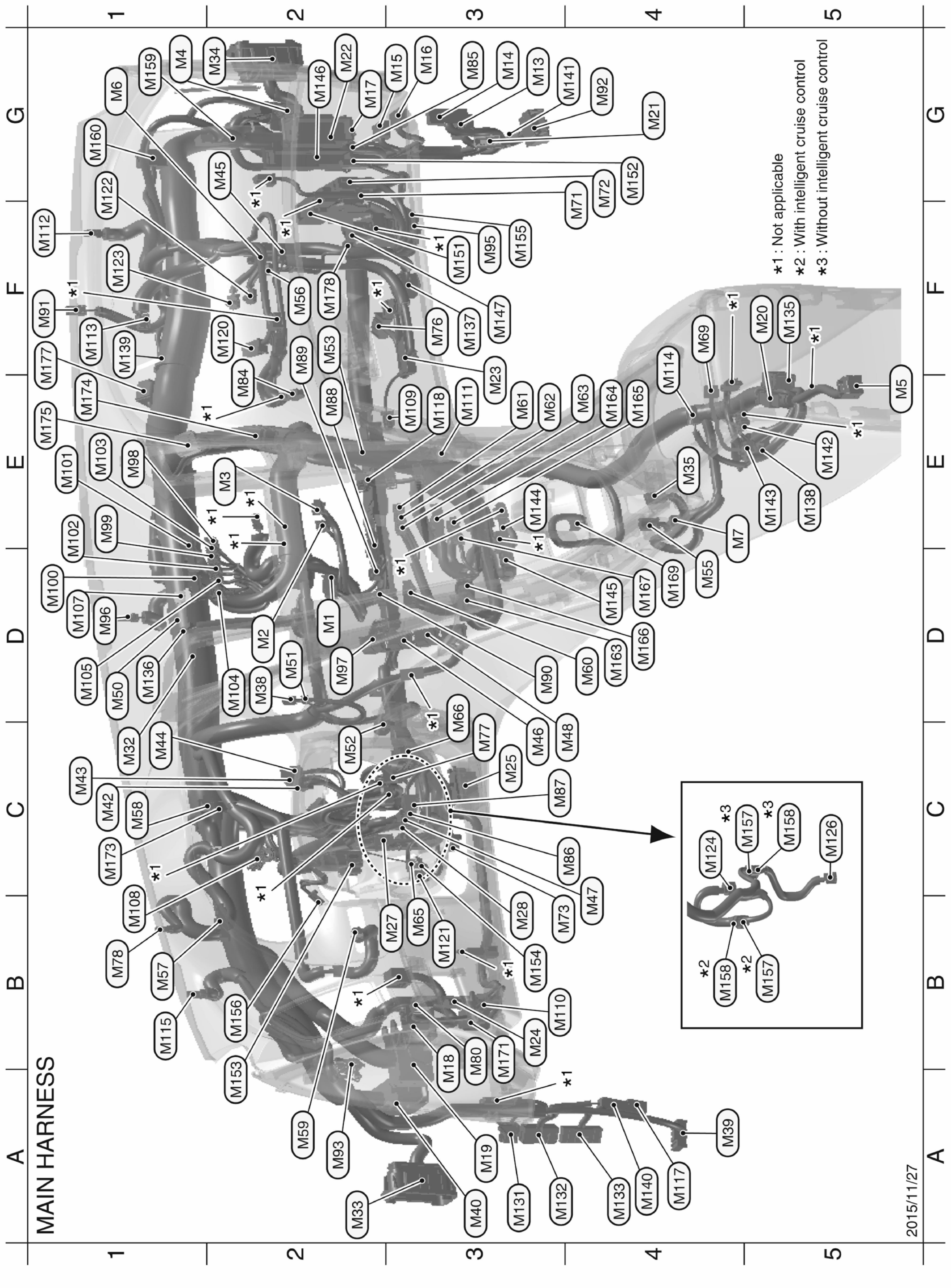

Harness Layout
>>

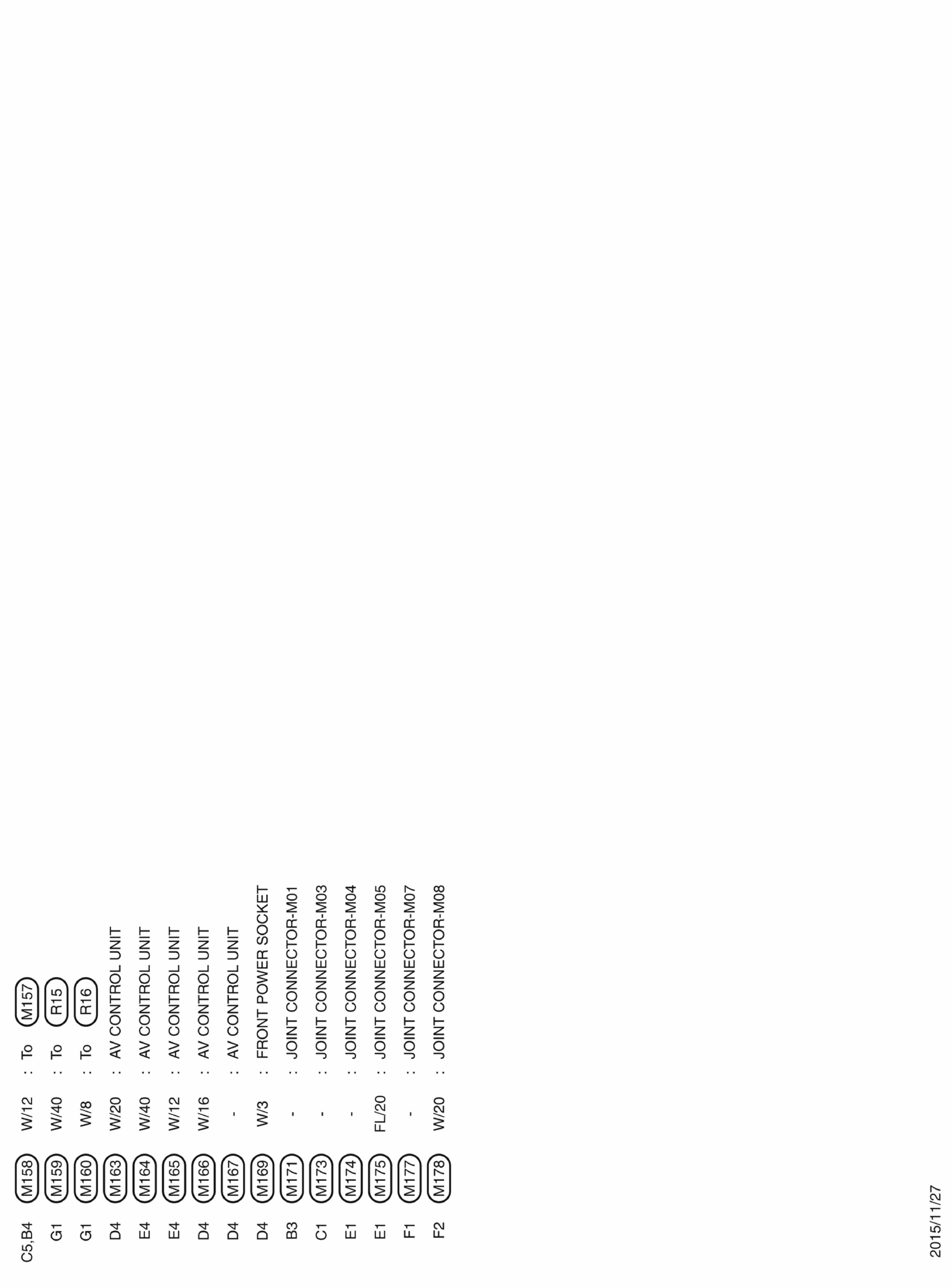

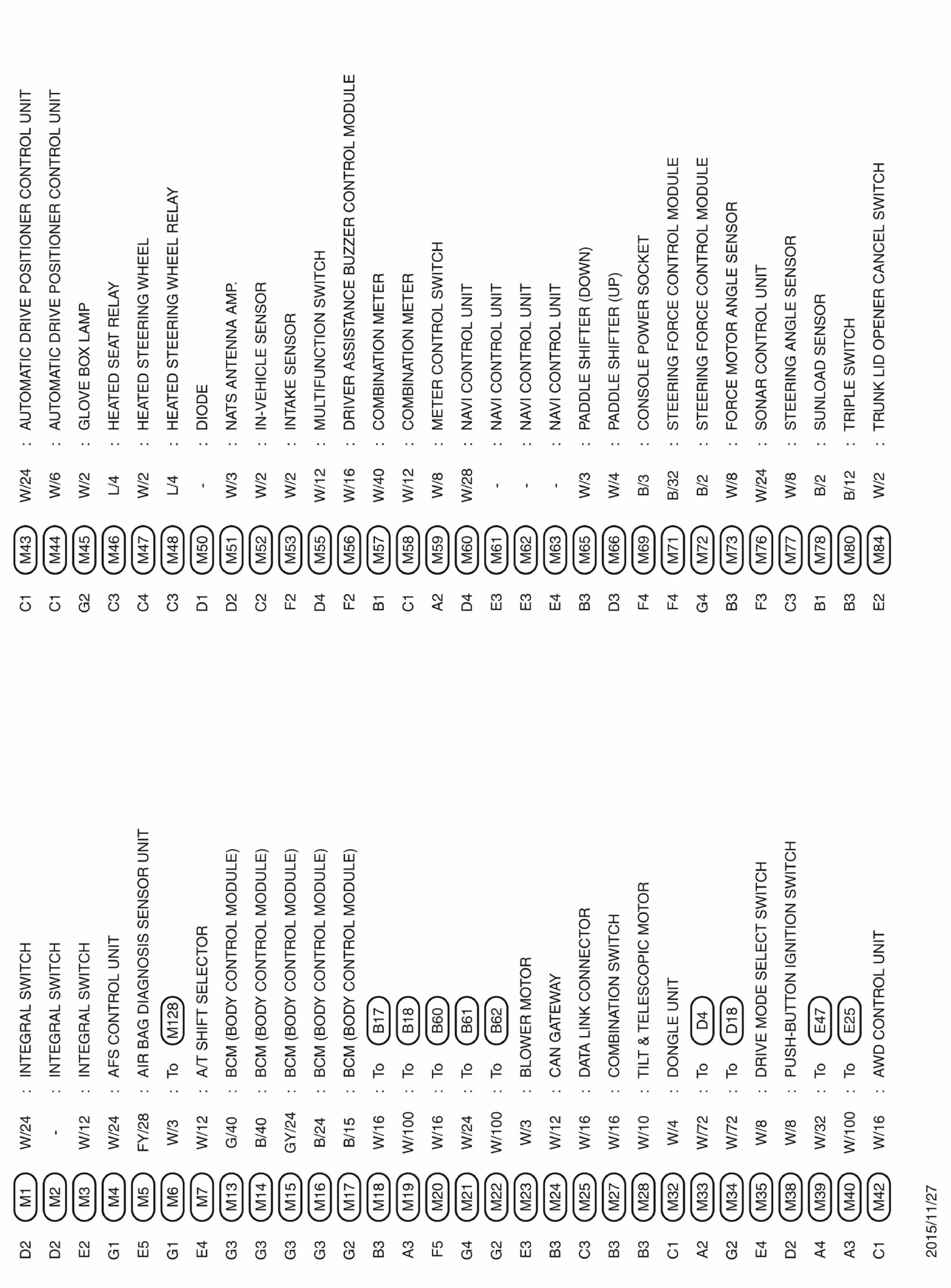

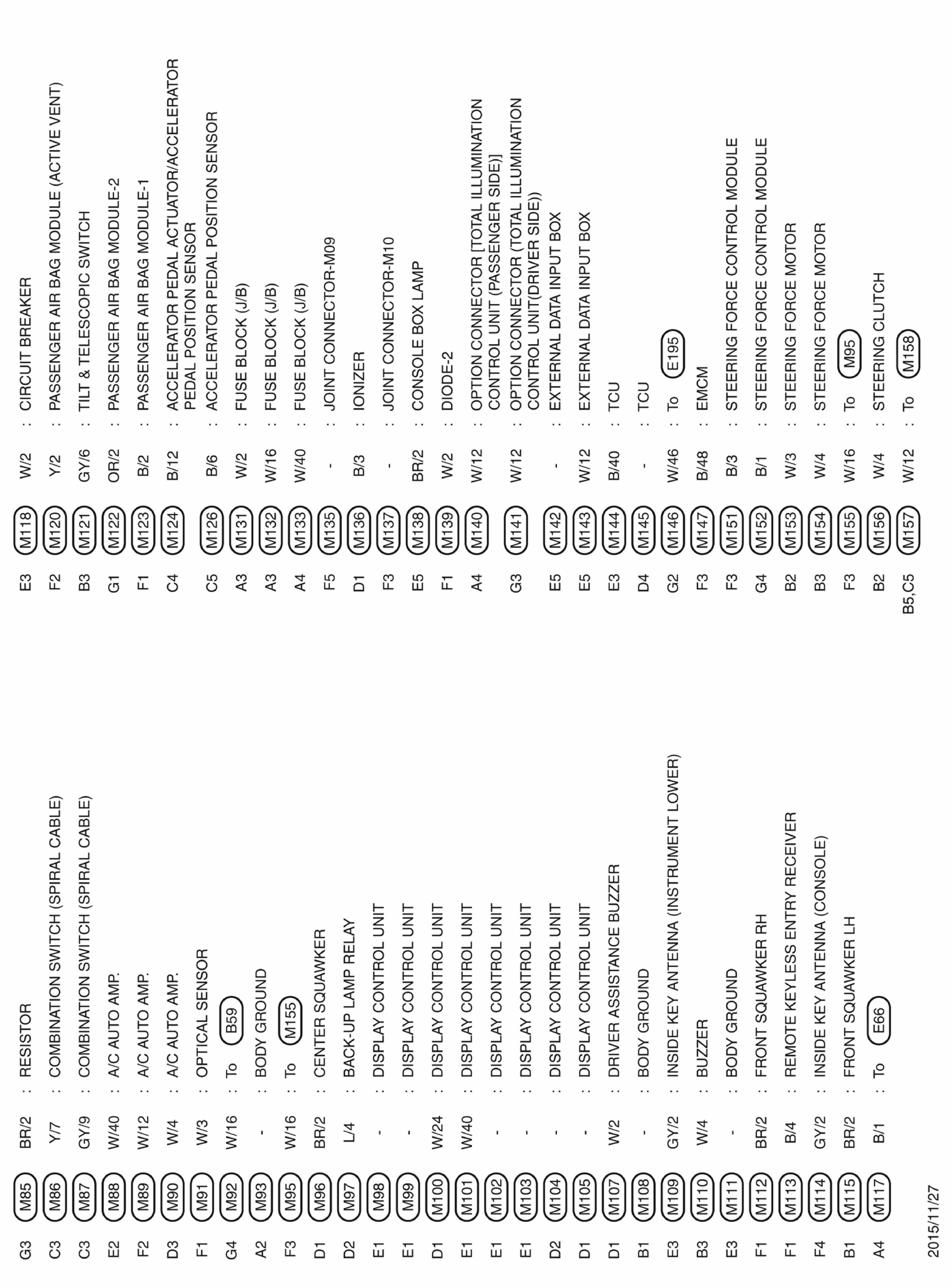

Main Harness
Main Harness
Courtesy of NISSAN NORTH AMERICA, INC.
