Infiniti
>>
2016
>>
Q50 Base, RWD
>>
Repair and Diagnosis
>>
Electrical
>>
Motors, Switches, Relays
>>
Power Supply, Ground & Circuit Elements (Except Hybrid)
>>
Wiring Diagram
>>
Ground Distribution
>>
Main Harness

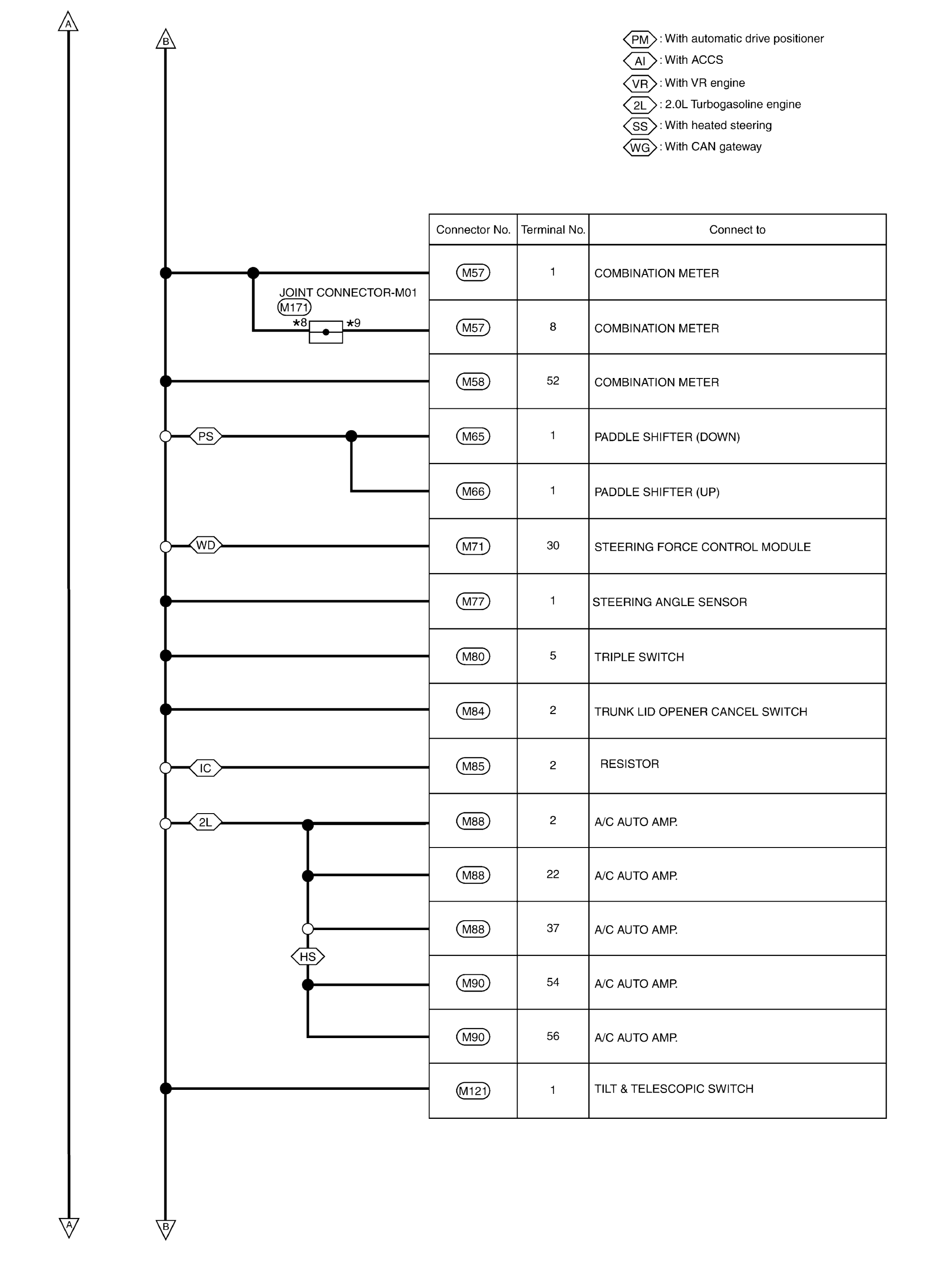

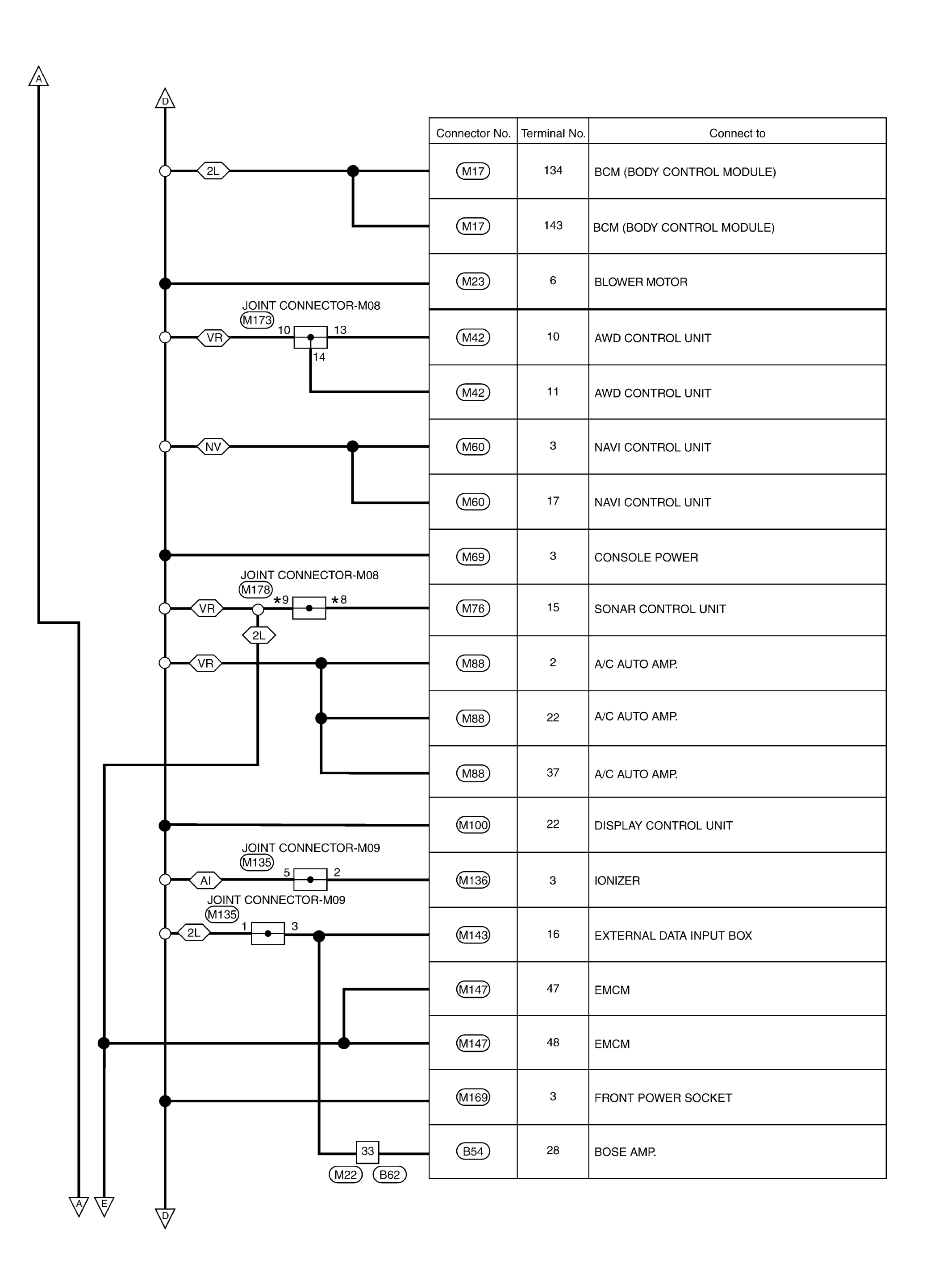

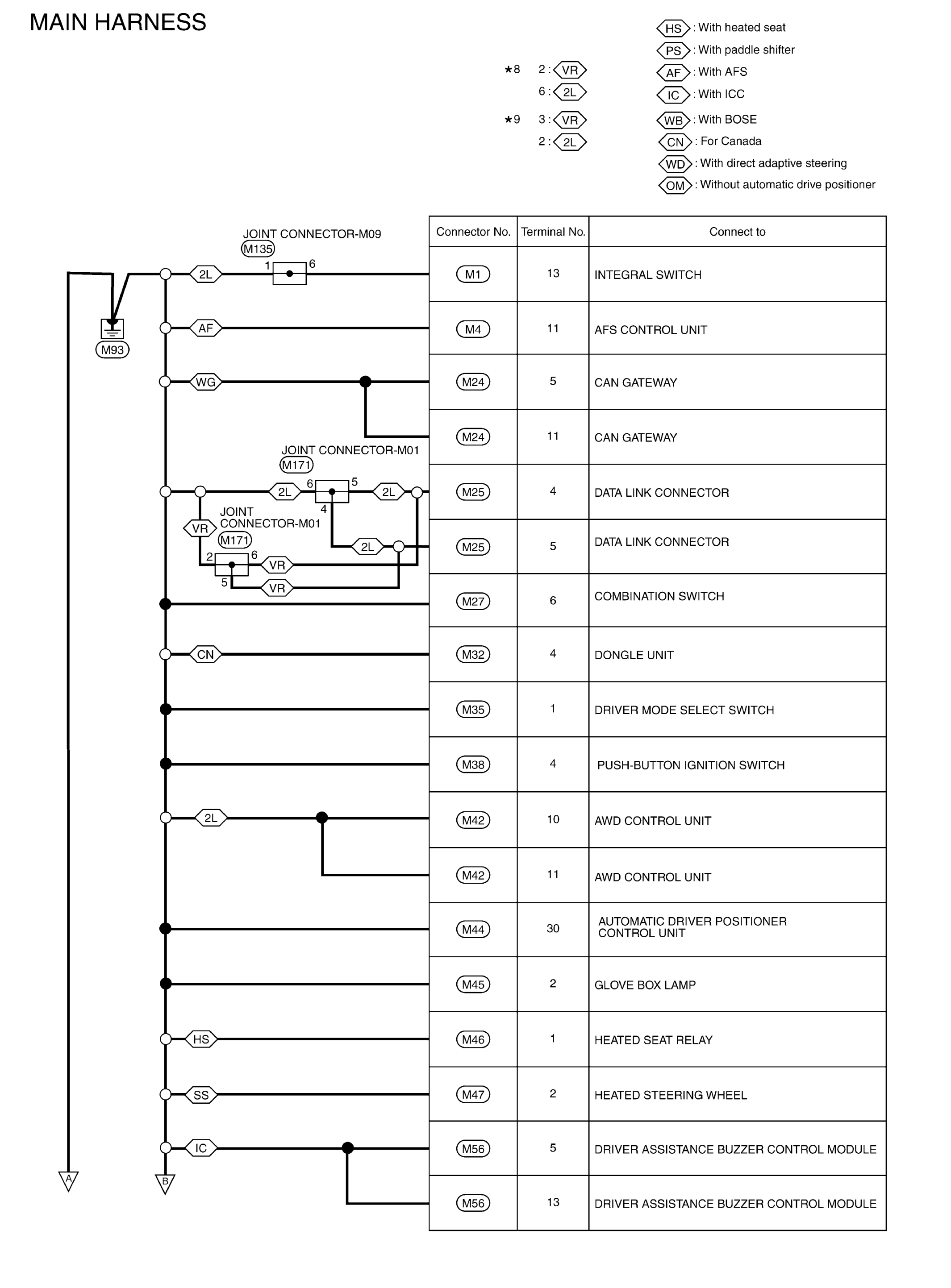

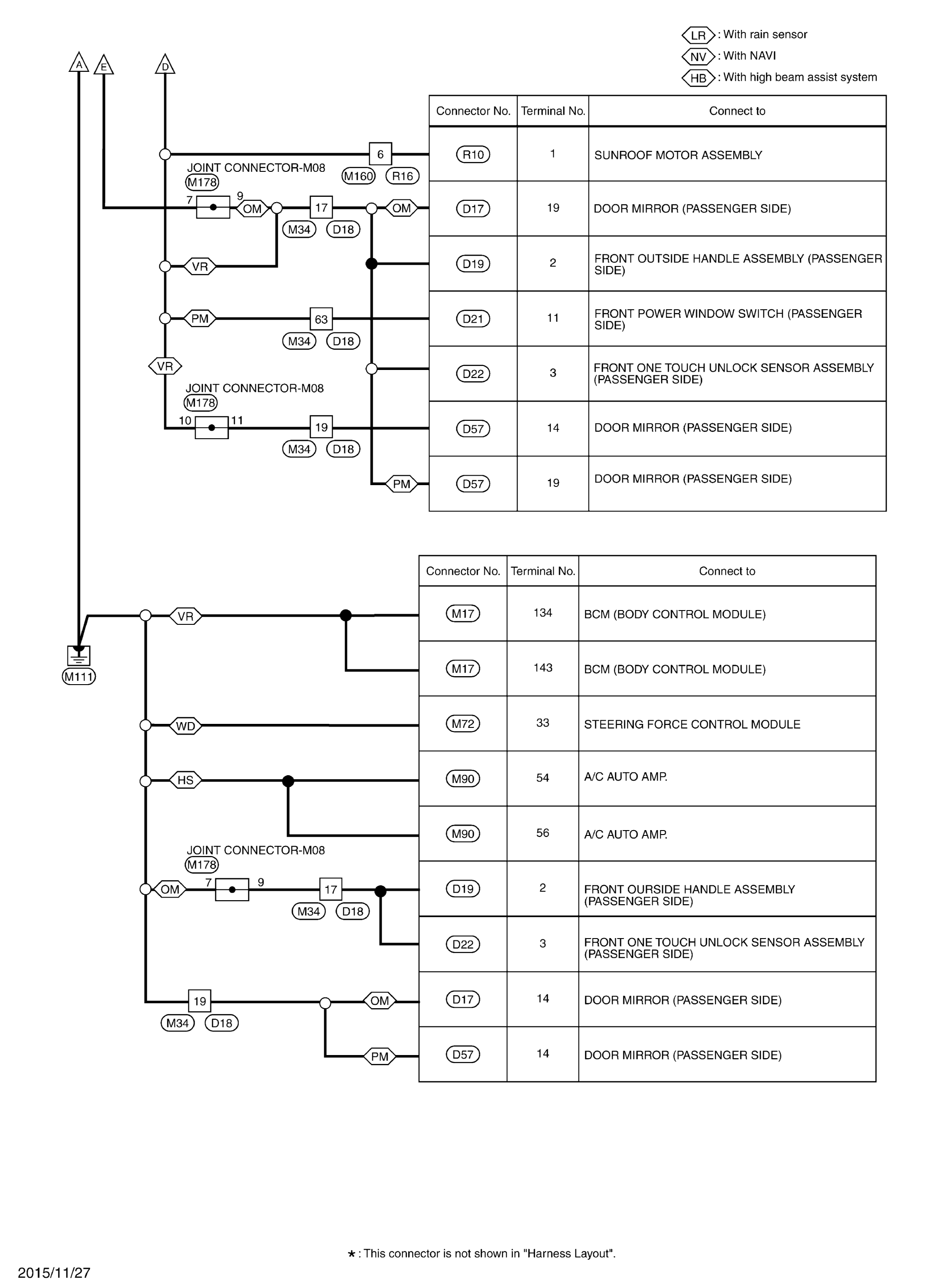

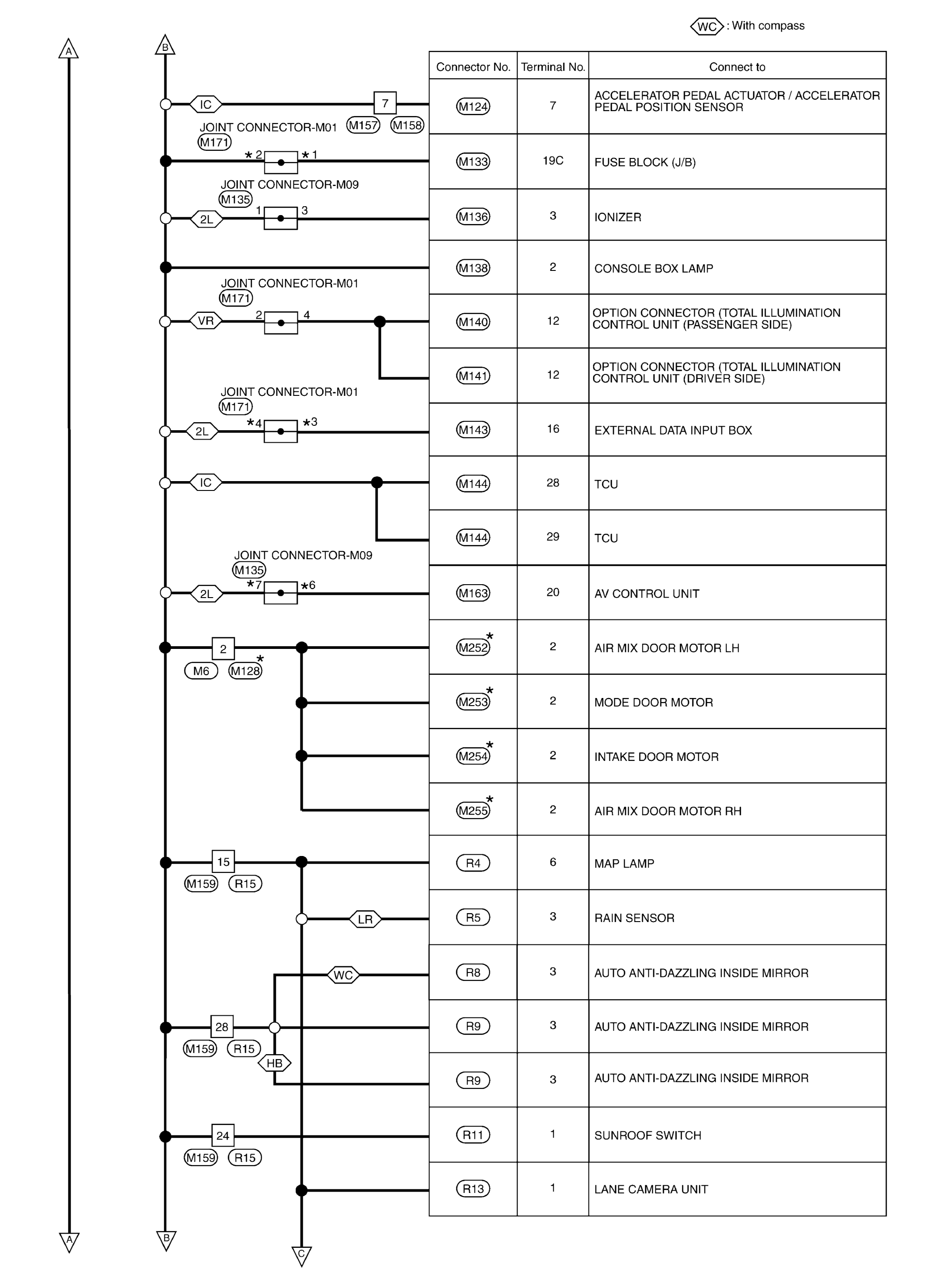

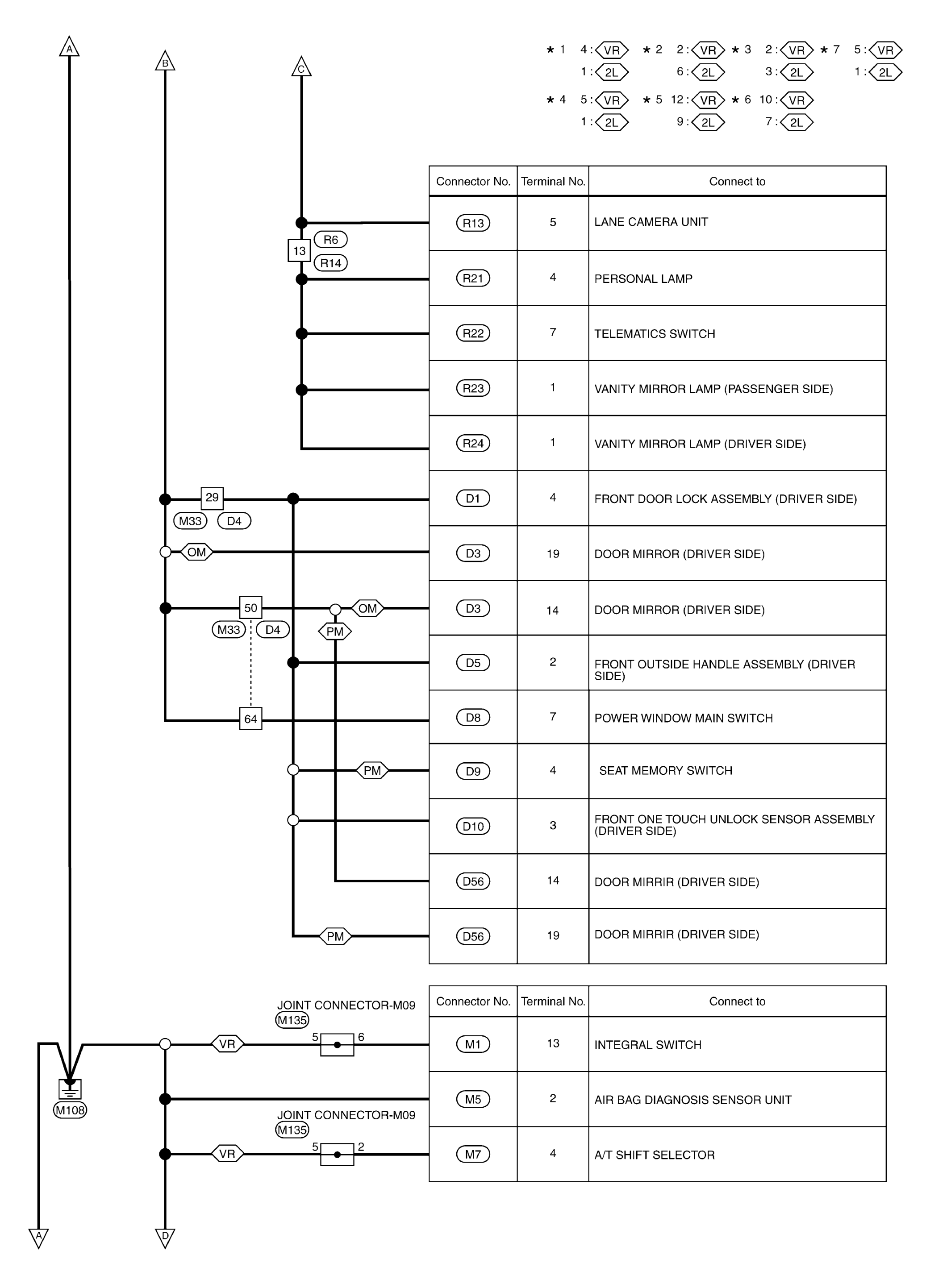

Main Harness
