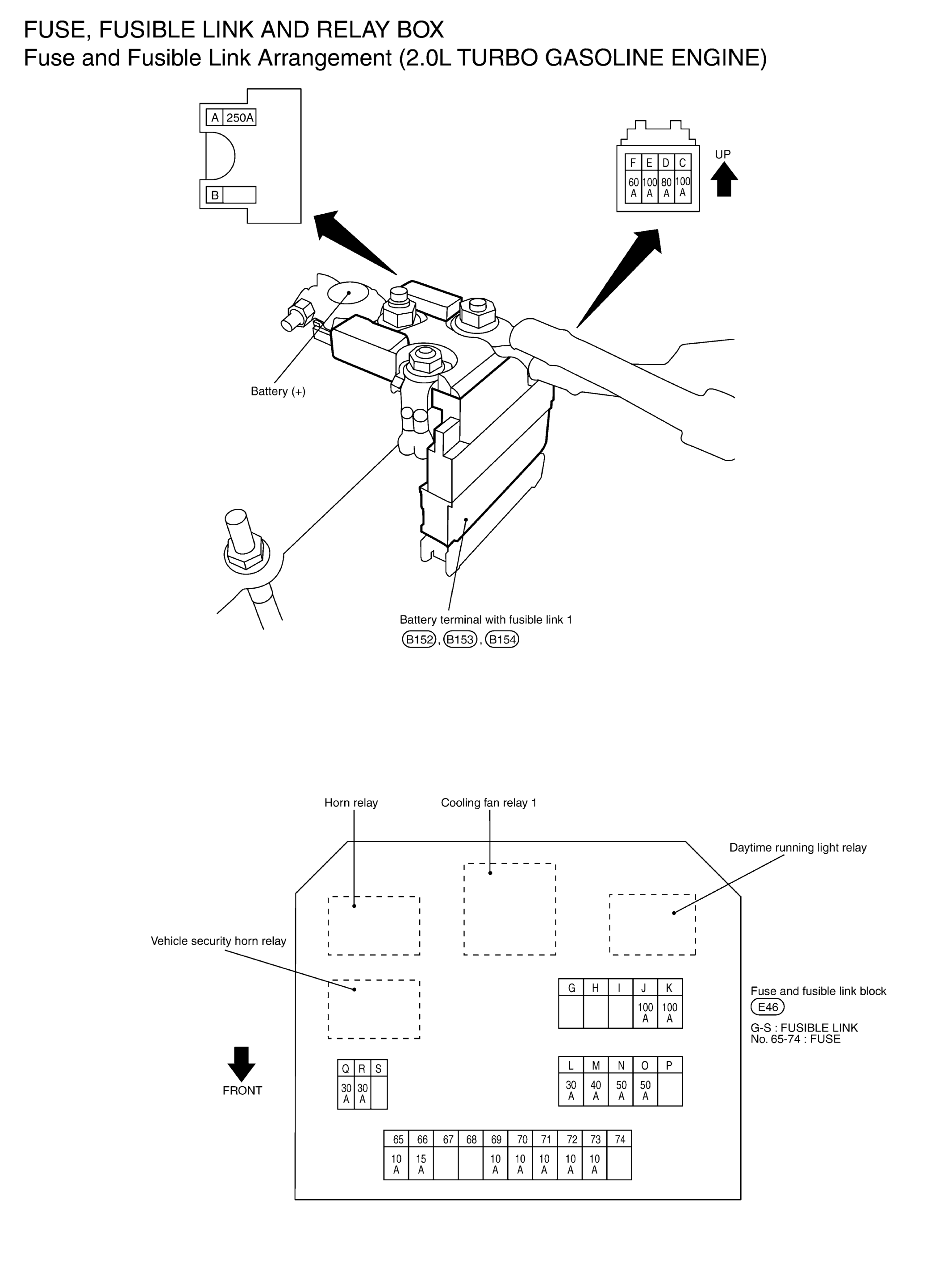

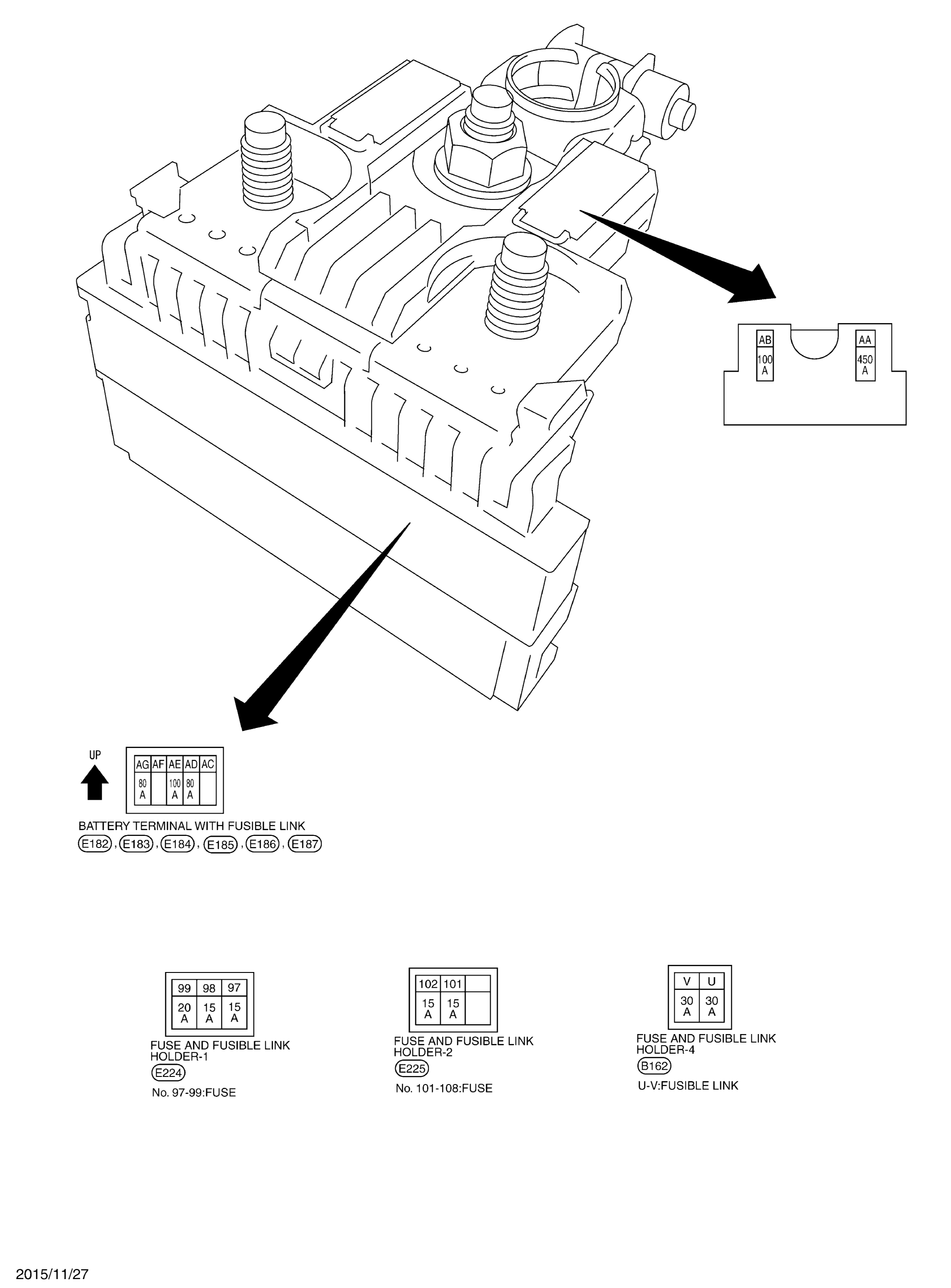

Home >> Infiniti >> 2016 >> Q50 Base, RWD >> Repair and Diagnosis >> Electrical >> Motors, Switches, Relays >> Power Supply, Ground & Circuit Elements (Except Hybrid) >> Wiring Diagram >> Fuse, Fusible Link And Relay Box >> Fuse And Fusible Link Arrangement >> 2.0 Turbo Gasoline Engine
