Fuse, Connector And Terminal Arrangement

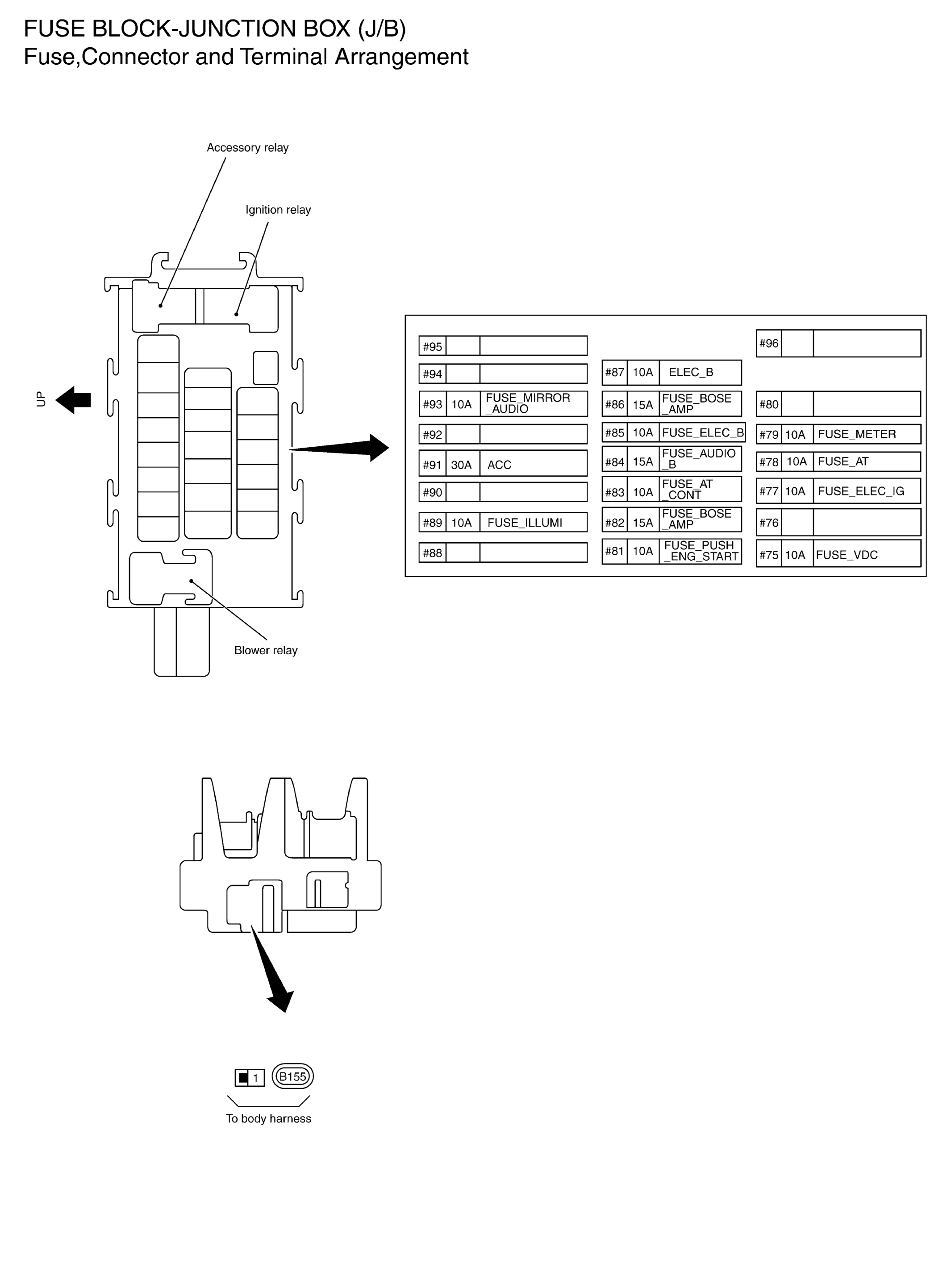

GNSJRMWJ1918GB-918

Courtesy of NISSAN NORTH AMERICA, INC.

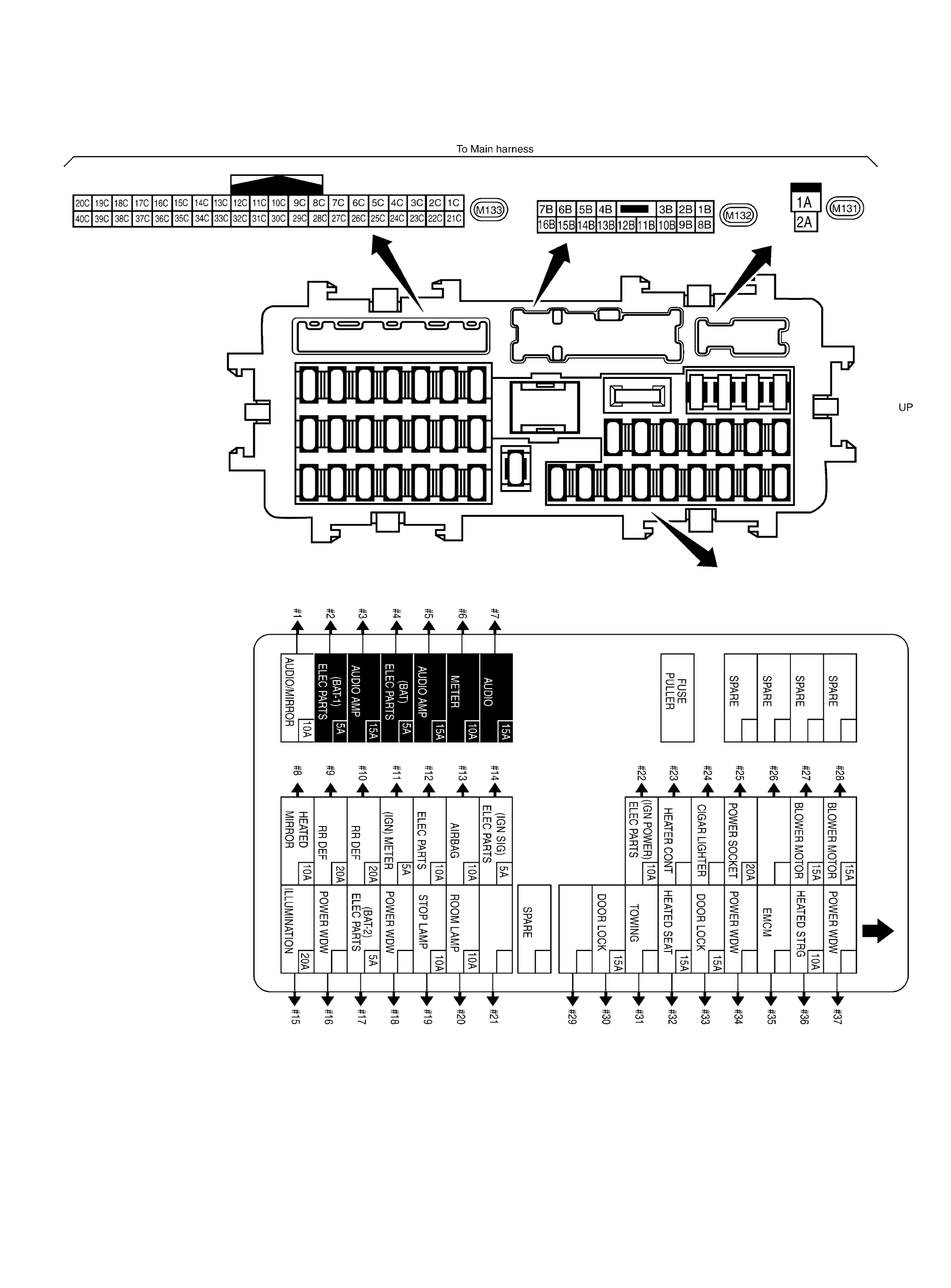

GNSJRMWJ1919GB-919

Courtesy of NISSAN NORTH AMERICA, INC.

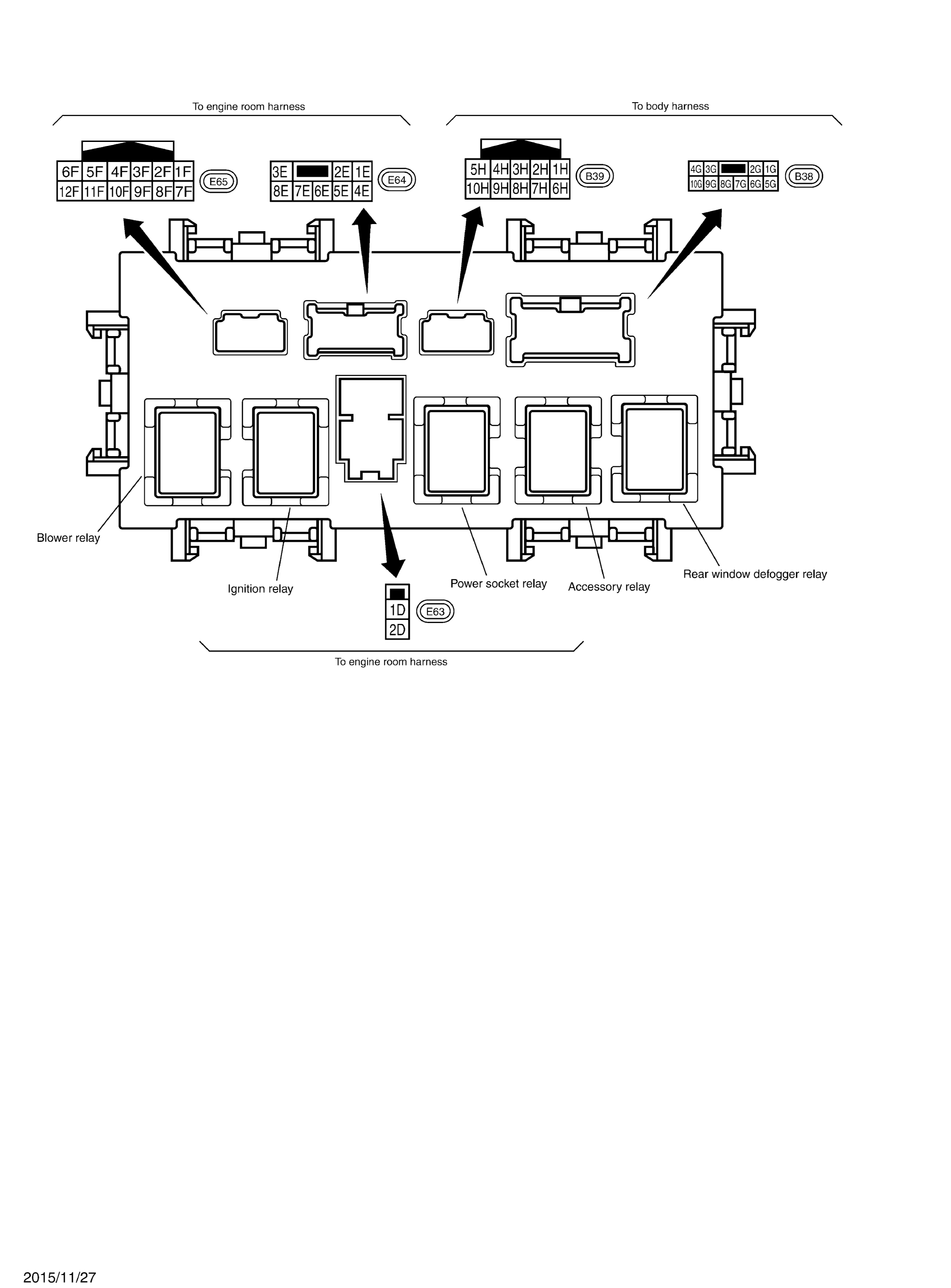

GNSJRMWJ1920GB-920

Courtesy of NISSAN NORTH AMERICA, INC.
