High And Low Reverse Clutch Pressure Sensor

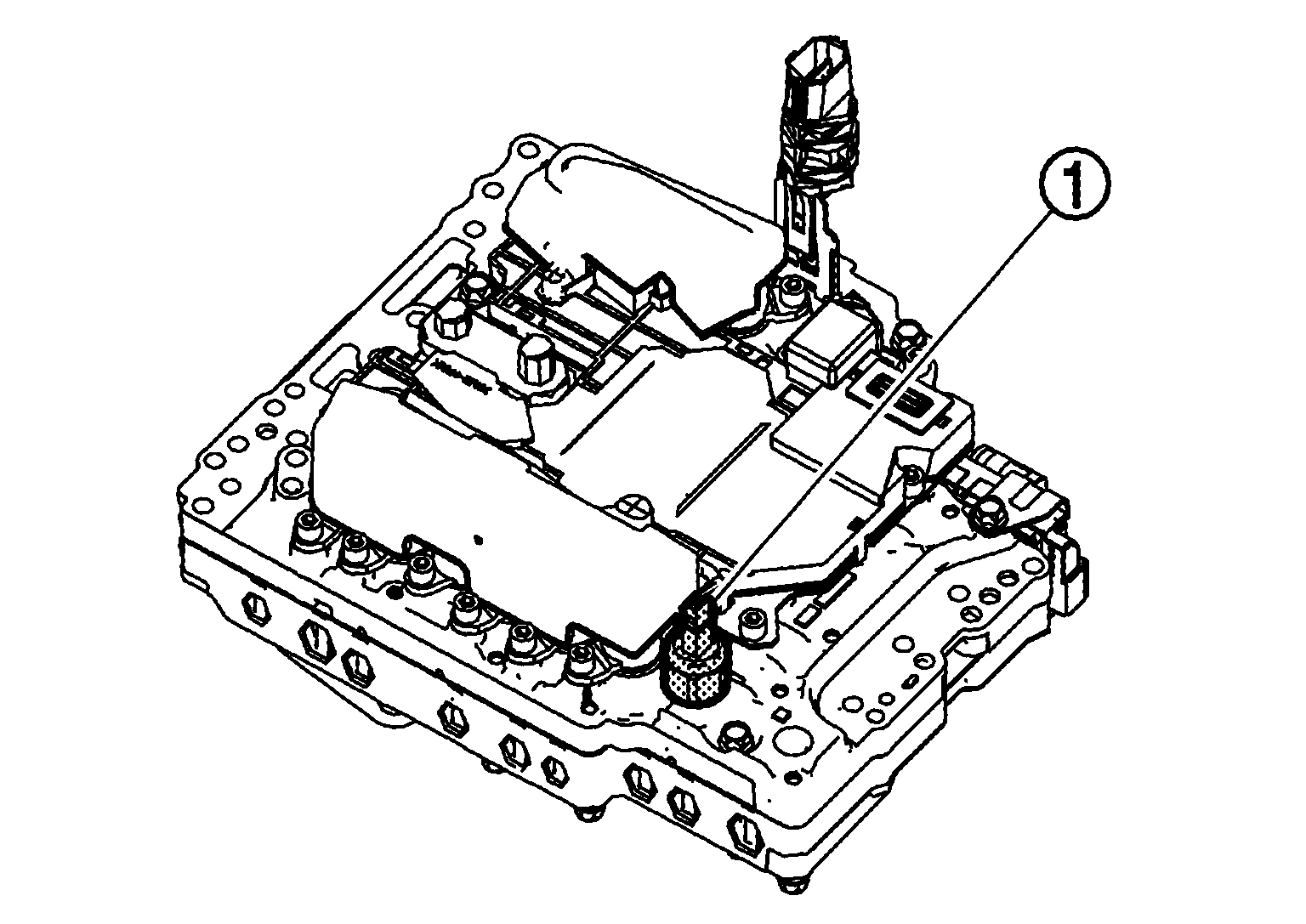

The high and low reverse clutch pressure sensor is installed to control valve assembly.

Courtesy of NISSAN NORTH AMERICA, INC.
The high and low reverse clutch pressure sensor detects the pressure applied to the high and low reverse clutch.
When pressure is applied to the metal diaphragm in the high and low reverse clutch pressure sensor, the metal diaphragm is deformed, resulting in voltage change. TCM evaluates the secondary pressure from its voltage change. Voltage is increased along with pressure increase.

Courtesy of NISSAN NORTH AMERICA, INC.
