Wiring Diagram - Ignition Power Supply -

WARNING: This page is about a different variant/trim than selected.

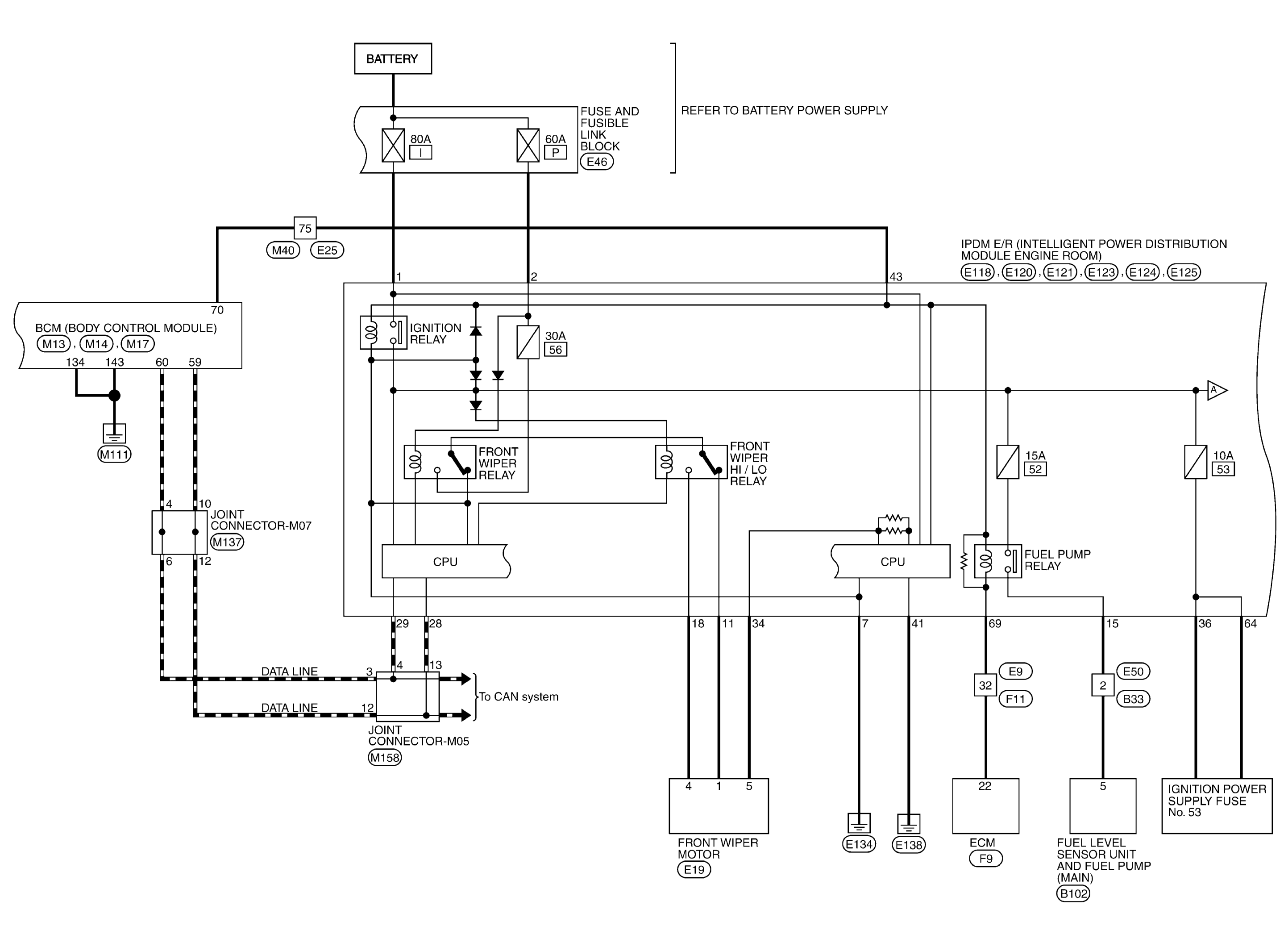

GNSJRMWJ0838GB-838

Courtesy of NISSAN NORTH AMERICA, INC.

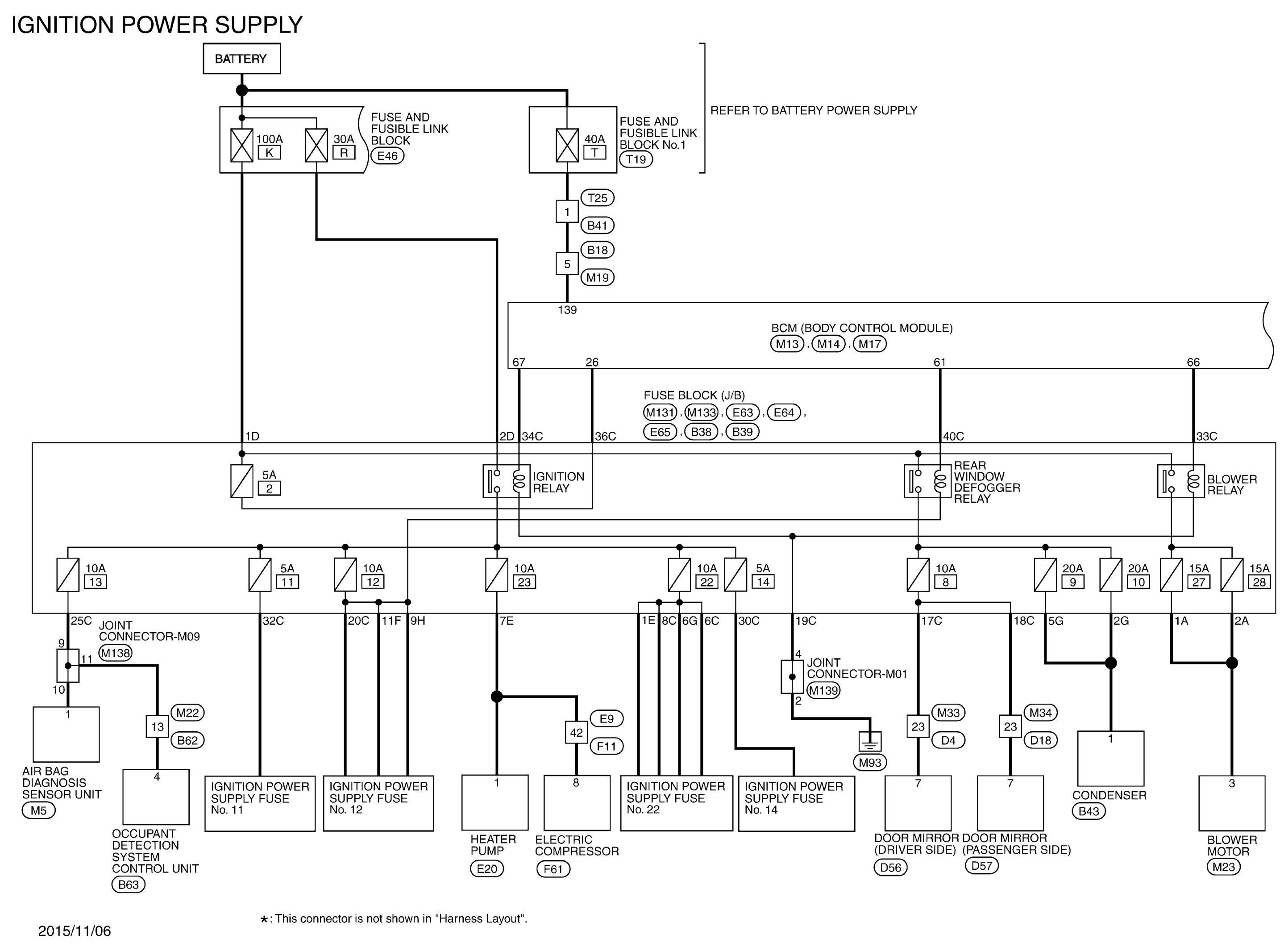

GNSJRMWJ0839GB-839

Courtesy of NISSAN NORTH AMERICA, INC.

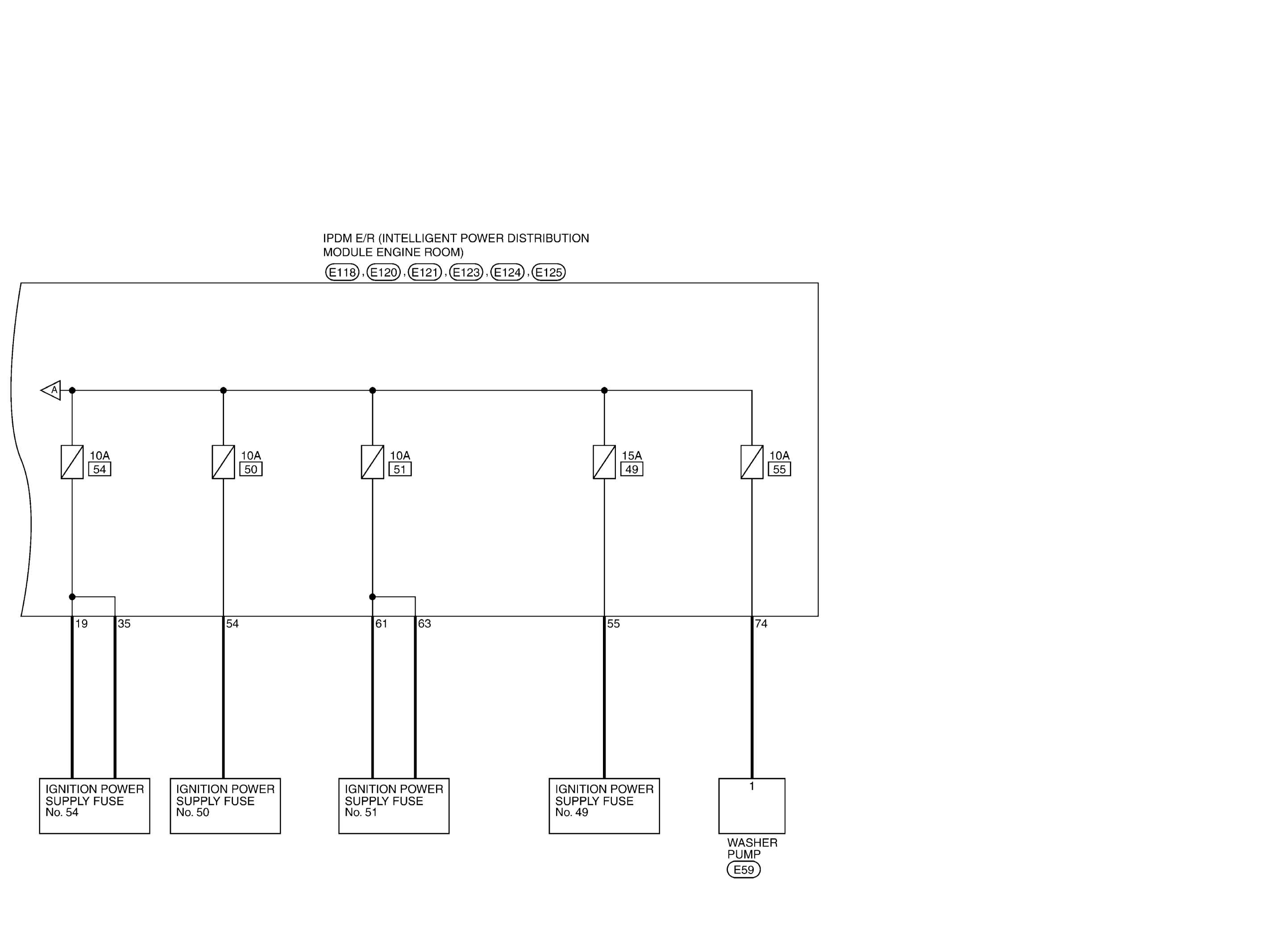

GNSJRMWJ0840GB-840

Courtesy of NISSAN NORTH AMERICA, INC.

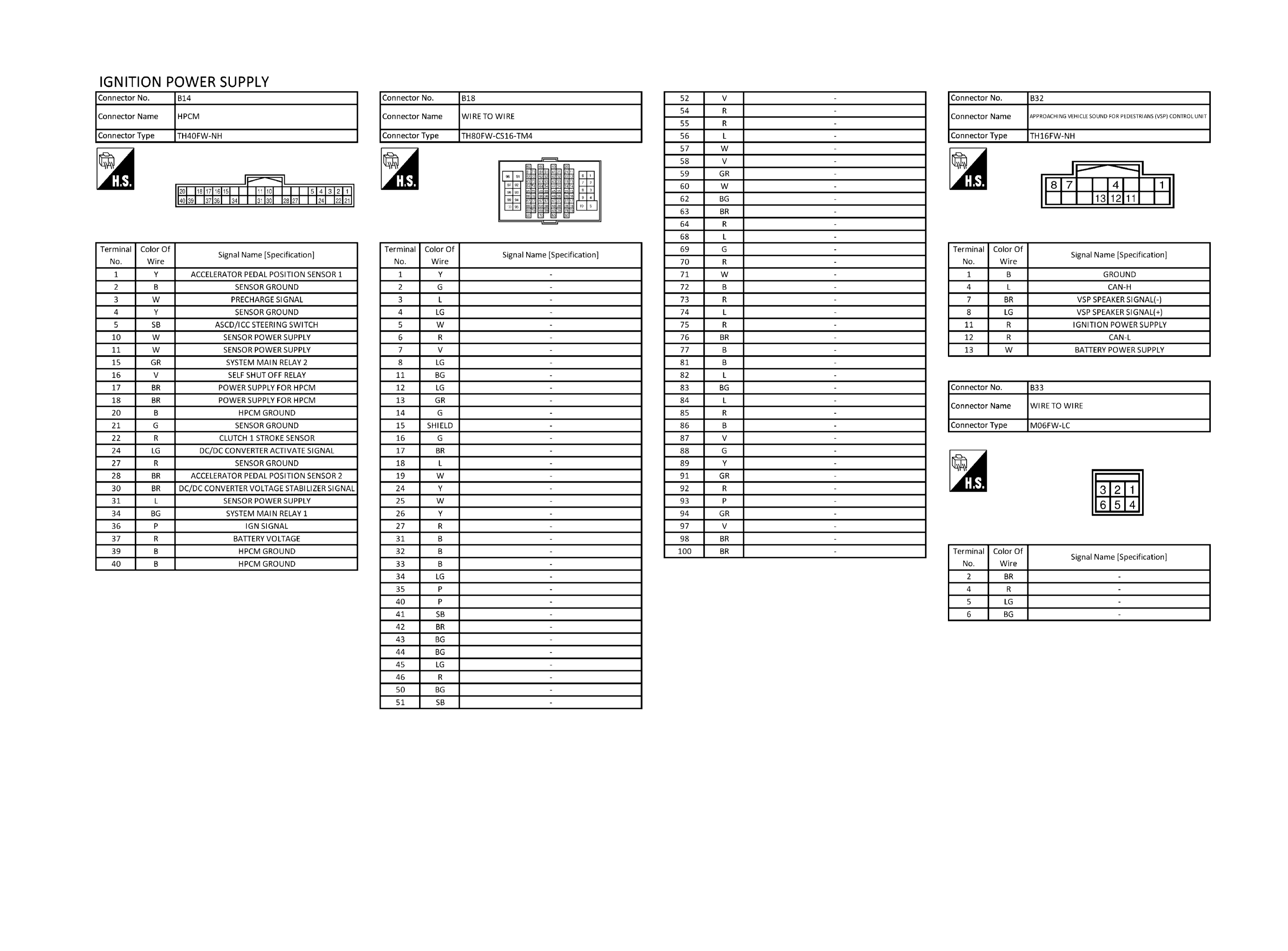

GNSJRMWJ0841GB-841

Courtesy of NISSAN NORTH AMERICA, INC.

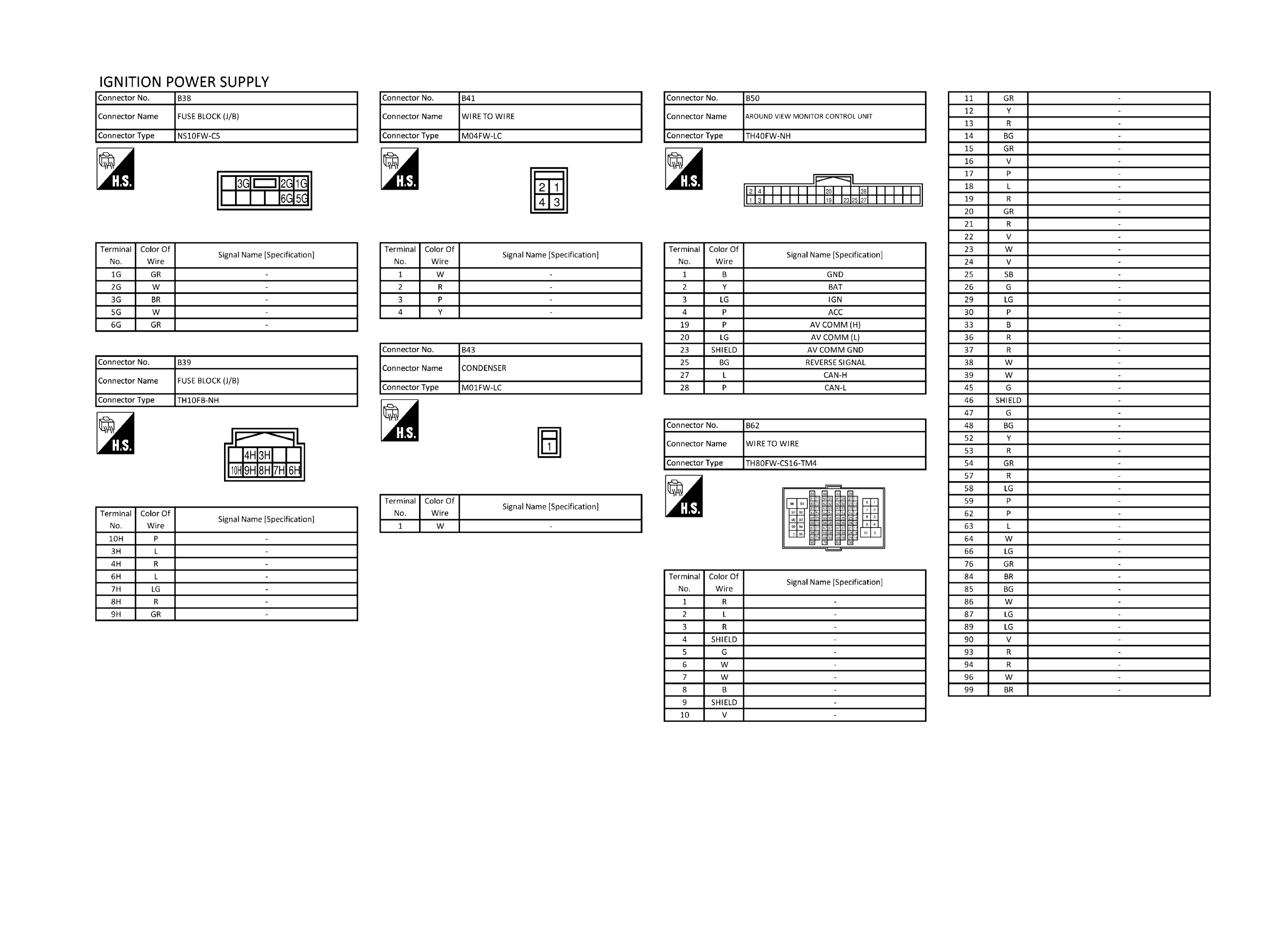

GNSJRMWJ0842GB-842

Courtesy of NISSAN NORTH AMERICA, INC.

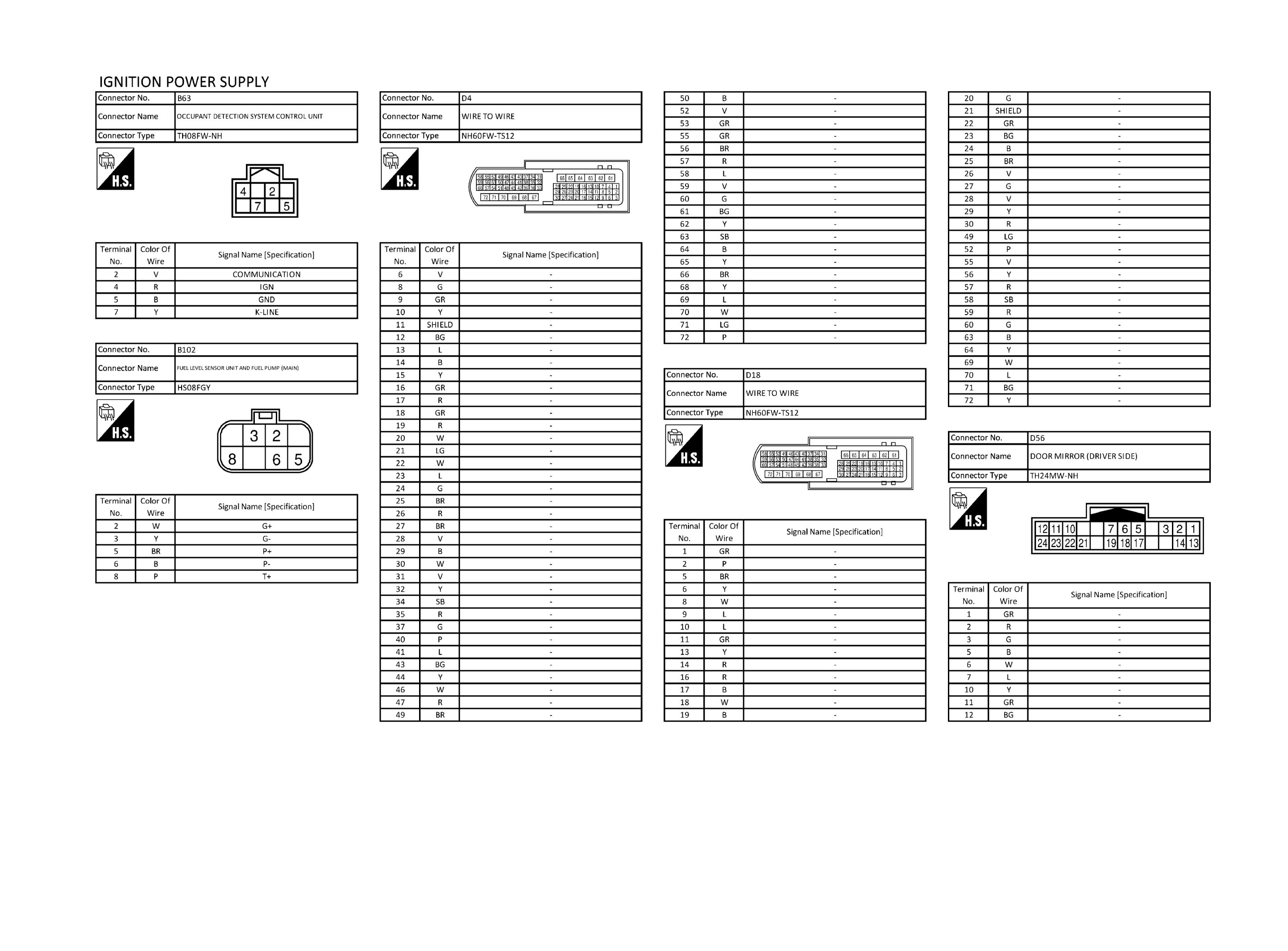

GNSJRMWJ0843GB-843

Courtesy of NISSAN NORTH AMERICA, INC.

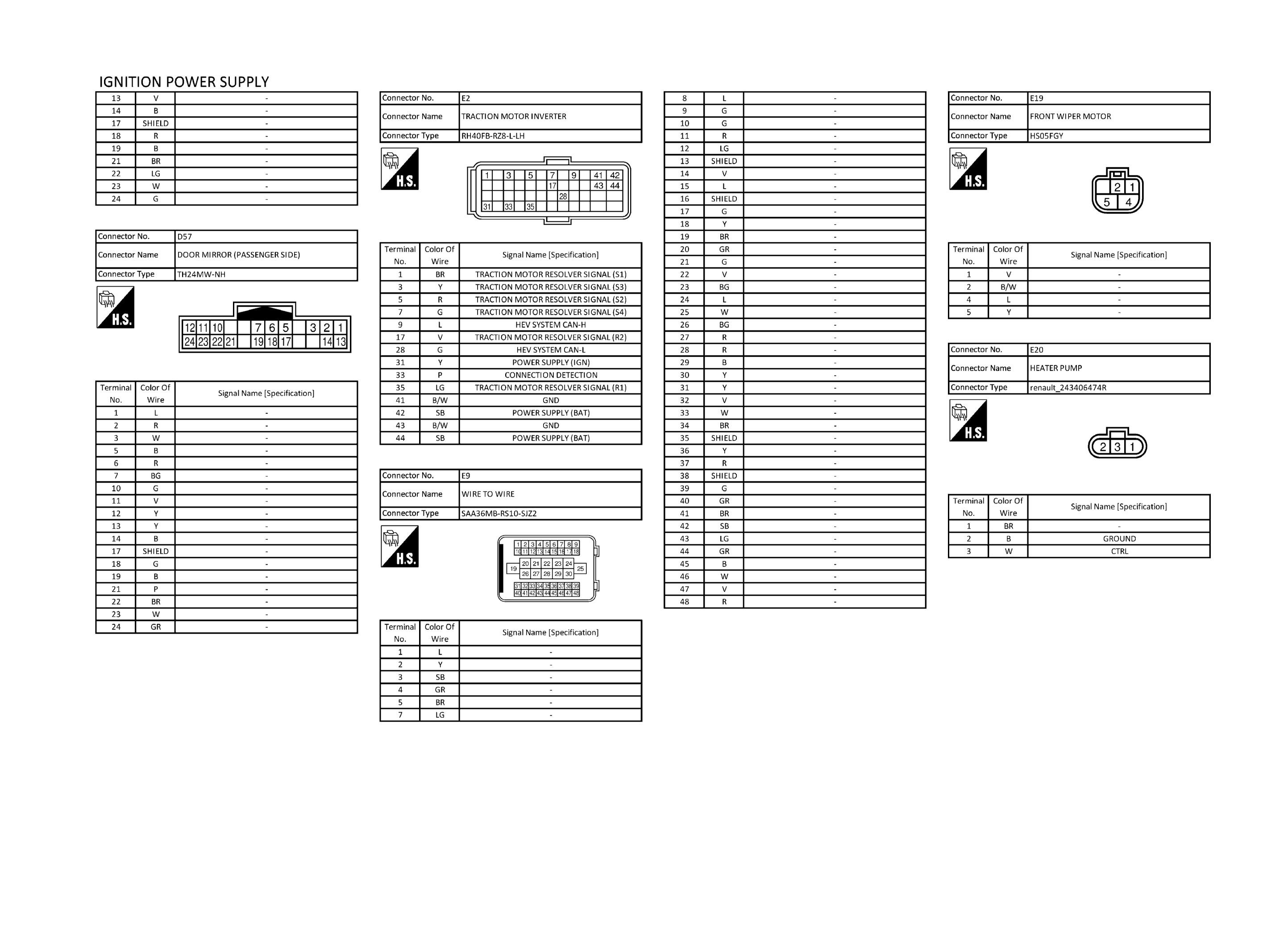

GNSJRMWJ0844GB-844

Courtesy of NISSAN NORTH AMERICA, INC.

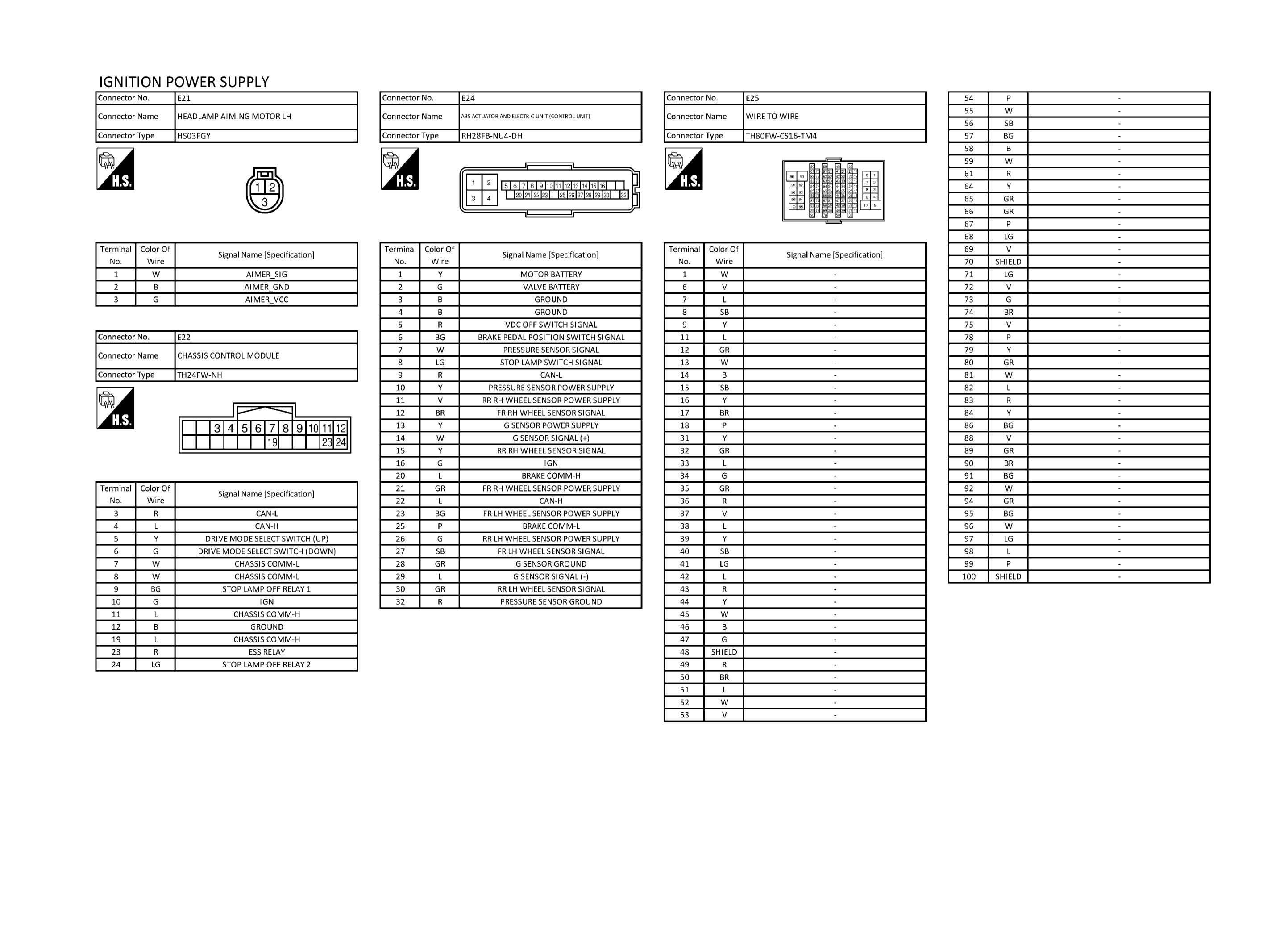

GNSJRMWJ0845GB-845

Courtesy of NISSAN NORTH AMERICA, INC.

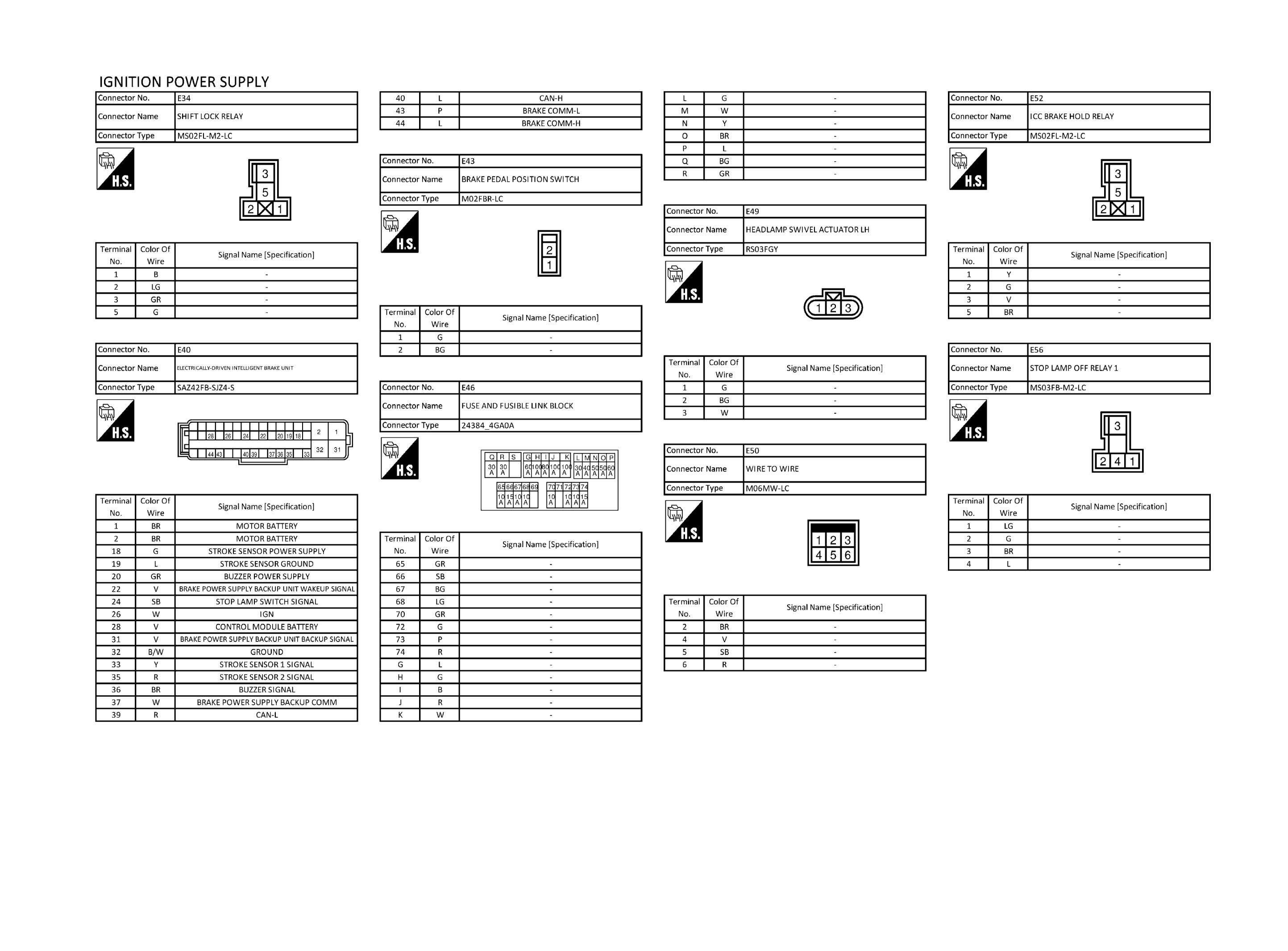

GNSJRMWJ0846GB-846

Courtesy of NISSAN NORTH AMERICA, INC.

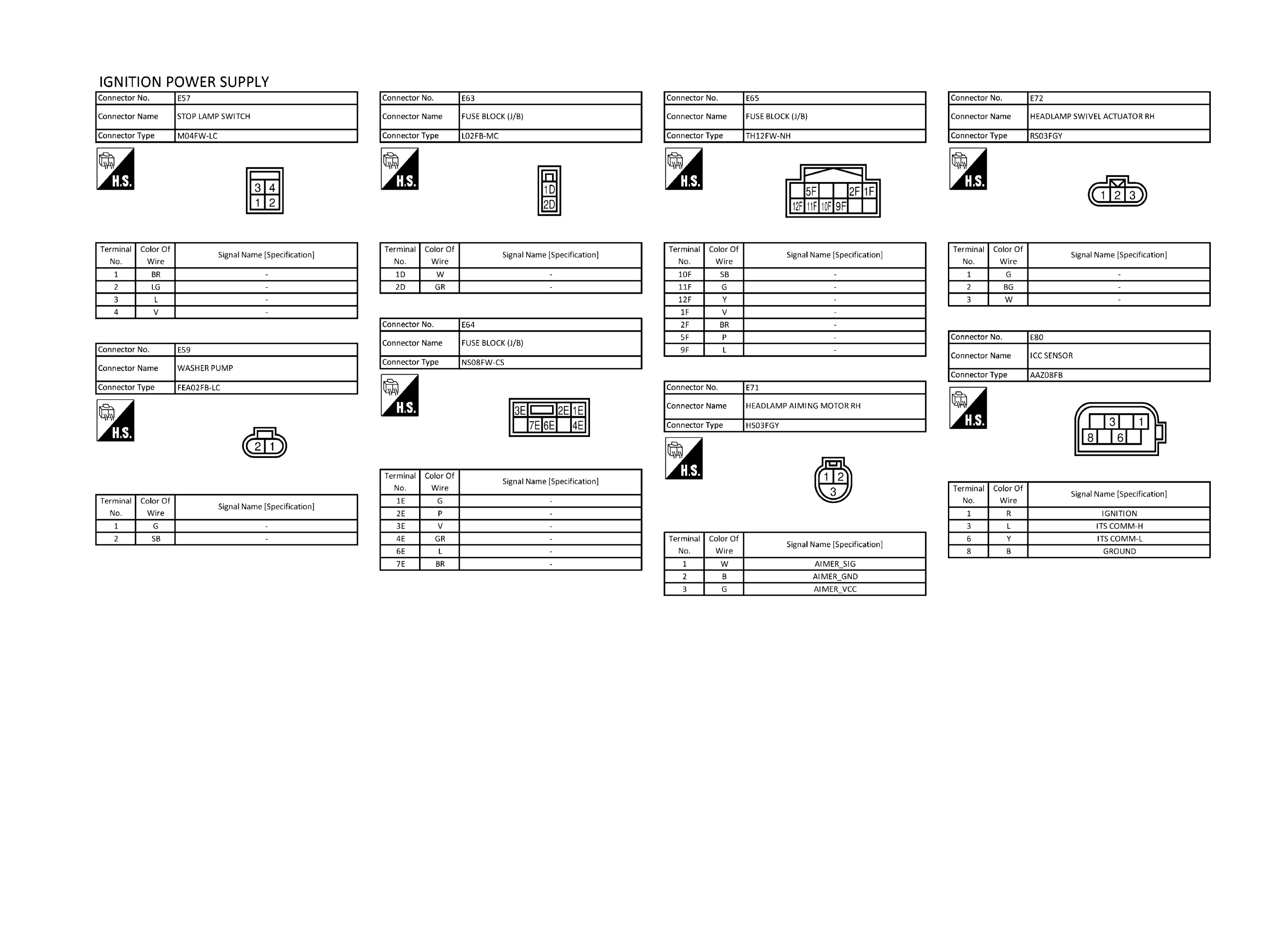

GNSJRMWJ0847GB-847

Courtesy of NISSAN NORTH AMERICA, INC.

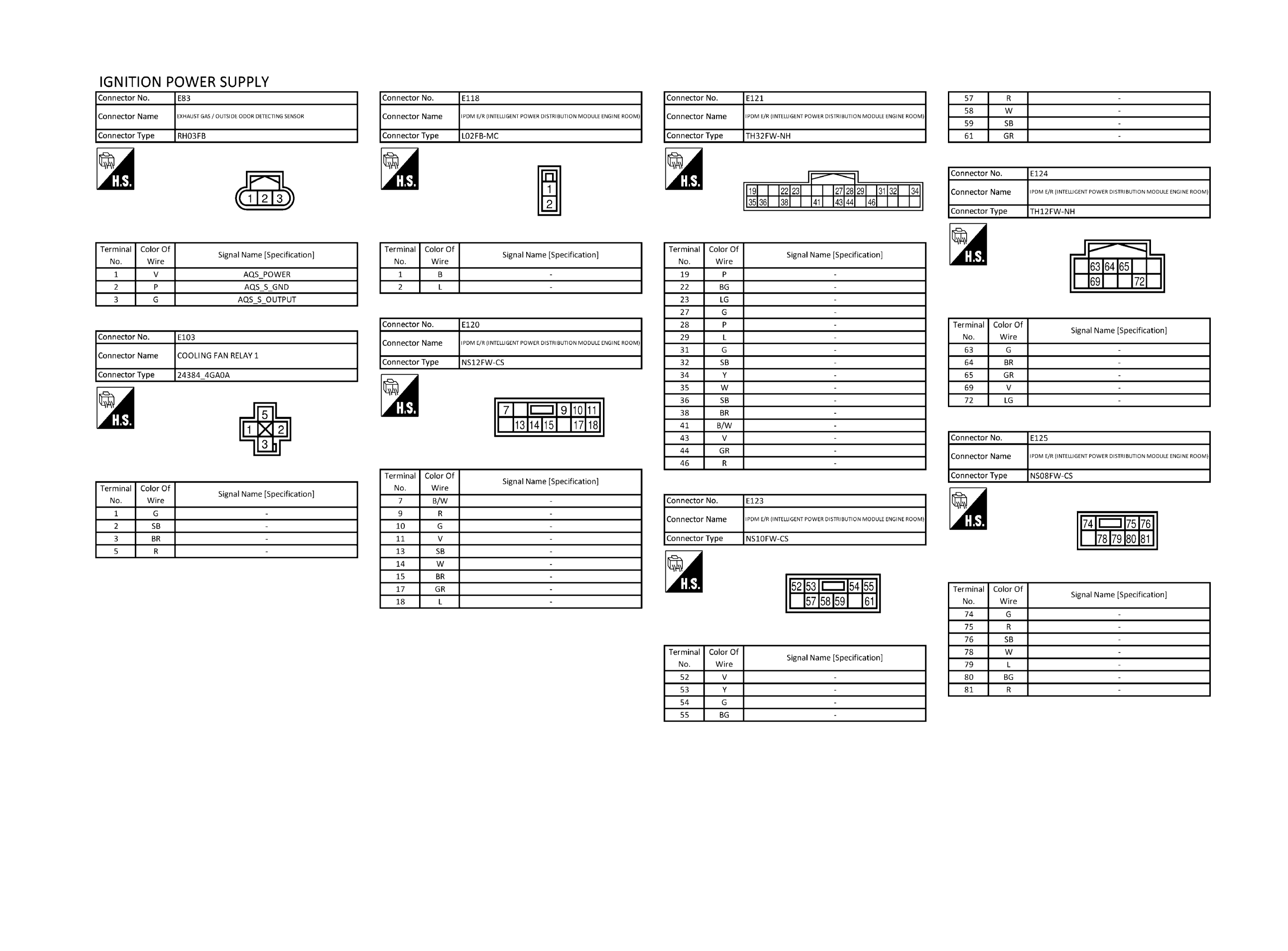

GNSJRMWJ0848GB-848

Courtesy of NISSAN NORTH AMERICA, INC.

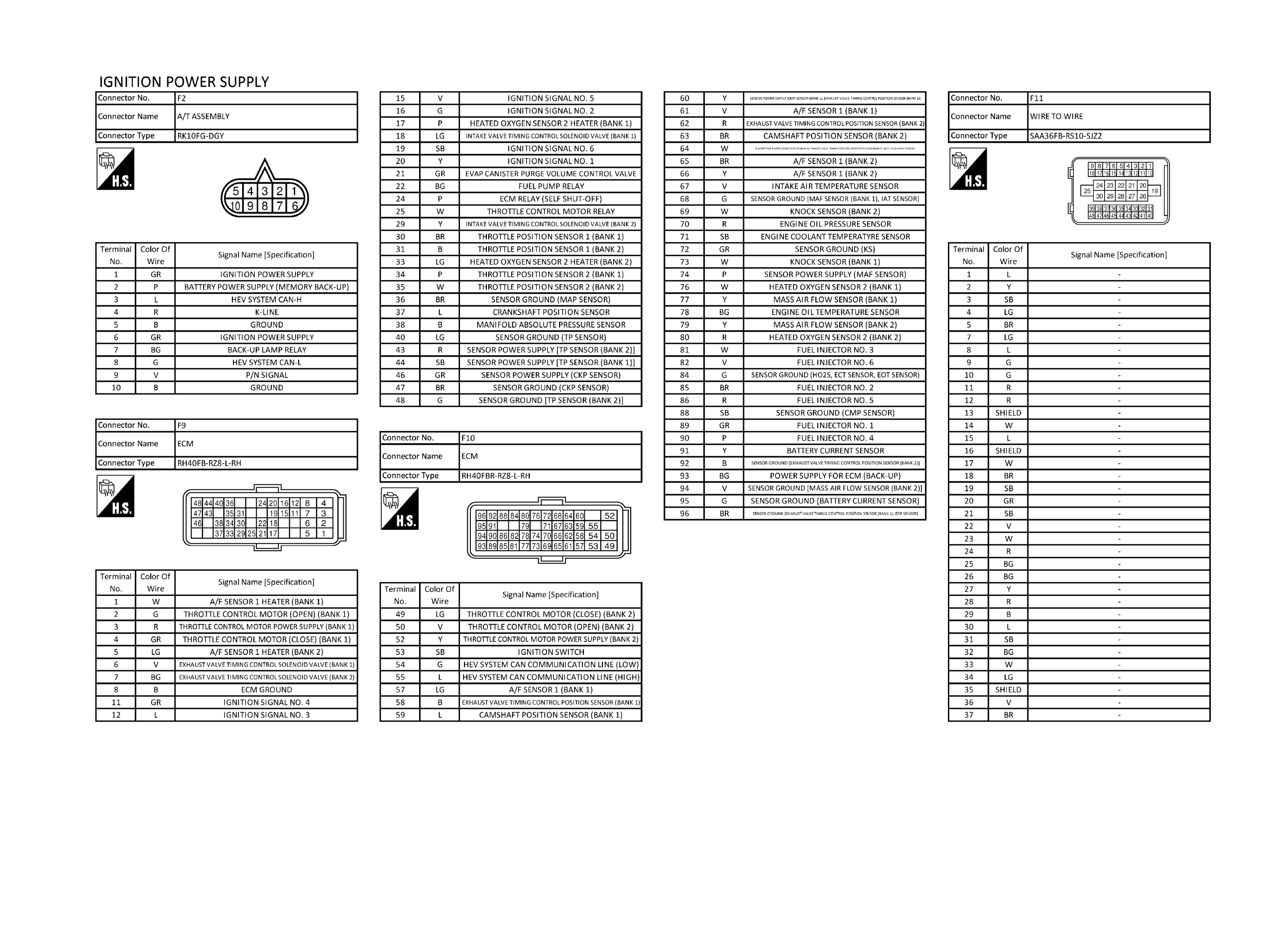

GNSJRMWJ0849GB-849

Courtesy of NISSAN NORTH AMERICA, INC.

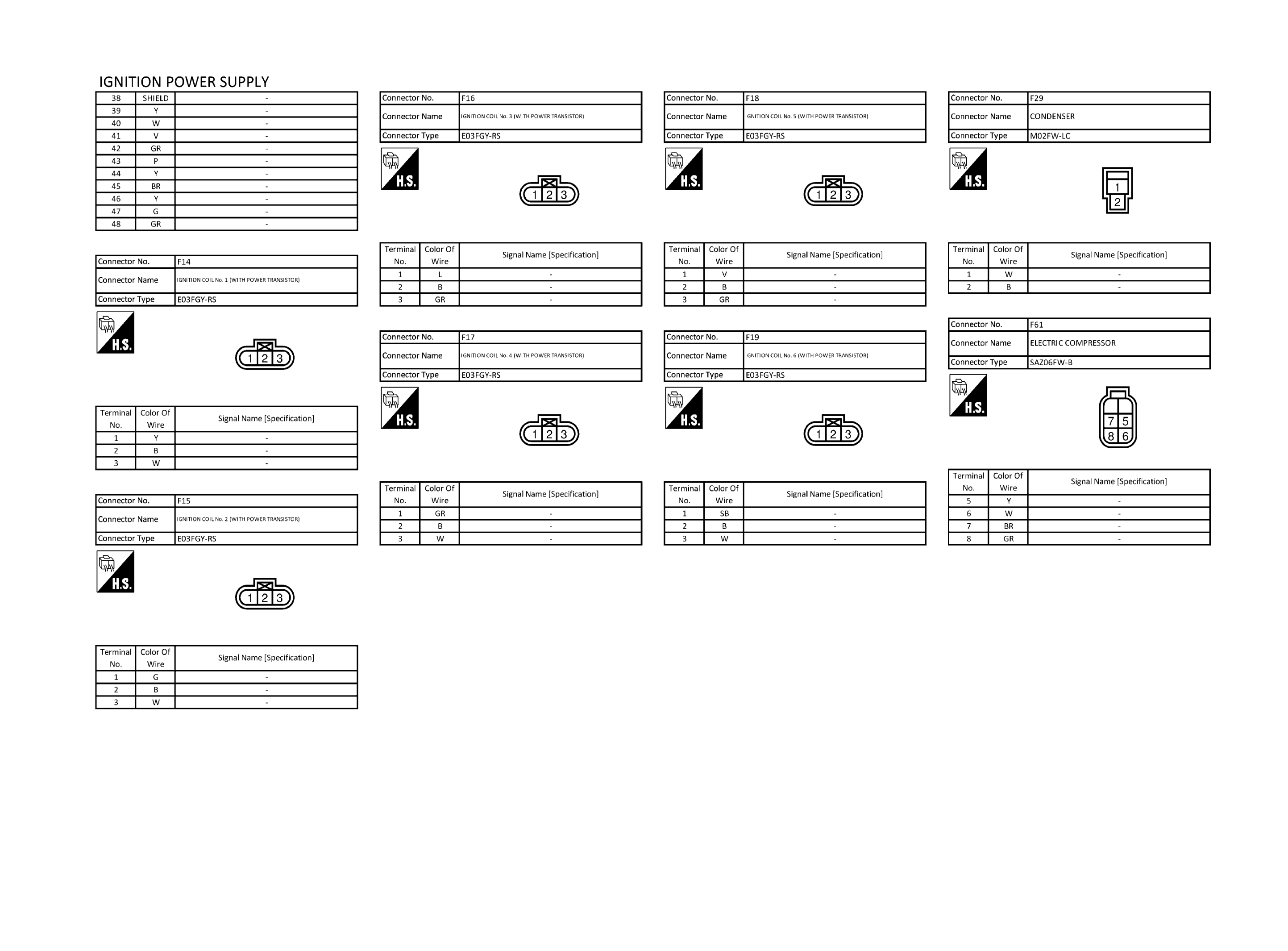

GNSJRMWJ0850GB-850

Courtesy of NISSAN NORTH AMERICA, INC.

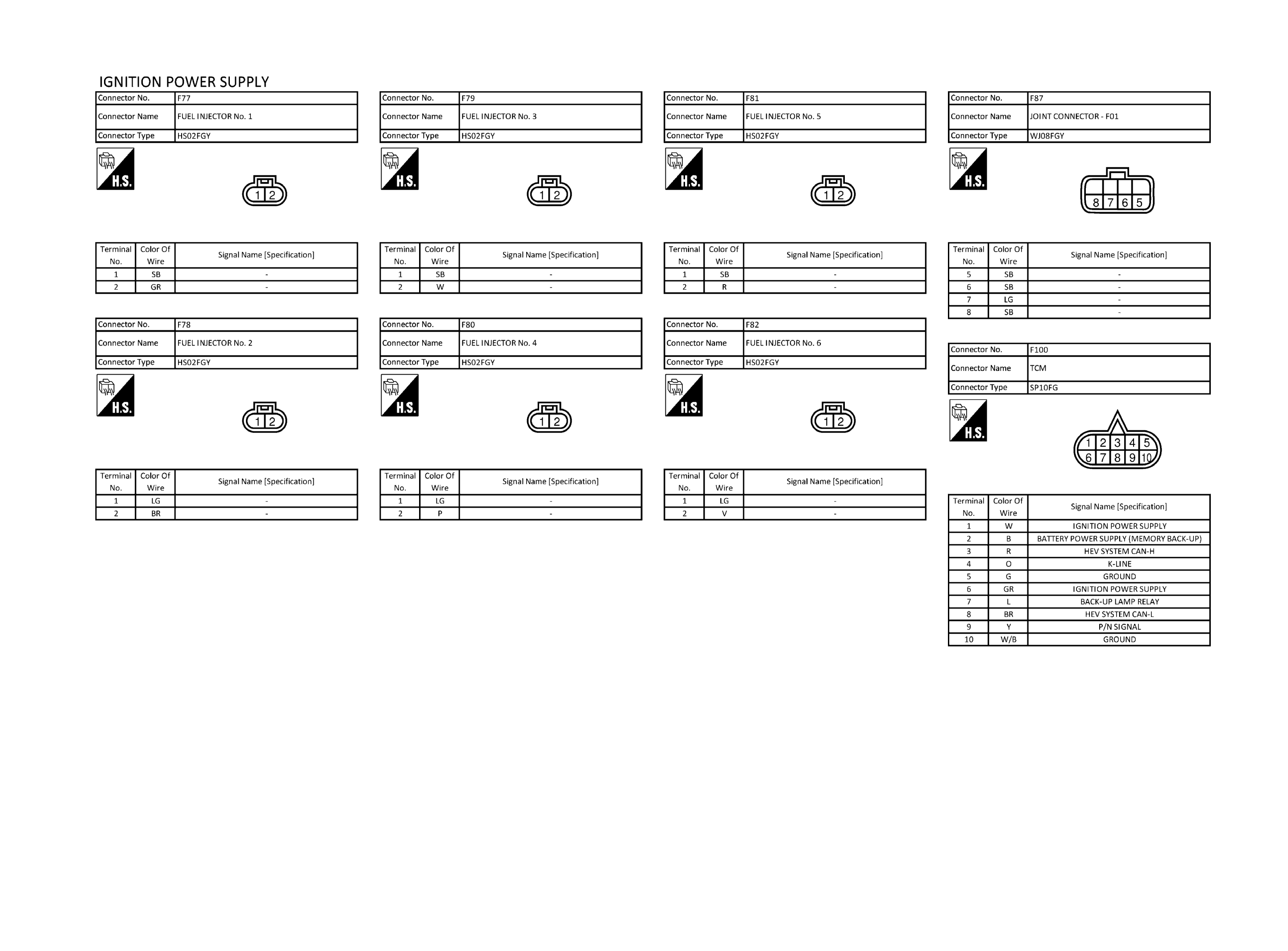

GNSJRMWJ0851GB-851

Courtesy of NISSAN NORTH AMERICA, INC.

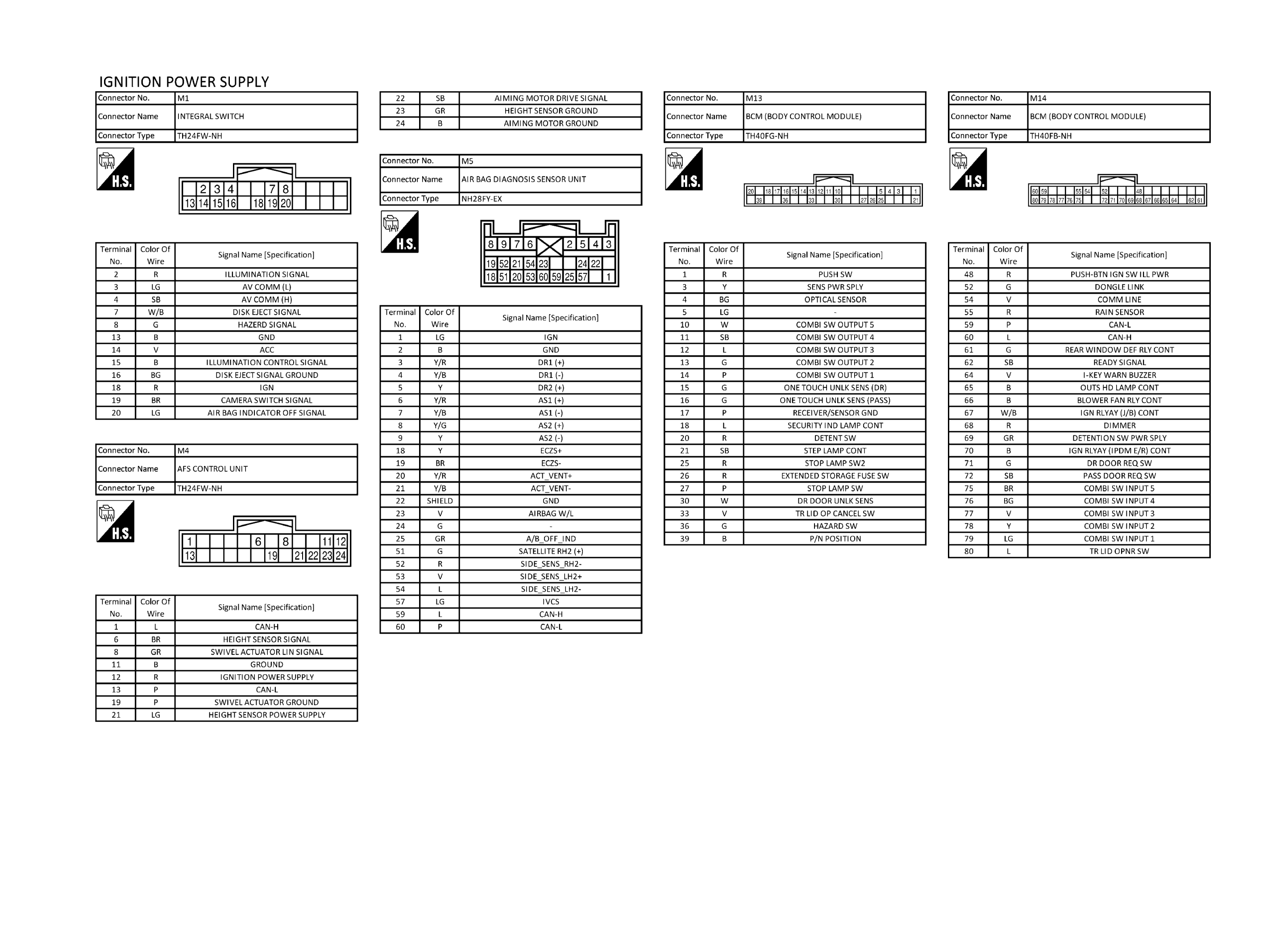

GNSJRMWJ0852GB-852

Courtesy of NISSAN NORTH AMERICA, INC.

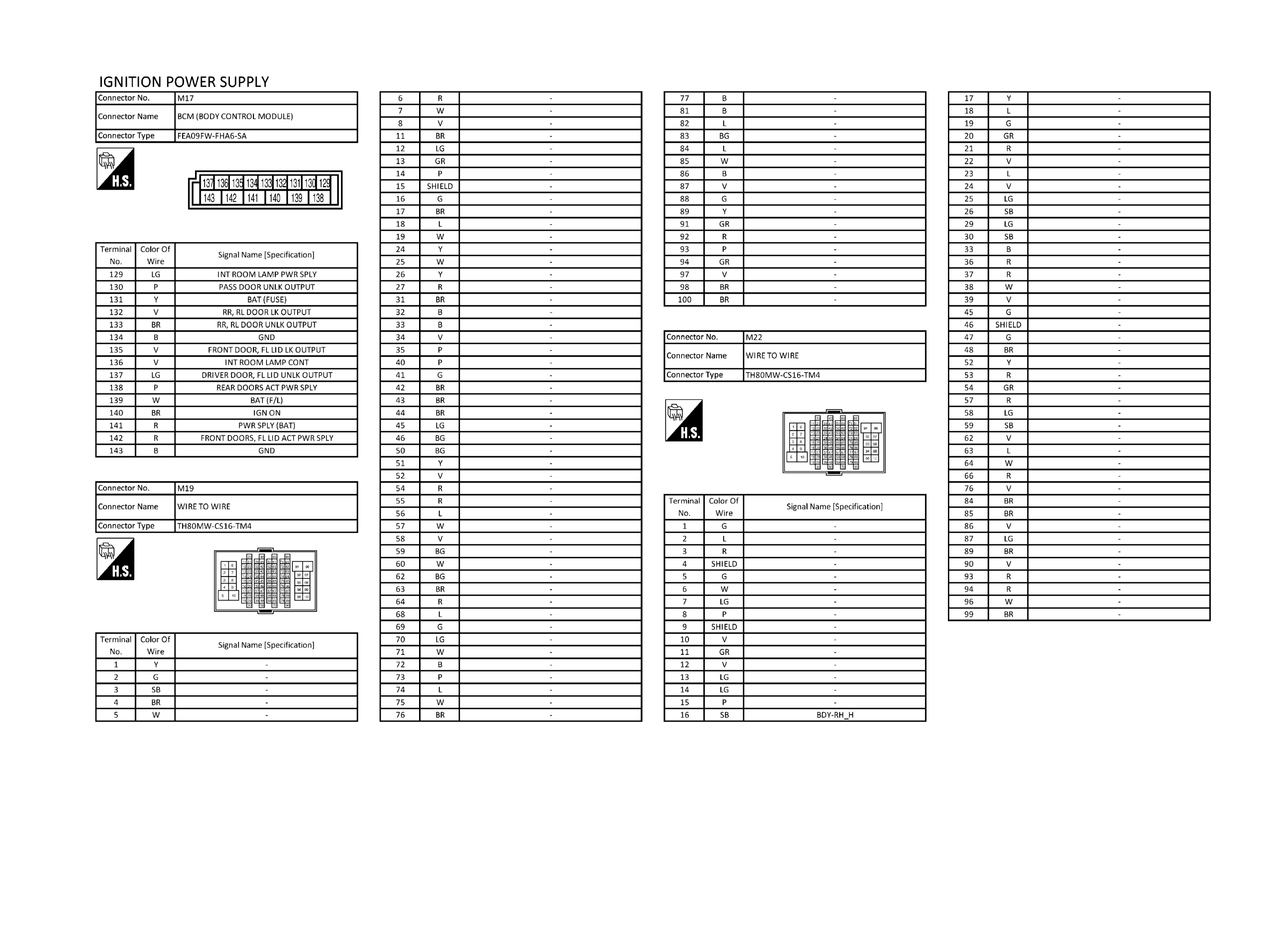

GNSJRMWJ0853GB-853

Courtesy of NISSAN NORTH AMERICA, INC.

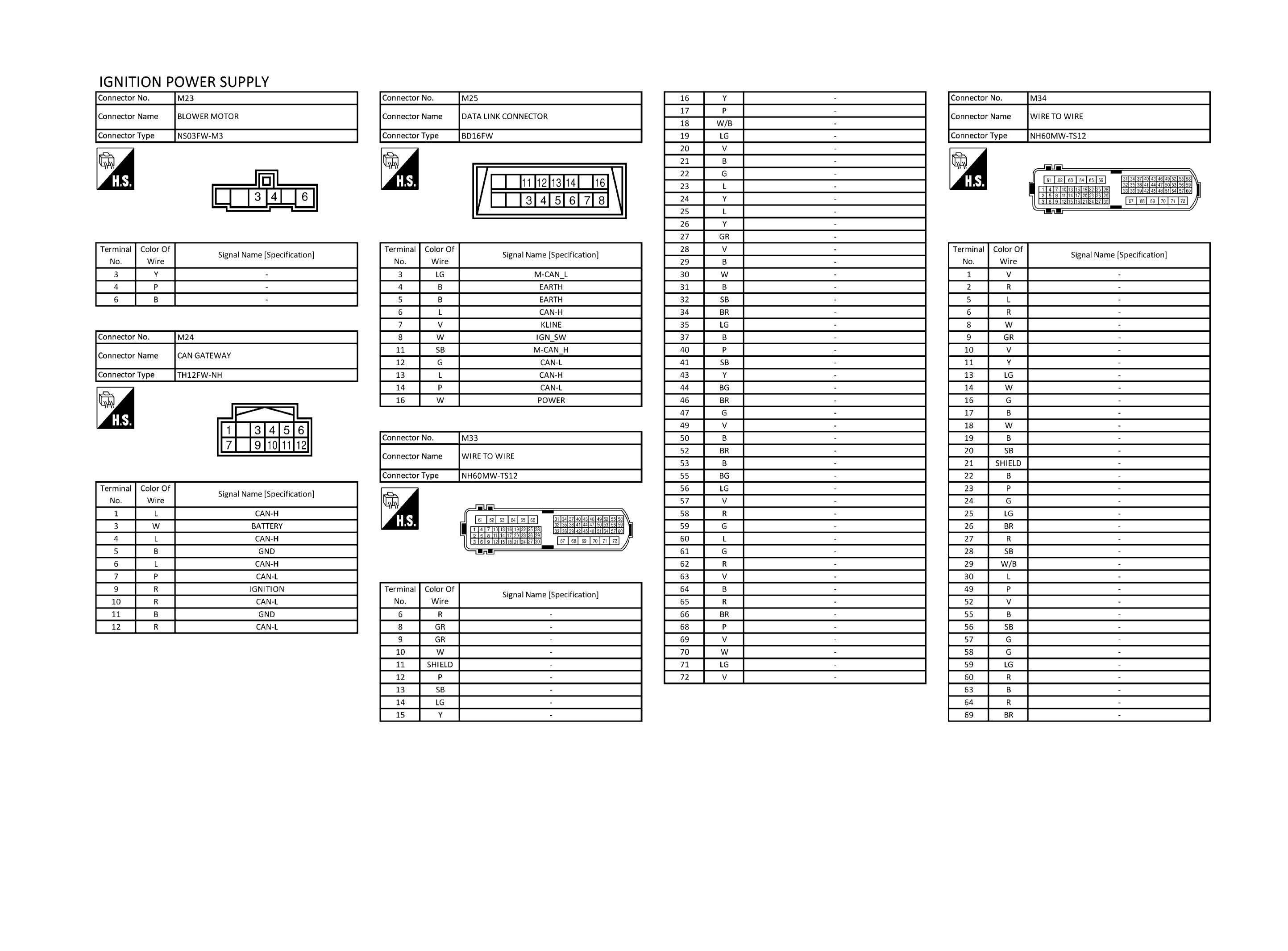

GNSJRMWJ0854GB-854

Courtesy of NISSAN NORTH AMERICA, INC.

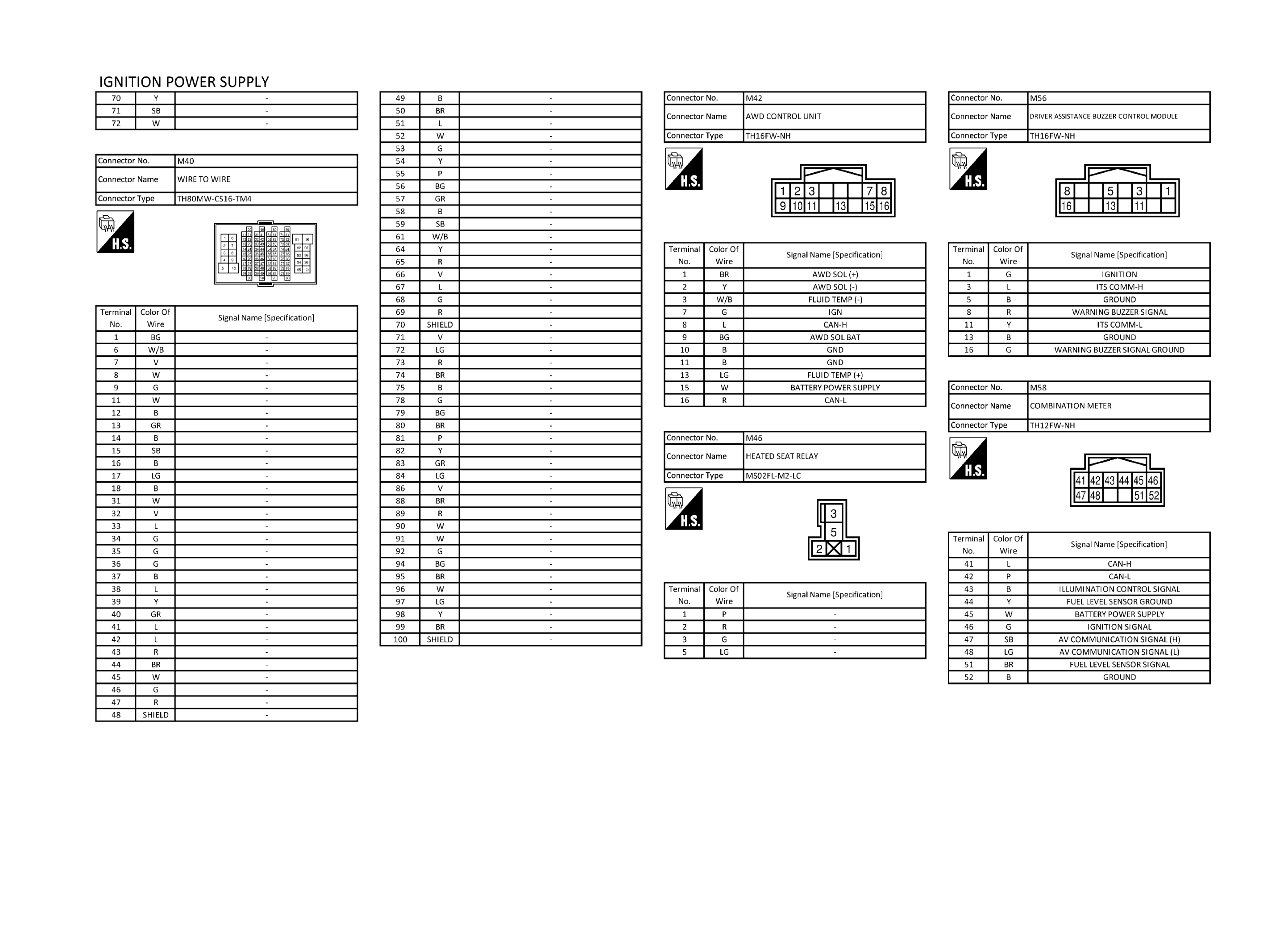

GNSJRMWJ0855GB-855

Courtesy of NISSAN NORTH AMERICA, INC.

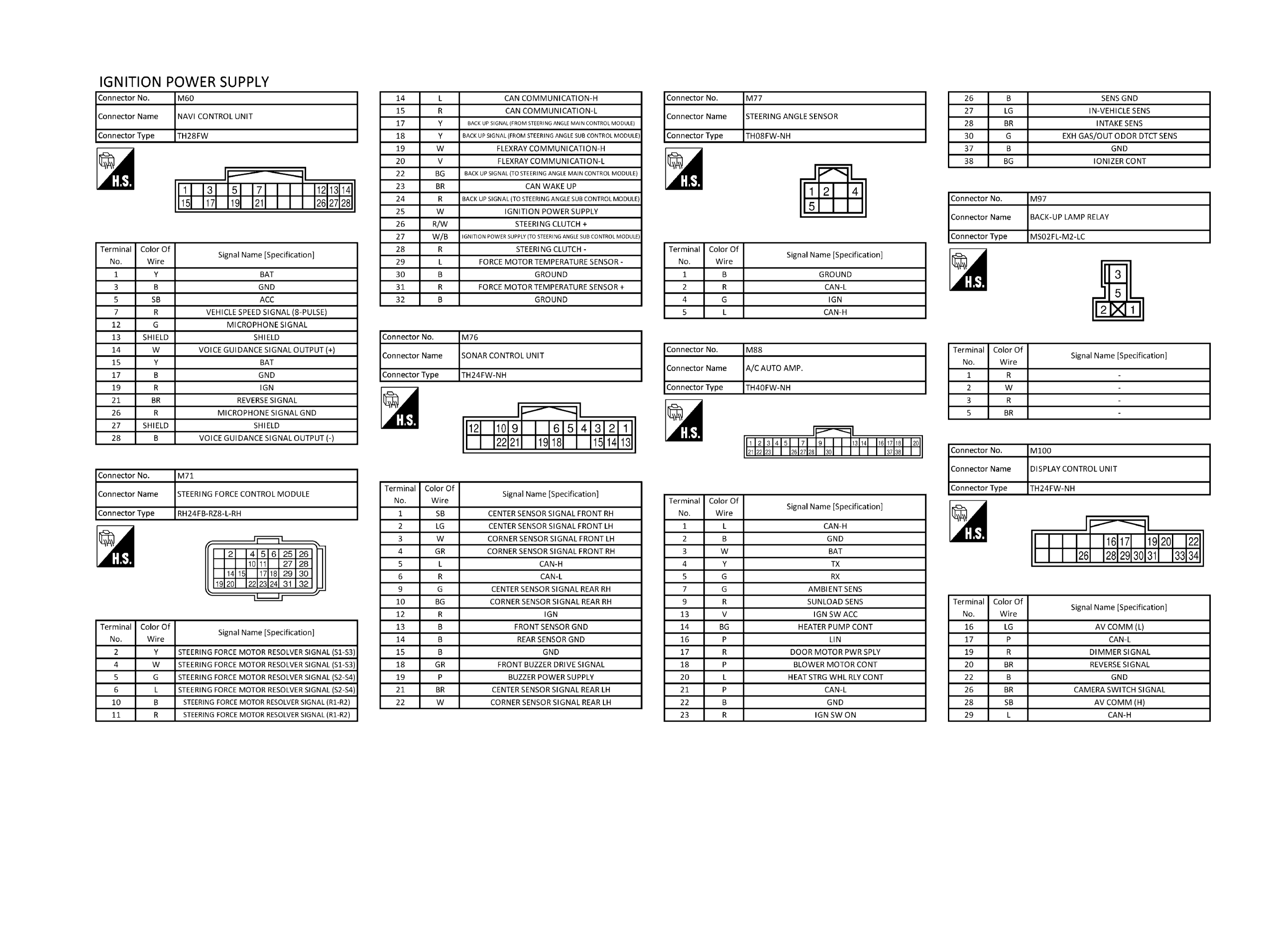

GNSJRMWJ0856GB-856

Courtesy of NISSAN NORTH AMERICA, INC.

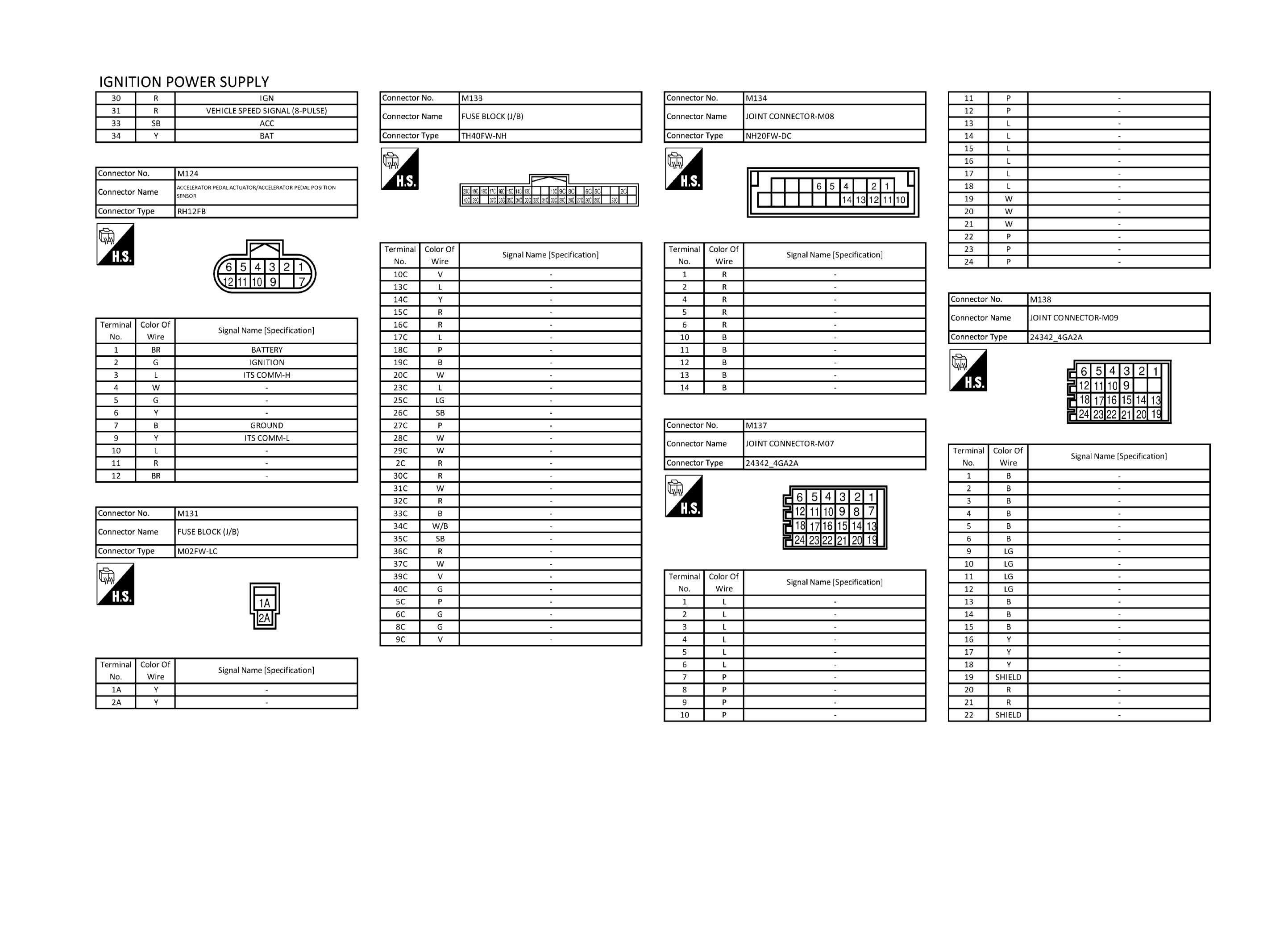

GNSJRMWJ0857GB-857

Courtesy of NISSAN NORTH AMERICA, INC.

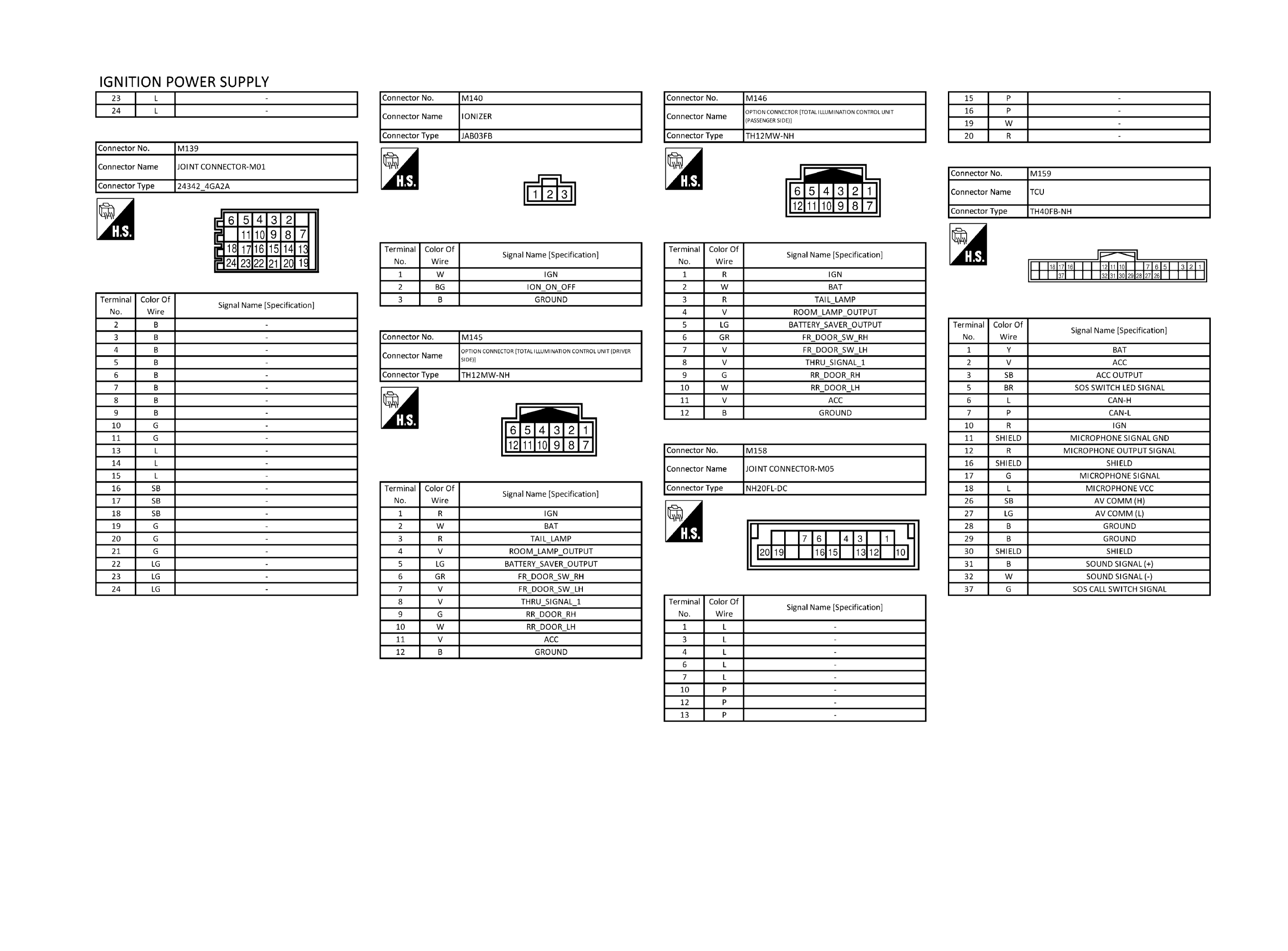

GNSJRMWJ0858GB-858

Courtesy of NISSAN NORTH AMERICA, INC.

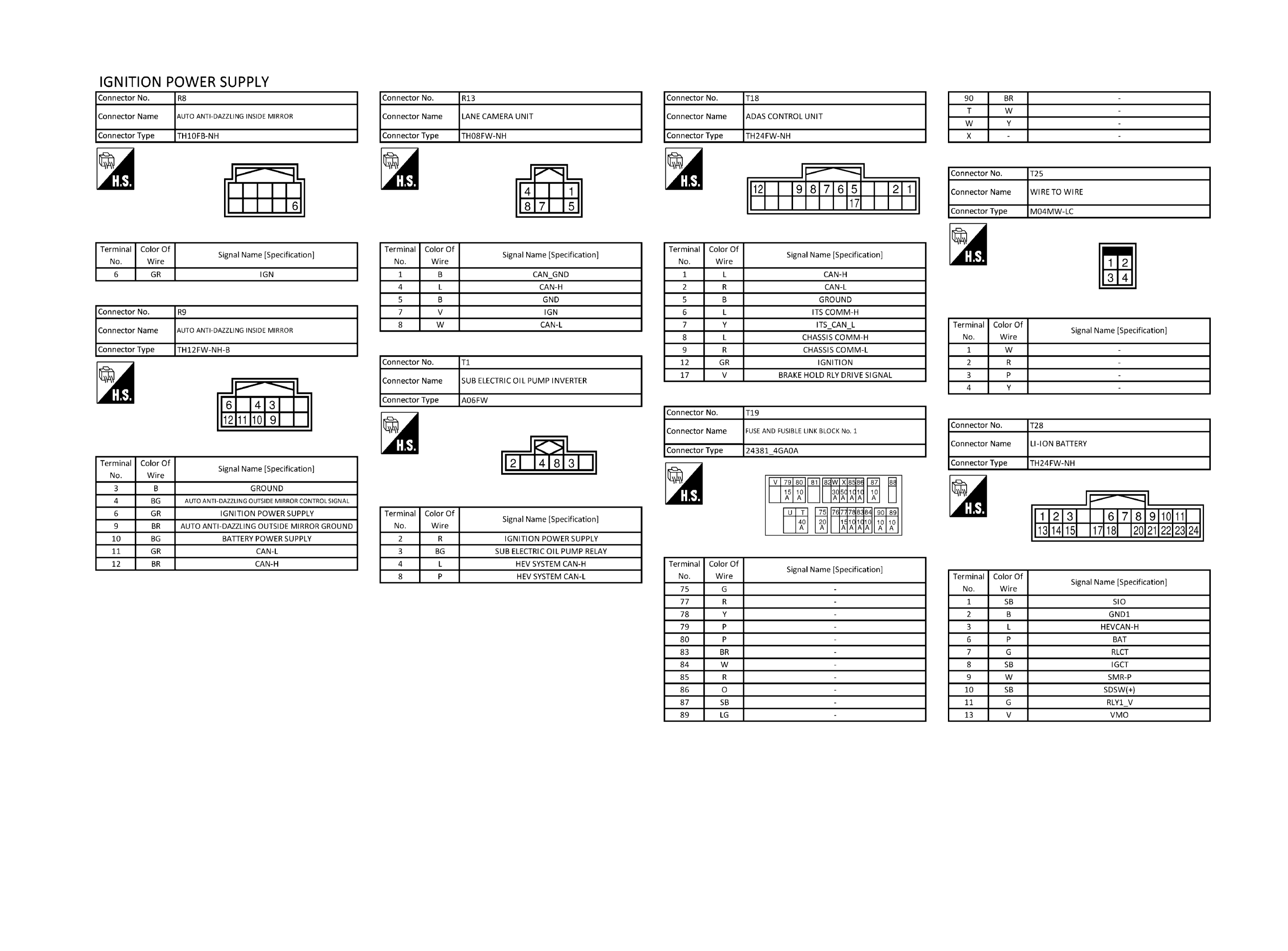

GNSJRMWJ0859GB-859

Courtesy of NISSAN NORTH AMERICA, INC.

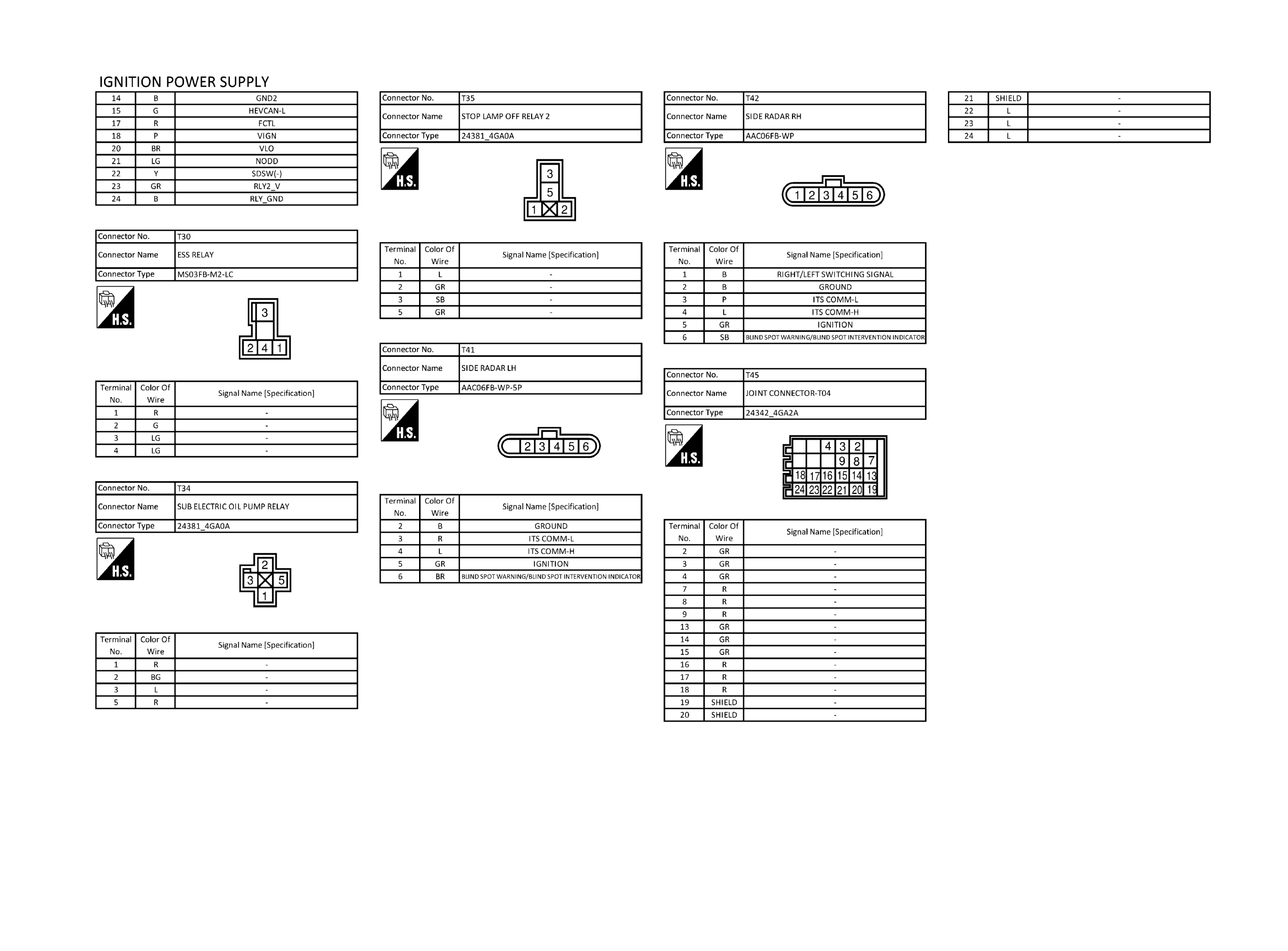

GNSJRMWJ0860GB-860

Courtesy of NISSAN NORTH AMERICA, INC.
