Section 88 (Power Supply, Ground & Circuit Elements (Hybrid))
>>
Wiring Diagram
>>
IPDM E/R (Intelligent Power Distribution Module Engine Room)
>>

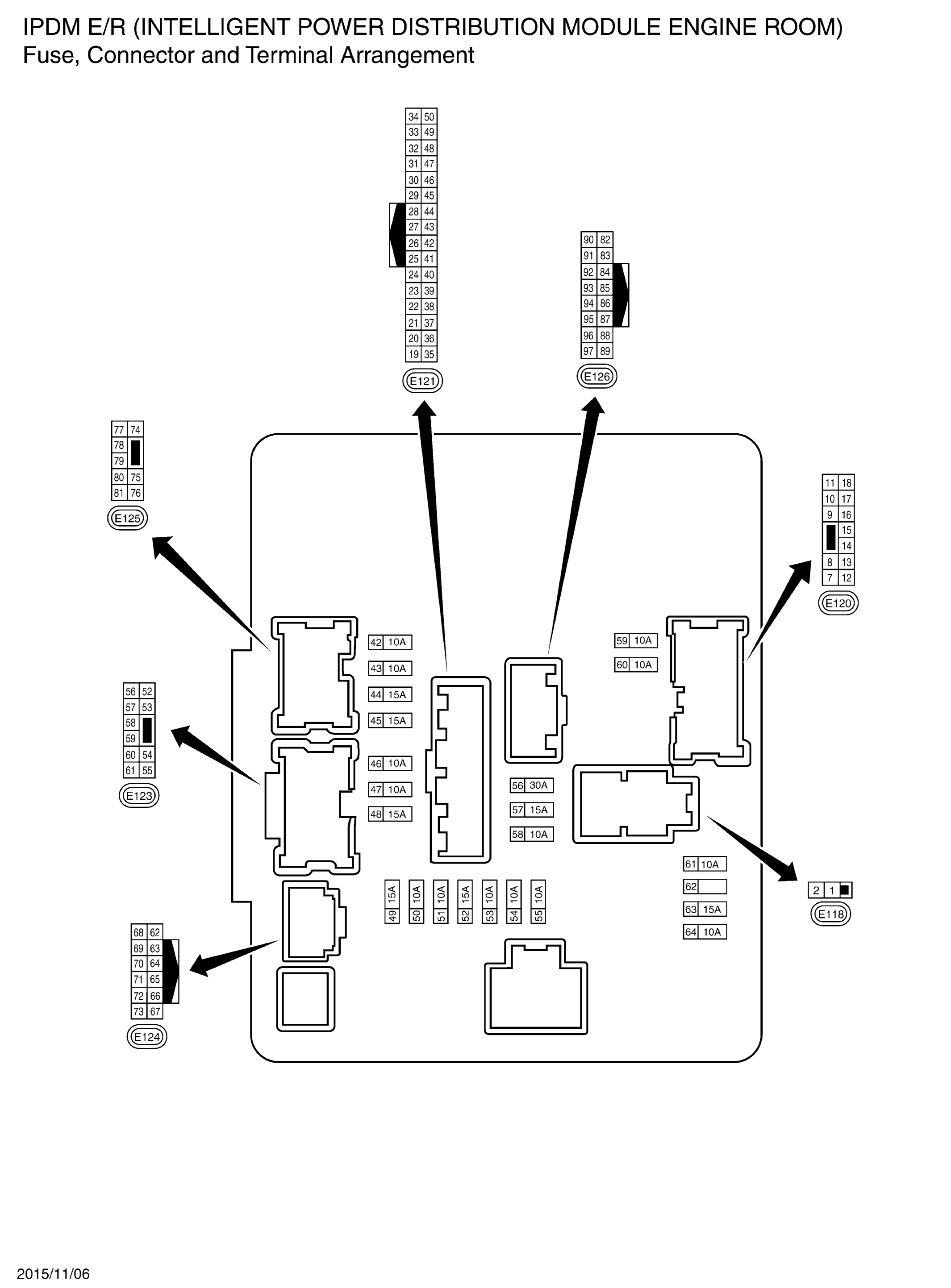

Fuse, Connector And Terminal Arrangement
Fuse, Connector And Terminal Arrangement
WARNING:
This page is about a different variant/trim than selected.
Courtesy of NISSAN NORTH AMERICA, INC.
