Meter System: Wiring Diagram

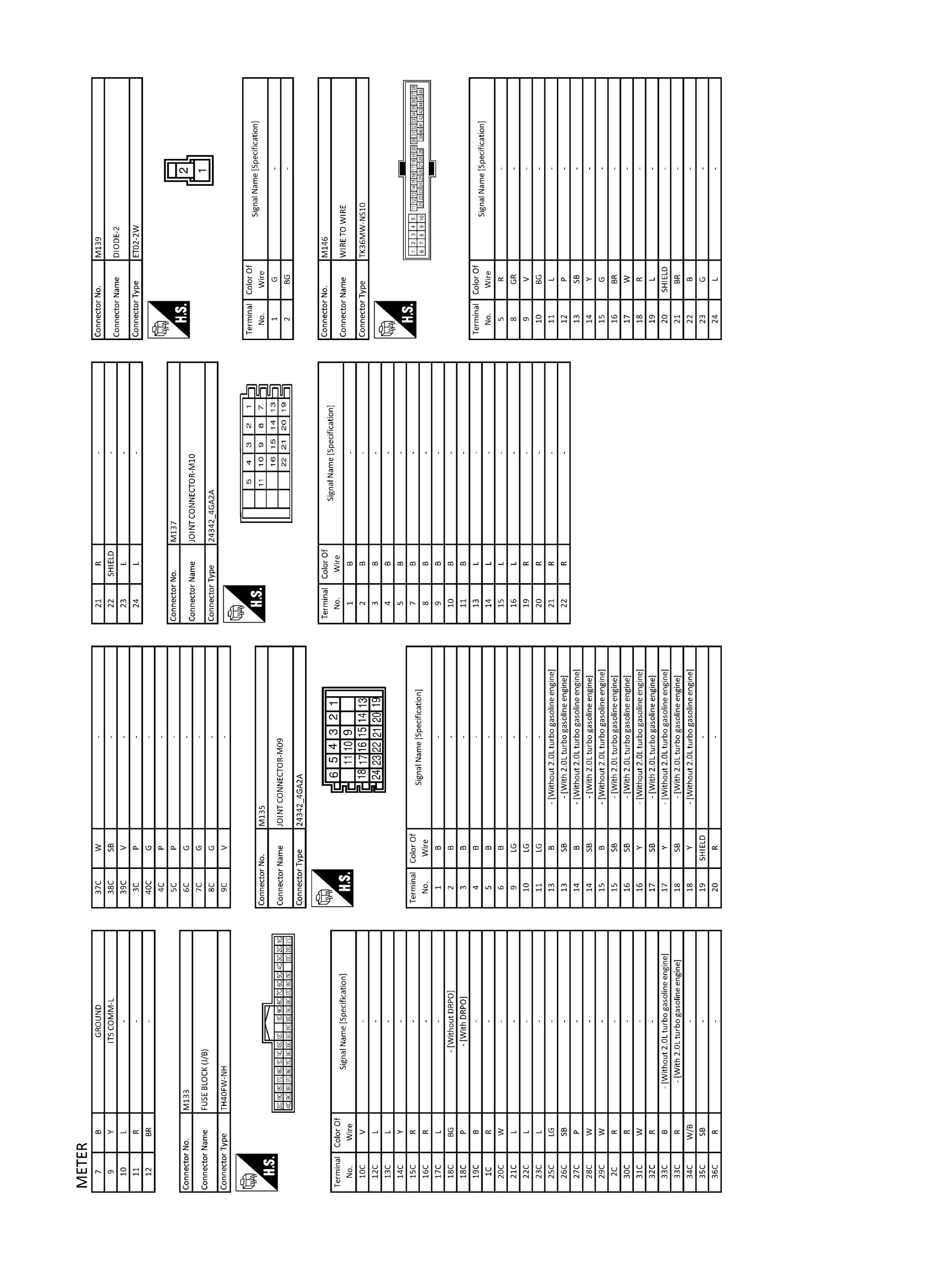

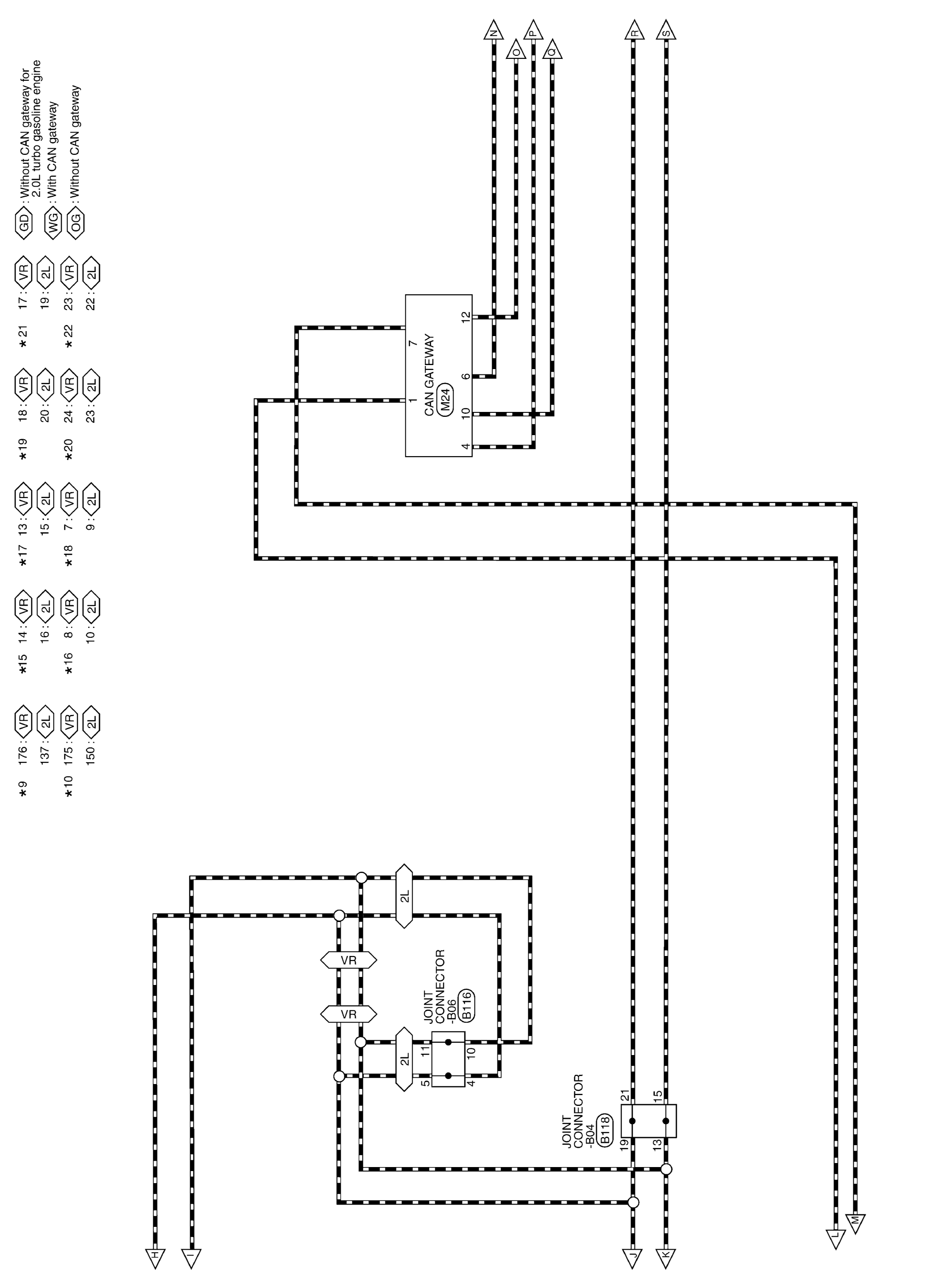

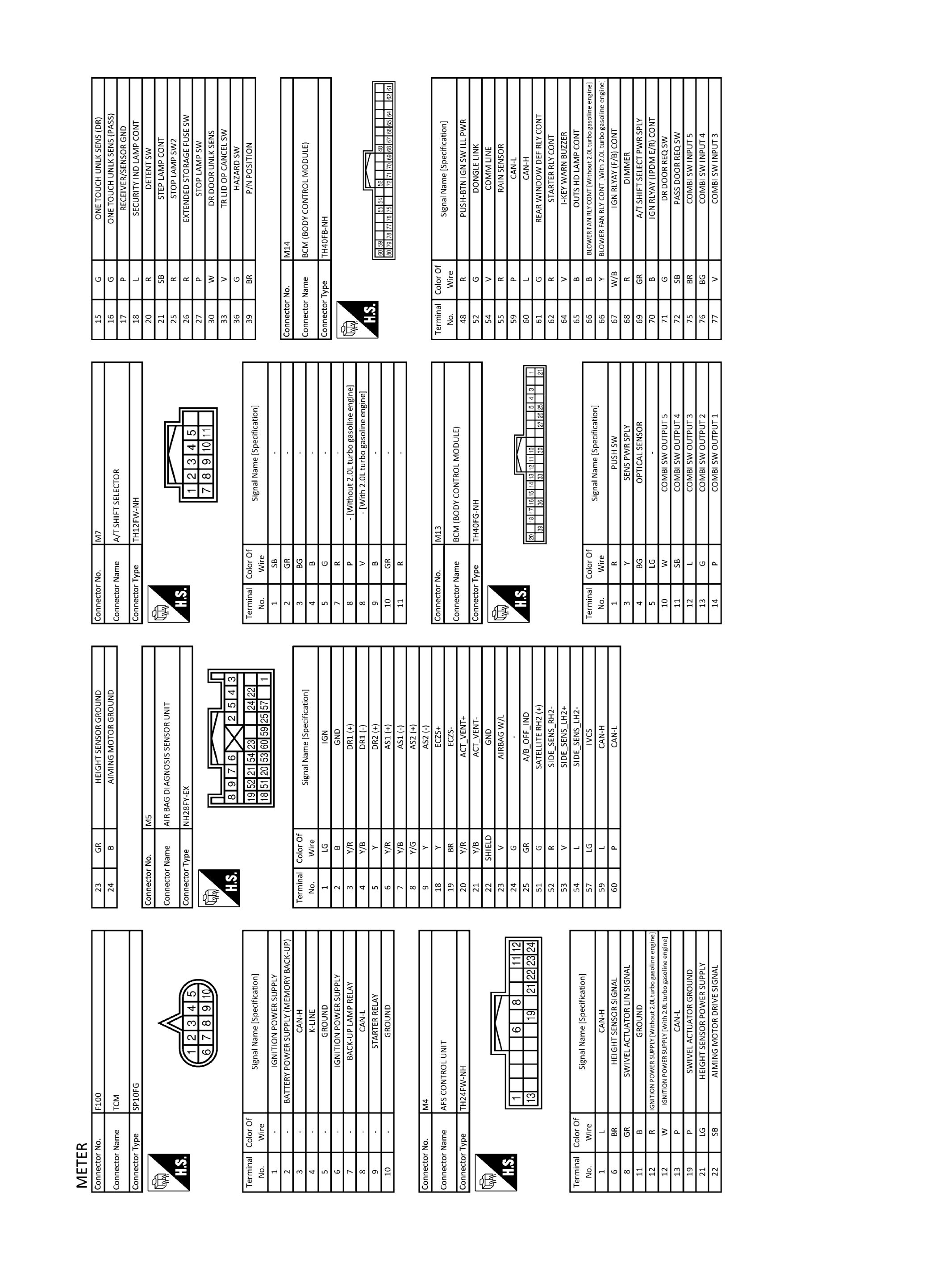

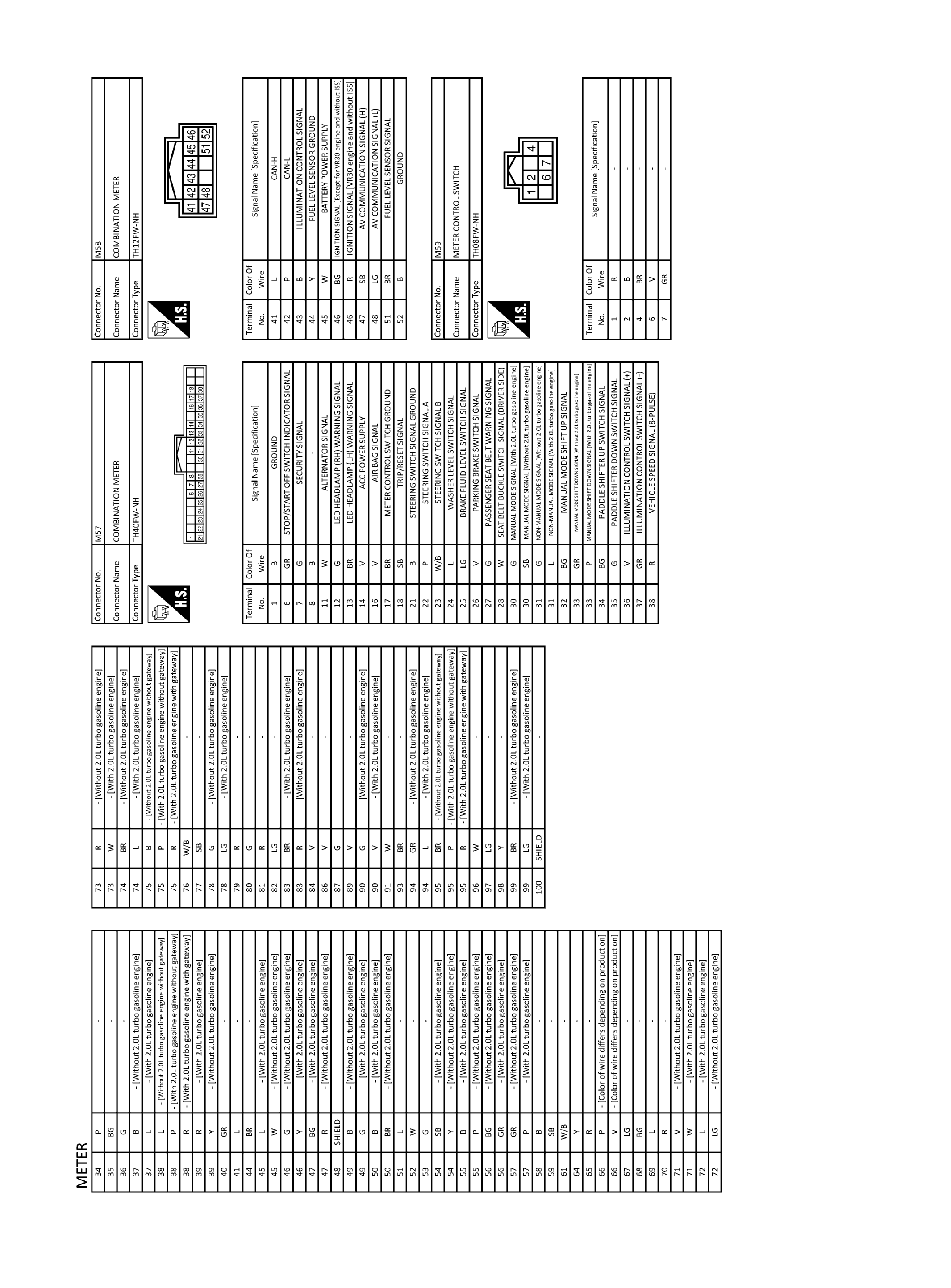

GNSJRNWF4672GB-672

Courtesy of NISSAN NORTH AMERICA, INC.

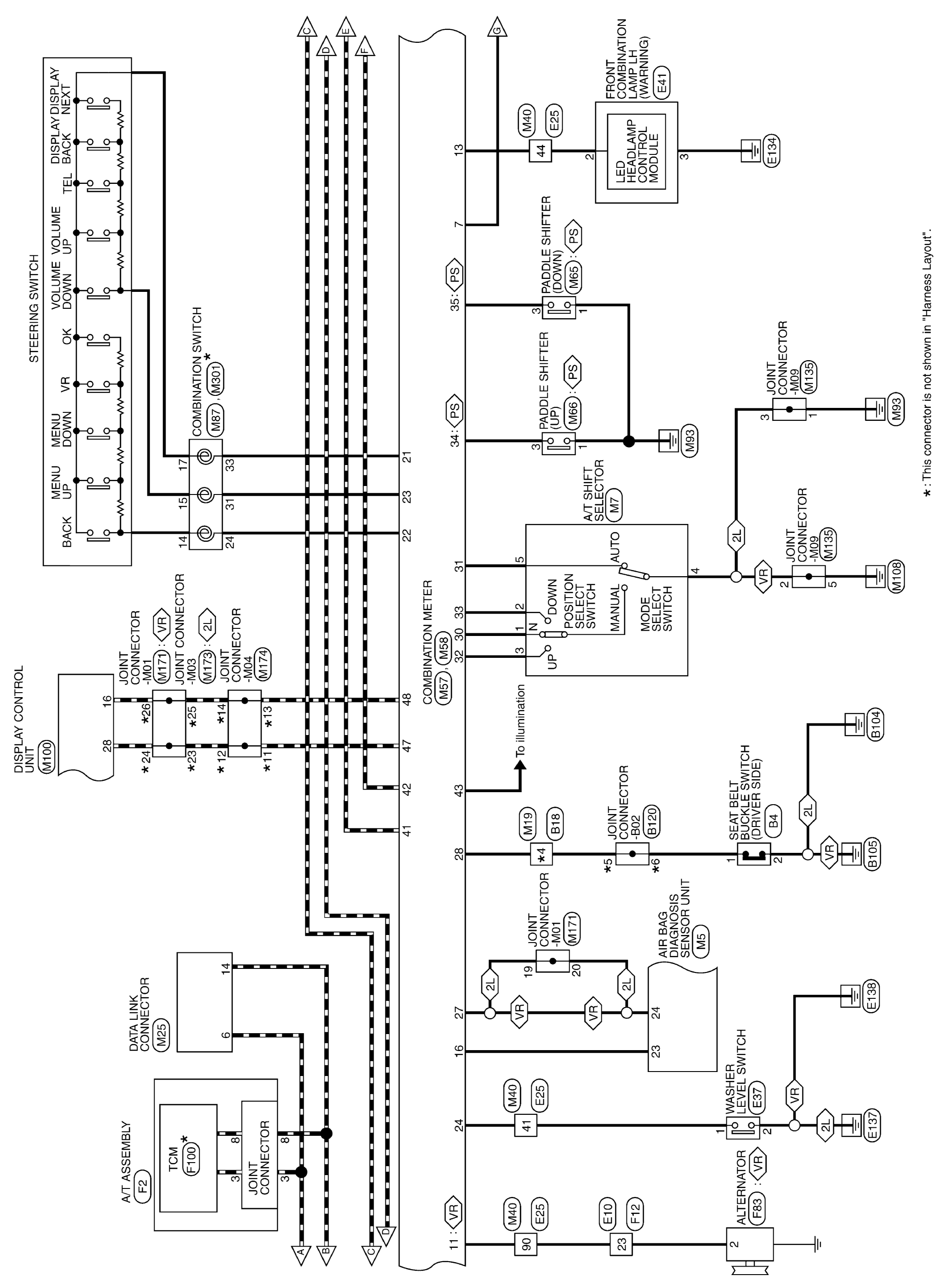

GNSJRNWF4673GB-673

Courtesy of NISSAN NORTH AMERICA, INC.

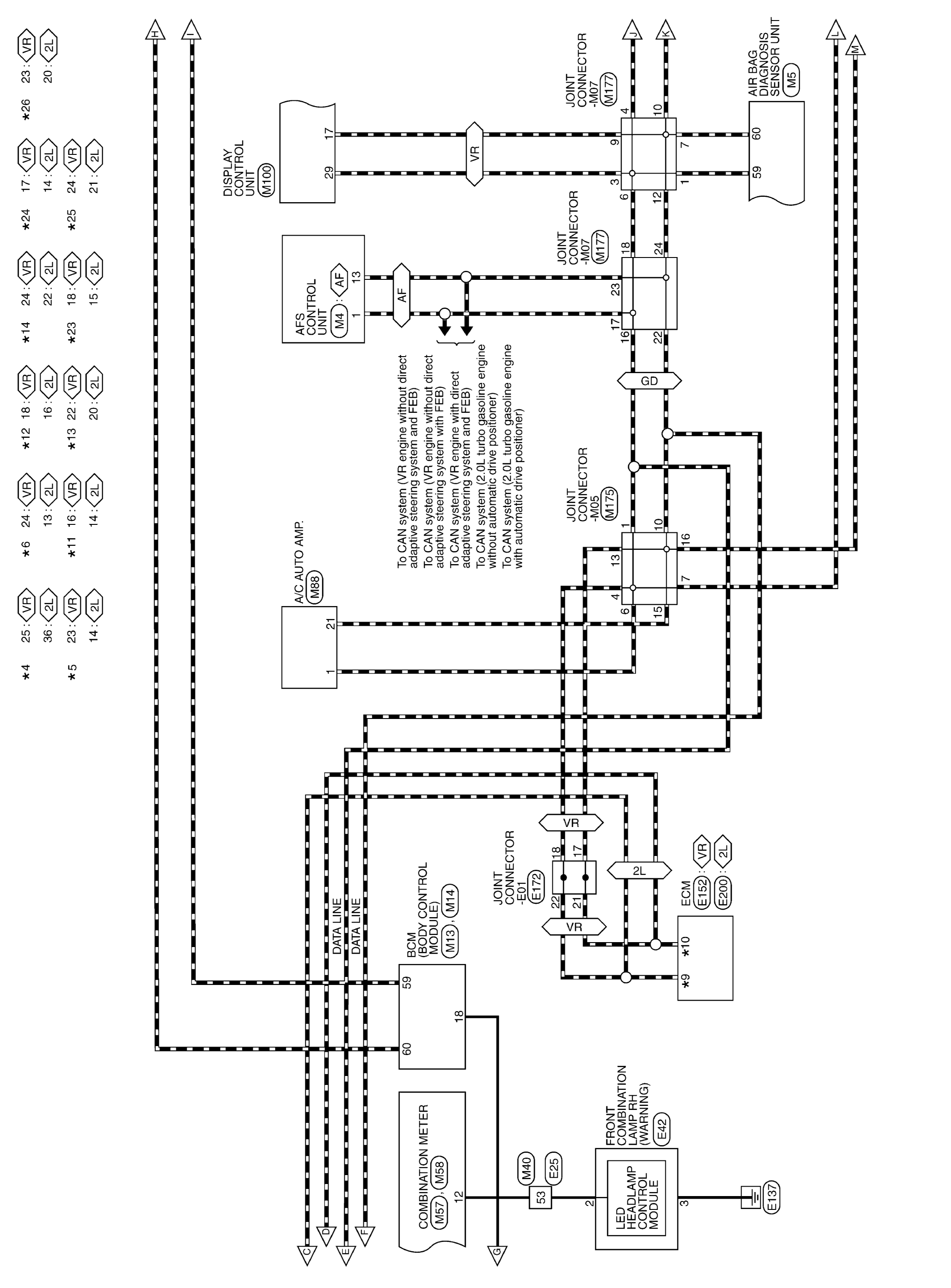

GNSJRNWF4674GB-674

Courtesy of NISSAN NORTH AMERICA, INC.

GNSJRNWF4675GB-675

Courtesy of NISSAN NORTH AMERICA, INC.

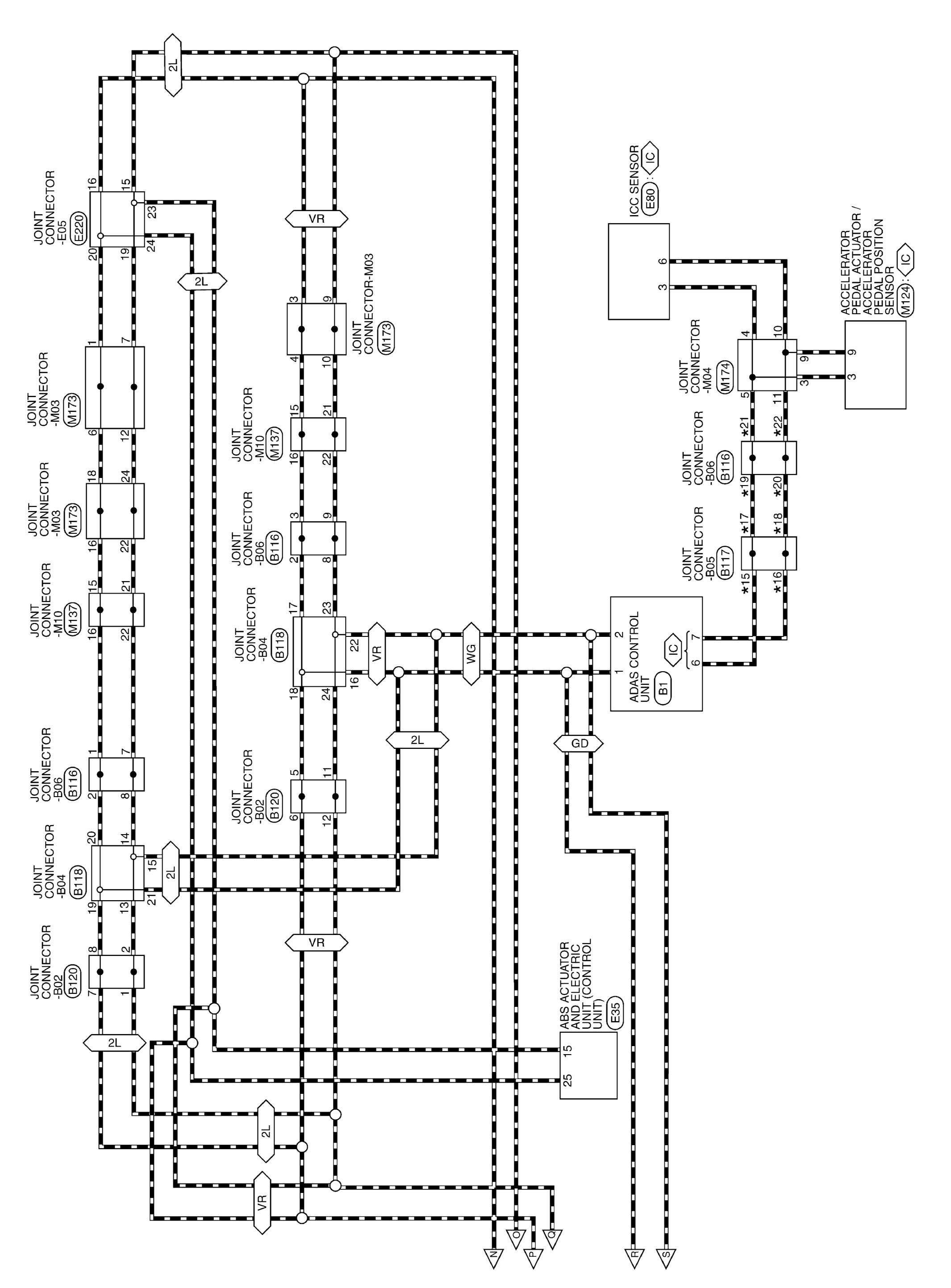

GNSJRNWF4676GB-676

Courtesy of NISSAN NORTH AMERICA, INC.

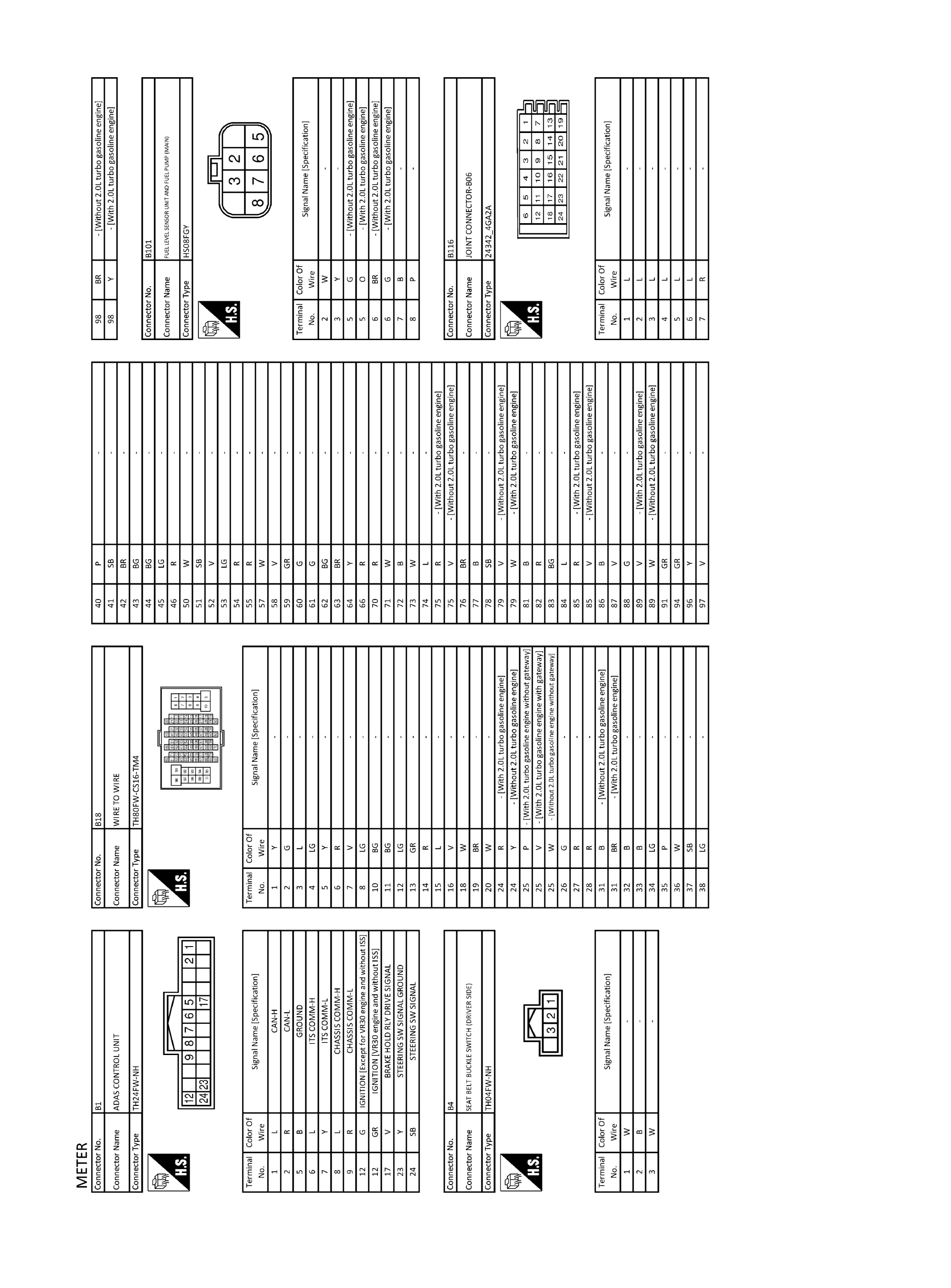

GNSJRNWF4677GB-677

Courtesy of NISSAN NORTH AMERICA, INC.

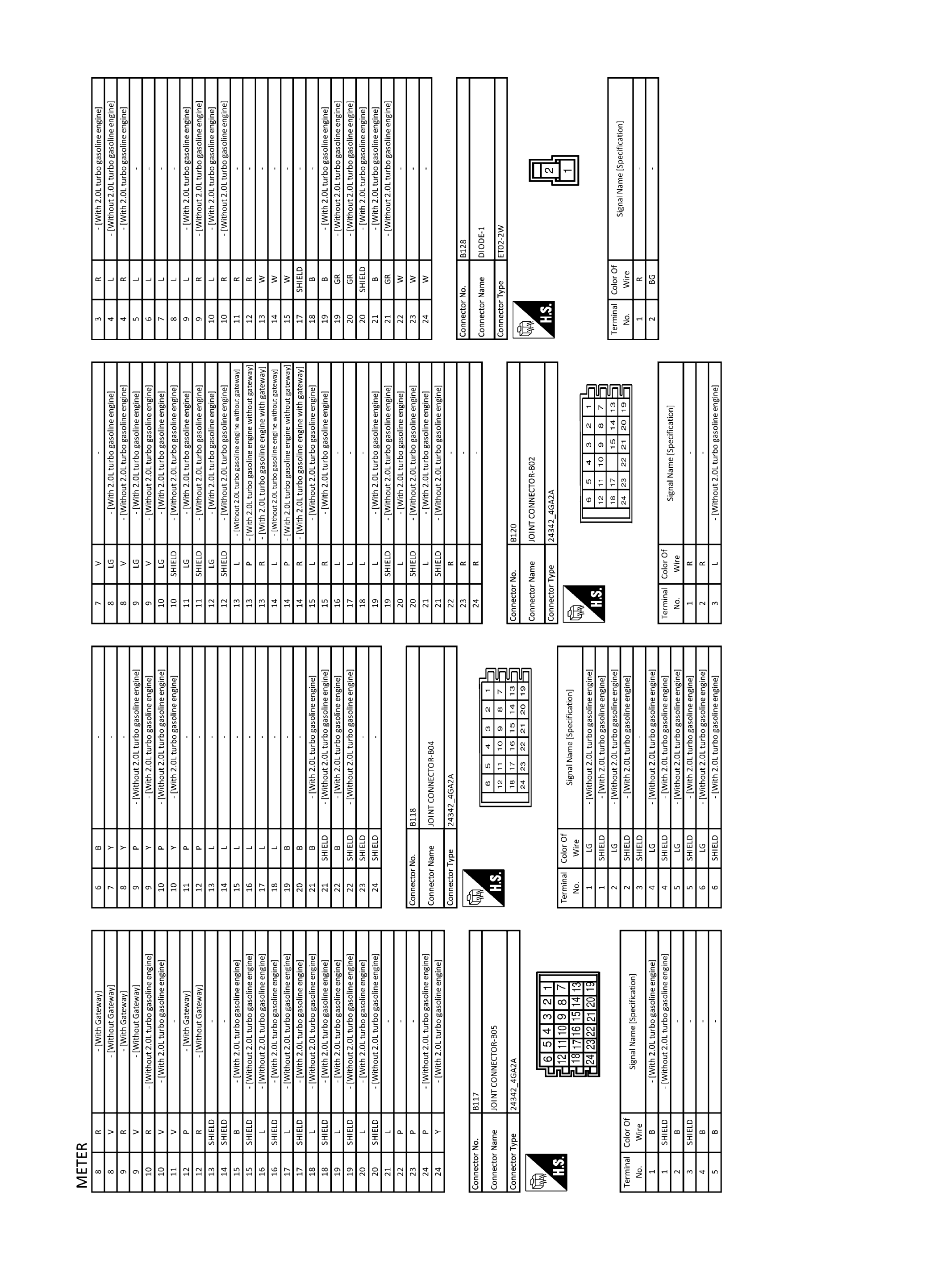

GNSJRNWF4678GB-678

Courtesy of NISSAN NORTH AMERICA, INC.

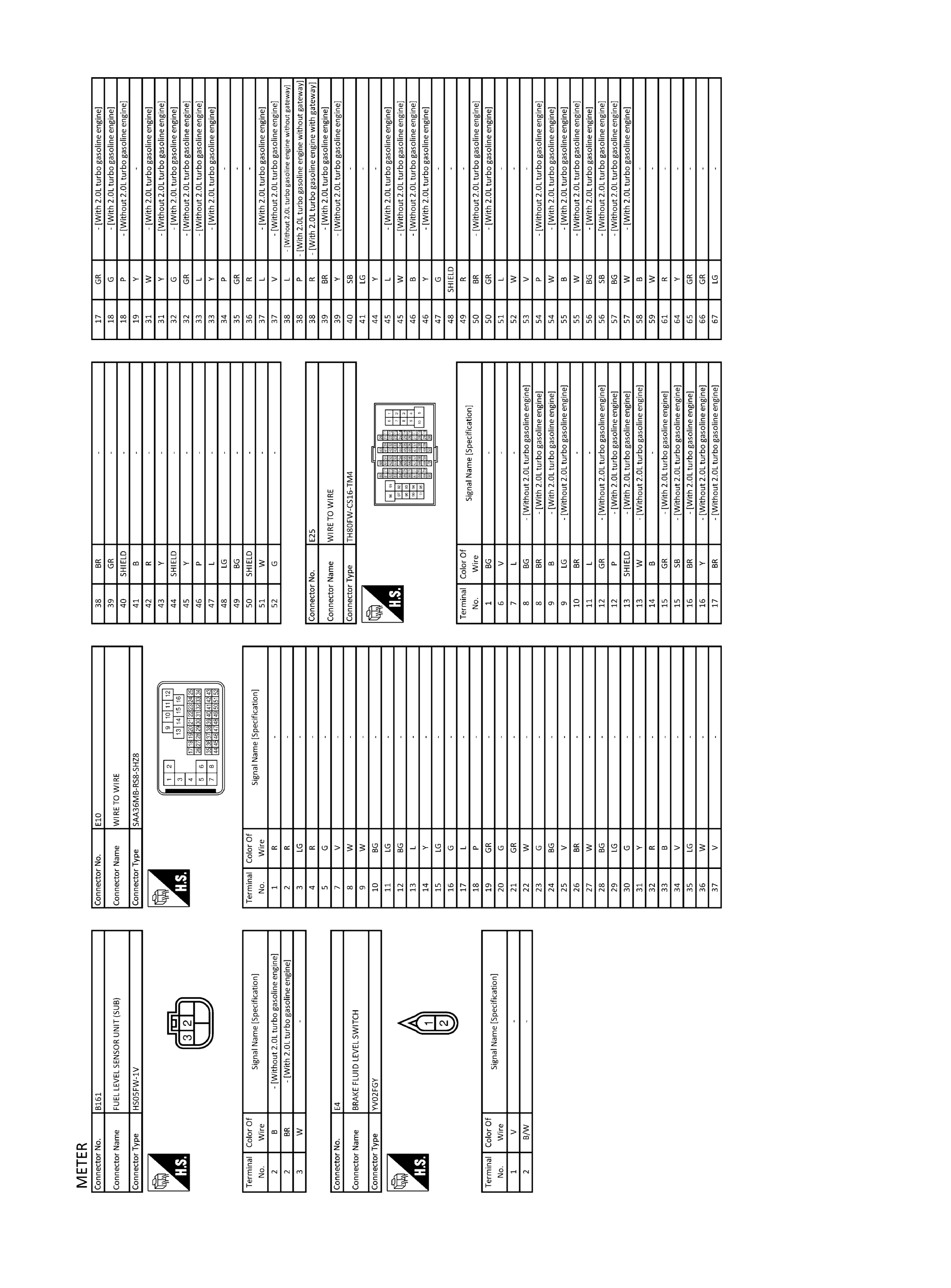

GNSJRNWF4679GB-679

Courtesy of NISSAN NORTH AMERICA, INC.

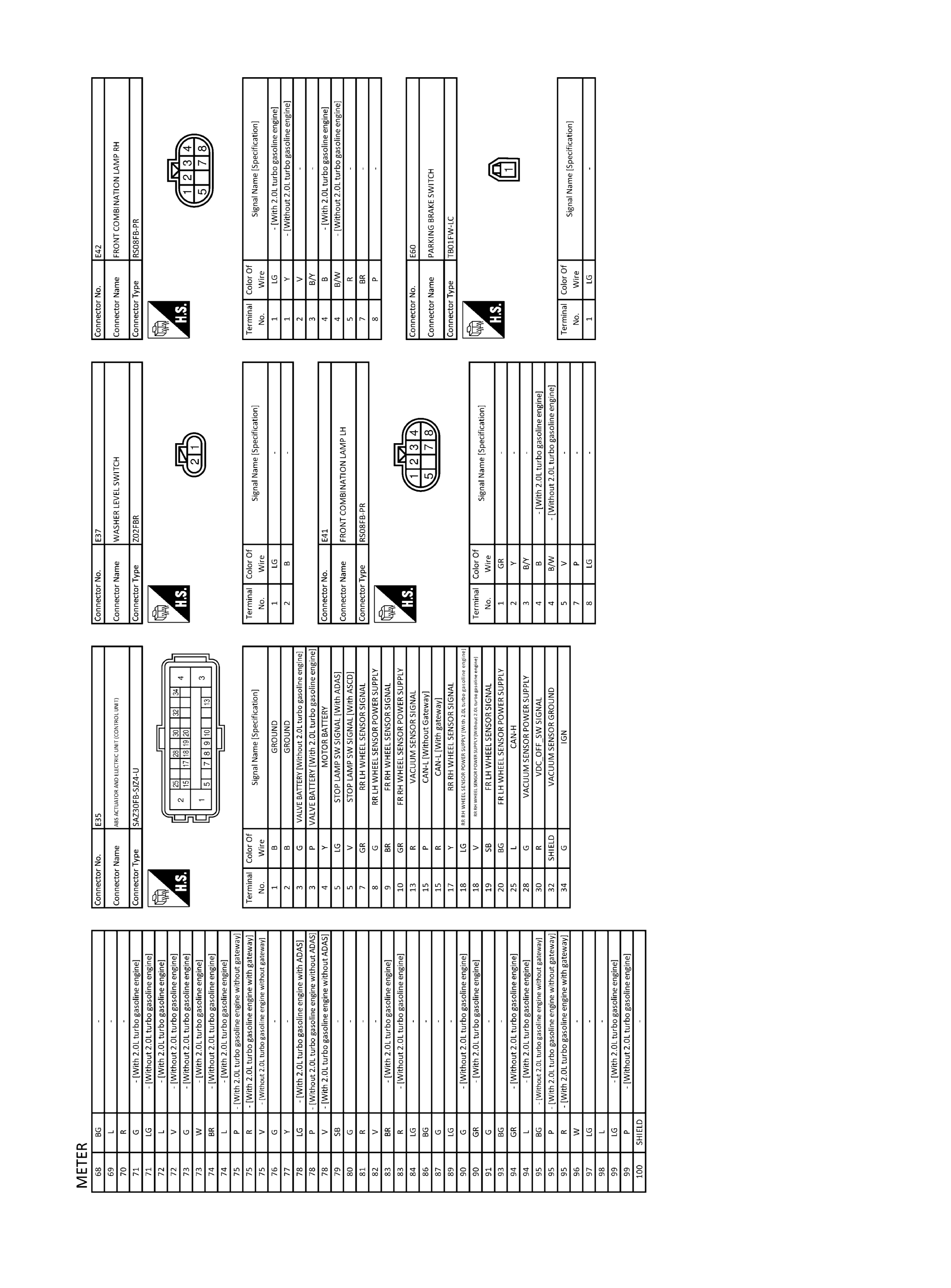

GNSJRNWF4680GB-680

Courtesy of NISSAN NORTH AMERICA, INC.

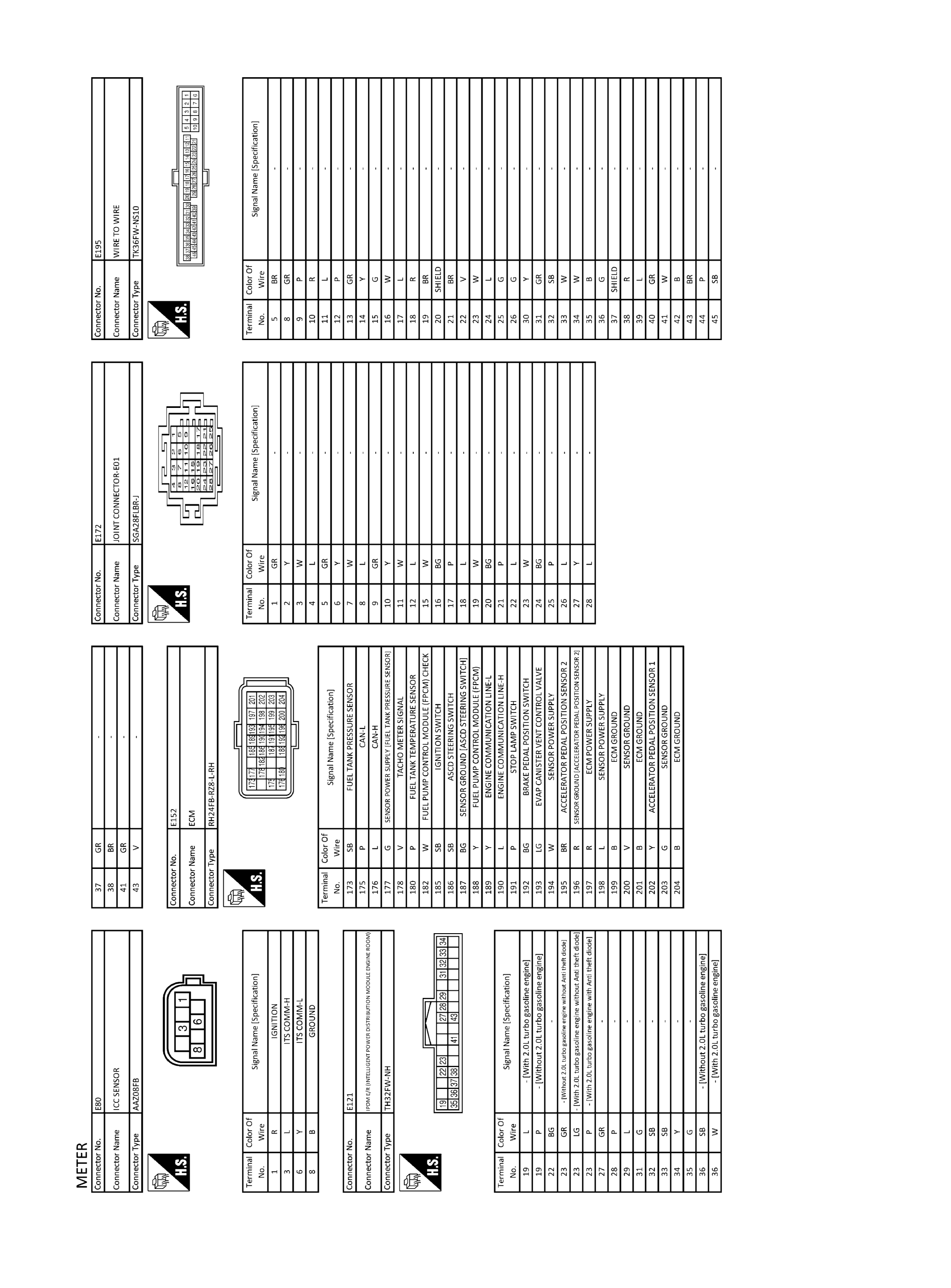

GNSJRNWF4681GB-681

Courtesy of NISSAN NORTH AMERICA, INC.

GNSJRNWF4682GB-682

Courtesy of NISSAN NORTH AMERICA, INC.

GNSJRNWF4683GB-683

Courtesy of NISSAN NORTH AMERICA, INC.

GNSJRNWF4684GB-684

Courtesy of NISSAN NORTH AMERICA, INC.

GNSJRNWF4685GB-685

Courtesy of NISSAN NORTH AMERICA, INC.

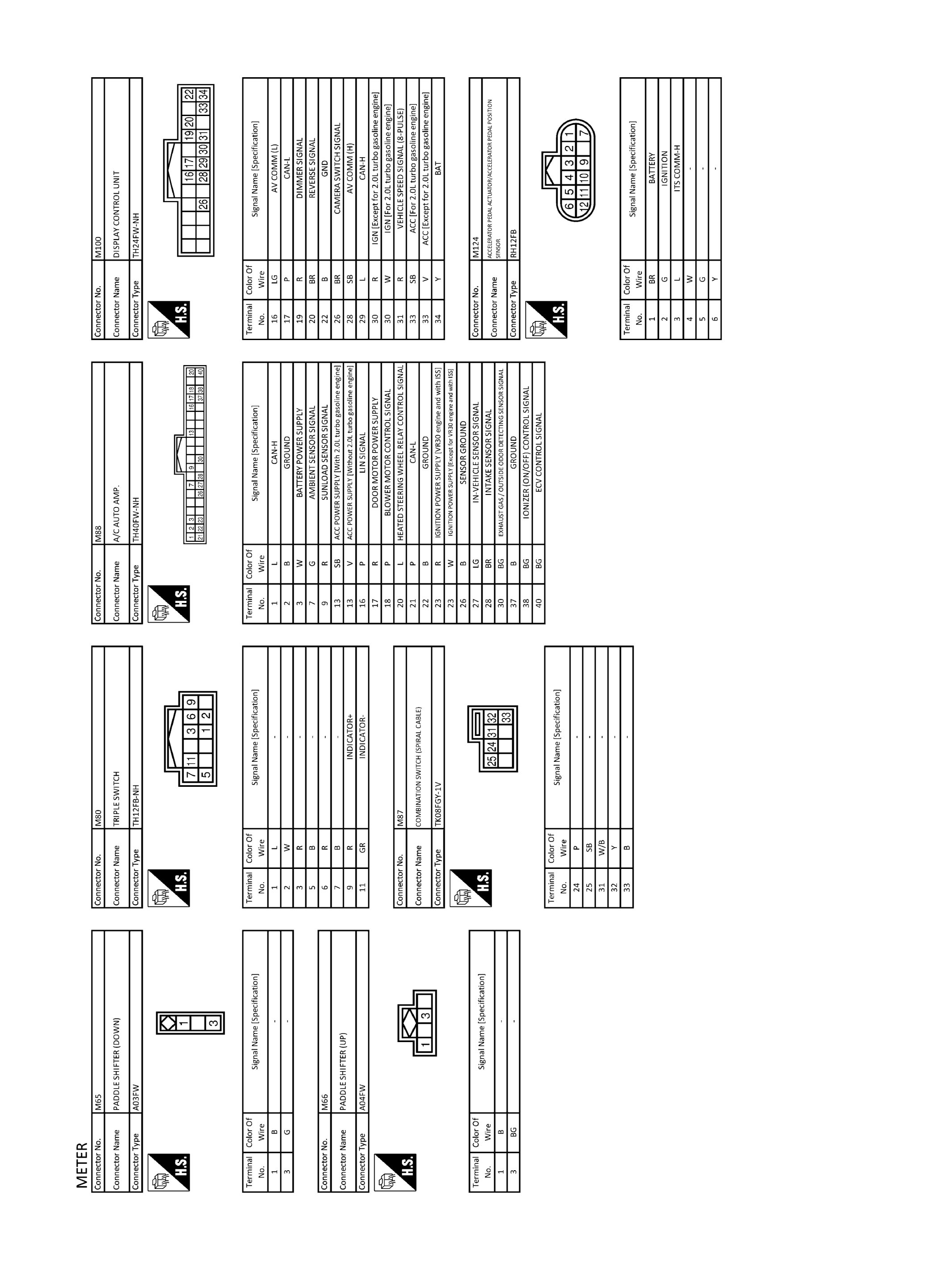

GNSJRNWF4686GB-686

Courtesy of NISSAN NORTH AMERICA, INC.

GNSJRNWF4687GB-687

Courtesy of NISSAN NORTH AMERICA, INC.

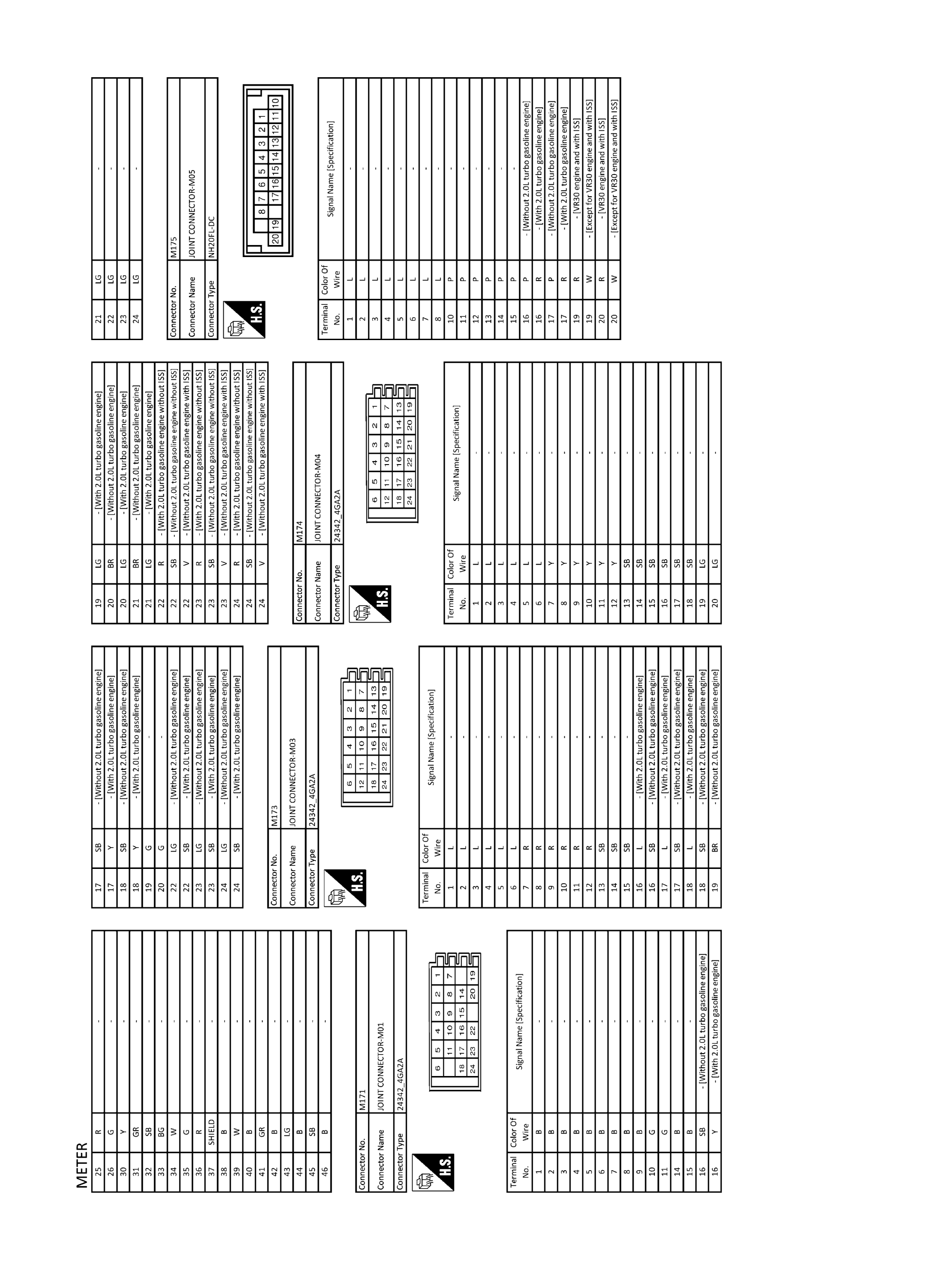

GNSJRNWF4688GB-688

Courtesy of NISSAN NORTH AMERICA, INC.

GNSJRNWF4689GB-689

Courtesy of NISSAN NORTH AMERICA, INC.
