Door Mirror System: Wiring Diagram

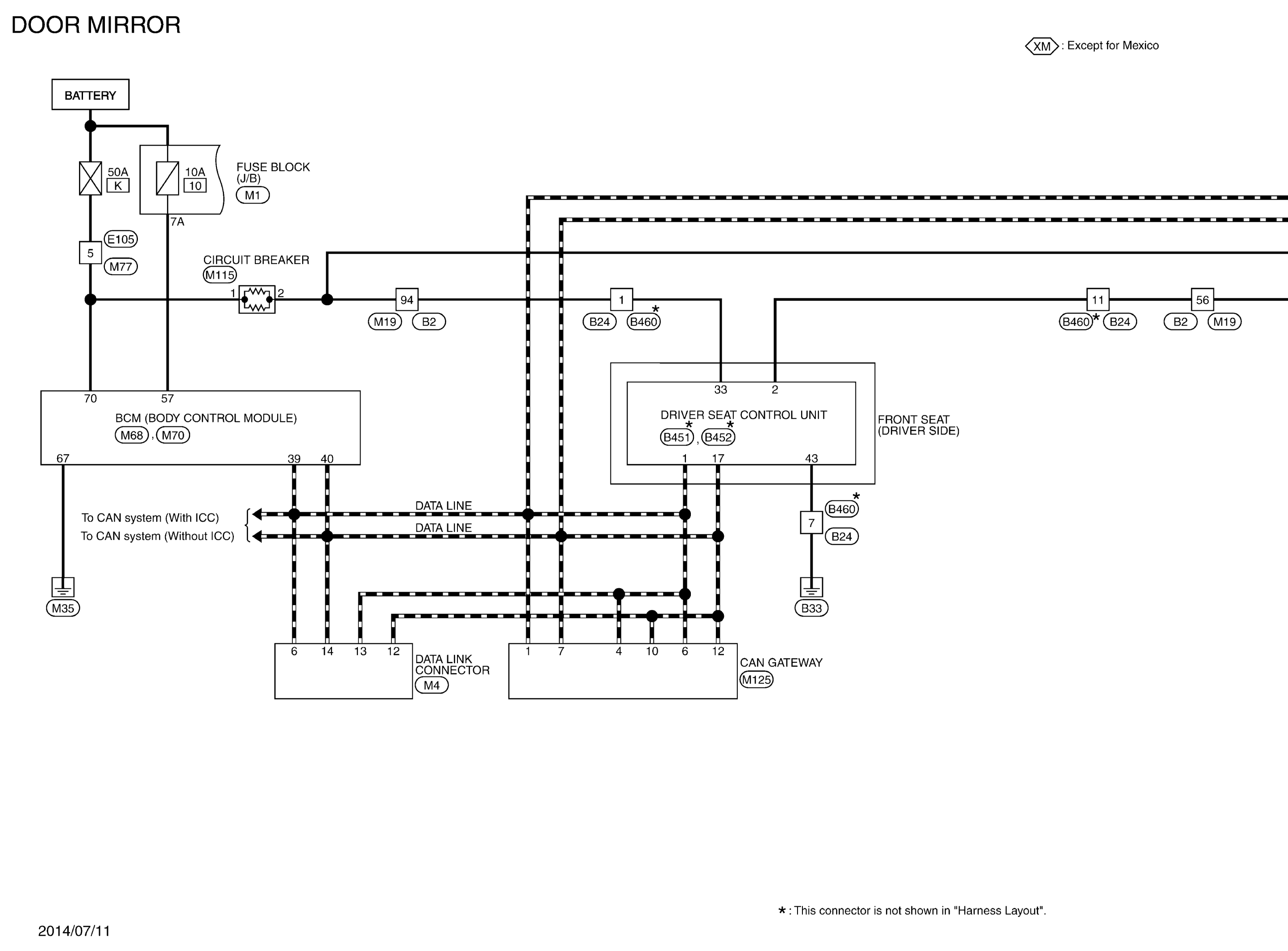

Fig 1: Door Mirror System Wiring Diagram (1 Of 3)

Courtesy of NISSAN NORTH AMERICA, INC.

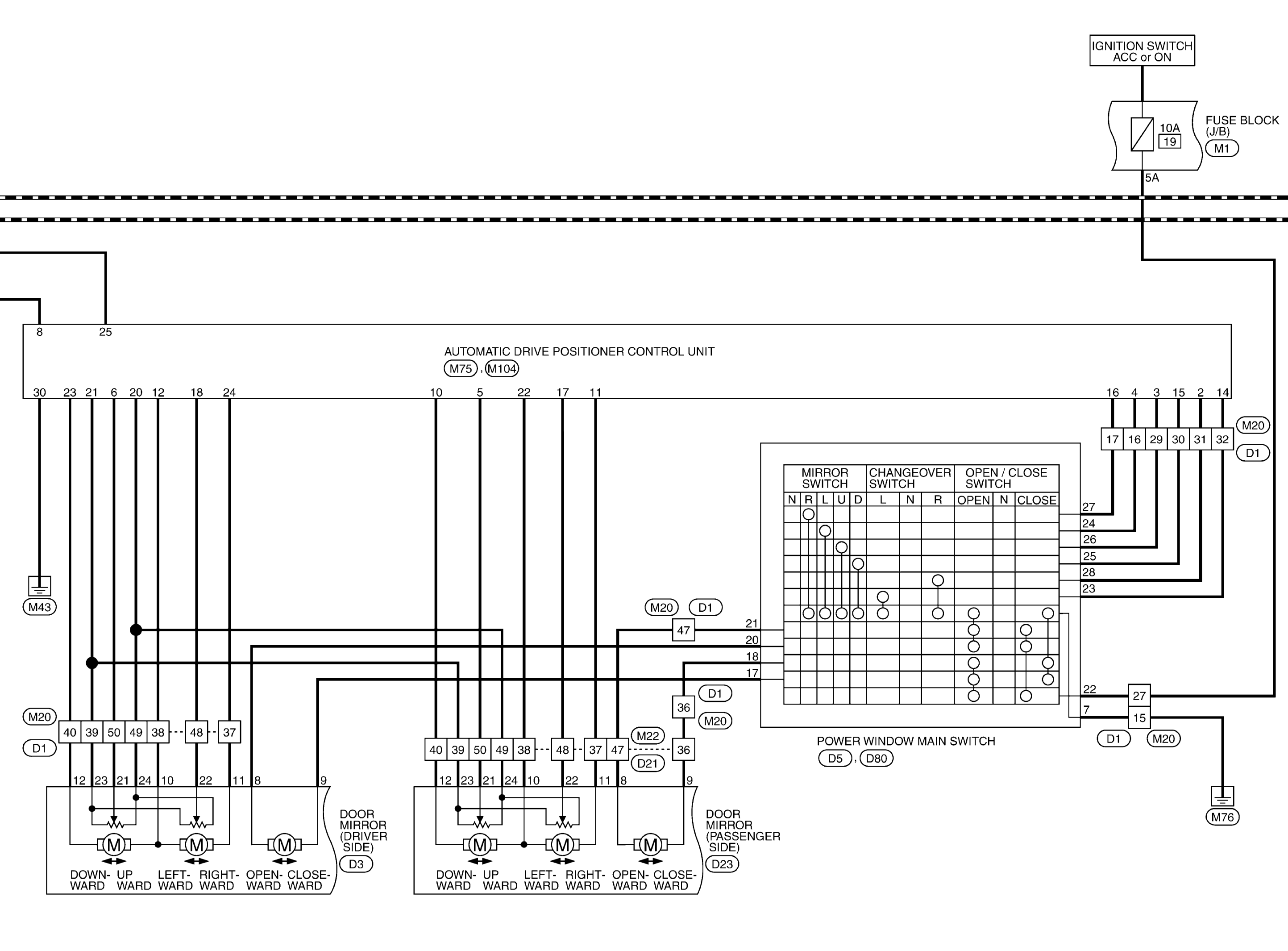

Fig 2: Door Mirror System Wiring Diagram (2 Of 3)

Courtesy of NISSAN NORTH AMERICA, INC.

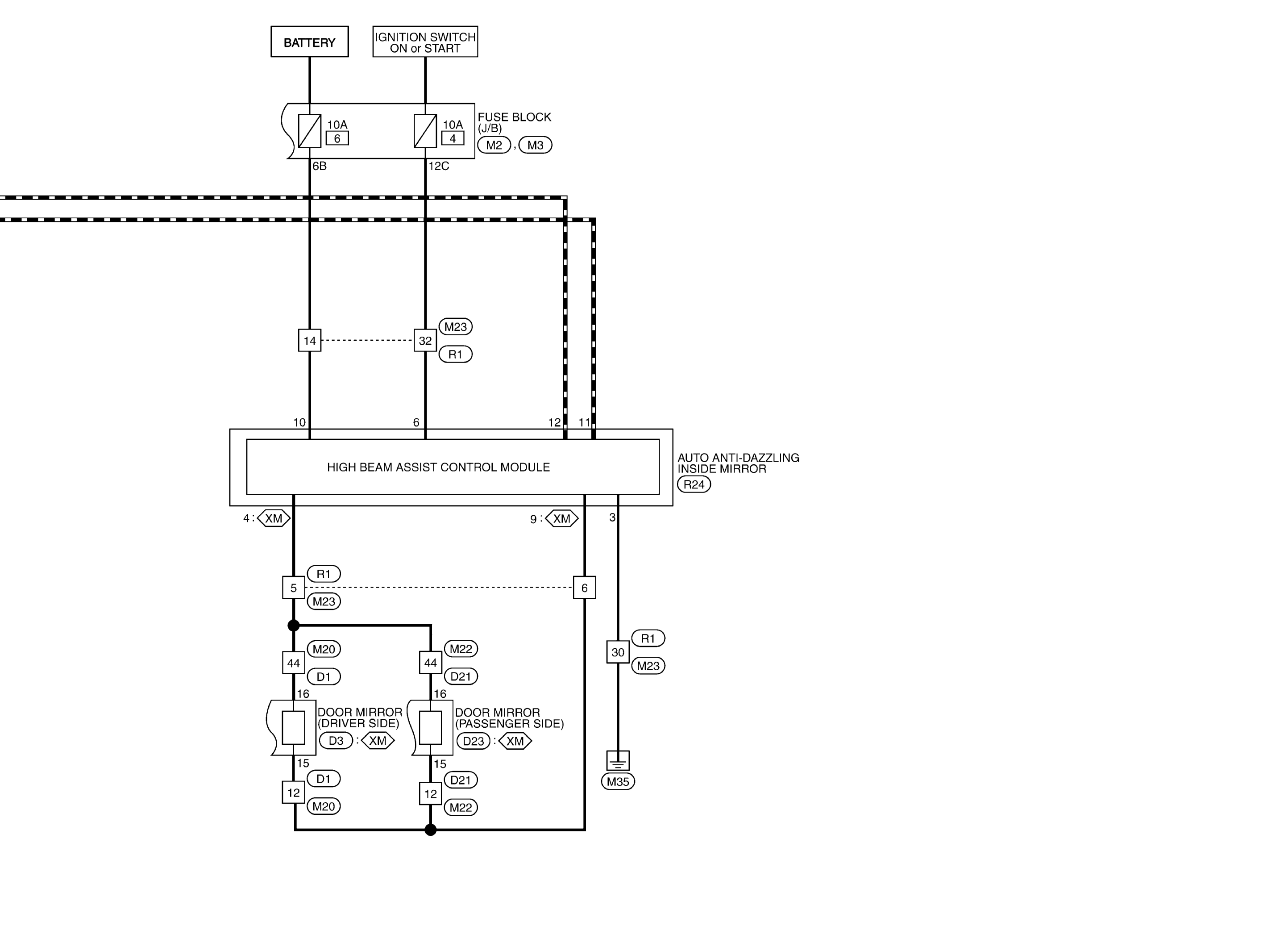

Fig 3: Door Mirror System Wiring Diagram (3 Of 3)

Courtesy of NISSAN NORTH AMERICA, INC.

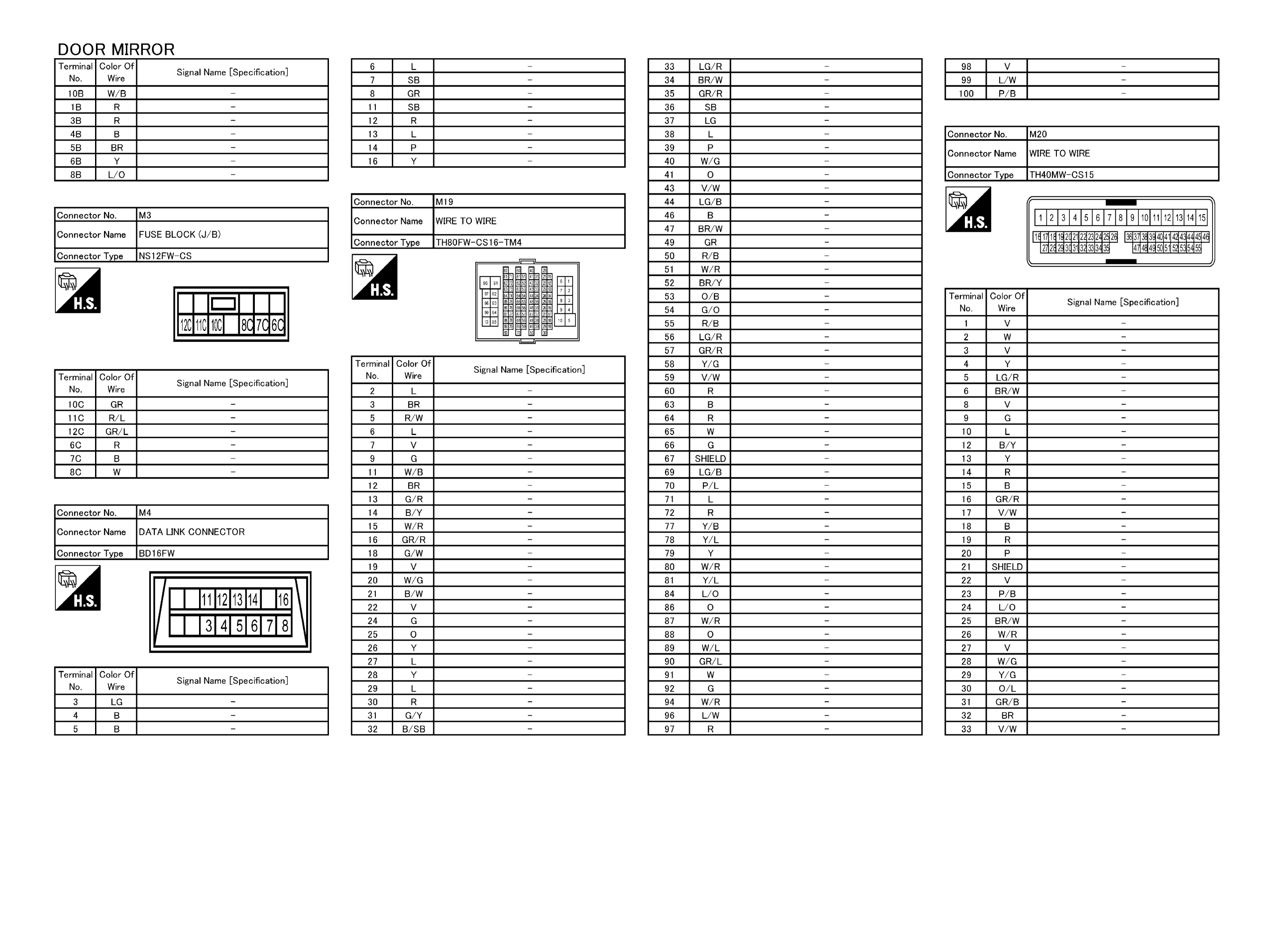

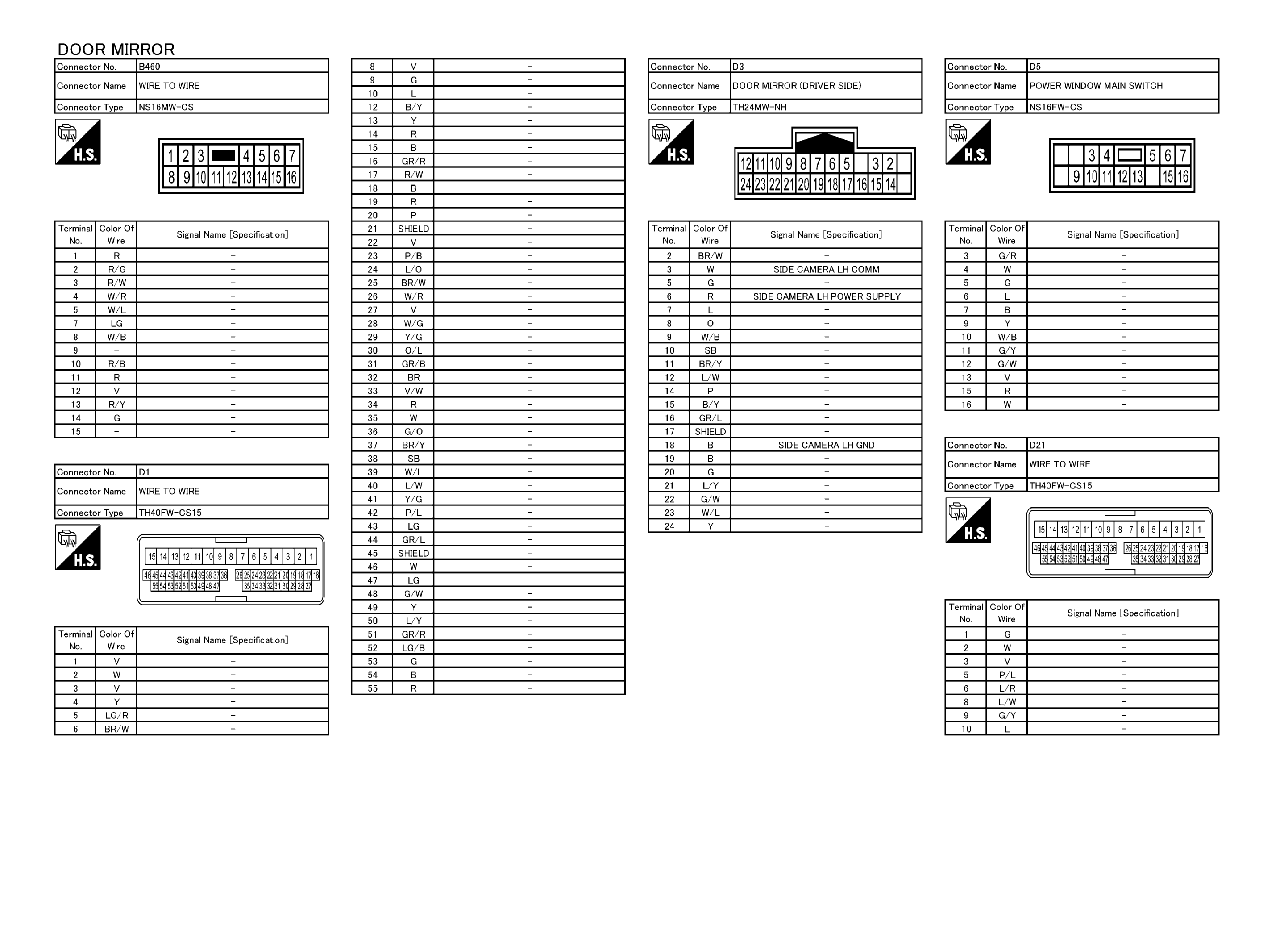

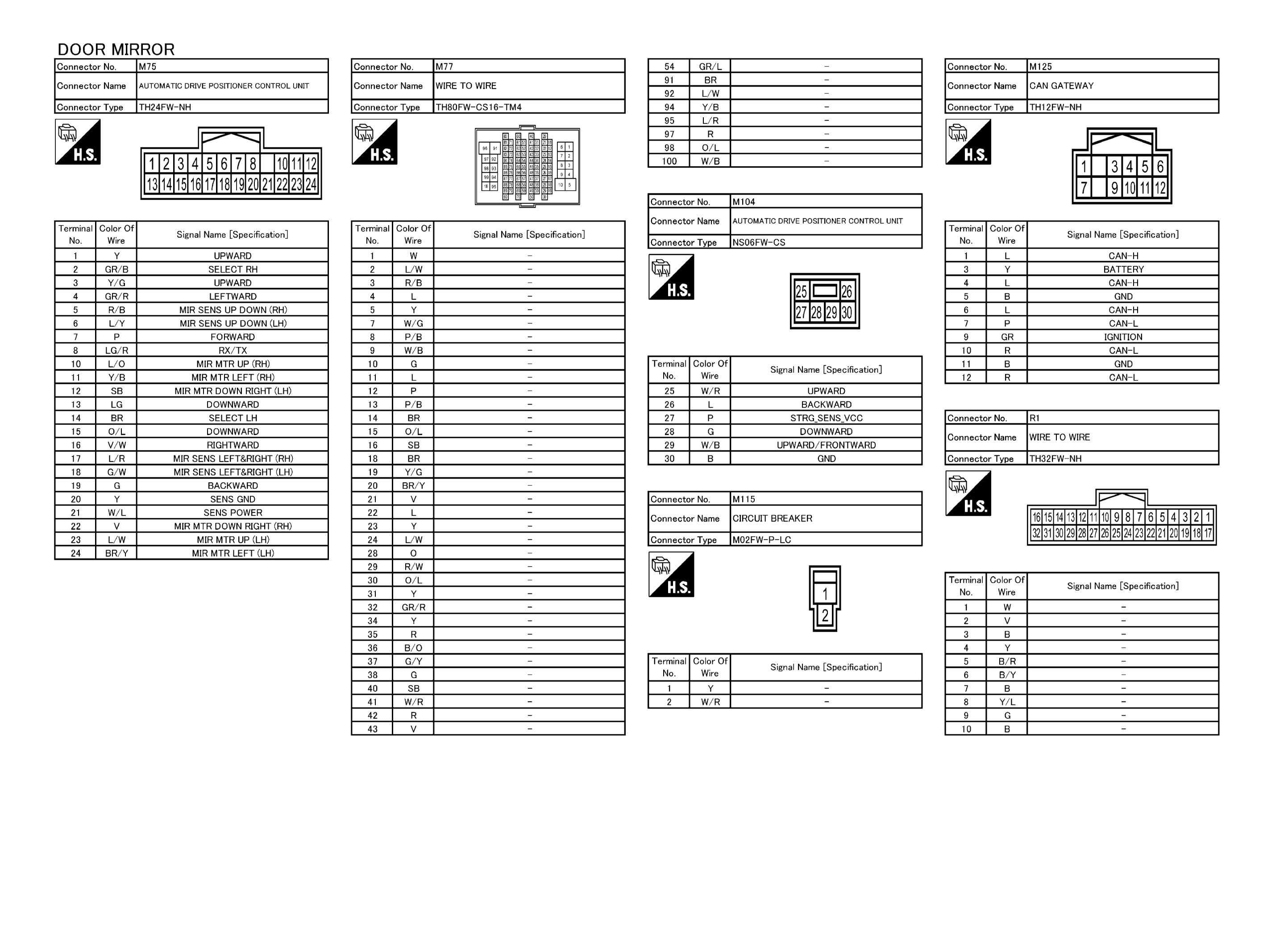

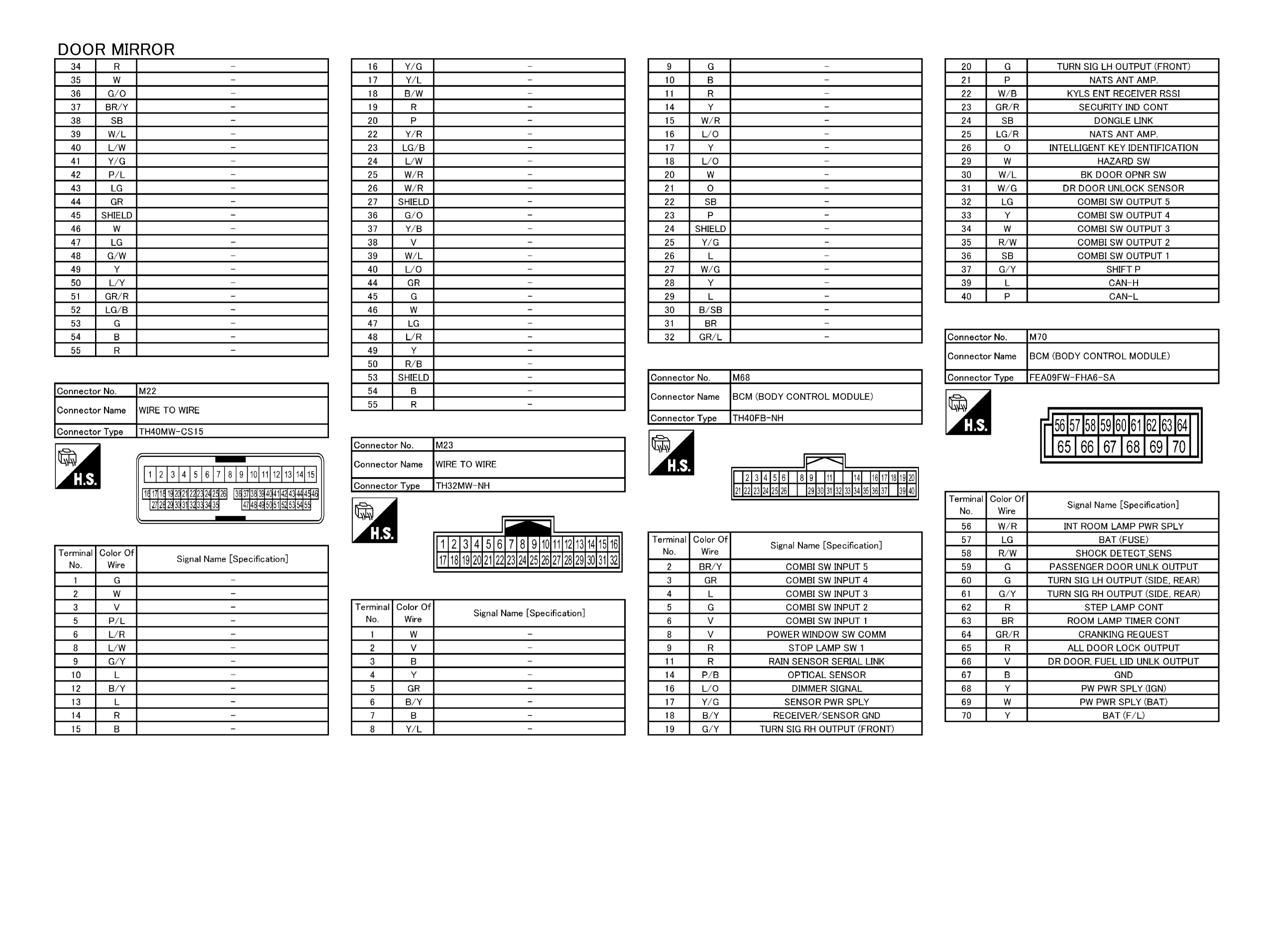

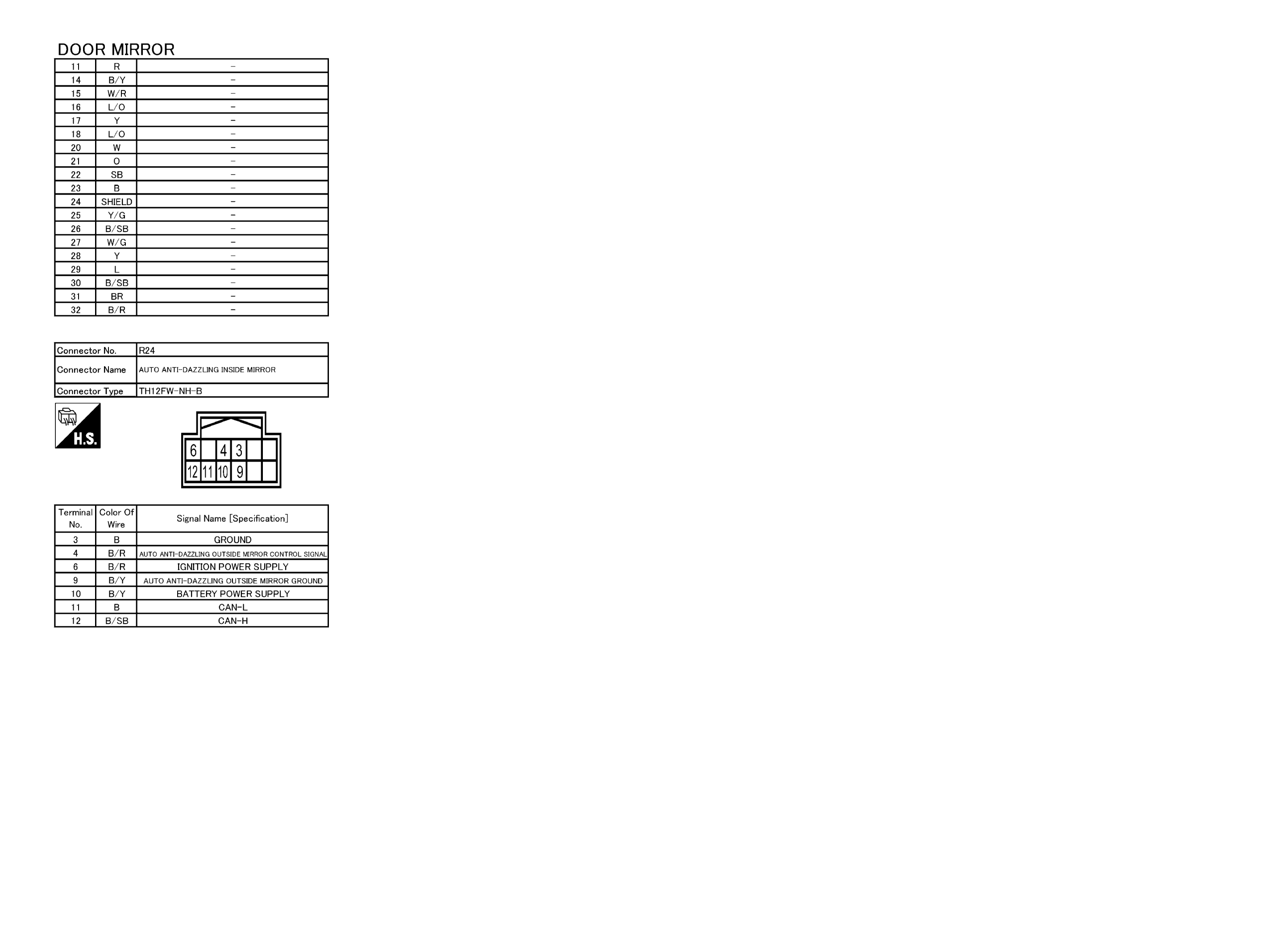

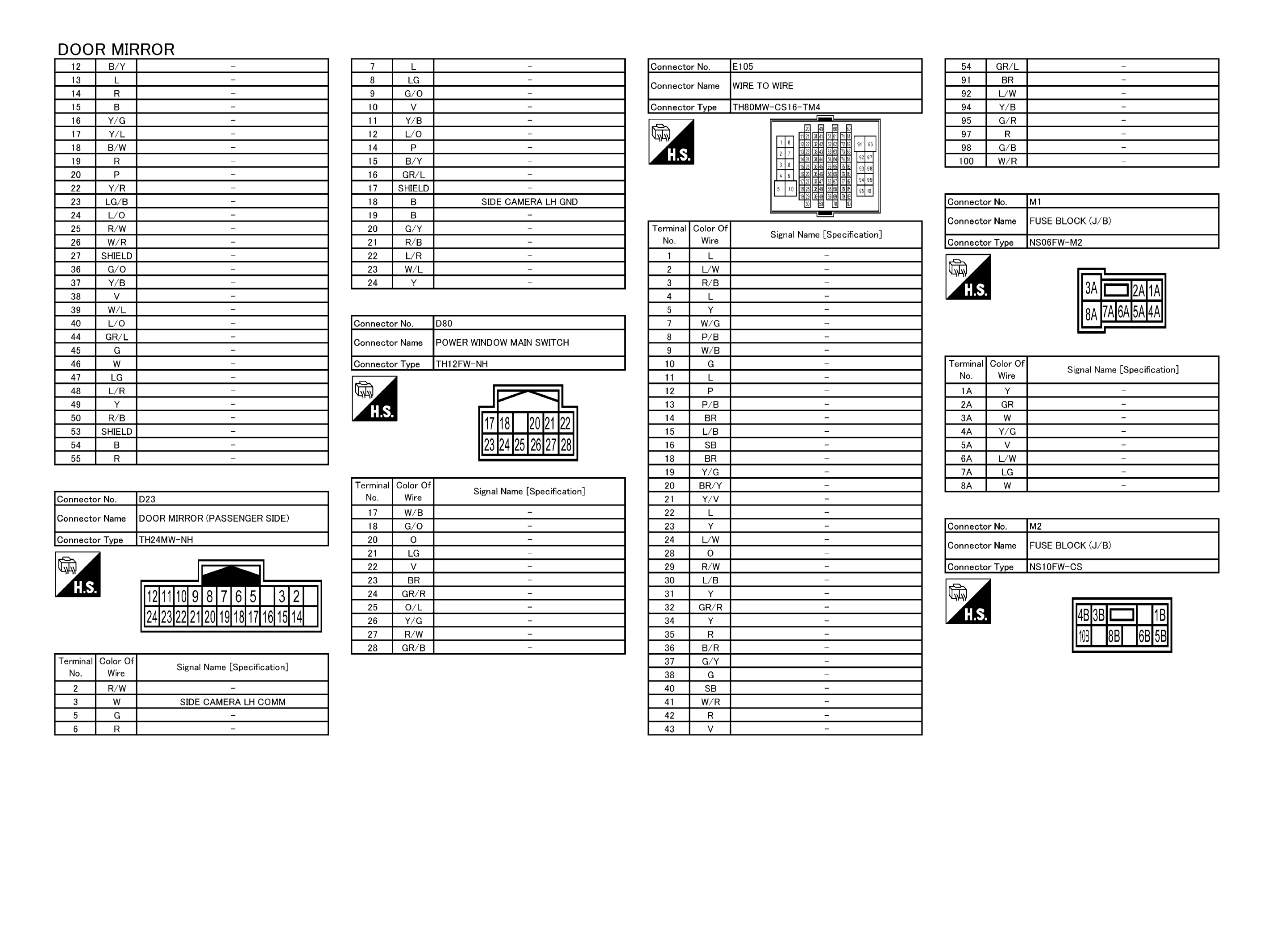

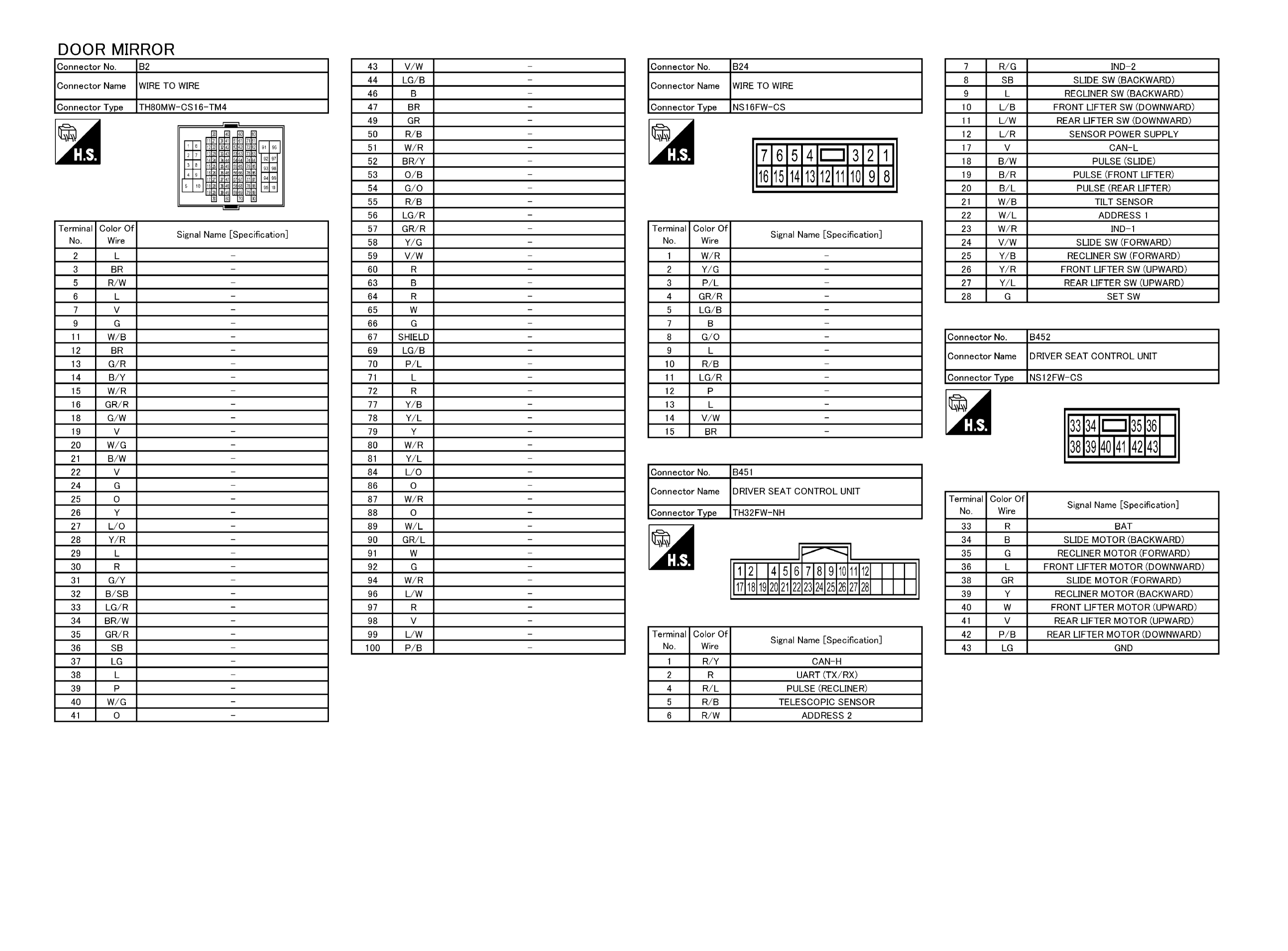

Fig 4: Door Mirror System Connector End Views (1 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 5: Door Mirror System Connector End Views (2 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 6: Door Mirror System Connector End Views (3 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 7: Door Mirror System Connector End Views (4 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 8: Door Mirror System Connector End Views (5 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 9: Door Mirror System Connector End Views (6 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 10: Door Mirror System Connector End Views (7 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.
