Calibrating Camera Image (Around View Monitor): Description
- Perform camera calibration and perform writing to the around view monitor control unit, after removal/installation or replacement of each camera or camera mounting parts (front grille, door mirror, or others), or replacement of around view monitor control unit.
- By performing this camera calibration procedure, the boundary of each camera image is aligned to the white lines on the road near the vehicle. The boundary of each camera image may not be aligned to the white lines far from the vehicle. The farther the line, the greater the difference is.

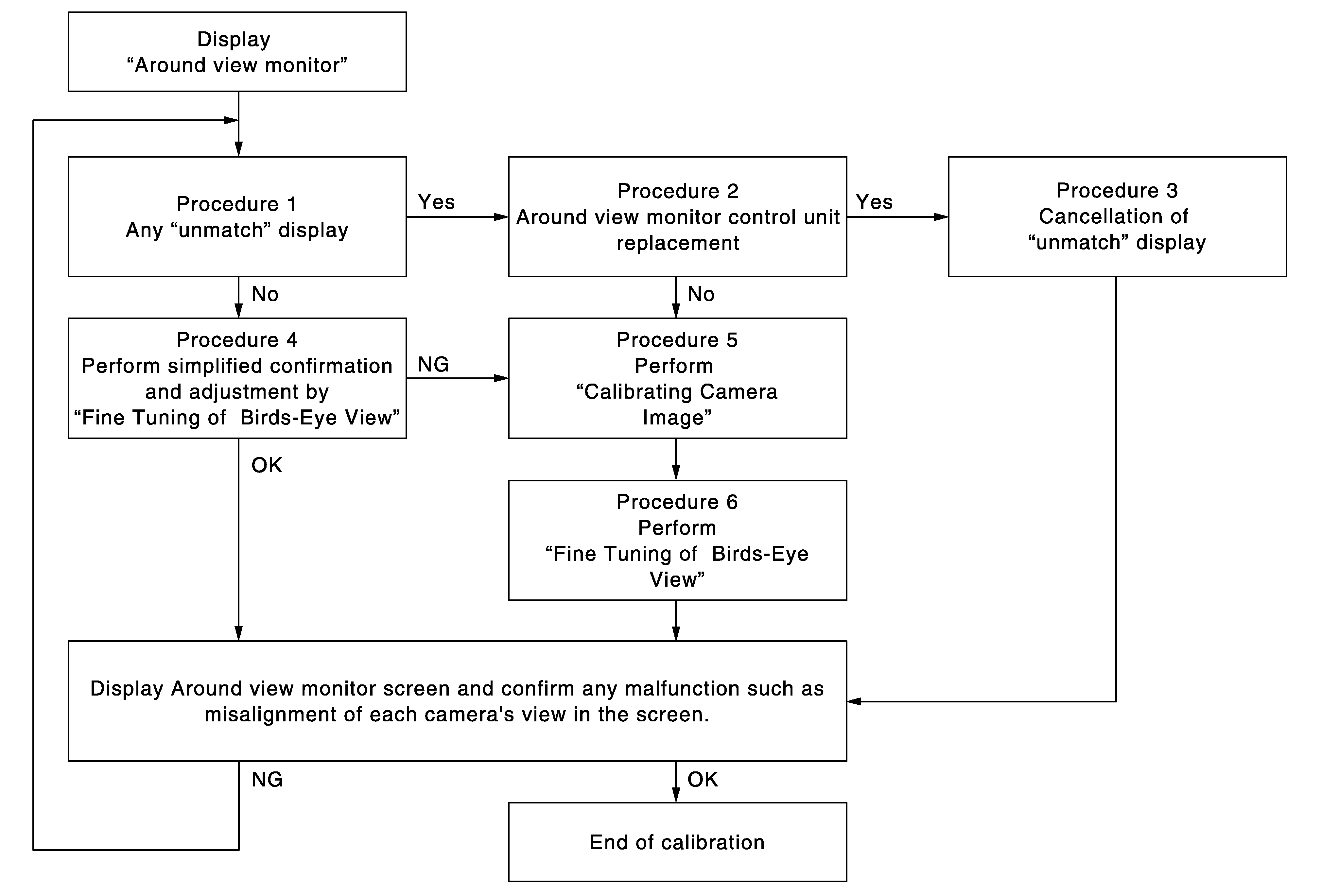

- Following the flowchart shown in the figure, perform calibration.
Courtesy of NISSAN NORTH AMERICA, INC.
- For details of calibration operation, refer to SPECIAL REPAIR REQUIREMENT .
