Audio, Visual & Navigation System (BOSE Audio With Navigation) (Diagnostic Trouble Codes (DTCS) U1207-B272C, Symptom Tests And R & I)
>>
Removal And Installation
>>
Antenna Feeder
>>
Feeder Layout
Feeder Layout

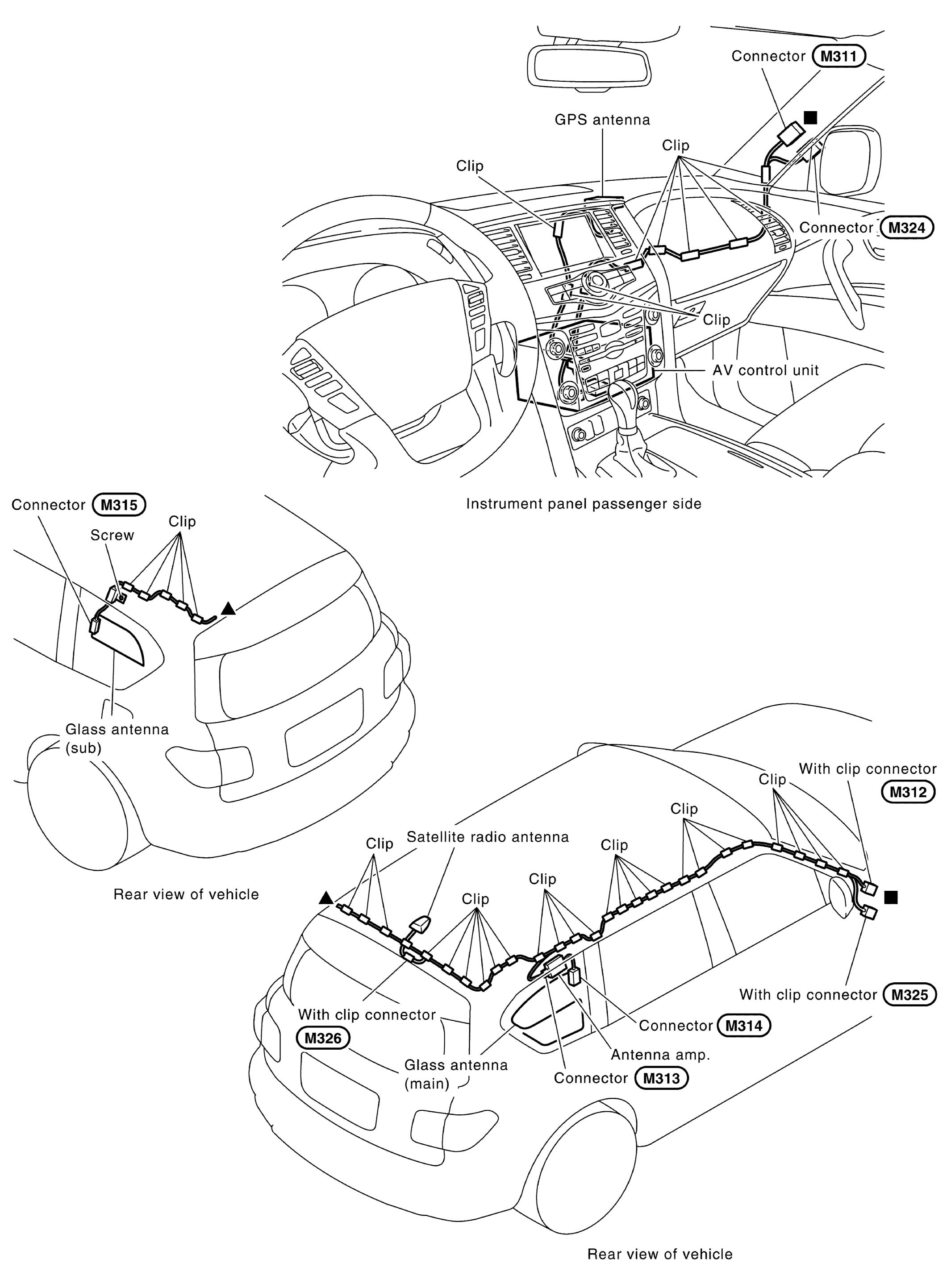

Fig 1: Antenna Feeder Layout
Courtesy of NISSAN NORTH AMERICA, INC.
,
:
Indicates that the part is connected at points with same symbol in actual vehicle.
,
:
