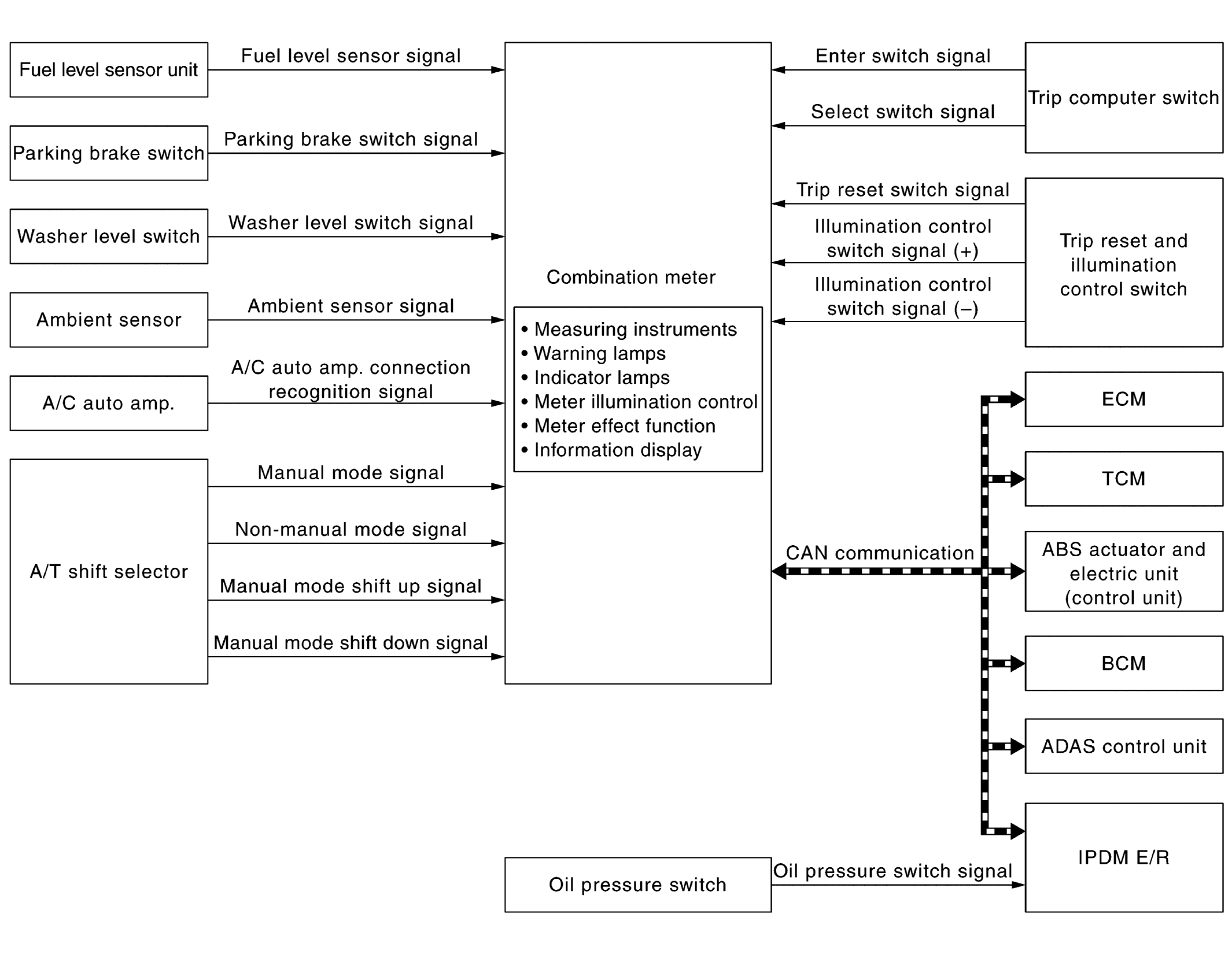

Home >> Infiniti >> 2015 >> QX80 Base, AWD >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Meter, Warning Lamp & Indicator >> System Description >> System >> Meter System >> System Diagram
