CVT Shift Lock System: Wiring Diagram

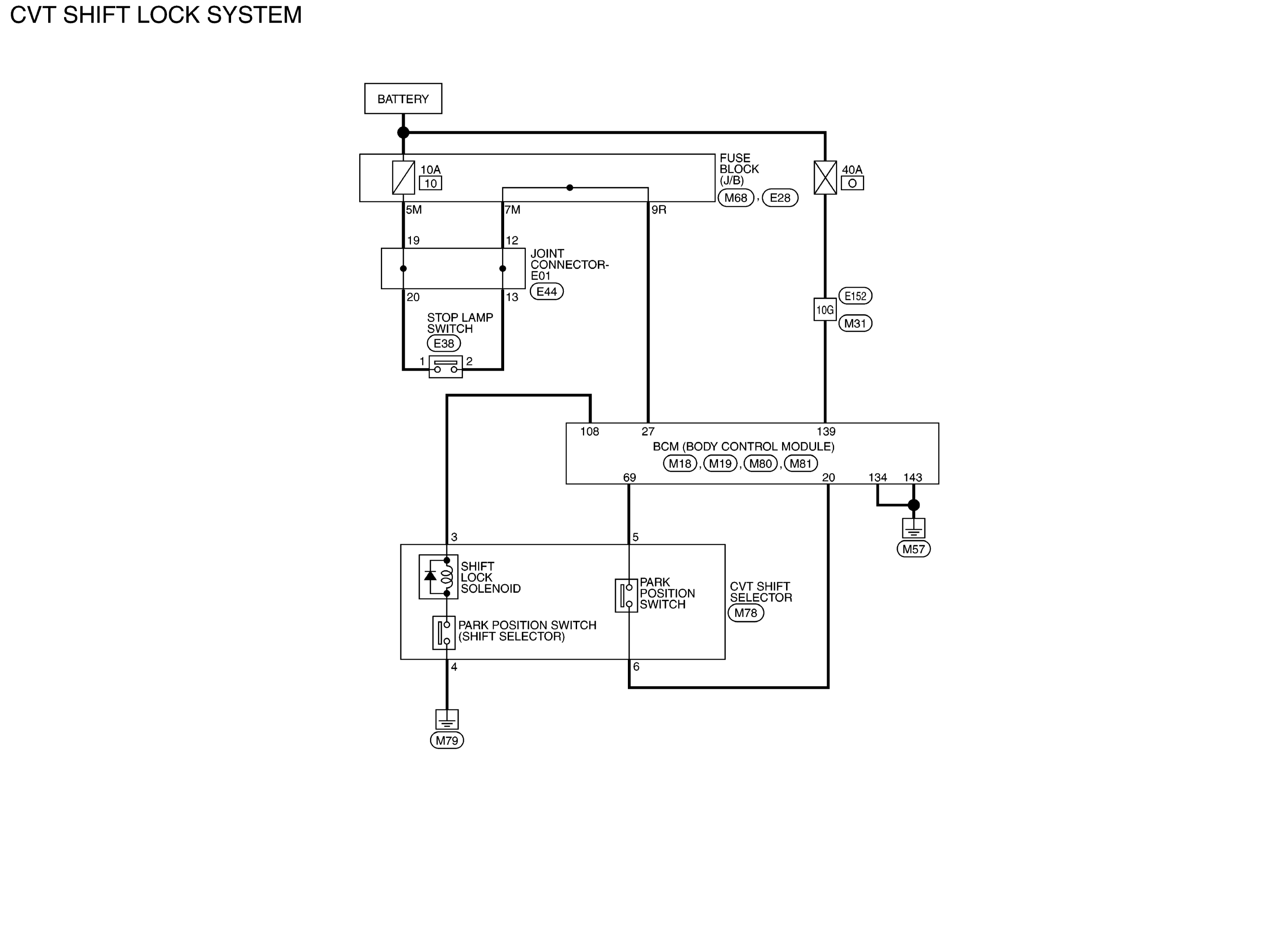

Fig 1: CVT Shift Lock System Wiring Diagram

Courtesy of NISSAN NORTH AMERICA, INC.

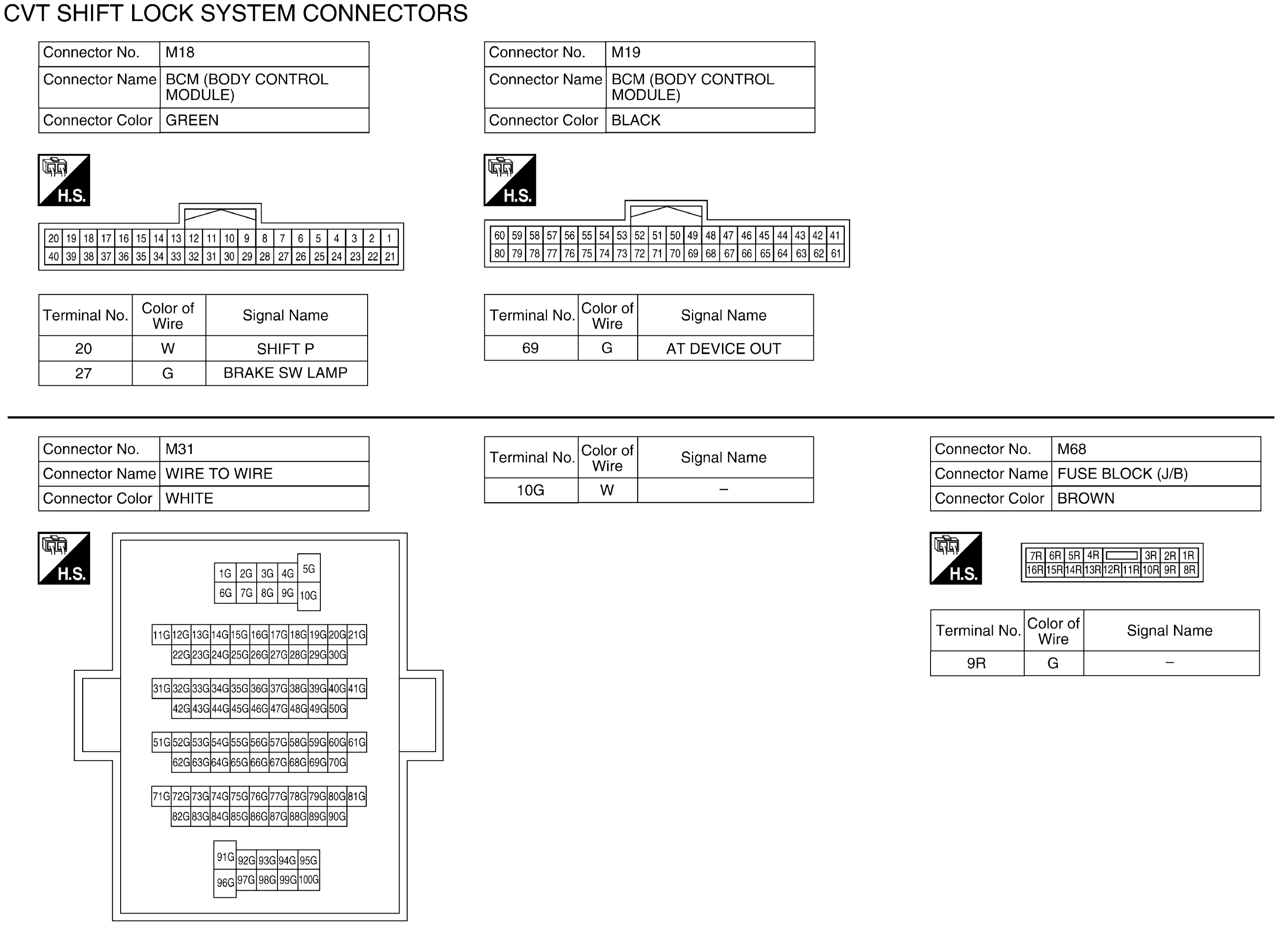

Fig 2: CVT Shift Lock System Connector End Views (1 Of 3)

Courtesy of NISSAN NORTH AMERICA, INC.

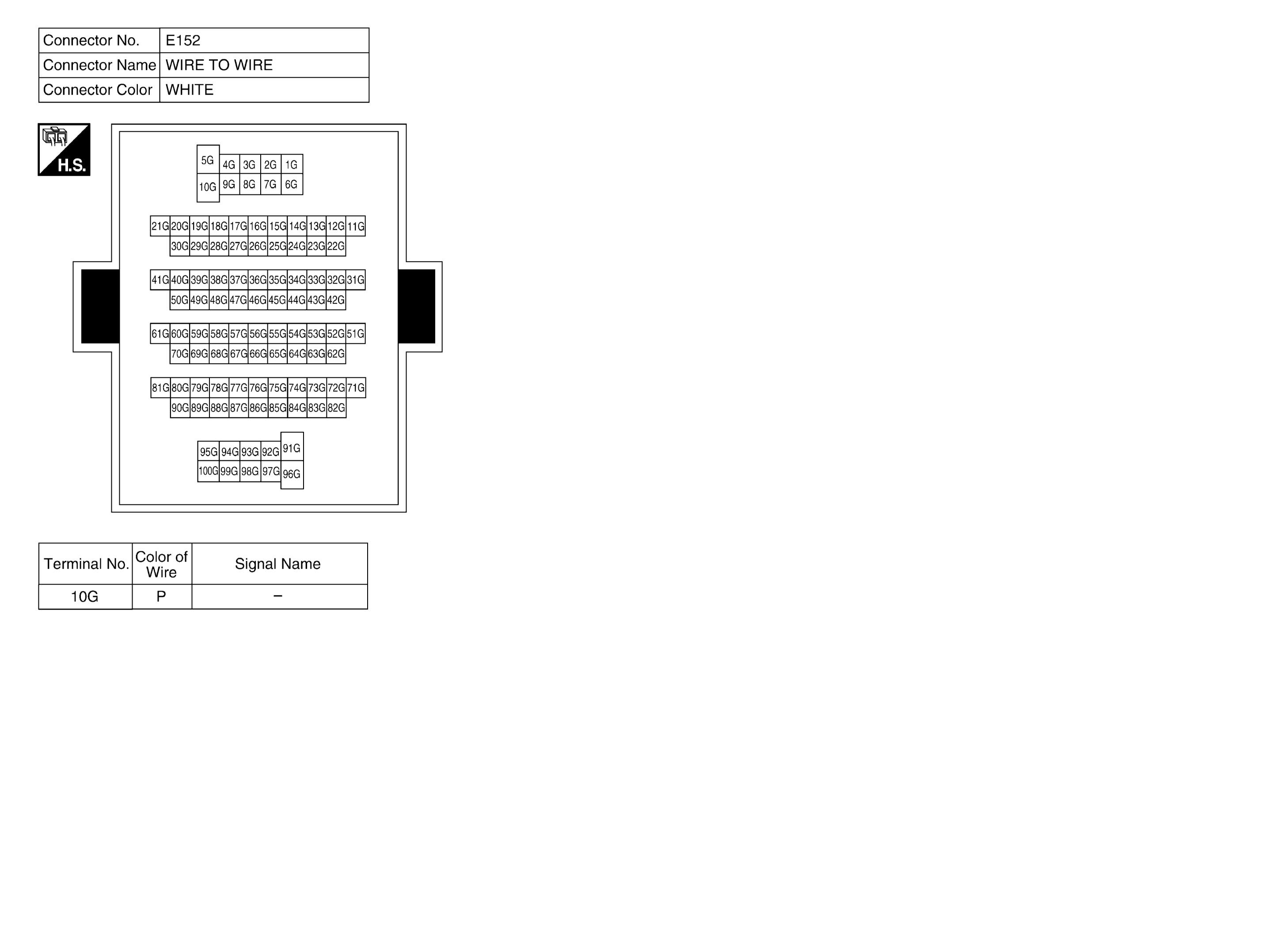

Fig 3: CVT Shift Lock System Connector End Views (2 Of 3)

Courtesy of NISSAN NORTH AMERICA, INC.

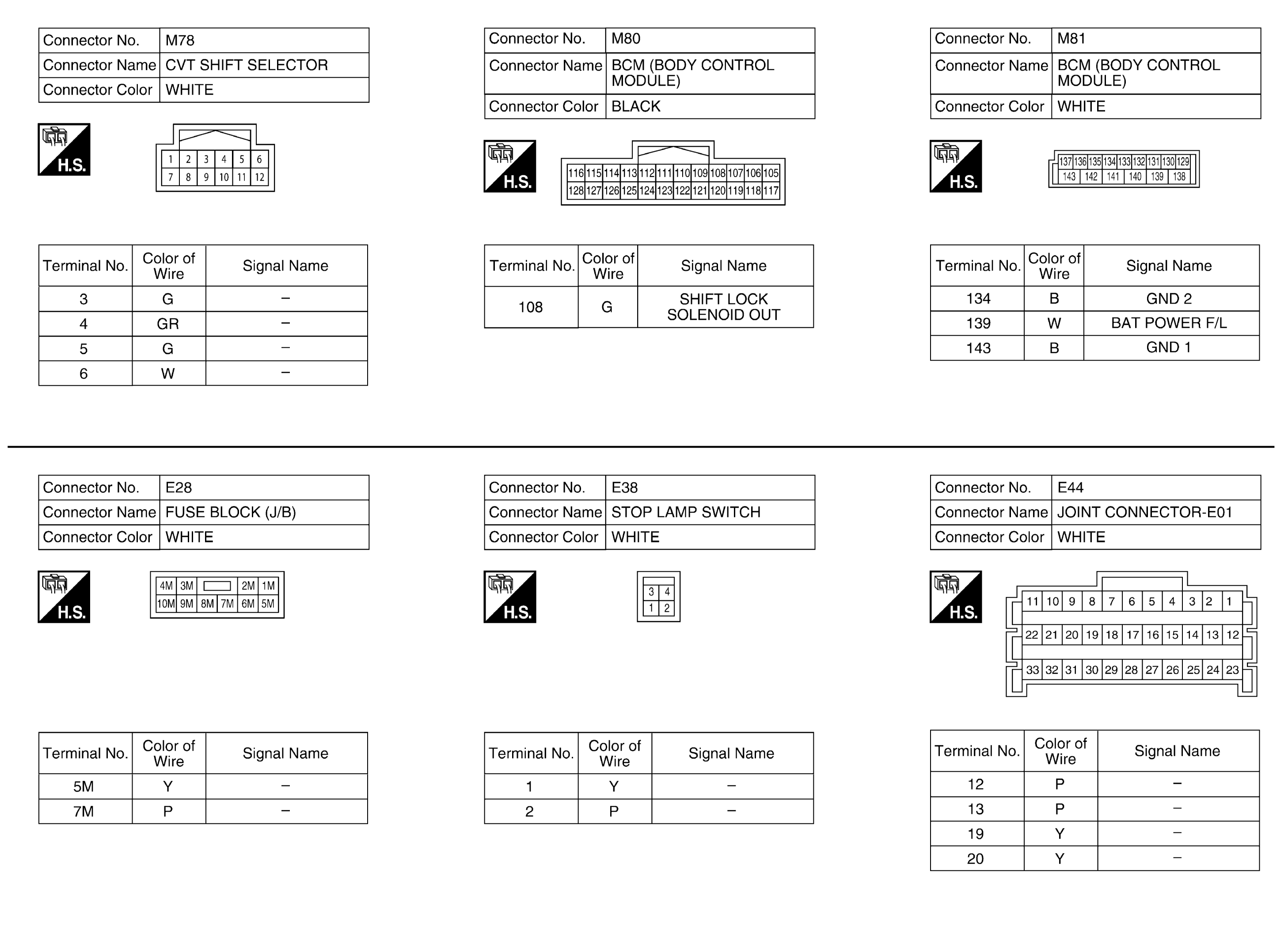

Fig 4: CVT Shift Lock System Connector End Views (3 Of 3)

Courtesy of NISSAN NORTH AMERICA, INC.
