Removal And Installation: Removal

  1. Remove the battery tray. Refer to REMOVAL AND INSTALLATION .
  2. Remove the starter motor. Refer to REMOVAL AND INSTALLATION .
  3. Disconnect the harness connector from the input speed sensor (1).

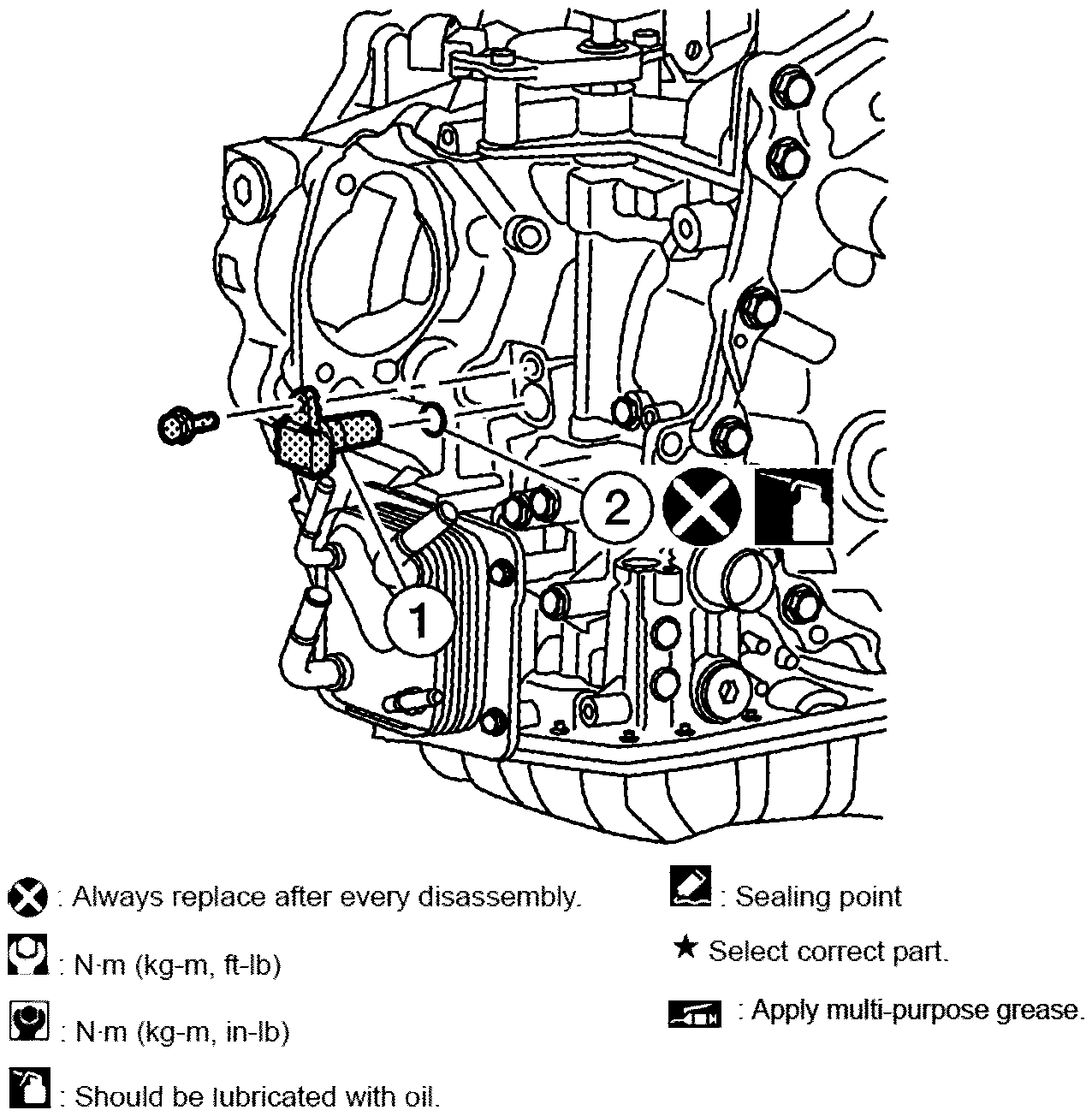

    Fig 1: Identifying Input Speed Sensor And O-Ring
    G08682921Courtesy of NISSAN NORTH AMERICA, INC.
  4. Remove the input speed sensor bolt, then the input speed sensor (1).
  5. Remove the O-ring (2) from the input speed sensor (1).
    CAUTION:

    Do not reuse O-ring.
