Removal And Installation: Installation
Installation is in the reverse order of removal.
CAUTION:
- Do not reuse hose clamps.
- Hose clamps should not interfere with the spool or bulge.

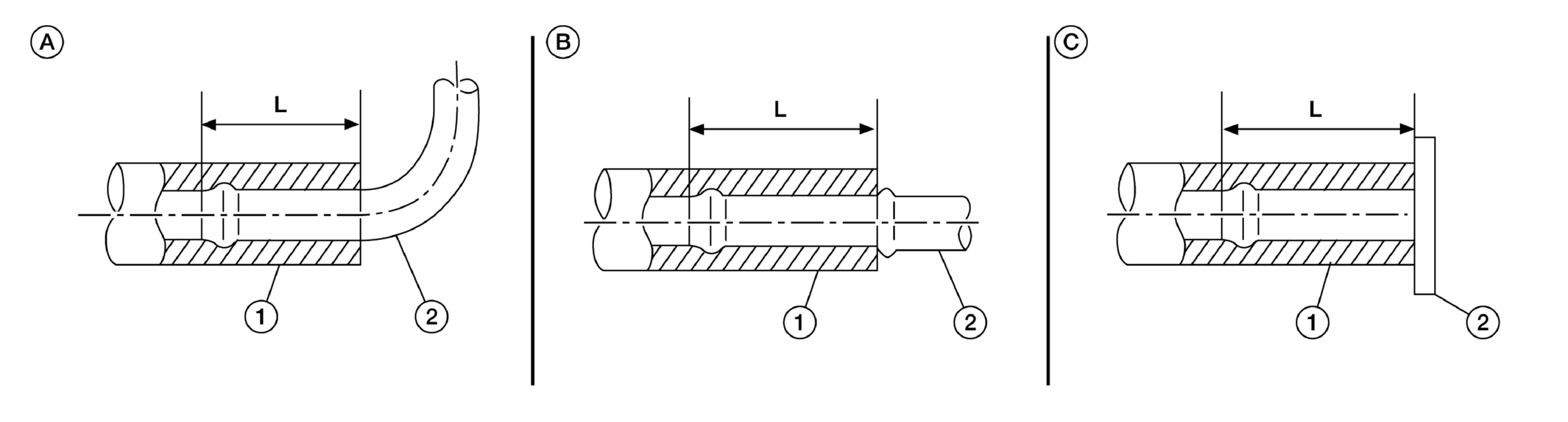

*Refer to the following when installing CVT fluid cooler hoses:
| Hose name (1) | Installation side tube (2) | Direction of paint mark | Hose insertion depth (L) |
|---|---|---|---|
| CVT fluid cooler hose A | CVT oil warmer | Downward | B: End reaches the 2-step bulge. |
| Connector tube | Upward | B: End reaches the spool. | |
| CVT fluid cooler hose B | Connector tube | Upward | |
| Radiator | Upward | A: End reaches the radius curve end. | |
| CVT fluid cooler hose C | Radiator | Downward | C: Insert the hose until hose touches the radiator. |
| CVT fluid cooler | Leftward | A: End reaches the radius curve end. | |
| CVT fluid cooler hose D | CVT fluid cooler | Leftward | |
| CVT oil warmer | Frontward | B: End reaches the 2-step bulge |
*Refer to the following when installing CVT fluid cooler hoses:

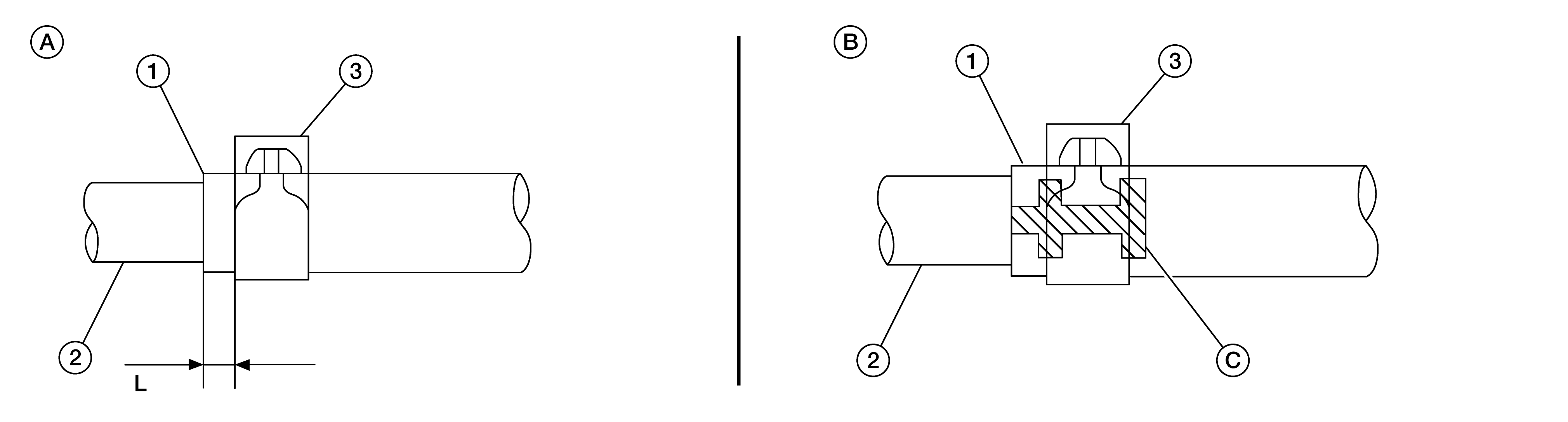

| Hose name (1) | Installation side tube (2) | Hose clamp (3) | |
|---|---|---|---|
| Direction of tab | Clamping position | ||
| CVT fluid cooler hose A | CVT oil warmer | Downward | B: Align with the paint mark (C) as shown in the illustration. |
| Connector tube | Downward and 35° backward | A: 3 - 7 mm (0.12 - 0.28 in) (L) from hose end | |
| CVT fluid cooler hose B | Connector tube | Downward and 35° backward | |
| Radiator | Upward | ||
| CVT fluid cooler hose C | Radiator | Downward | |
| CVT fluid cooler | Leftward | B: Align with the paint mark (C) as shown in the illustration. | |
| CVT fluid cooler hose D | CVT fluid cooler | Leftward | |
| CVT oil warmer | Frontward | ||
