Automatic Air Conditioning System: Wiring Diagram

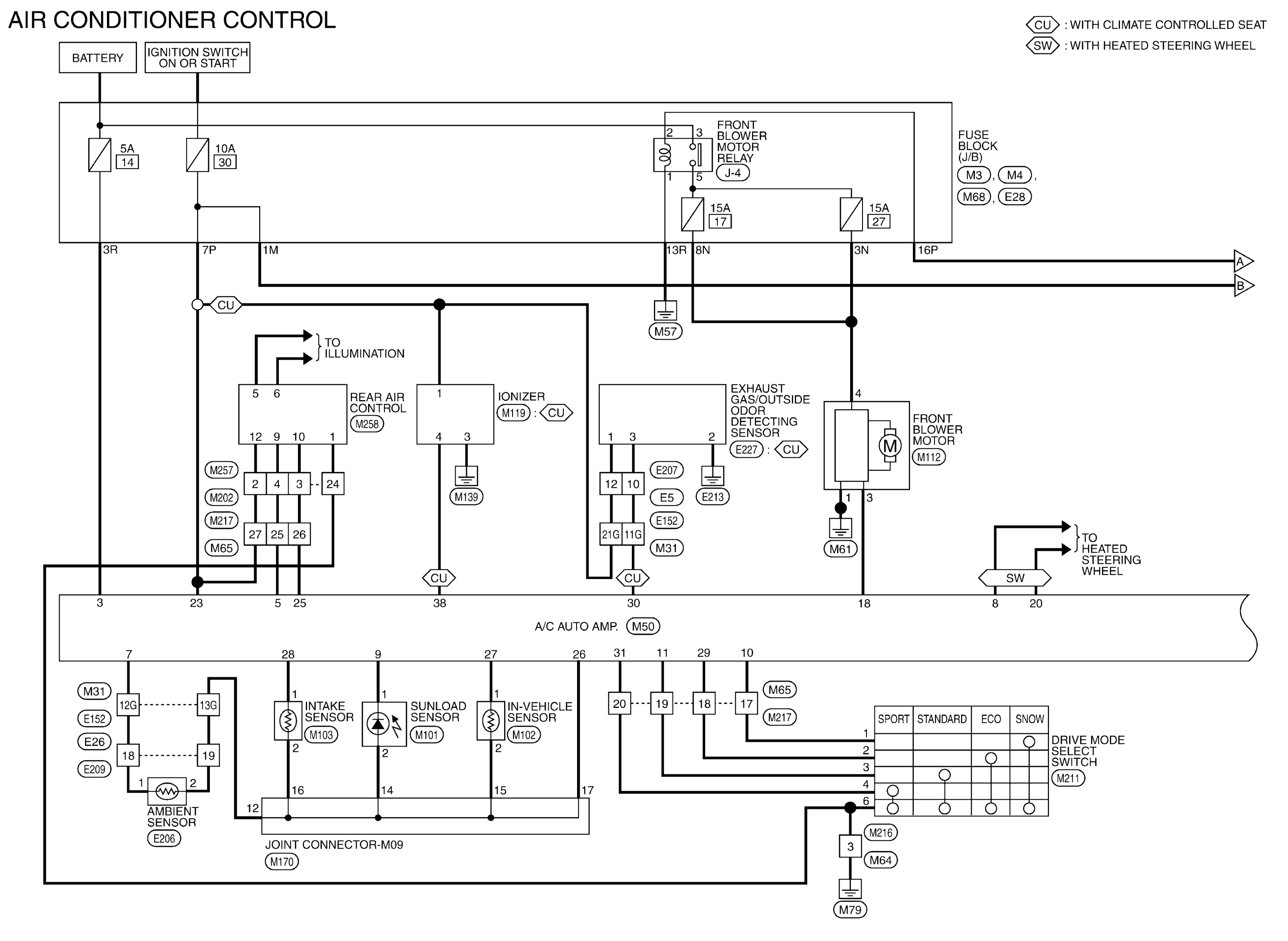

Fig 1: Automatic Air Conditioning System Wiring Diagram (1 Of 4)

GNSABIWA0423GB-423

Courtesy of NISSAN NORTH AMERICA, INC.

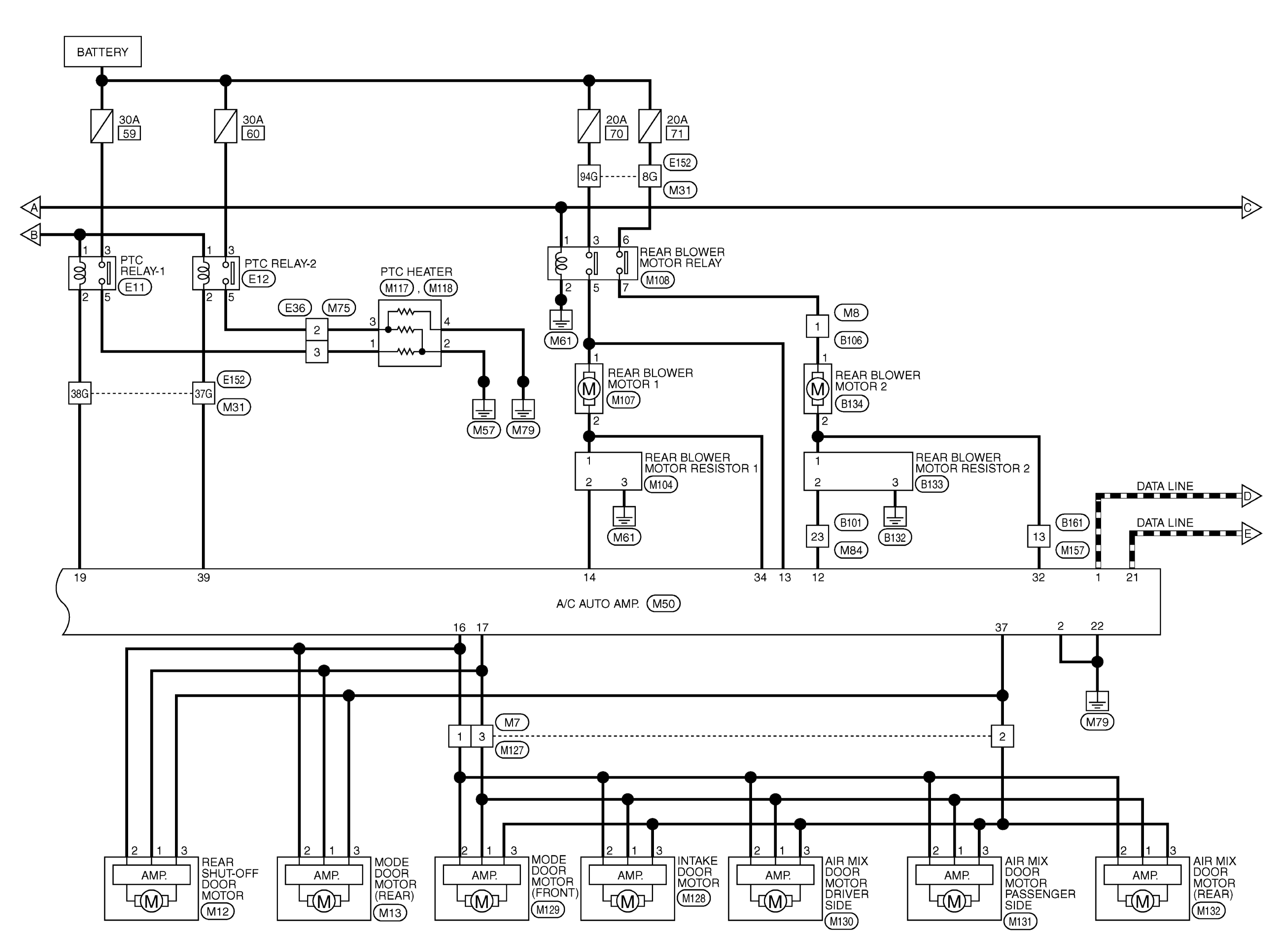

Fig 2: Automatic Air Conditioning System Wiring Diagram (2 Of 4)

GNSABIWA0454GB-454

Courtesy of NISSAN NORTH AMERICA, INC.

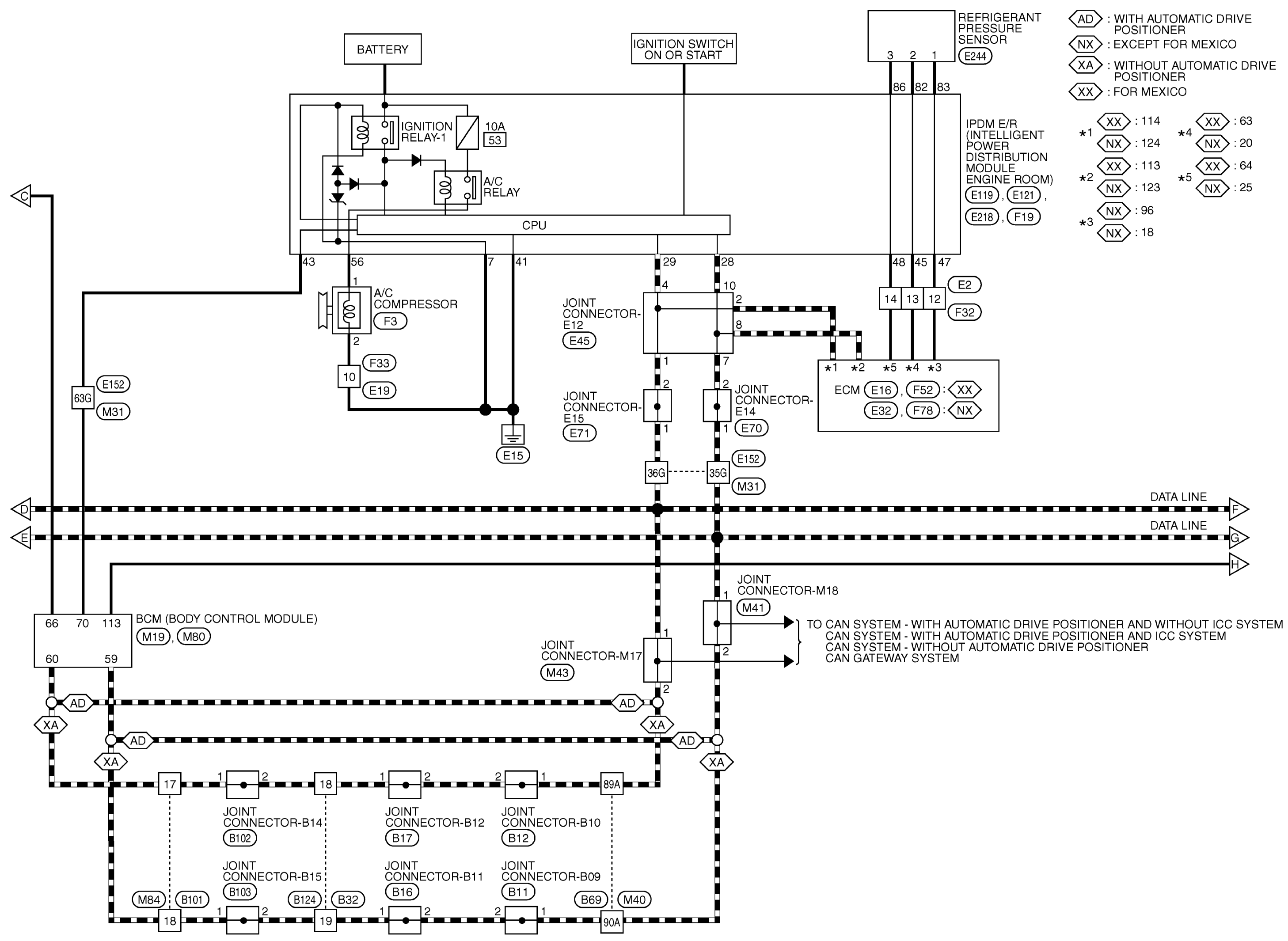

Fig 3: Automatic Air Conditioning System Wiring Diagram (3 Of 4)

GNSABIWA0455GB-455

Courtesy of NISSAN NORTH AMERICA, INC.

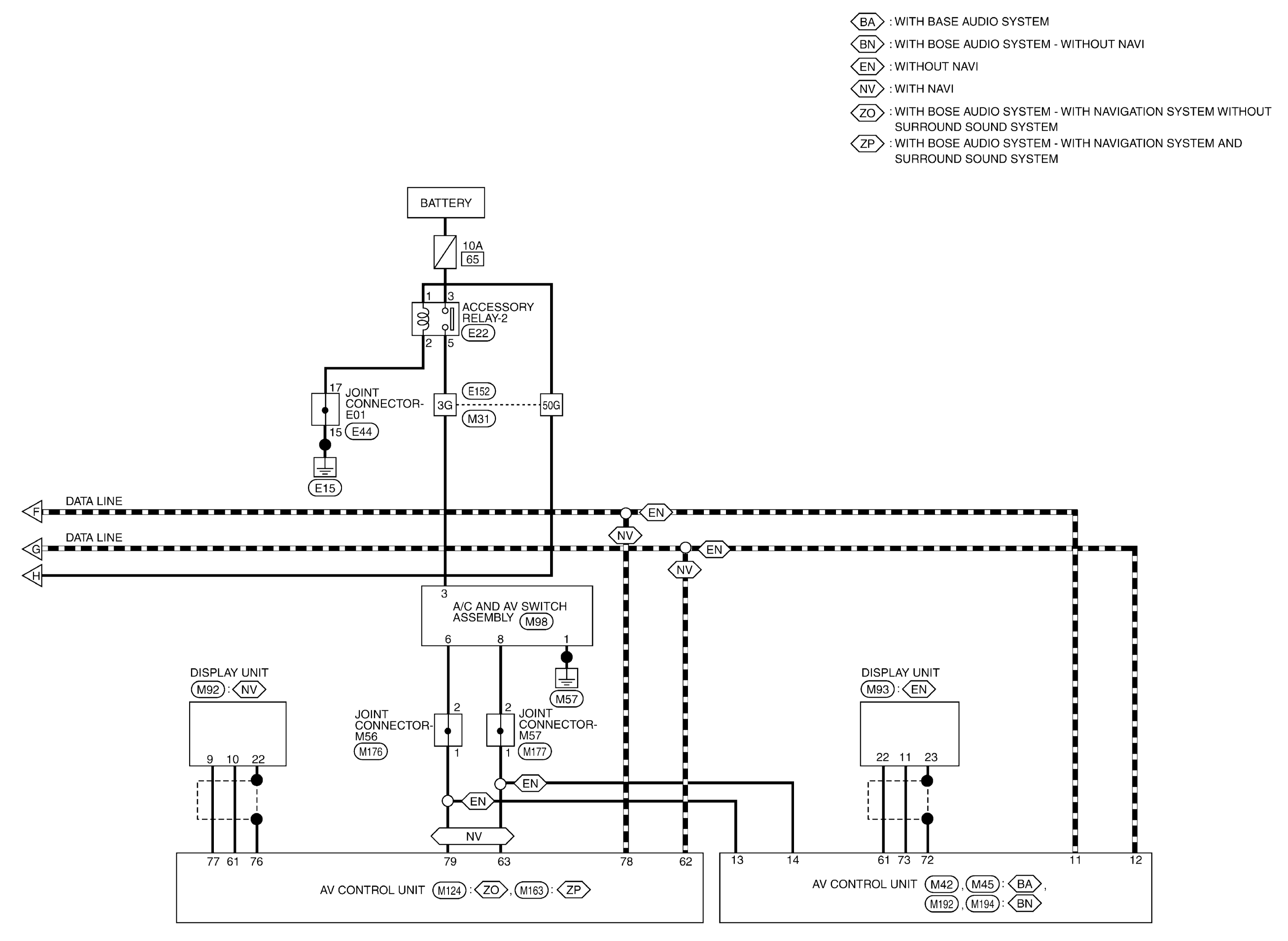

Fig 4: Automatic Air Conditioning System Wiring Diagram (4 Of 4)

G09425829

Courtesy of NISSAN NORTH AMERICA, INC.

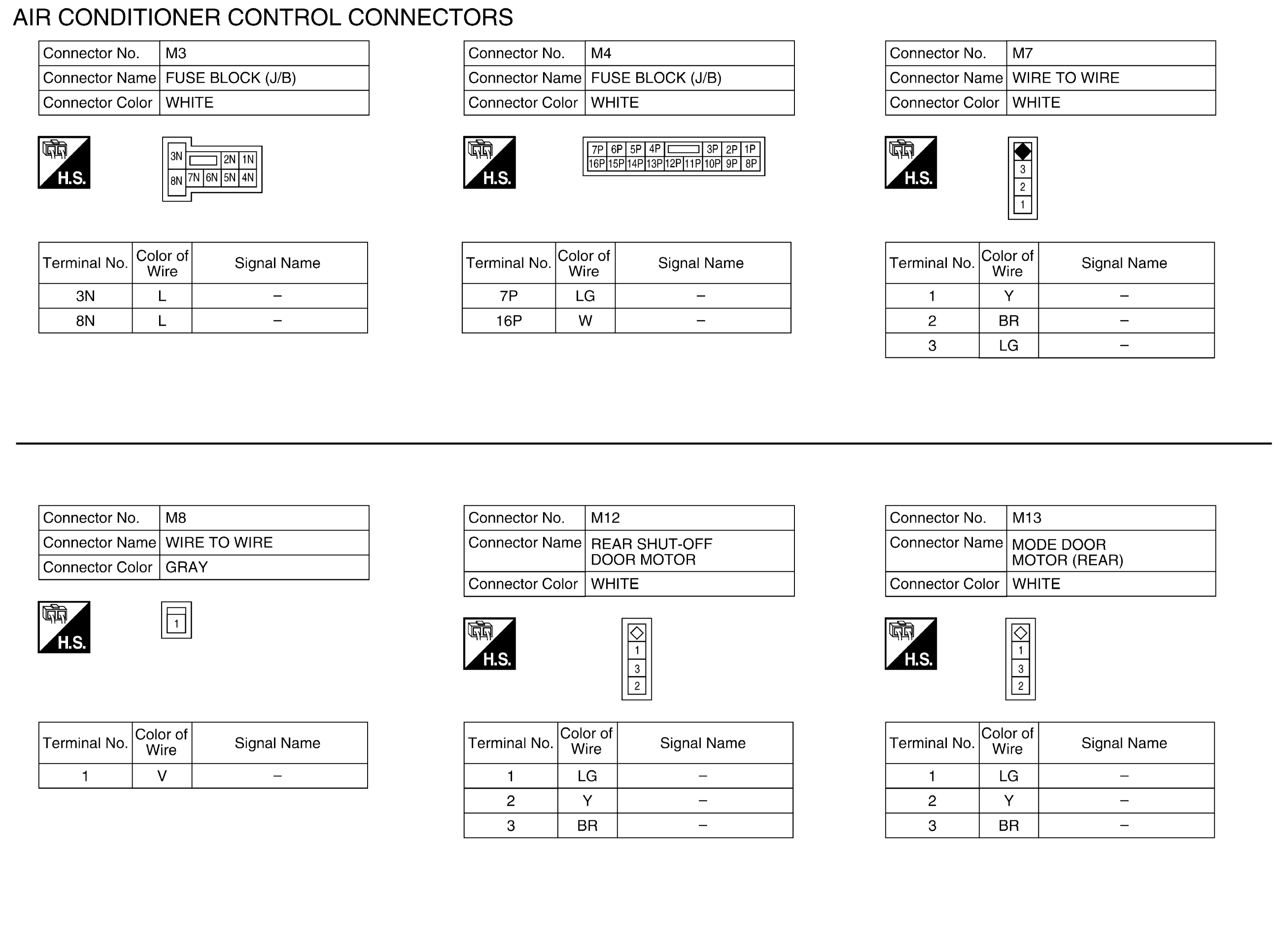

Fig 5: Automatic Air Conditioning System Connector End Views And Pin-Outs (1 Of 18)

G09425830

Courtesy of NISSAN NORTH AMERICA, INC.

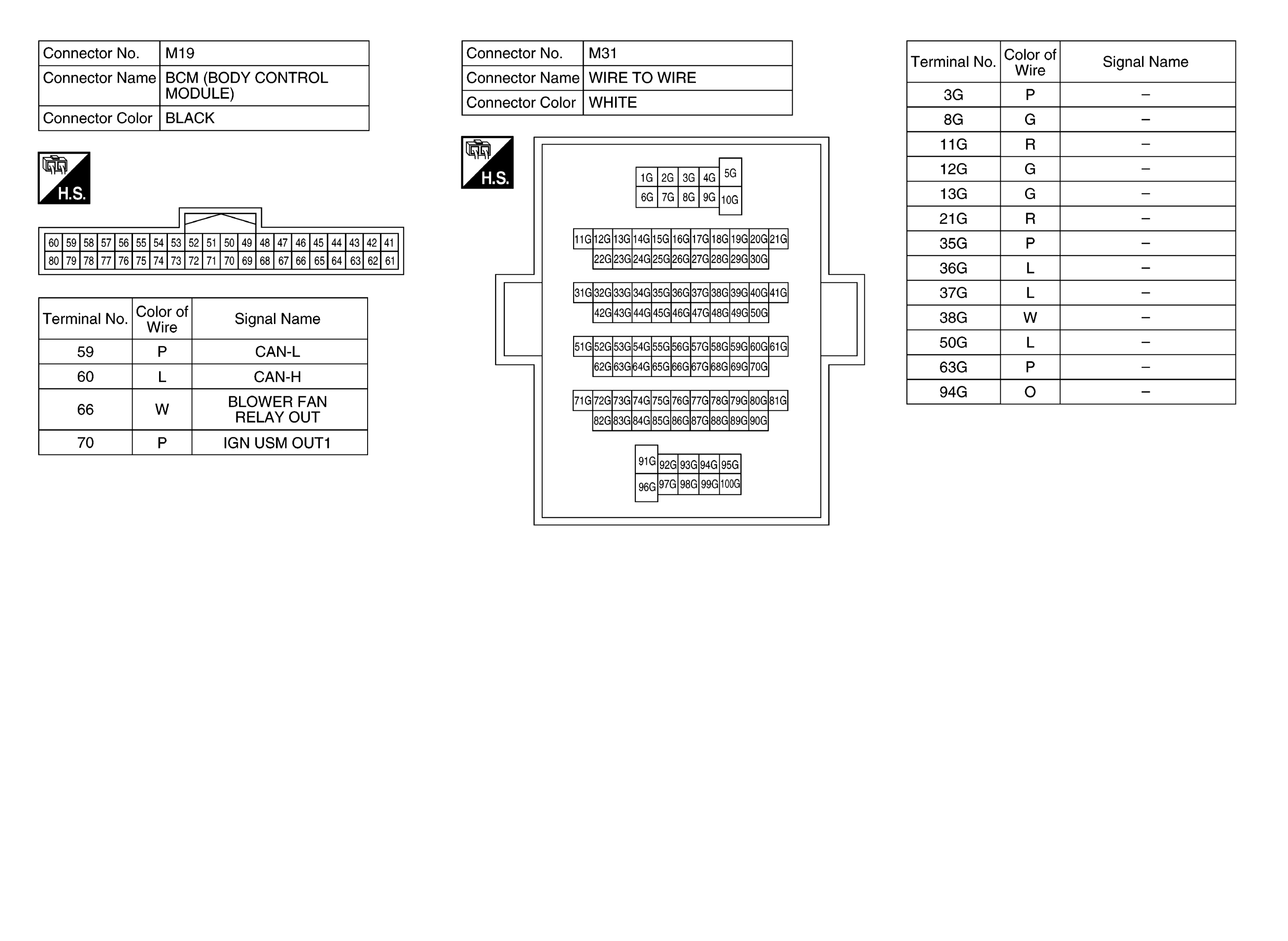

Fig 6: Automatic Air Conditioning System Connector End Views And Pin-Outs (1 Of 18)

G08854254

Courtesy of NISSAN NORTH AMERICA, INC.

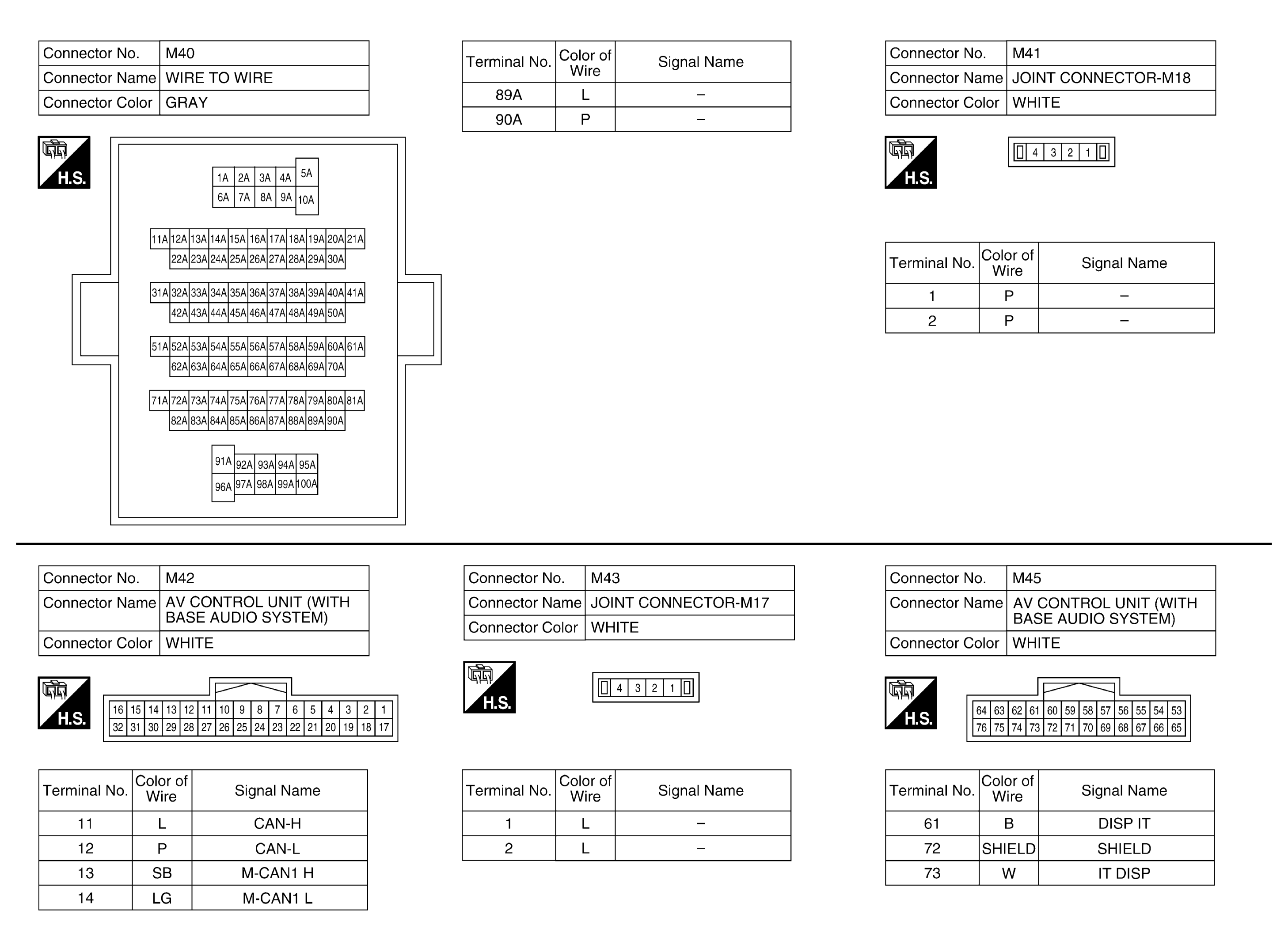

Fig 7: Automatic Air Conditioning System Connector End Views And Pin-Outs (2 Of 18)

G09425832

Courtesy of NISSAN NORTH AMERICA, INC.

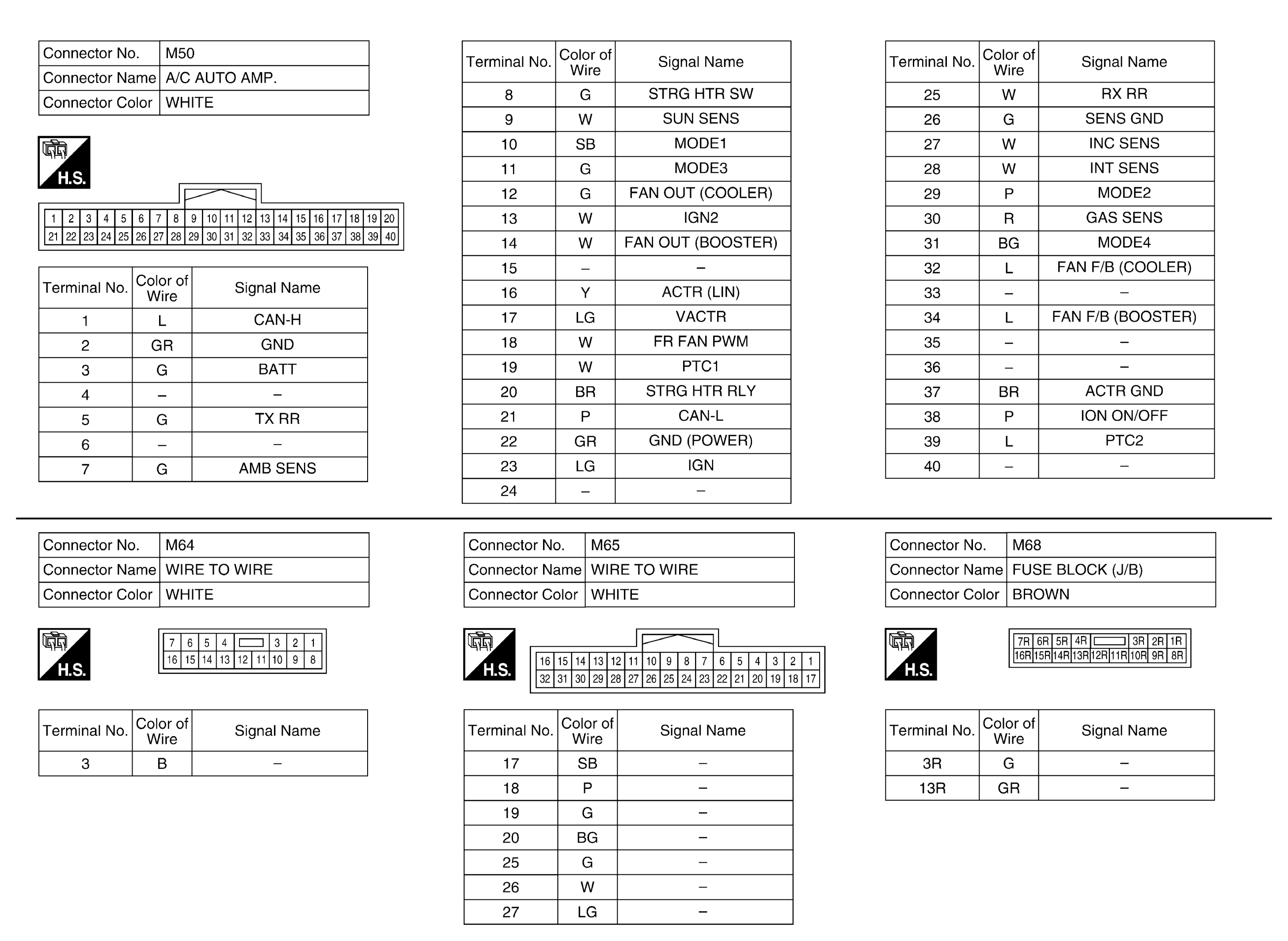

Fig 8: Automatic Air Conditioning System Connector End Views And Pin-Outs (3 Of 18)

G08854256

Courtesy of NISSAN NORTH AMERICA, INC.

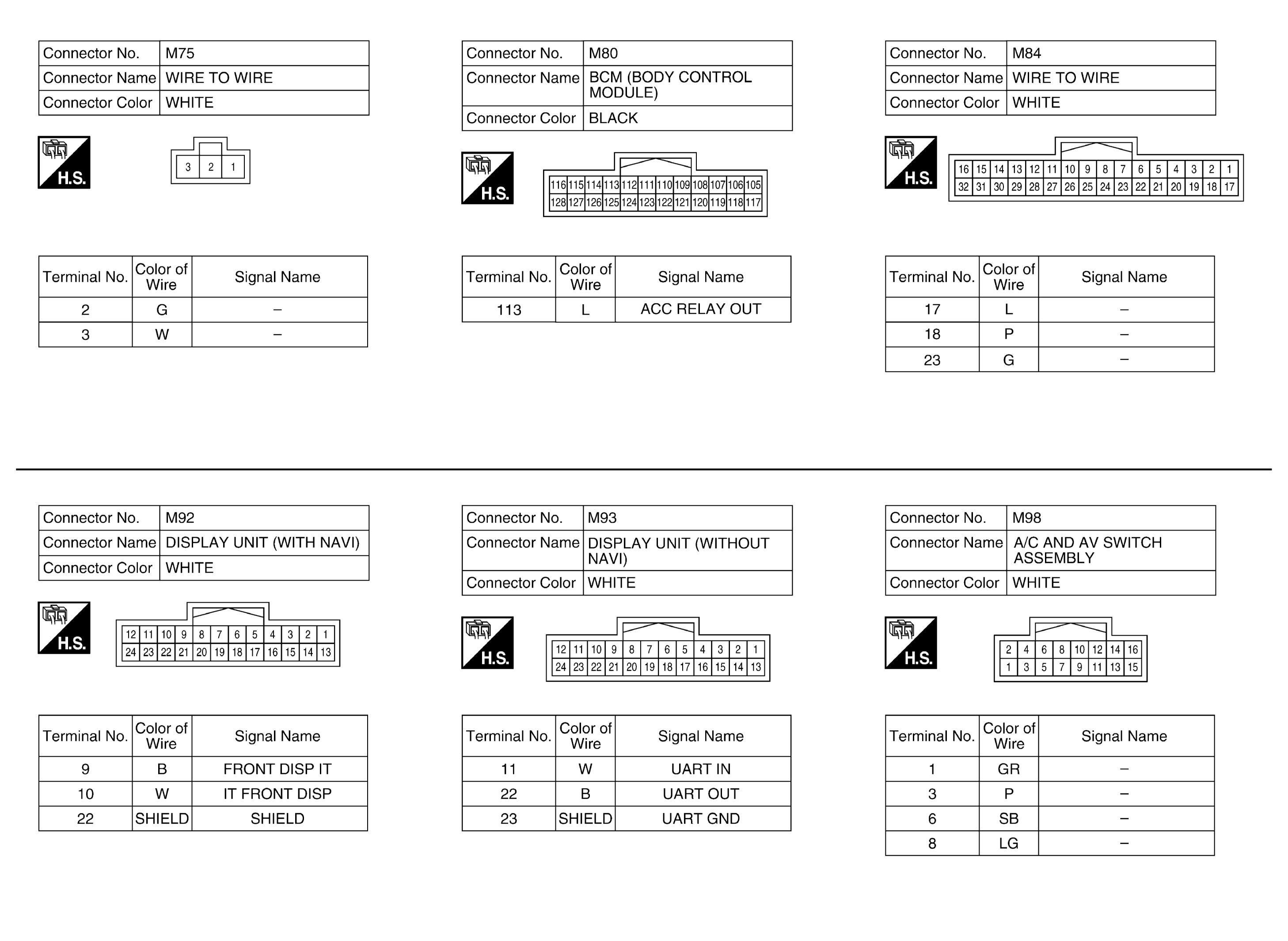

Fig 9: Automatic Air Conditioning System Connector End Views And Pin-Outs (4 Of 18)

G09425834

Courtesy of NISSAN NORTH AMERICA, INC.

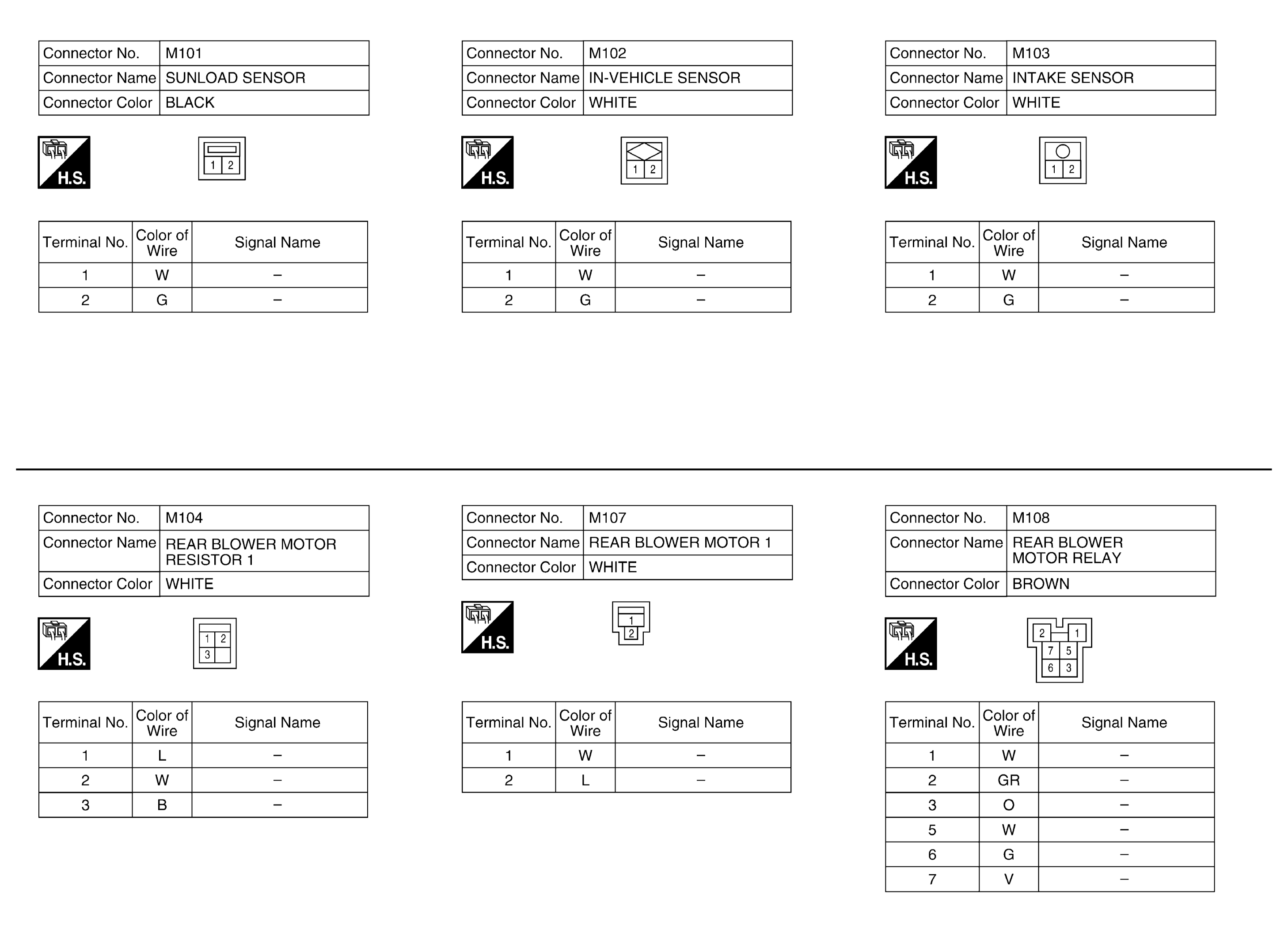

Fig 10: Automatic Air Conditioning System Connector End Views And Pin-Outs (5 Of 18)

G08854258

Courtesy of NISSAN NORTH AMERICA, INC.

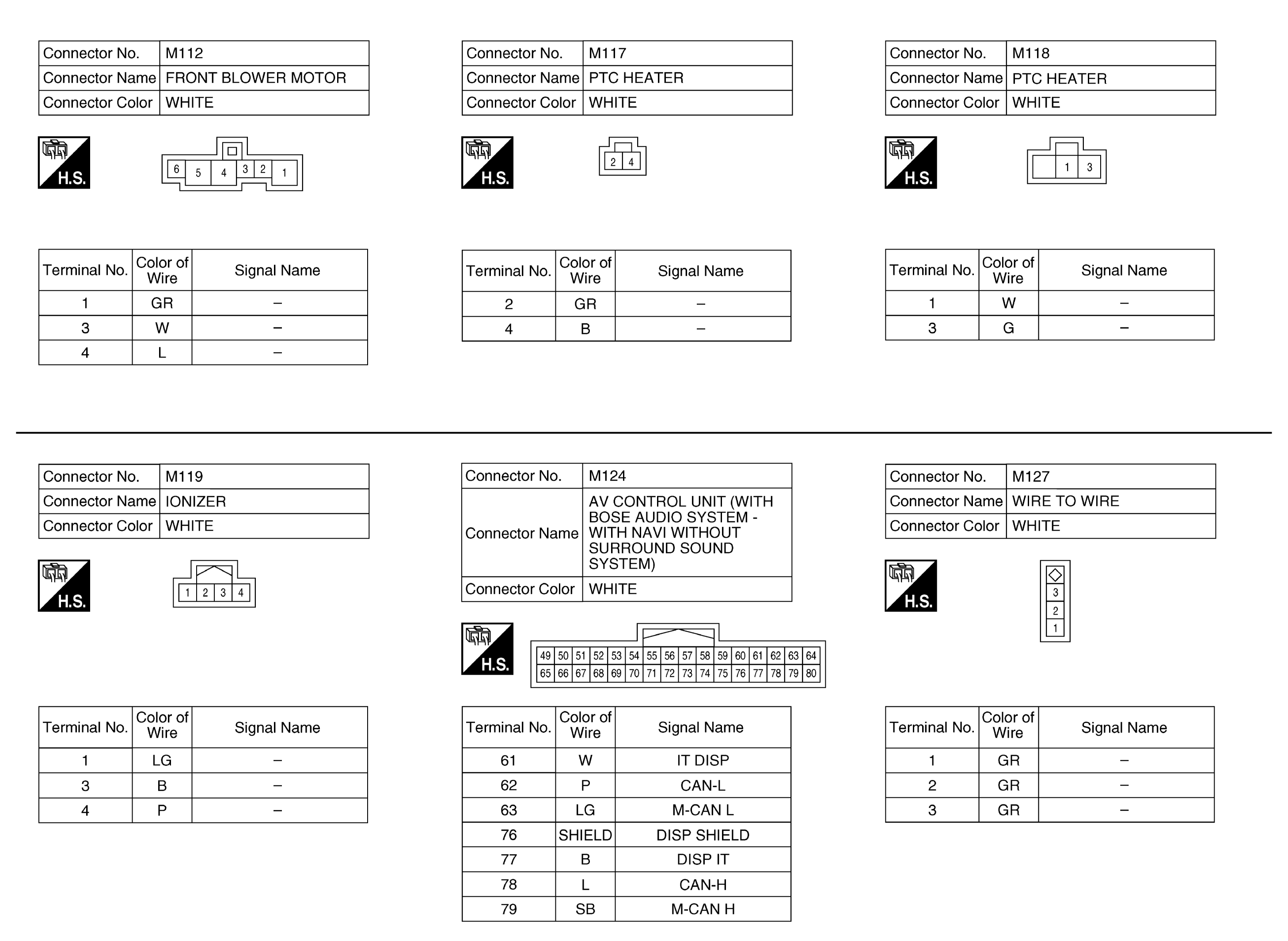

Fig 11: Automatic Air Conditioning System Connector End Views And Pin-Outs (6 Of 18)

GNSABIIA1548GB-548

Courtesy of NISSAN NORTH AMERICA, INC.

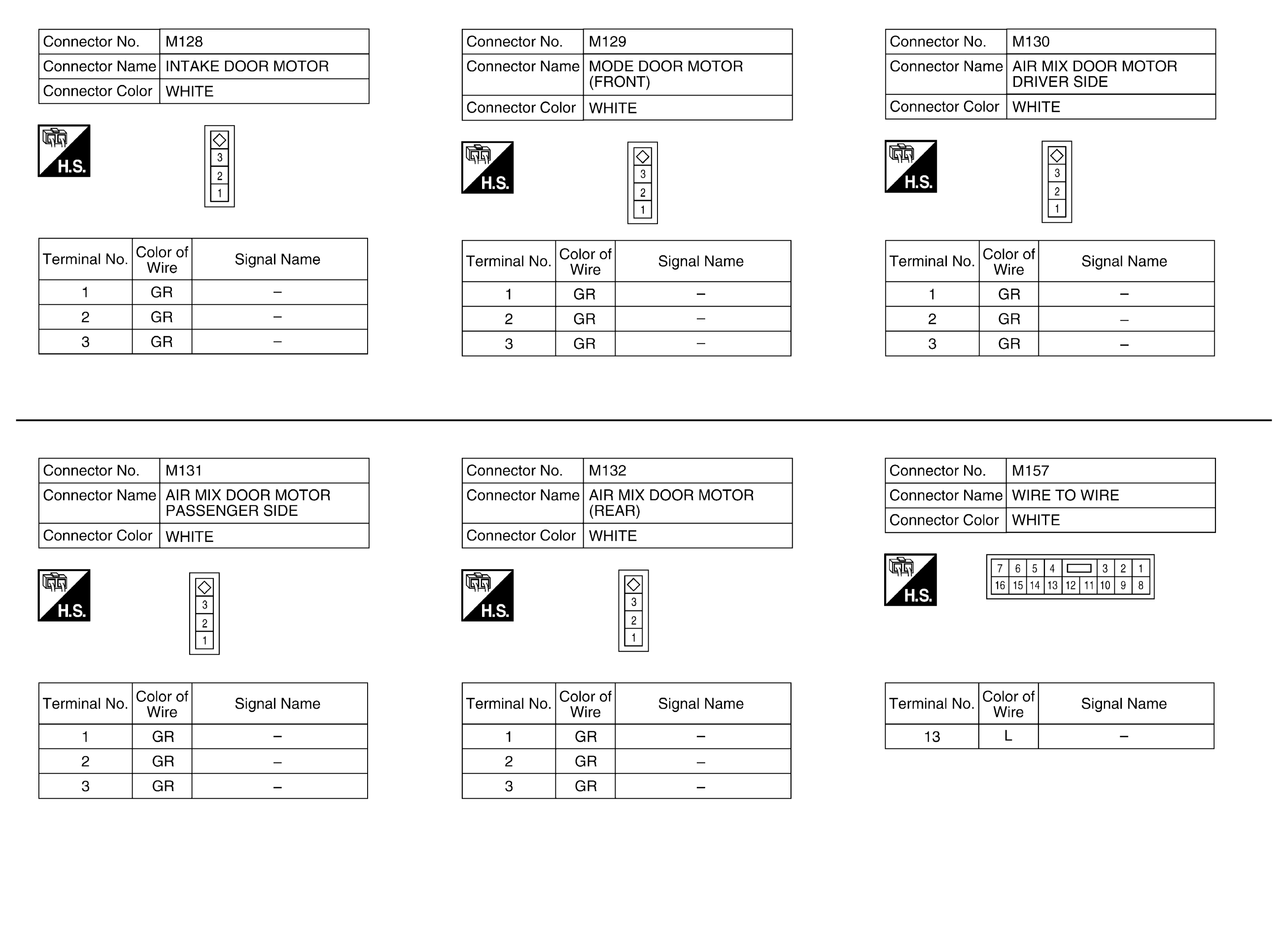

Fig 12: Automatic Air Conditioning System Connector End Views And Pin-Outs (7 Of 18)

G08854260

Courtesy of NISSAN NORTH AMERICA, INC.

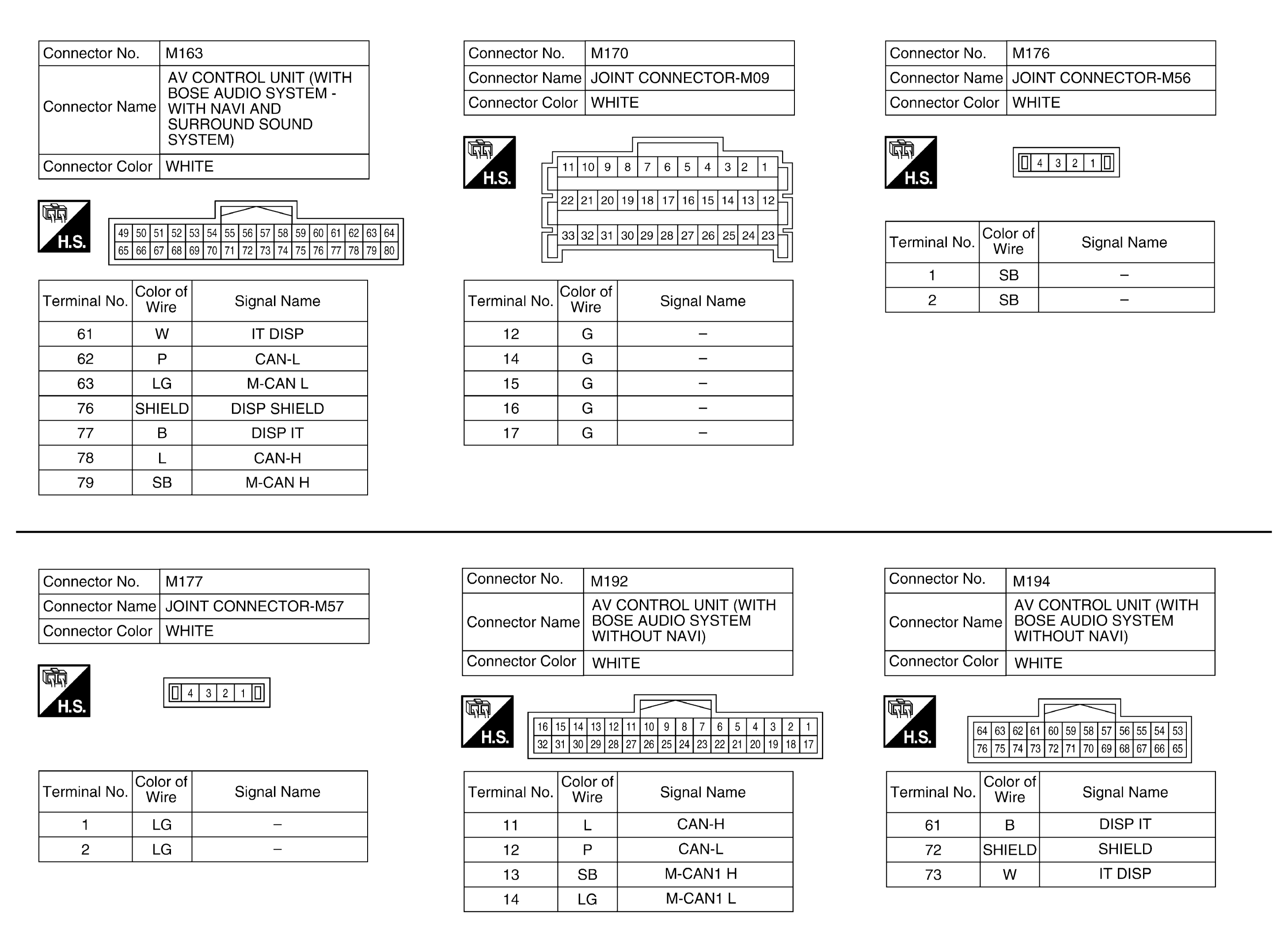

Fig 13: Automatic Air Conditioning System Connector End Views And Pin-Outs (8 Of 18)

G09425838

Courtesy of NISSAN NORTH AMERICA, INC.

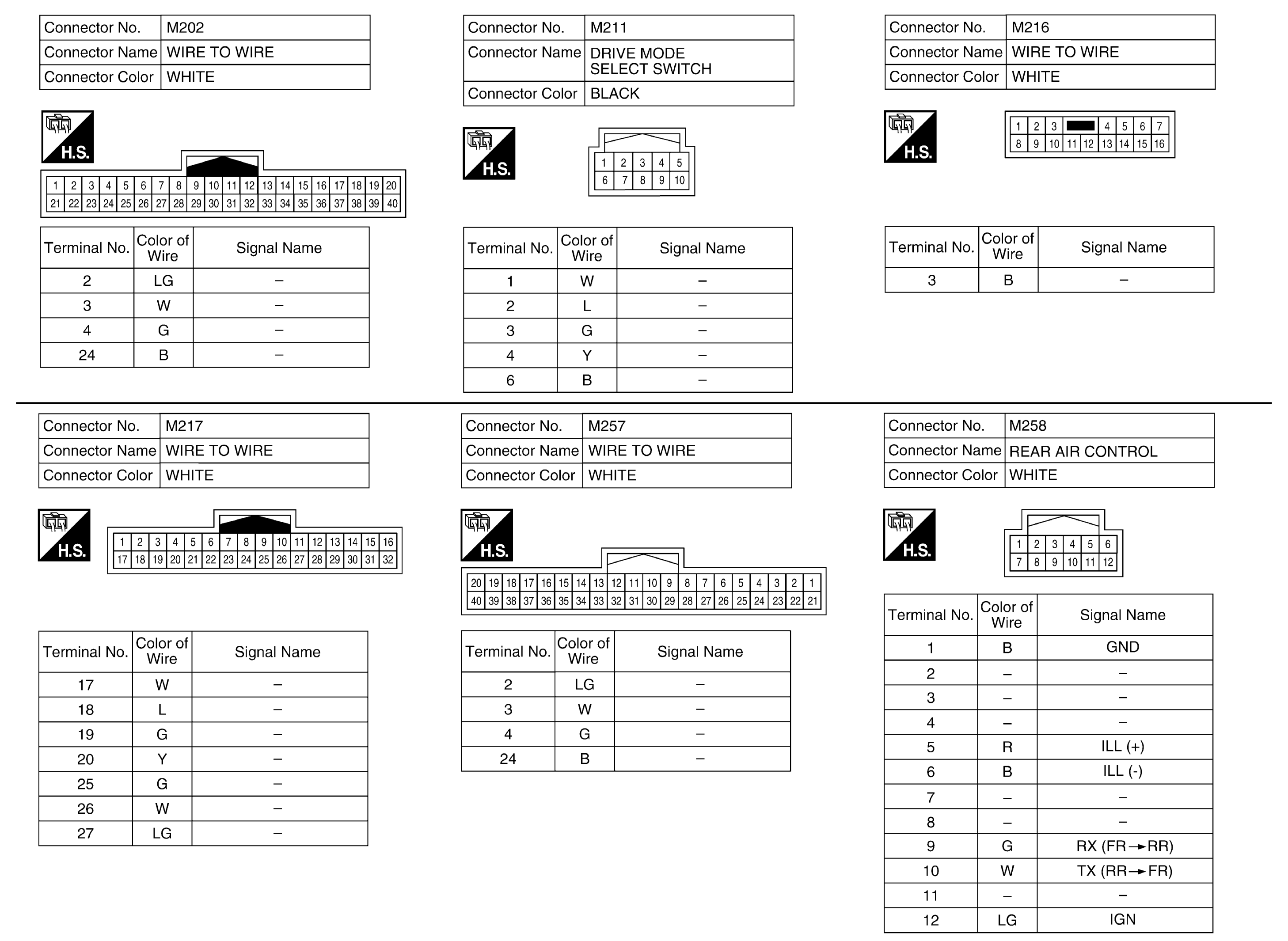

Fig 14: Automatic Air Conditioning System Connector End Views And Pin-Outs (9 Of 18)

G09425839

Courtesy of NISSAN NORTH AMERICA, INC.

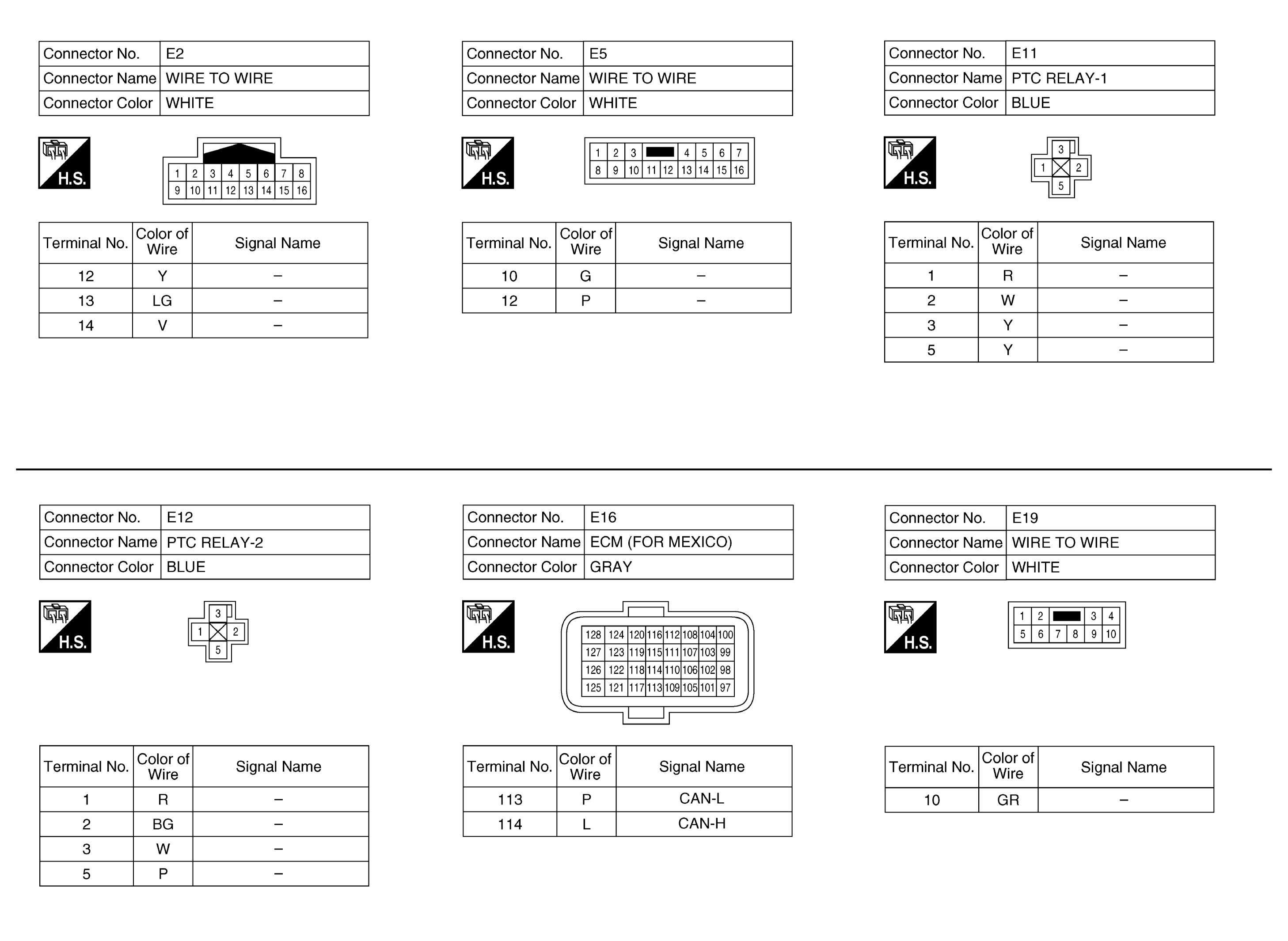

Fig 15: Automatic Air Conditioning System Connector End Views And Pin-Outs (10 Of 18)

GNSABIIA1540GB-540

Courtesy of NISSAN NORTH AMERICA, INC.

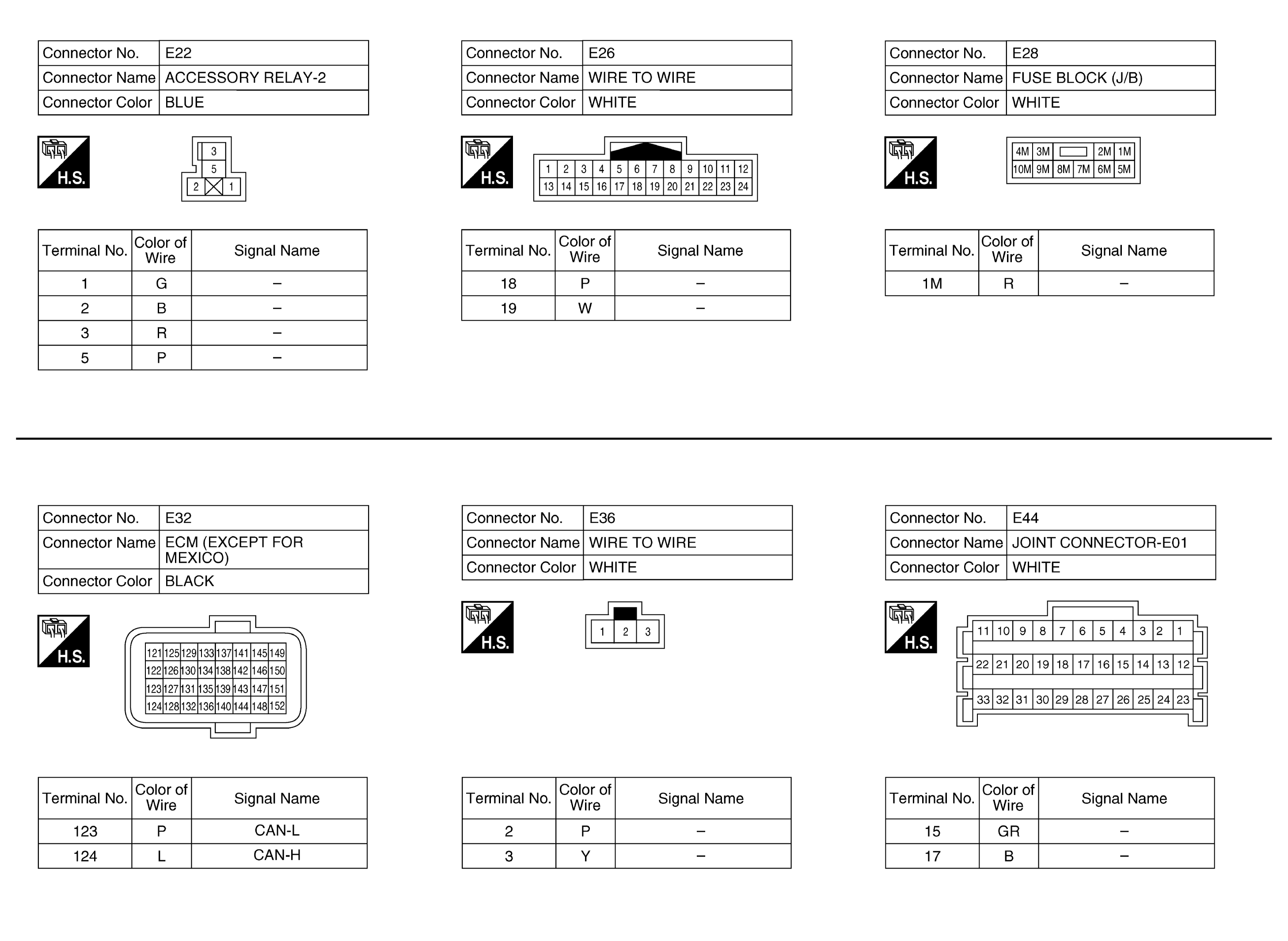

Fig 16: Automatic Air Conditioning System Connector End Views And Pin-Outs (11 Of 18)

GNSABIIA1541GB-541

Courtesy of NISSAN NORTH AMERICA, INC.

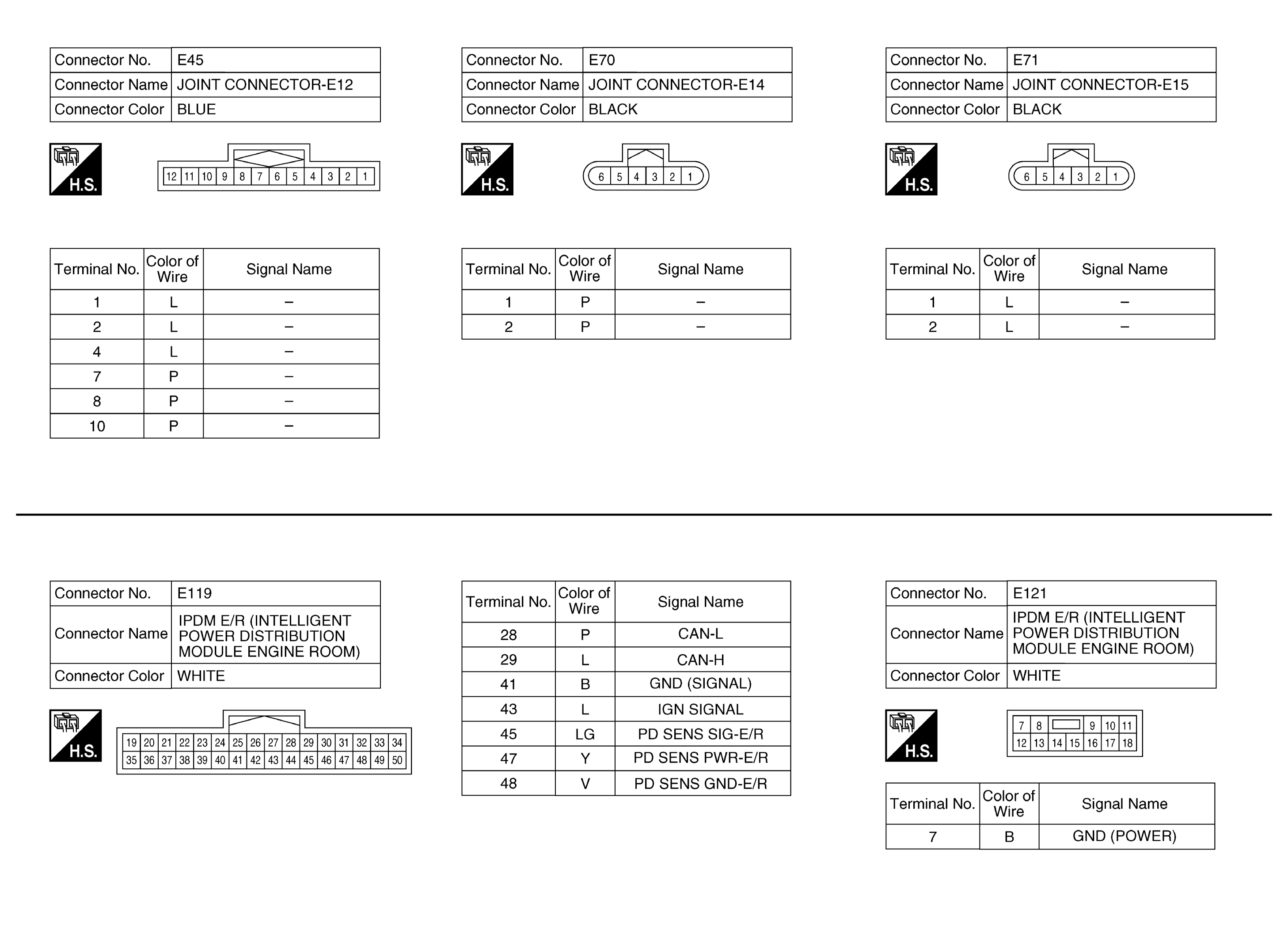

Fig 17: Automatic Air Conditioning System Connector End Views And Pin-Outs (12 Of 18)

GNSABIIA1542GB-542

Courtesy of NISSAN NORTH AMERICA, INC.

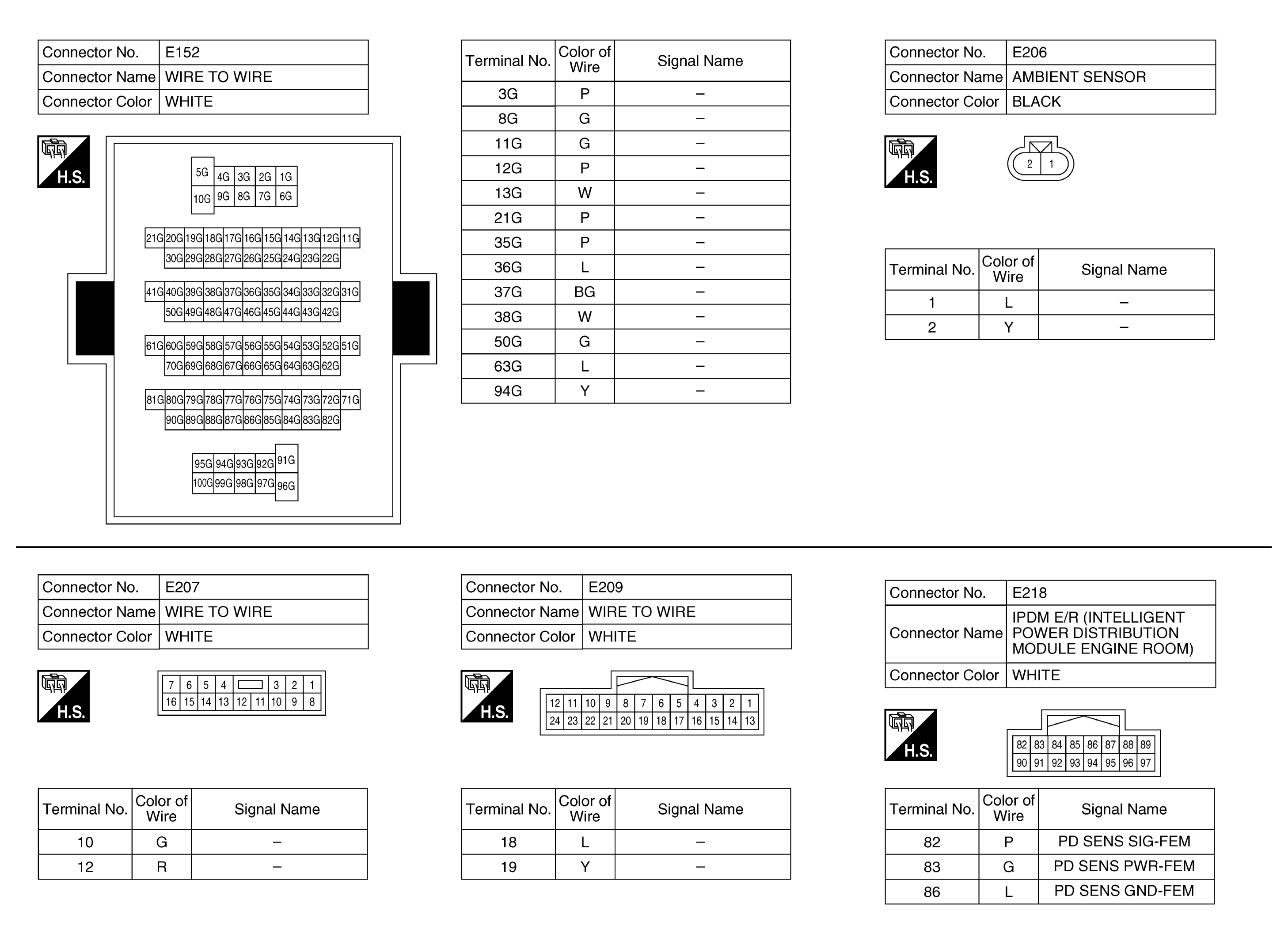

Fig 18: Automatic Air Conditioning System Connector End Views And Pin-Outs (13 Of 18)

GNSABIIA1543GB-543

Courtesy of NISSAN NORTH AMERICA, INC.

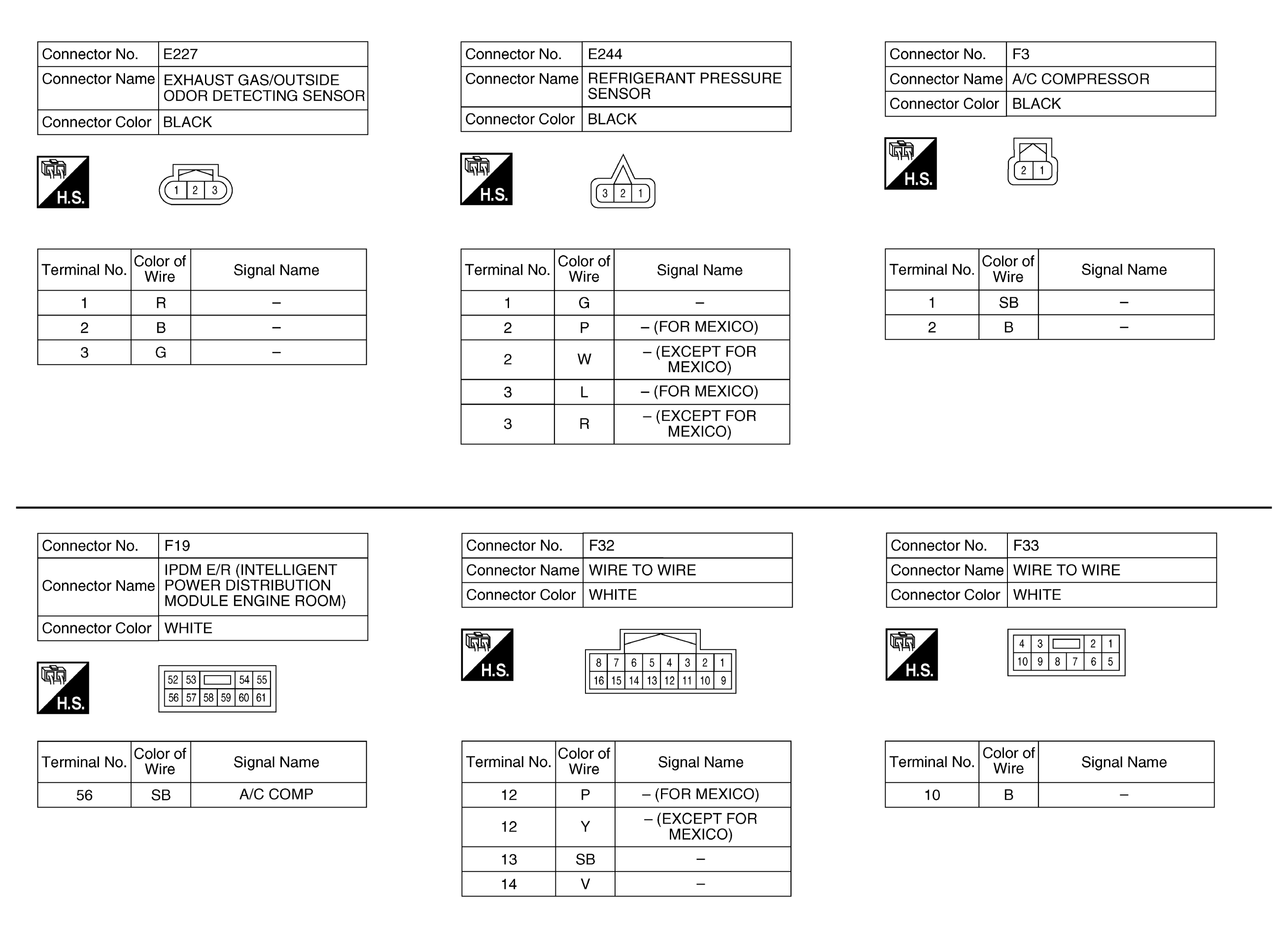

Fig 19: Automatic Air Conditioning System Connector End Views And Pin-Outs (14 Of 18)

GNSABIIA1544GB-544

Courtesy of NISSAN NORTH AMERICA, INC.

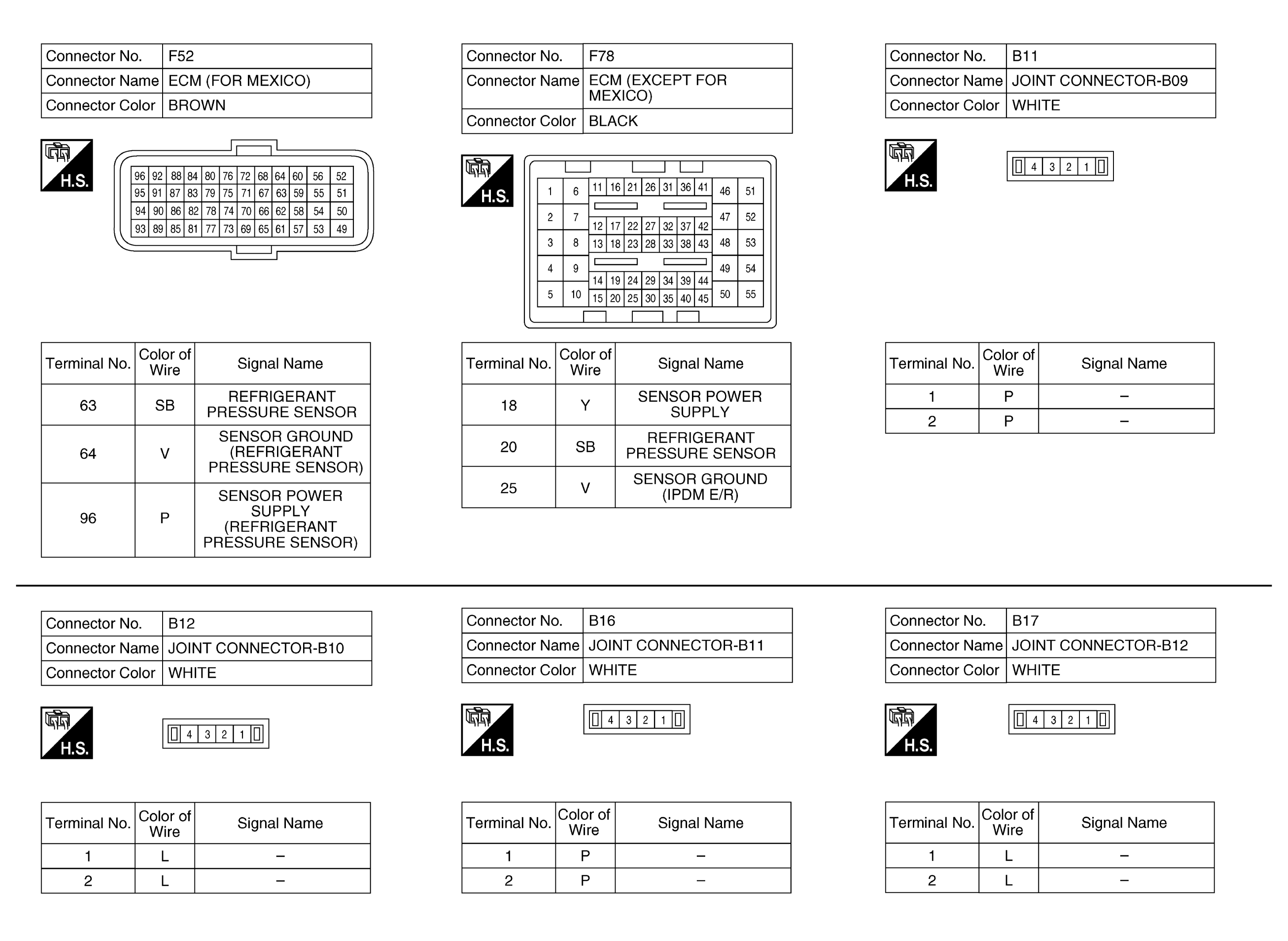

Fig 20: Automatic Air Conditioning System Connector End Views And Pin-Outs (15 Of 18)

GNSABIIA1545GB-545

Courtesy of NISSAN NORTH AMERICA, INC.

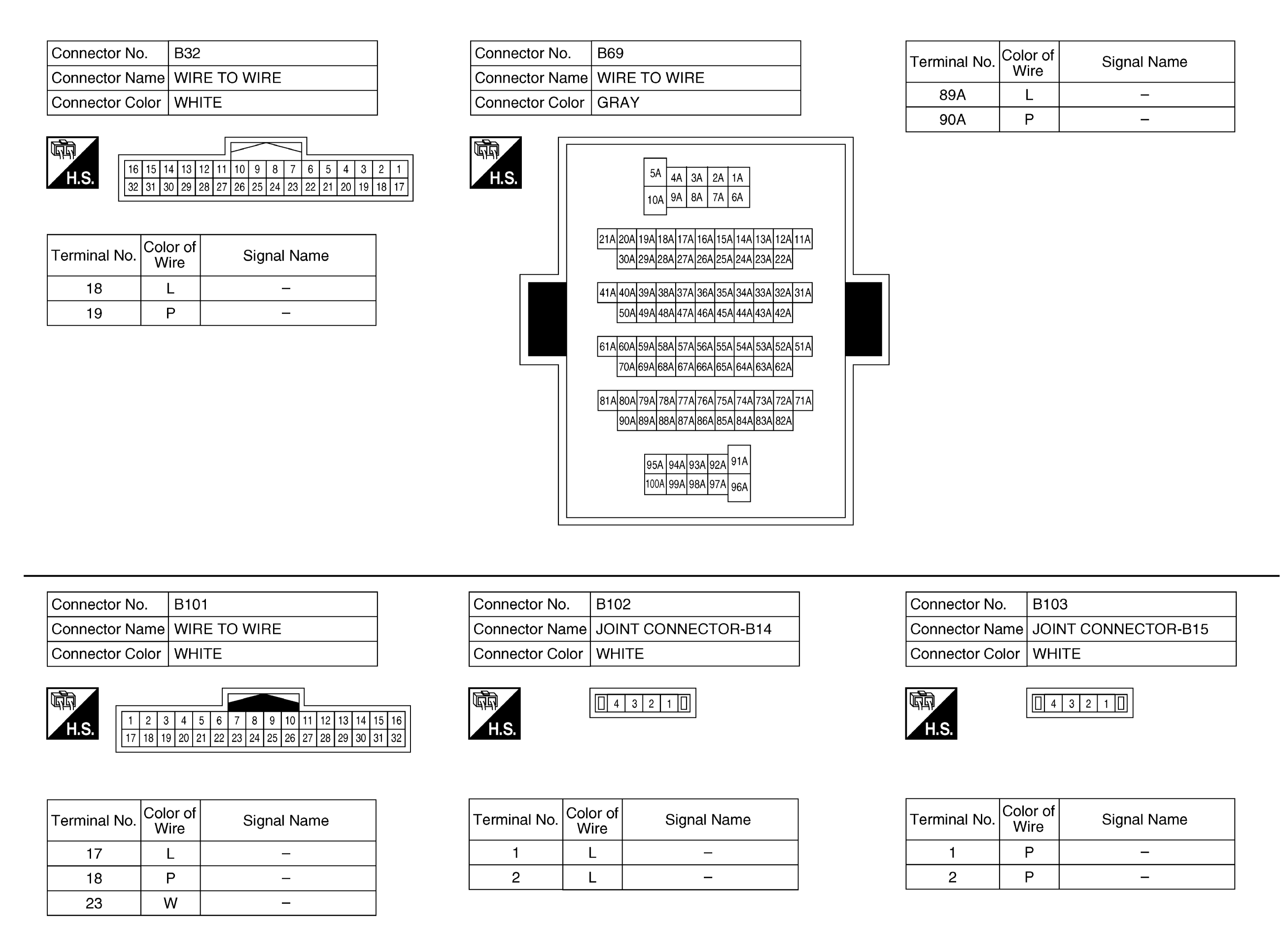

Fig 21: Automatic Air Conditioning System Connector End Views And Pin-Outs (16 Of 18)

GNSABIIA1546GB-546

Courtesy of NISSAN NORTH AMERICA, INC.

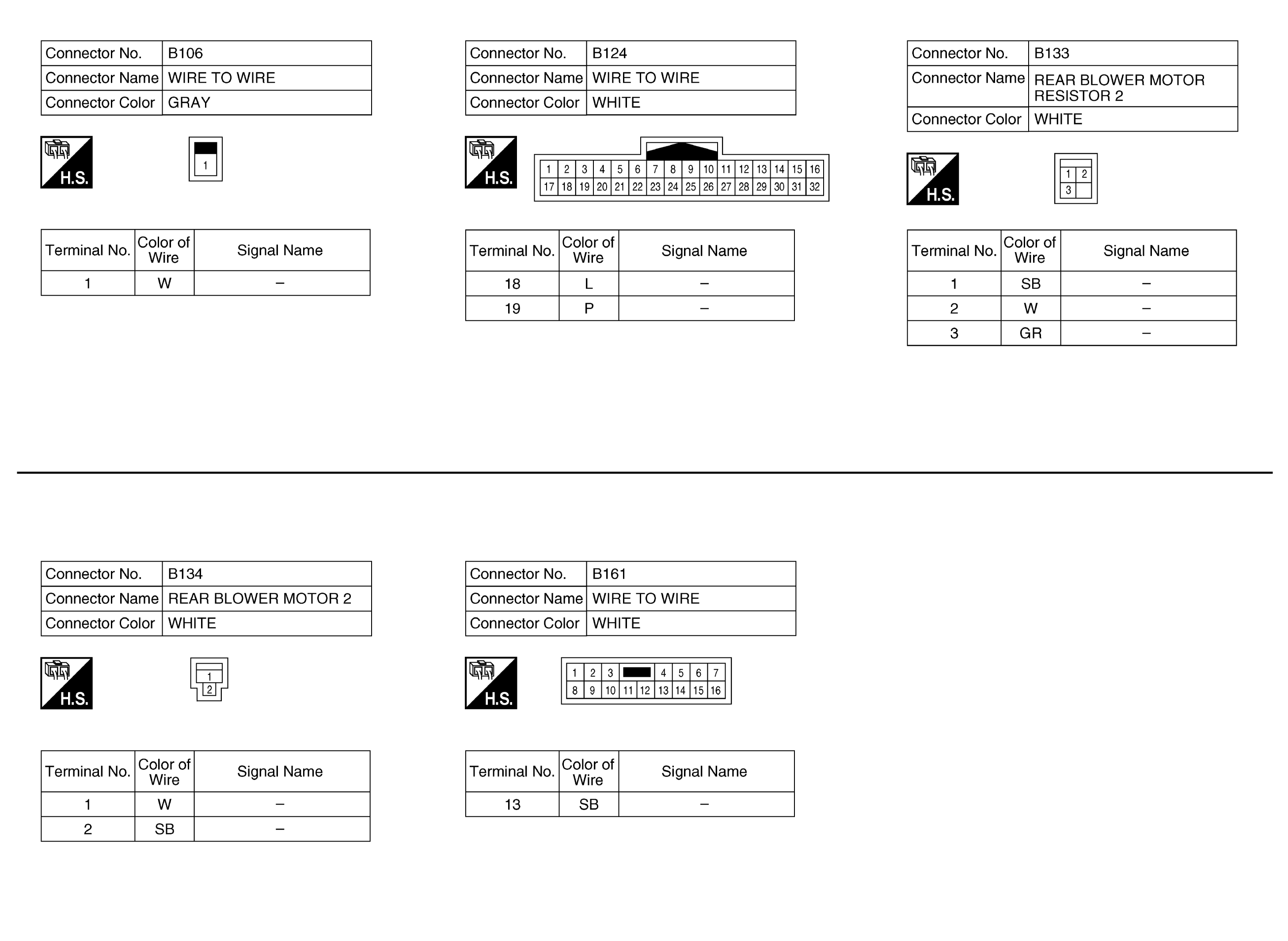

Fig 22: Automatic Air Conditioning System Connector End Views And Pin-Outs (17 Of 18)

GNSABIIA1547GB-547

Courtesy of NISSAN NORTH AMERICA, INC.

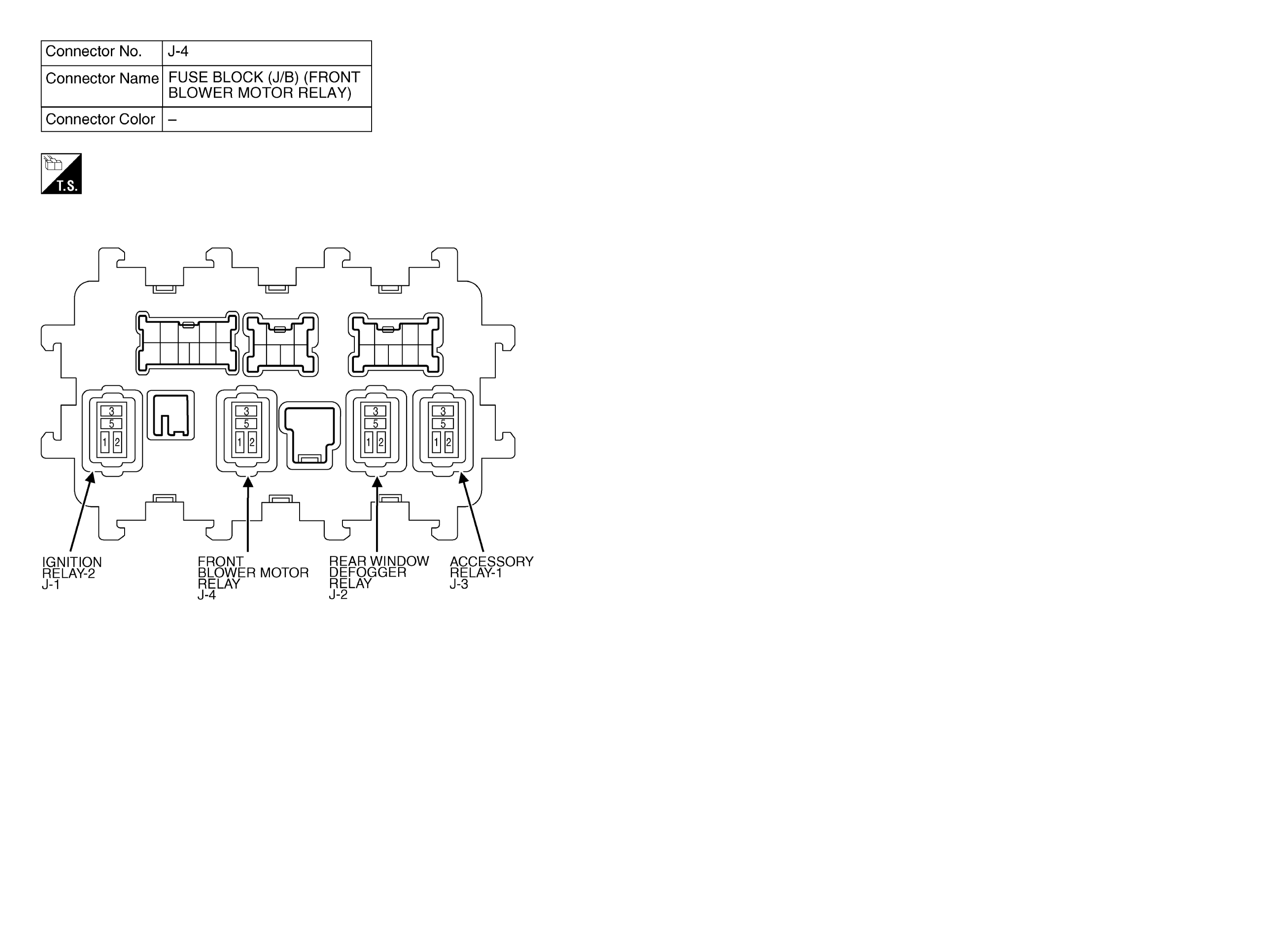

Fig 23: Automatic Air Conditioning System Connector End Views And Pin-Outs (18 Of 18)

GNSABIIA1549GB-549

Courtesy of NISSAN NORTH AMERICA, INC.
