Exploded View

WARNING: This page is about a different variant/trim than selected.

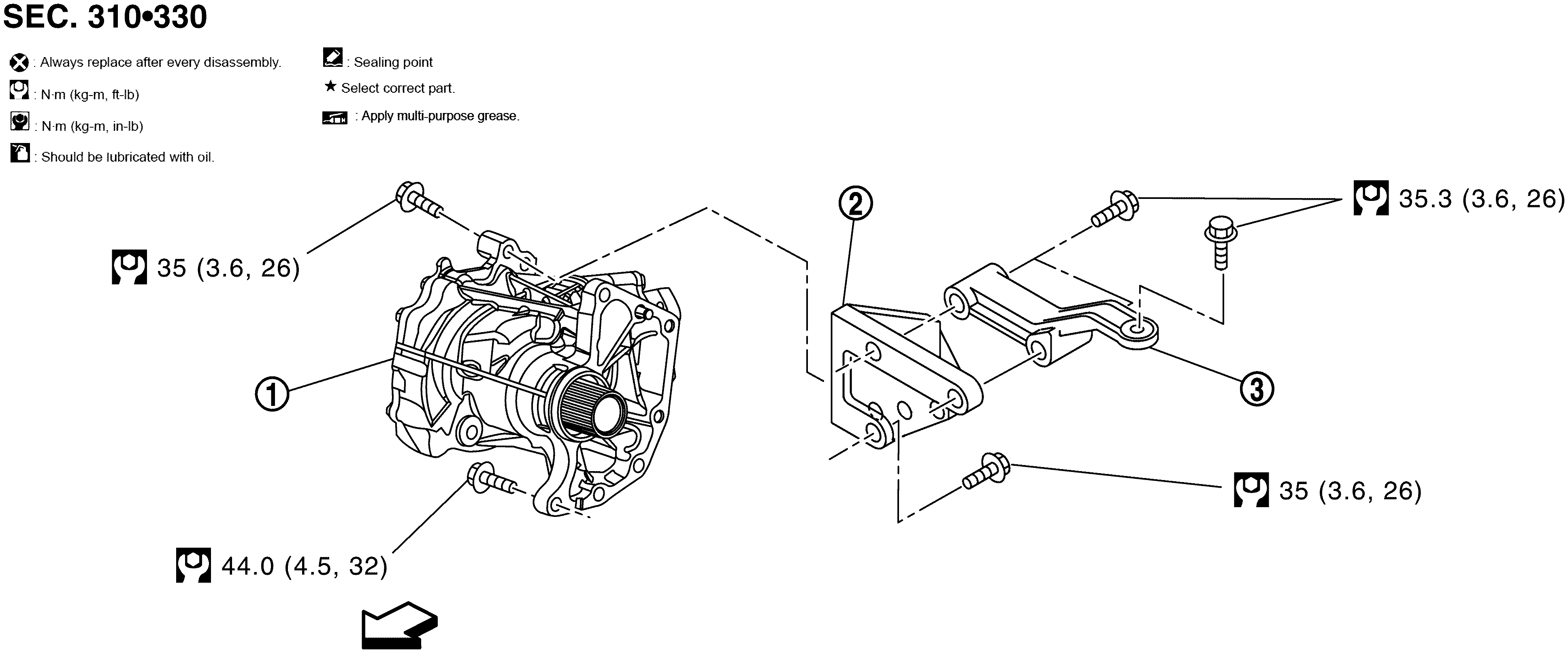

Fig 1: Exploded View Of Transfer Assembly With Torque Specifications
GNSJSDIA4207GB-207Courtesy of NISSAN NORTH AMERICA, INC.
1. Transfer assembly 2. Transfer gusset 3. Rear gusset
ARROW : Vehicle front
BOLT : N•m (kg - m, ft - lb)
