Transfer Case: Disassembly

WARNING: This page is about a different variant/trim than selected.

Remove transfer cover. Refer to DISASSEMBLY .
Remove ring gear shaft assembly. Refer to DISASSEMBLY .
Remove drive pinion assembly. Refer to DISASSEMBLY .
Remove O-ring from transfer case.
CAUTION:
- Never use a tool.
- Never damage transfer case.
Remove oil seals (1).

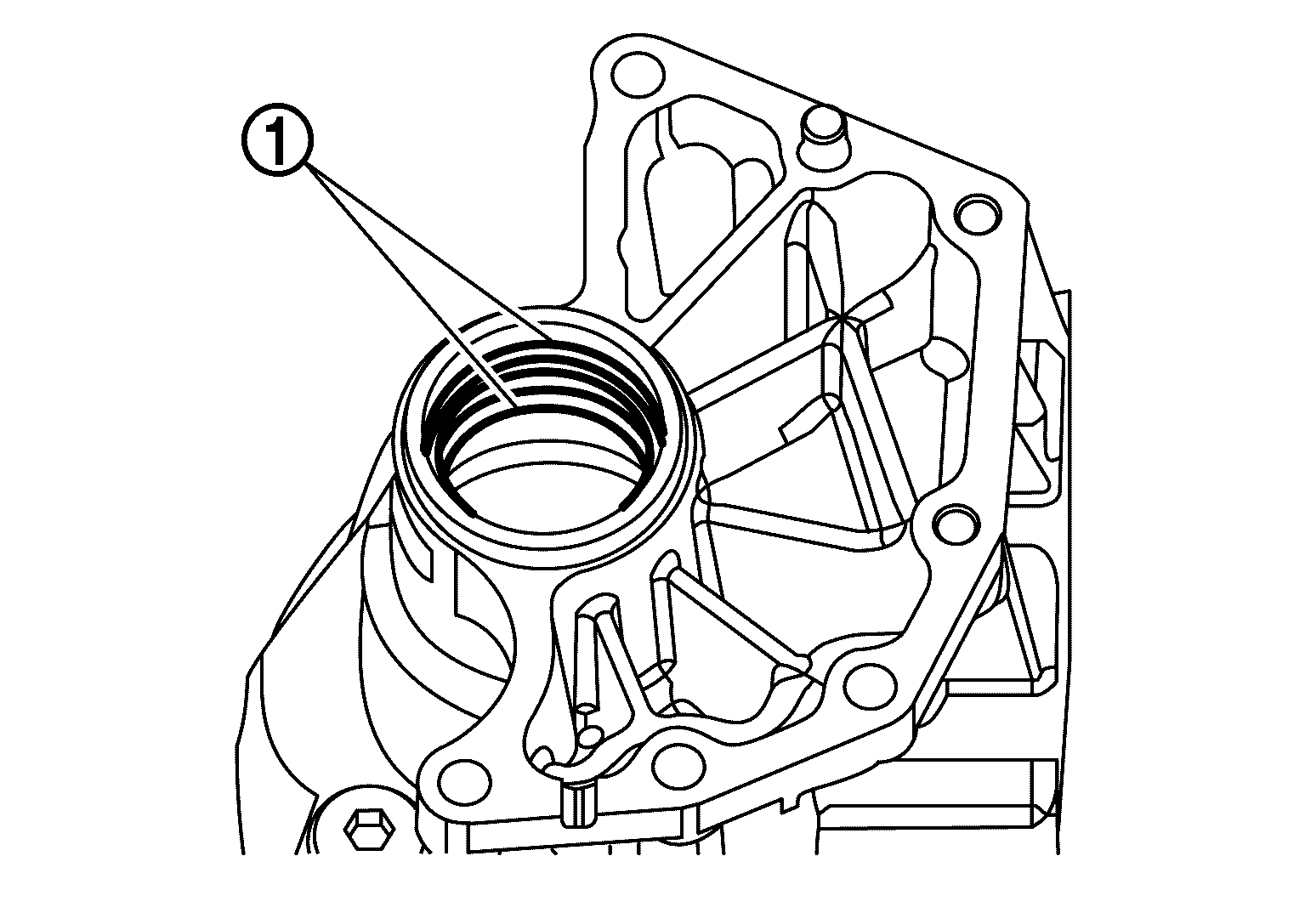

Fig 1: Identifying Oil Seals
Courtesy of NISSAN NORTH AMERICA, INC.

CAUTION:
Never damage transfer case.
Remove baffle plate (1).

Fig 2: Identifying Baffle Plate
Courtesy of NISSAN NORTH AMERICA, INC.
Remove the ring gear bearing adjusting shim (transfer case side) (1) and ring gear bearing outer race (transfer case side) (2) by tapping from the 2 cutouts ( ) on the transfer case.

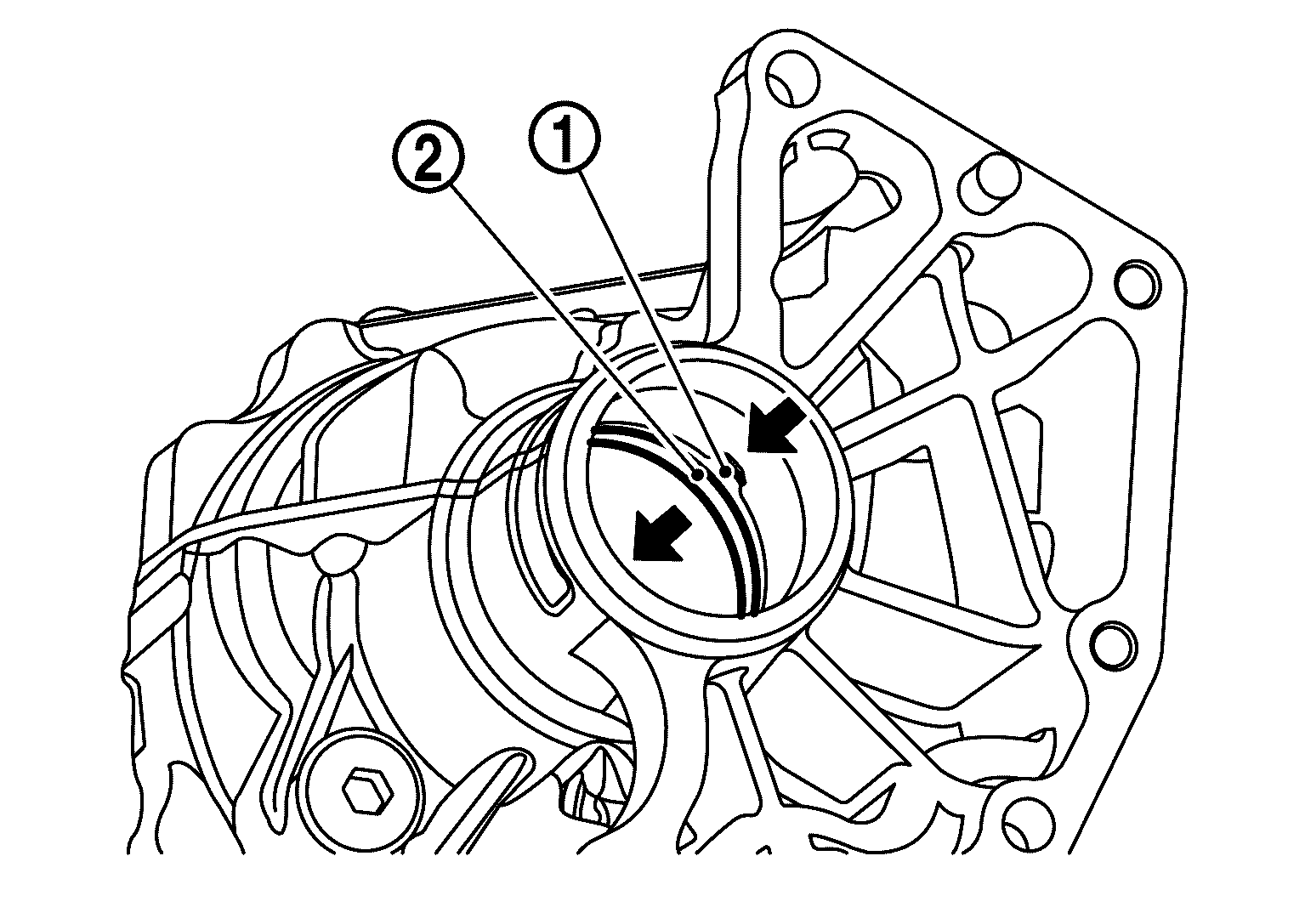

Fig 3: Locating Cutouts On Transfer Case
Courtesy of NISSAN NORTH AMERICA, INC.

CAUTION:
Never damage transfer case.
Remove plug and gasket.
Perform inspection after disassembly. Refer to INSPECTION .
