Drive Pinion: Adjustment: Backlash

WARNING: This page is about a different variant/trim than selected.
  1. Install the bolt to the companion flange.
  2. Fit a dial indicator onto the bolt (A).

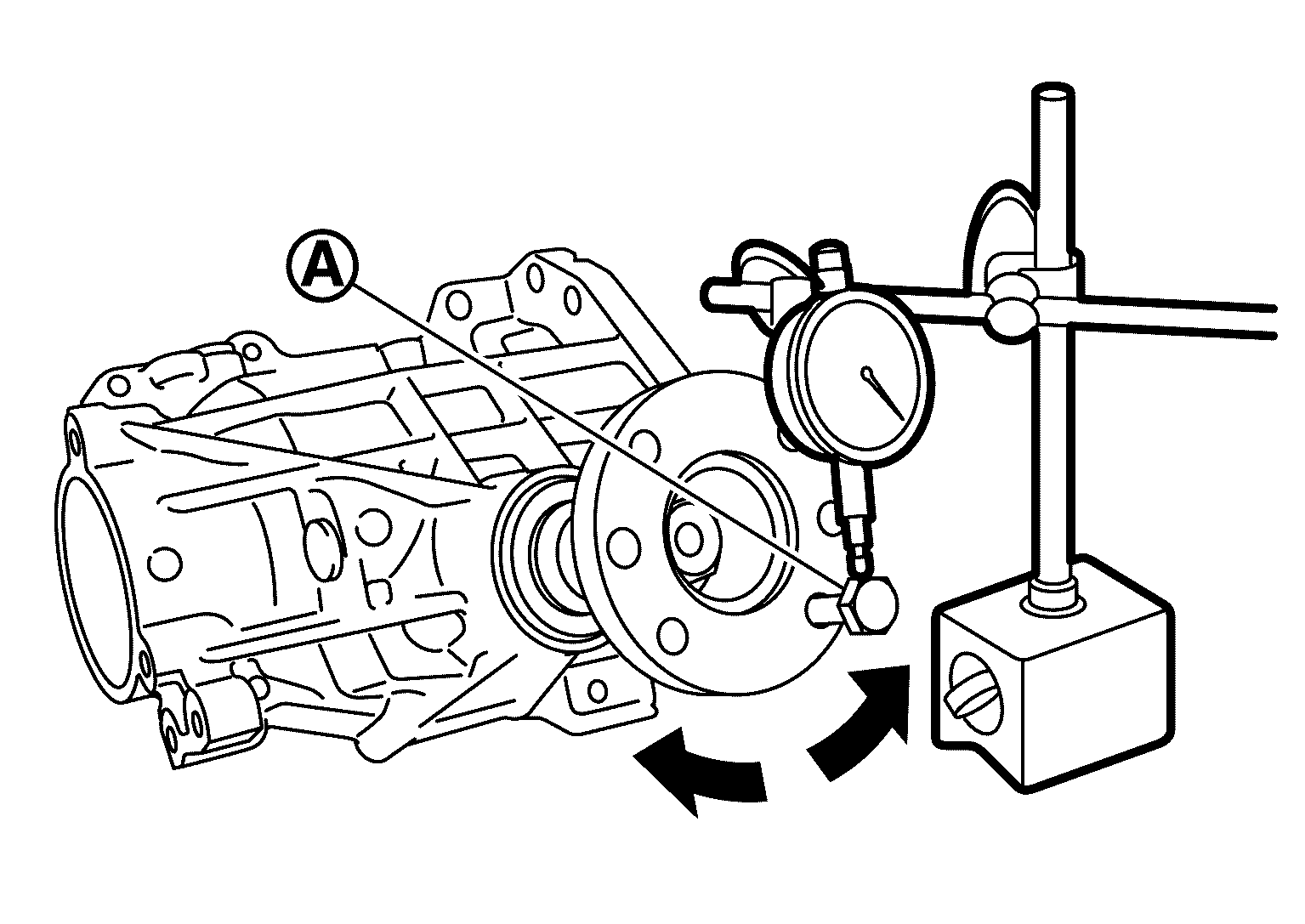

    Fig 1: Measuring Circumference Backlash Of Companion Flange Using Dial Indicator
    G06935931Courtesy of NISSAN NORTH AMERICA, INC.
  3. Measure the circumference backlash of the companion flange.
    Backlash : Refer to BACKLASH .
    • If outside the standard, disassemble the transfer assembly to check and adjust each part.
