Adjusting Shim Selection

Measurement point

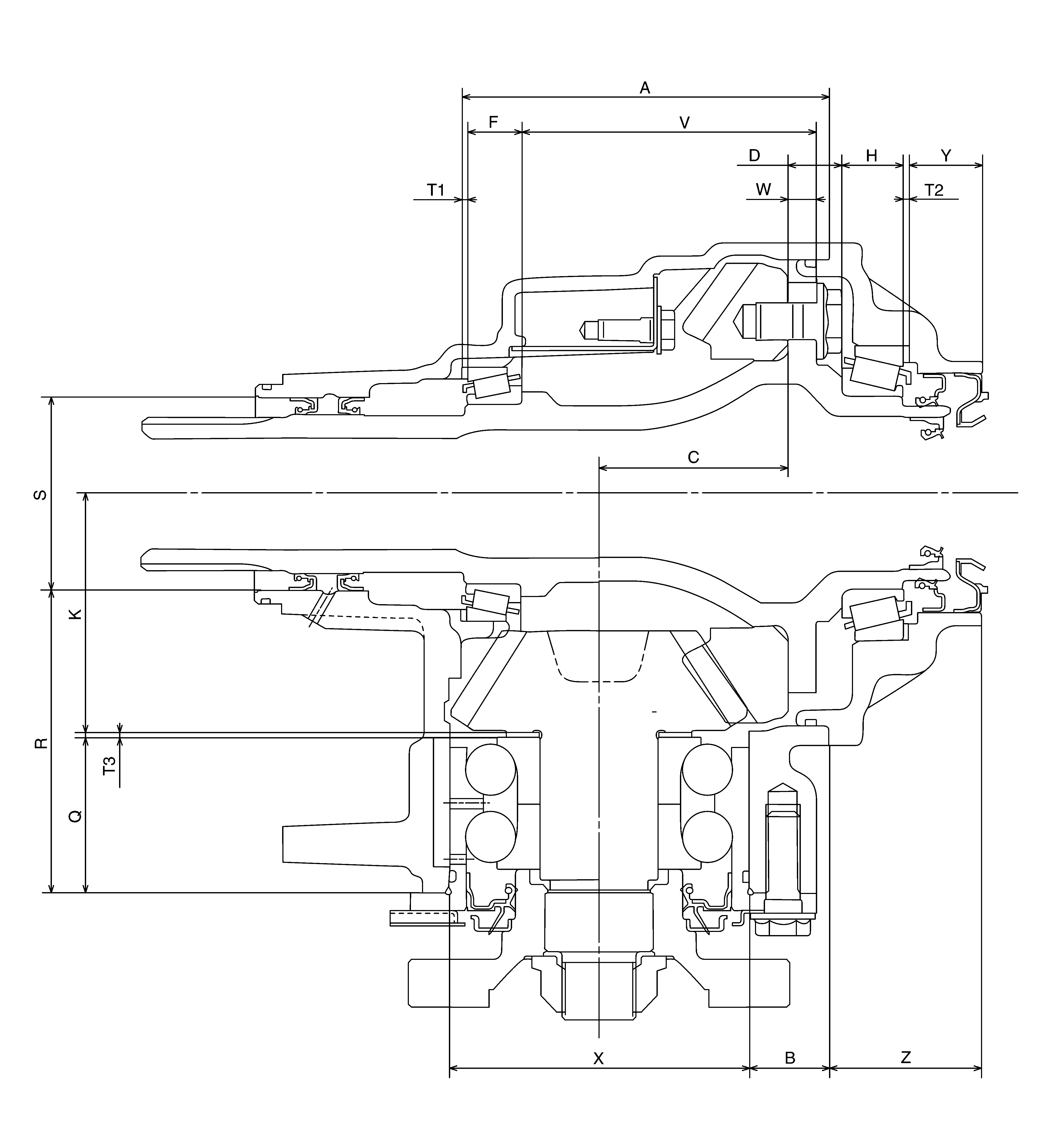

Fig 1: Identifying Adjusting Shim Selection Measurement Point

Courtesy of NISSAN NORTH AMERICA, INC.

Select adjusting shim of T1, T2, and T3, respectively, by using the following equation.

T1 [Ring gear bearing adjusting shim (transfer case side)]

• T1 = A - (B +X/2) +C +W - V - F - (M/100) +0.071 mm (0.0028 in)

T2 [Ring gear bearing adjusting shim (transfer cover side)]

• T2 = - Y +Z +(B +X/2) - C - D - H +(M/100) +0.071 mm (0.0028 in)

T3 (Drive pinion adjusting shim)

• T3 = - Q +(R +S/2) - K +(O/100)

• Check dimension (M) on the ring gear side face.

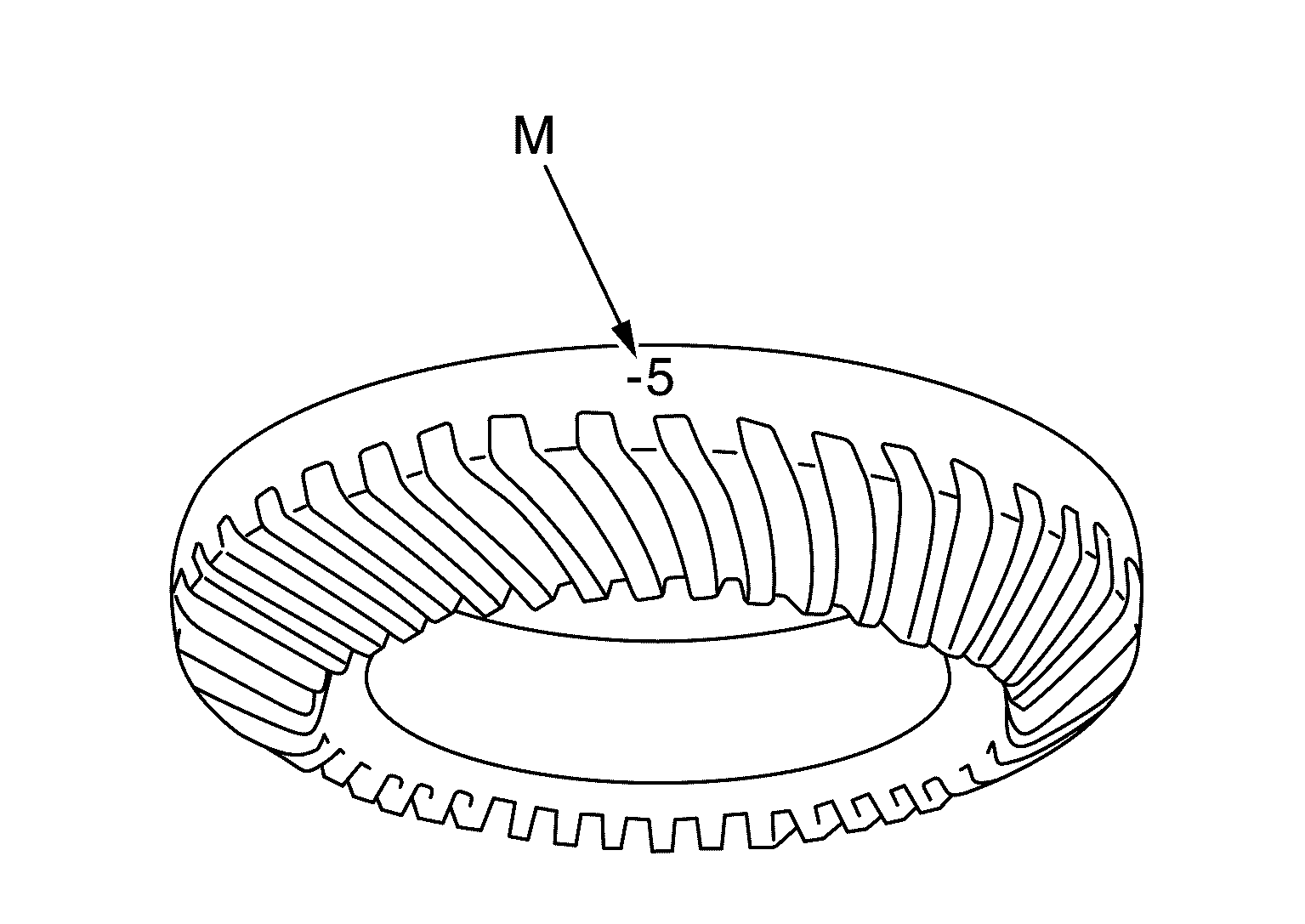

  Fig 2: Identifying Dimension (M) On Ring Gear Side Face

  Courtesy of NISSAN NORTH AMERICA, INC.
  NOTE:

  Dimension "M" indicates the difference between the optimum engagement and standard dimensions in increments of 0.01 mm (0.0004 in) written on the ring gear side face.

• Check dimension (O) on the gear end of drive pinion.

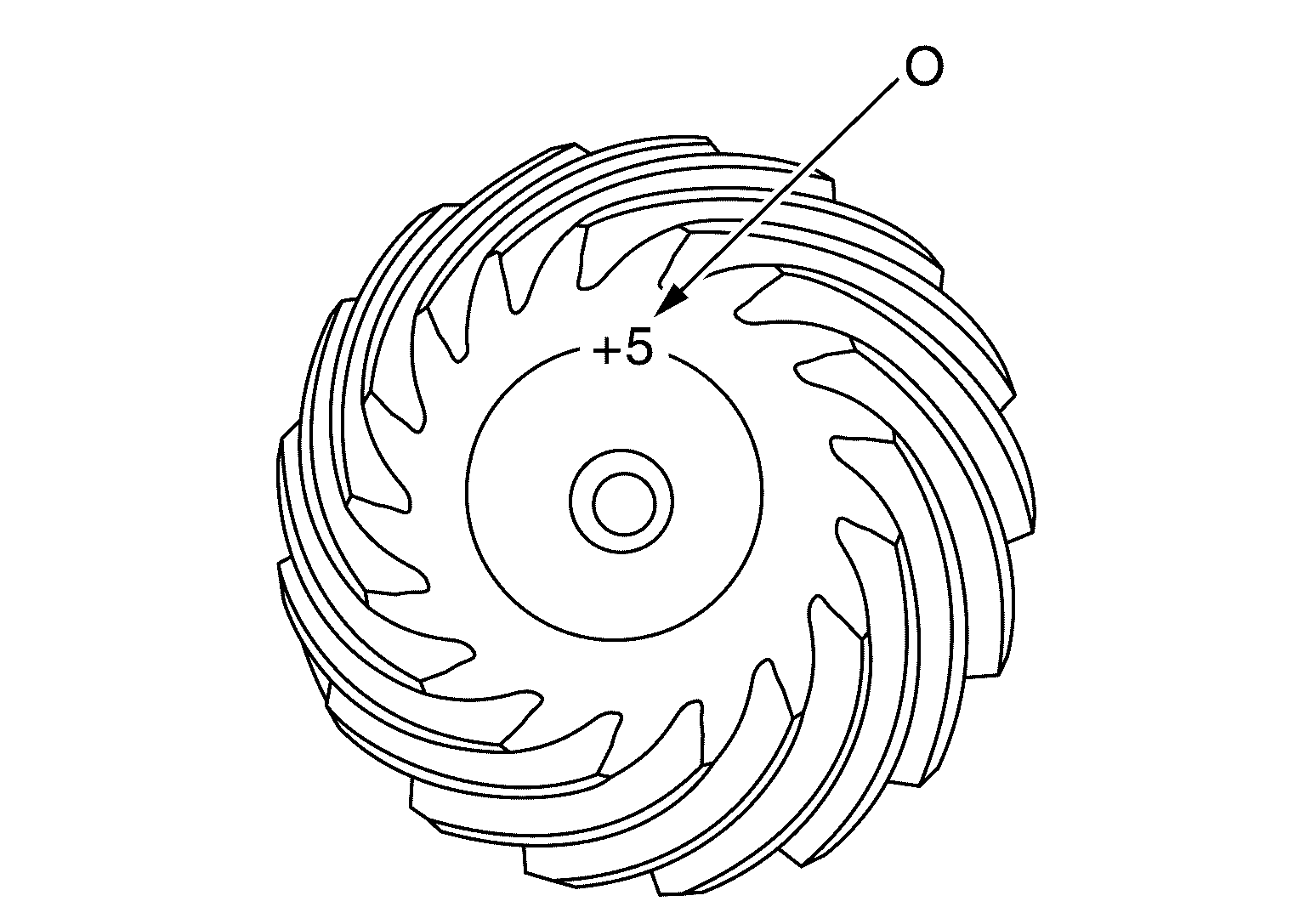

  Fig 3: Identifying Dimension (O) On Gear End Of Drive Pinion

  Courtesy of NISSAN NORTH AMERICA, INC.
  NOTE:

  Dimension "O" indicates the difference between the optimum engagement and the standard dimensions in increments of 0.01 mm (0.0004 in) written on the gear end of drive pinion.
