Transfer Oil: Refilling

WARNING: This page is about a different variant/trim than selected.
CAUTION:

Do not start engine while checking transfer oil level.

  1. Remove filler plug (1).

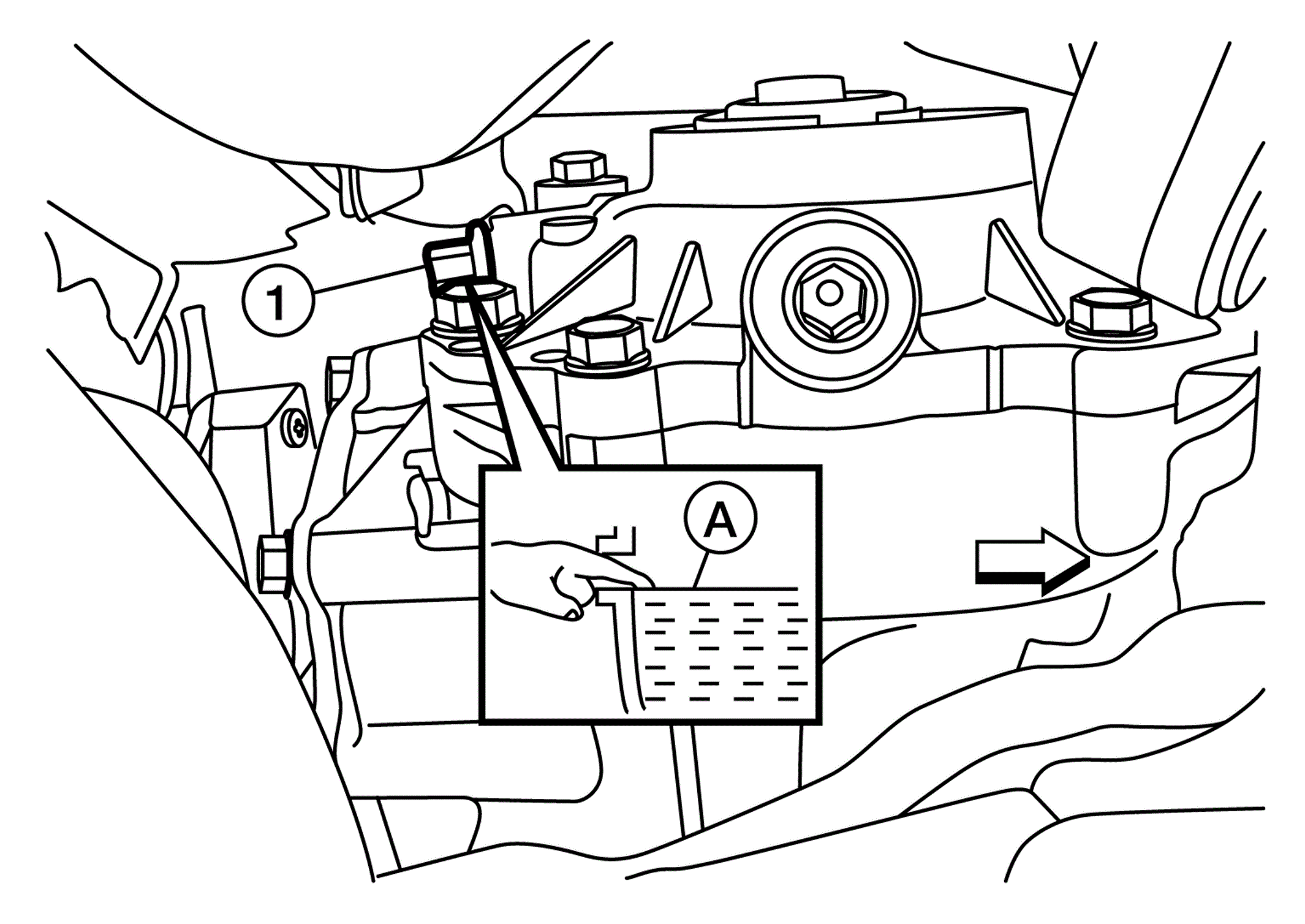

    Fig 1: Locating Transfer Filler Plug
    GNSALDIA0383ZZ-383Courtesy of NISSAN NORTH AMERICA, INC.
  2. Fill with new transfer oil to the specified level near the filler plug hole.
    ARROW : Front
    Transfer oil grade and viscosity : Refer to FLUIDS AND LUBRICANTS .
    Transfer oil capacity : Refer to GENERAL SPECIFICATIONS .
  3. Set a new gasket onto filler plug, and install it in the transfer and tighten to specified torque. Refer to EXPLODED VIEW .
    CAUTION:

    Do not reuse gasket.
