Transfer Oil: Draining

WARNING: This page is about a different variant/trim than selected.

CAUTION:

Do not start engine while working.

Run the vehicle to warm up the transfer unit sufficiently.
Stop the engine and remove drain plug (1) and gasket and drain the transfer oil.

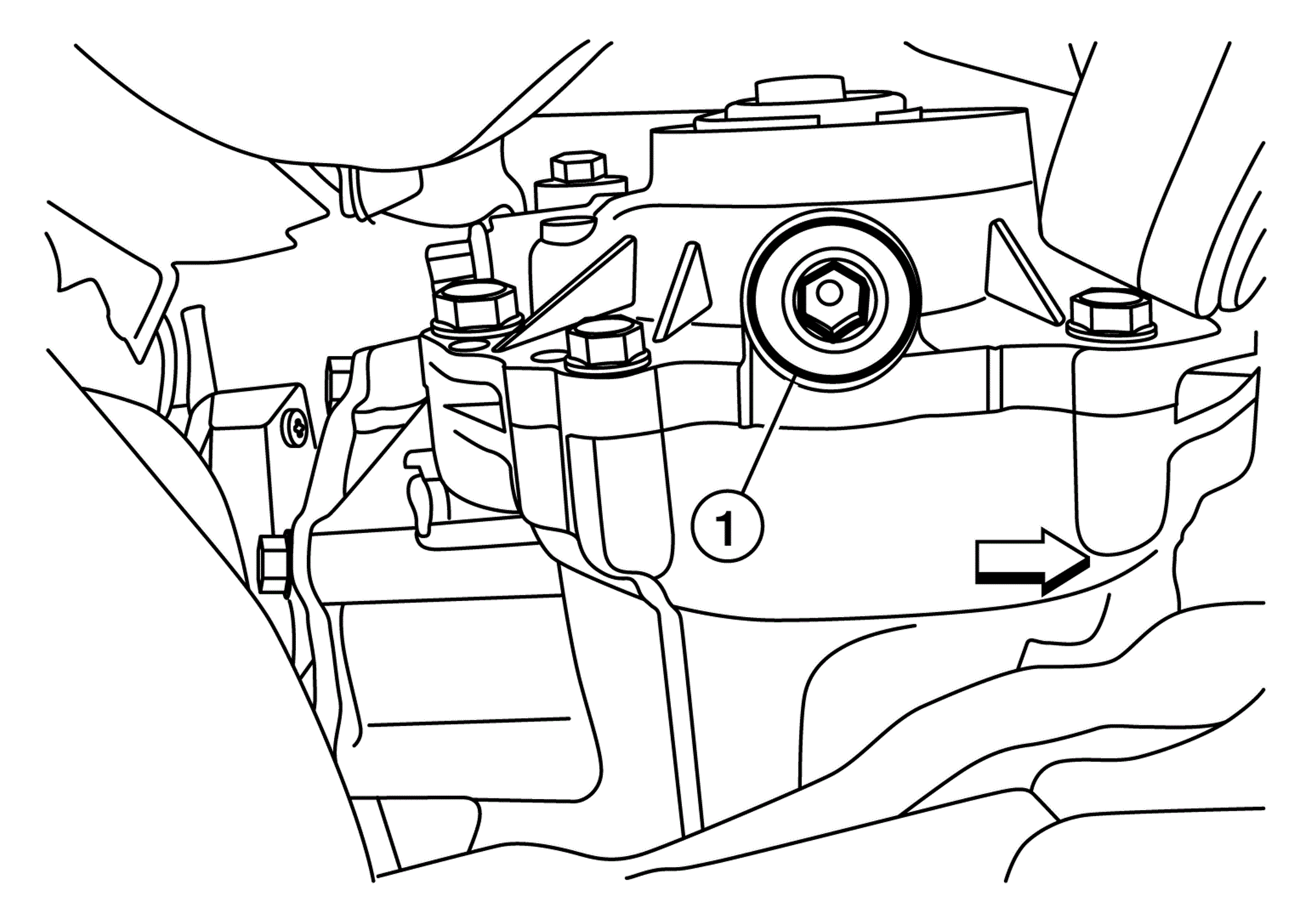

Fig 1: Locating Transfer Unit Drain Plug
Courtesy of NISSAN NORTH AMERICA, INC.

: Front
Set a new gasket onto filler plug, and install it in the transfer and tighten to specified torque. Refer to EXPLODED VIEW .
CAUTION:
Do not reuse gasket.
