Work Procedure

WARNING: This page is about a different variant/trim than selected.

UNIT CHARACTERISTICS WRITING

With CONSULT
1. Confirm the unit characteristics (A) of electric controlled coupling.

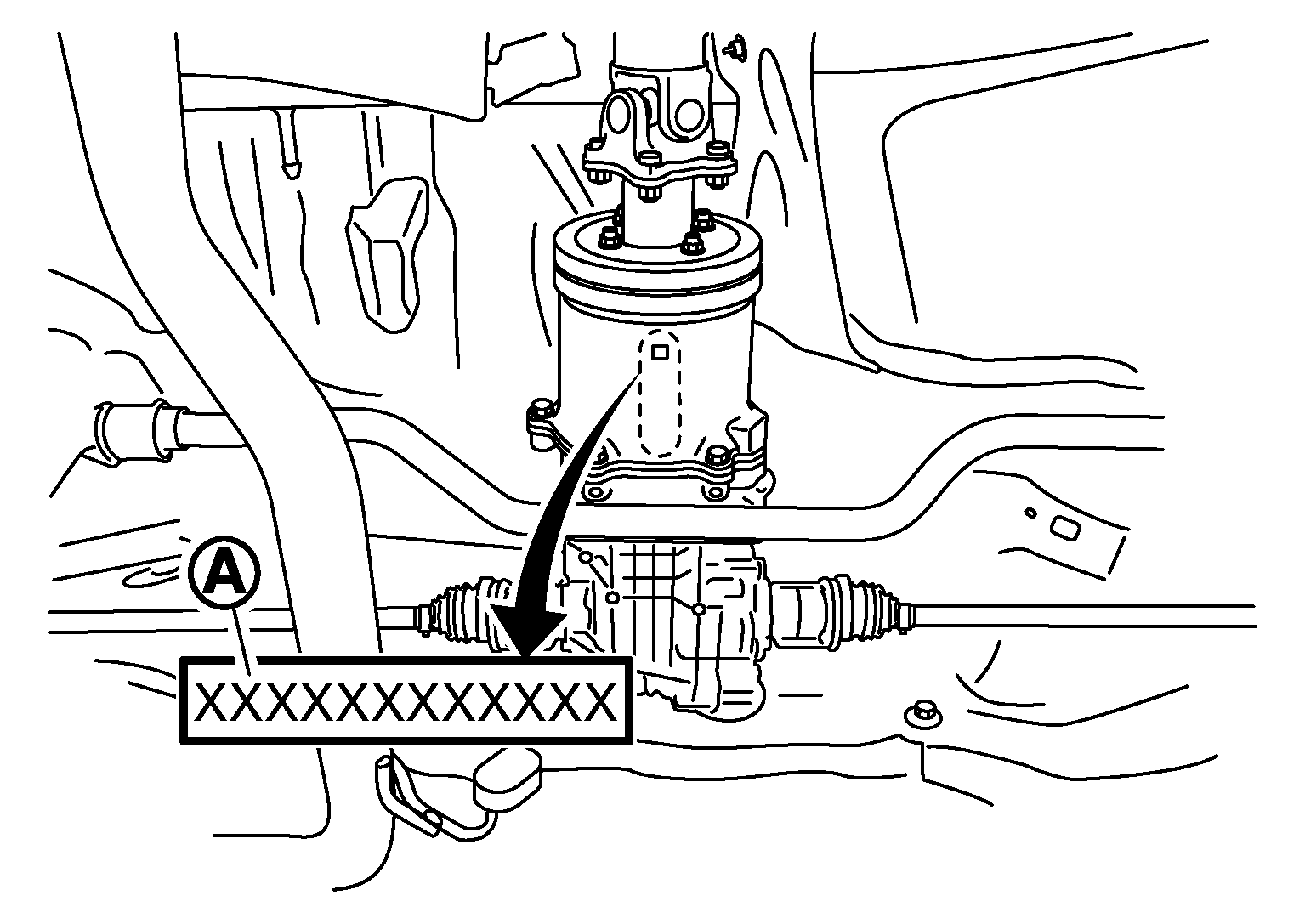

  Fig 1: Identifying Unit Characteristics Of Electric Controlled Coupling
  Courtesy of NISSAN NORTH AMERICA, INC.

  NOTE:
  Unit characteristics is 12-digit alphanumeric.
2. Turn the ignition switch OFF to ON.
3. Select "UNIT CHARACTERISTICS WRITE" in "WORK SUPPORT" for "ALL MODE AWD/4WD".
4. Input unit characteristics.
5. Select "Start".
6. Check that "UNIT CHARACTERISTICS WRITE COMPLETED" is displayed.
WORK END
