Component Parts Location
WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

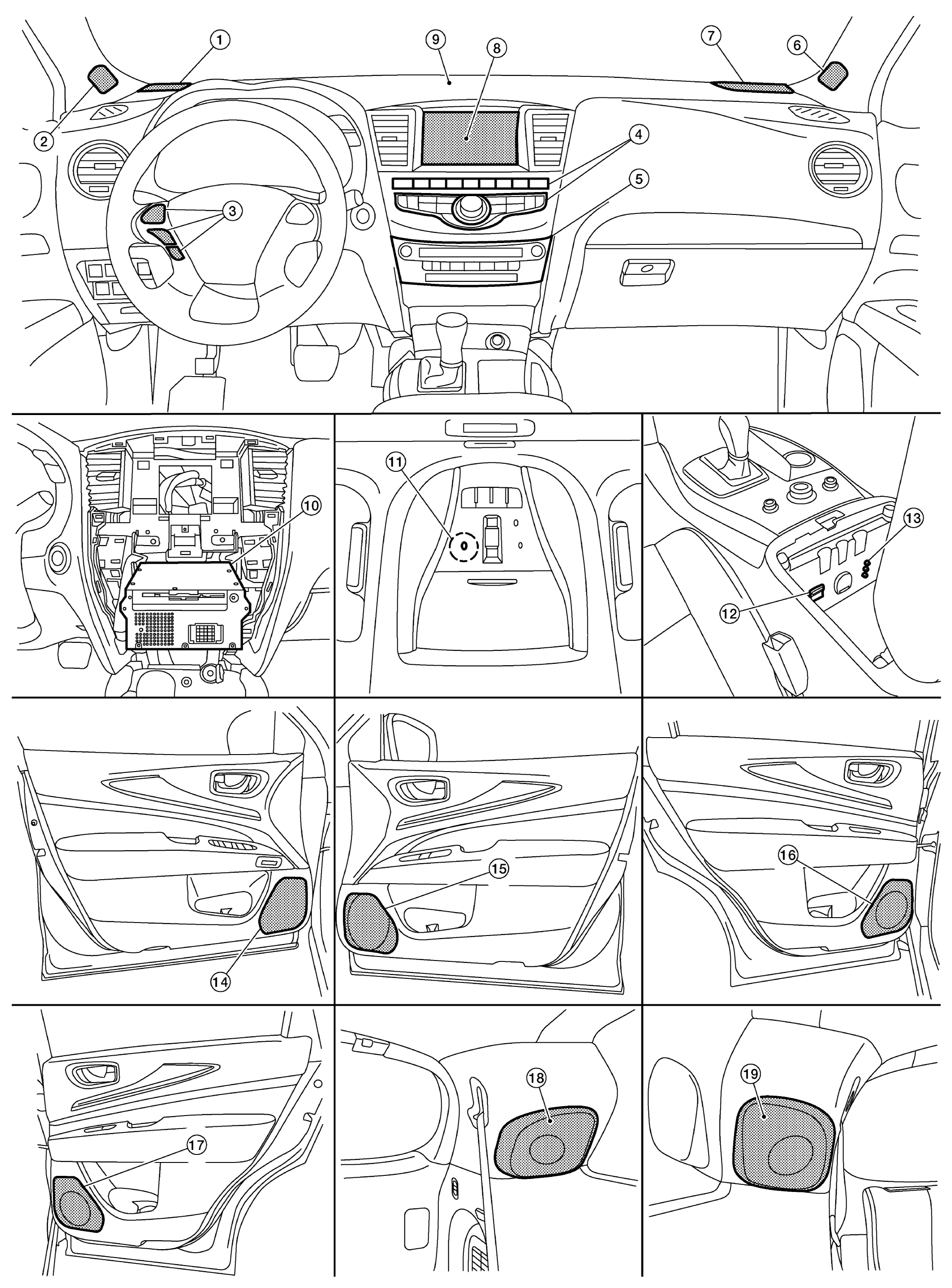

| 1. | Instrument panel tweeter LH | 2. | Front tweeter LH | 3. | Steering switch |
| 4. | Multifunction switch | 5. | Preset switch | 6. | Front tweeter RH |
| 7. | Instrument panel tweeter RH | 8. | Display unit | 9. | Center speaker |
| 10. | AV control unit (view with center stack removed) | 11. | Microphone | 12. | USB interface |
| 13. | Front auxiliary input jacks | 14. | Front door speaker LH | 15. | Front door speaker RH |
| 16. | Rear door speaker LH | 17. | Rear door speaker RH | 18. | Rear side speaker LH |

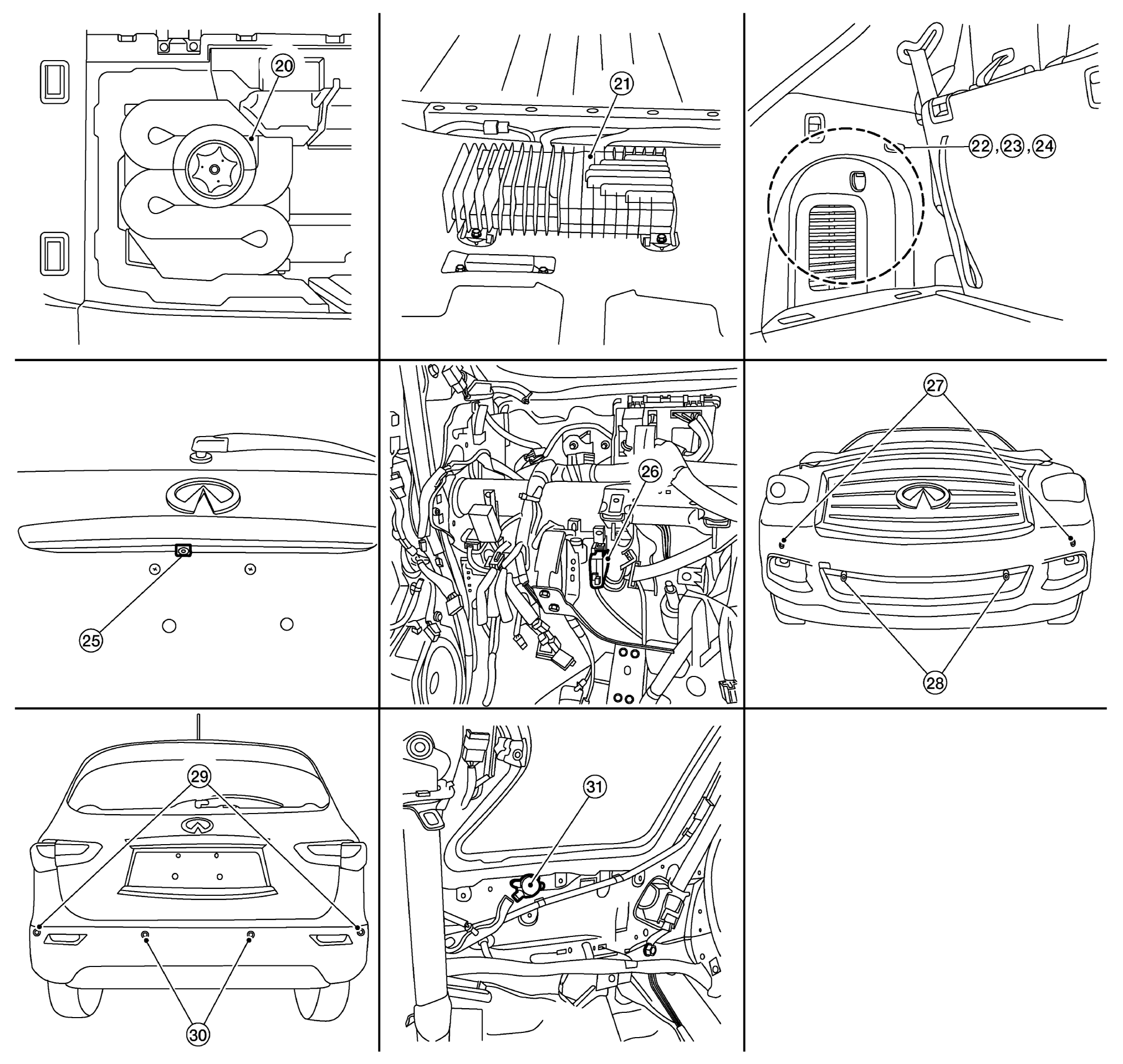

| 19. | Rear side speaker RH | 20. | Subwoofer | 21. | Bose® speaker amp. |
| 22. | Bluetooth® control unit | 23. | Satellite radio tuner | 24. | Bluetooth® antenna |
| 25. | Rear view camera | 26. | Sonar control unit | 27. | Front sonar sensors outer |
| 28. | Front sonar sensors inner (if equipped) | 29. | Rear sonar sensors outer | 30. | Rear sonar sensors inner (if equipped) |
| 31. | Sonar buzzer |
