Second Seat Belt Retractor (Center) Off-Vehicle Check

WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

Remove the seat belt retractor. Refer to SECOND ROW SEAT BELT .

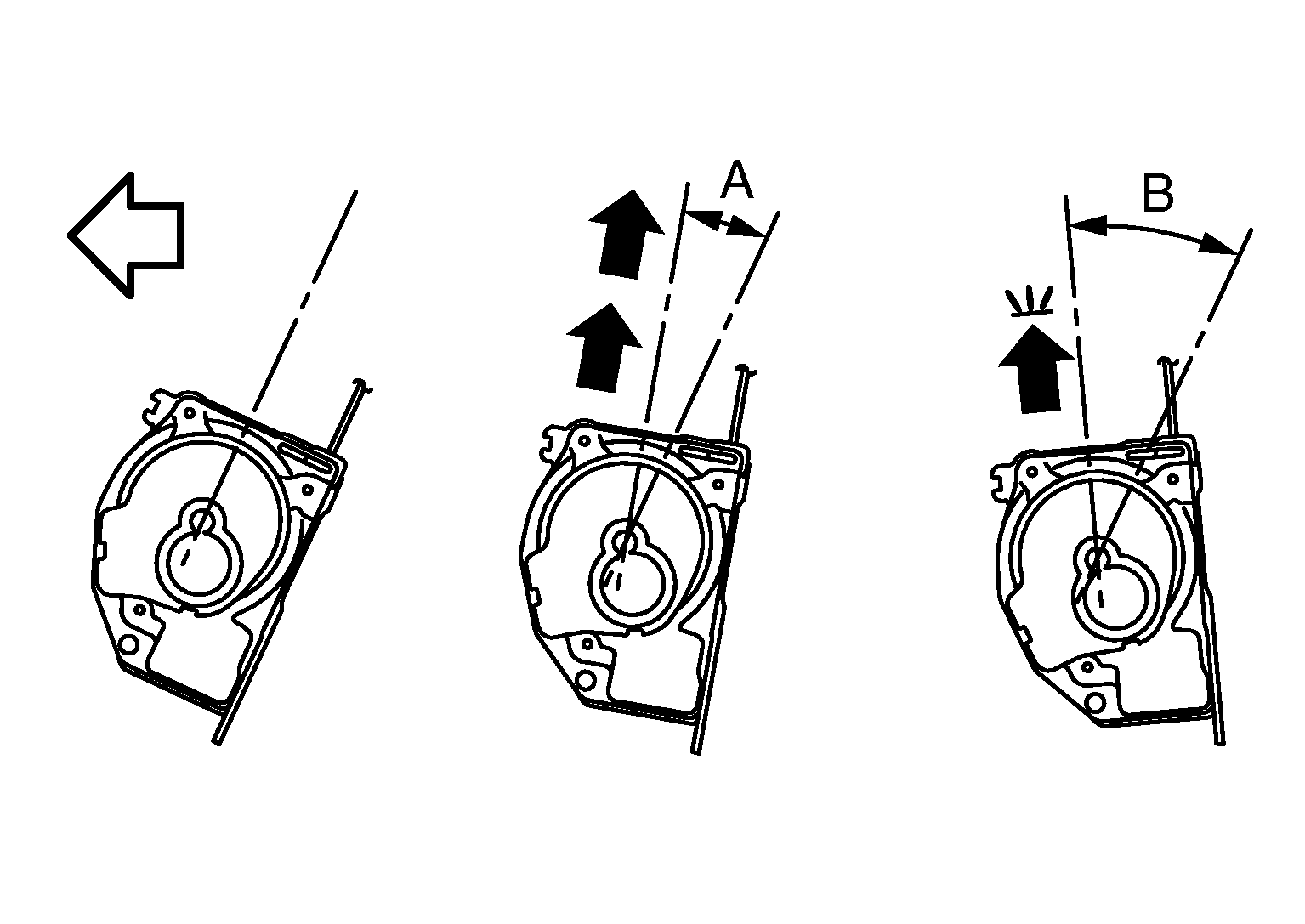

Slowly pull out webbing while tilting the seat belt retractor forward from the mounted position without twisting the seat belt retractor as shown below.
A : The webbing can be pulled out if the retractor is tilted 15° degree or less.

Courtesy of NISSAN NORTH AMERICA, INC.

B : The webbing can not be pulled out if the retractor is tilted 27° degrees or more.

NOTE:
A and B show tilting angles.

: Front
Replace the seat belt retractor if it does not operate within specifications.
