Component Parts Location
WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

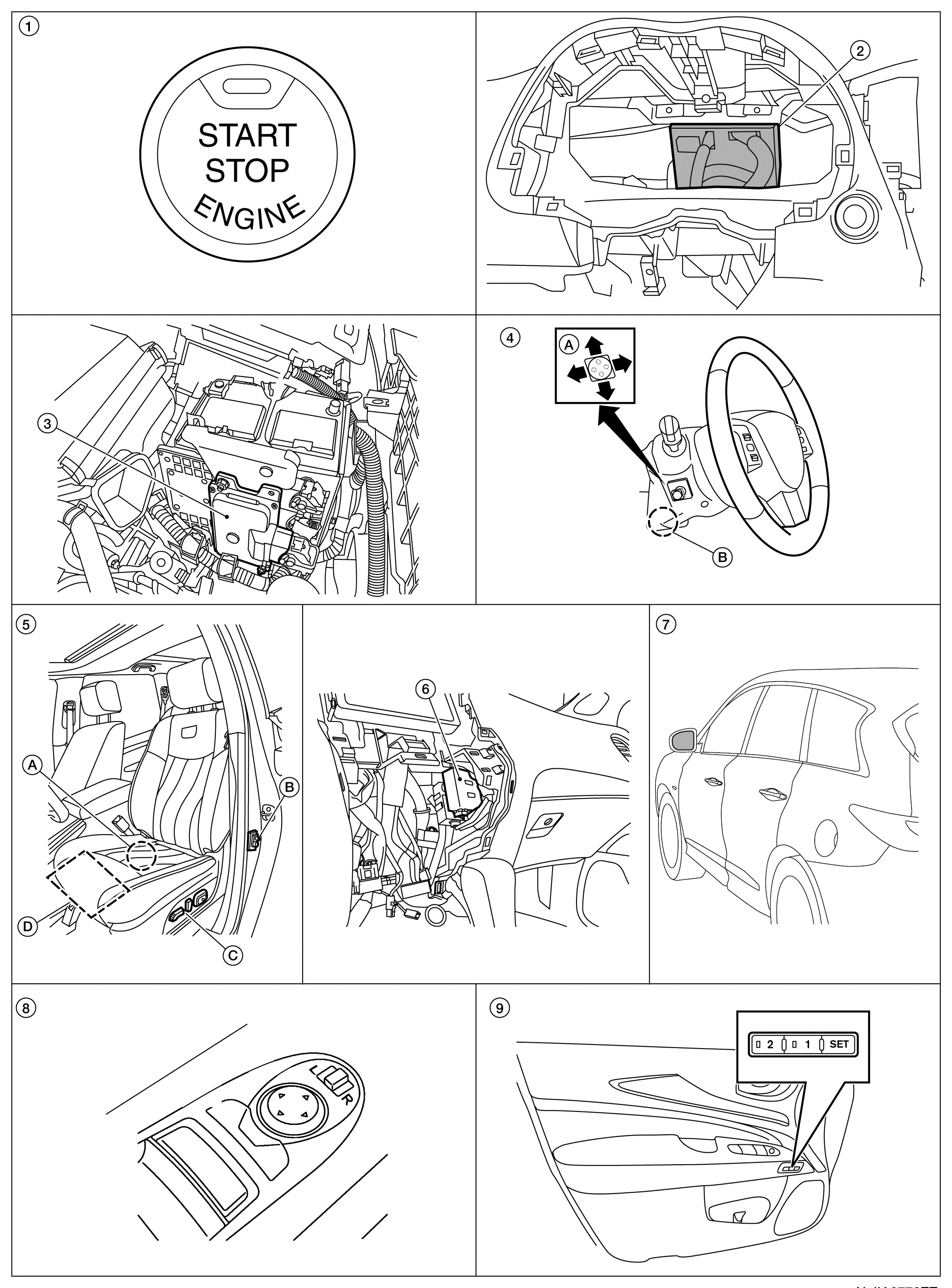

| 1. | Push-button ignition switch | 2. | BCM (view with combination meter removed) | 3. | TCM |
| 4. | A. ADP steering switch B. Tilt motor, telescopic motor |
5. | A. Driver seat control unit B. Front door switch LH C. Power seat switch LH D. Sliding motor LH, reclining motor LH, lifting motor LH (front/rear) |
6. | Automatic drive positioner control unit (view with AV control unit removed) |
| 7. | Door mirror LH (RH similar) | 8. | Power mirror remote control switch | 9. | Seat memory switch |
