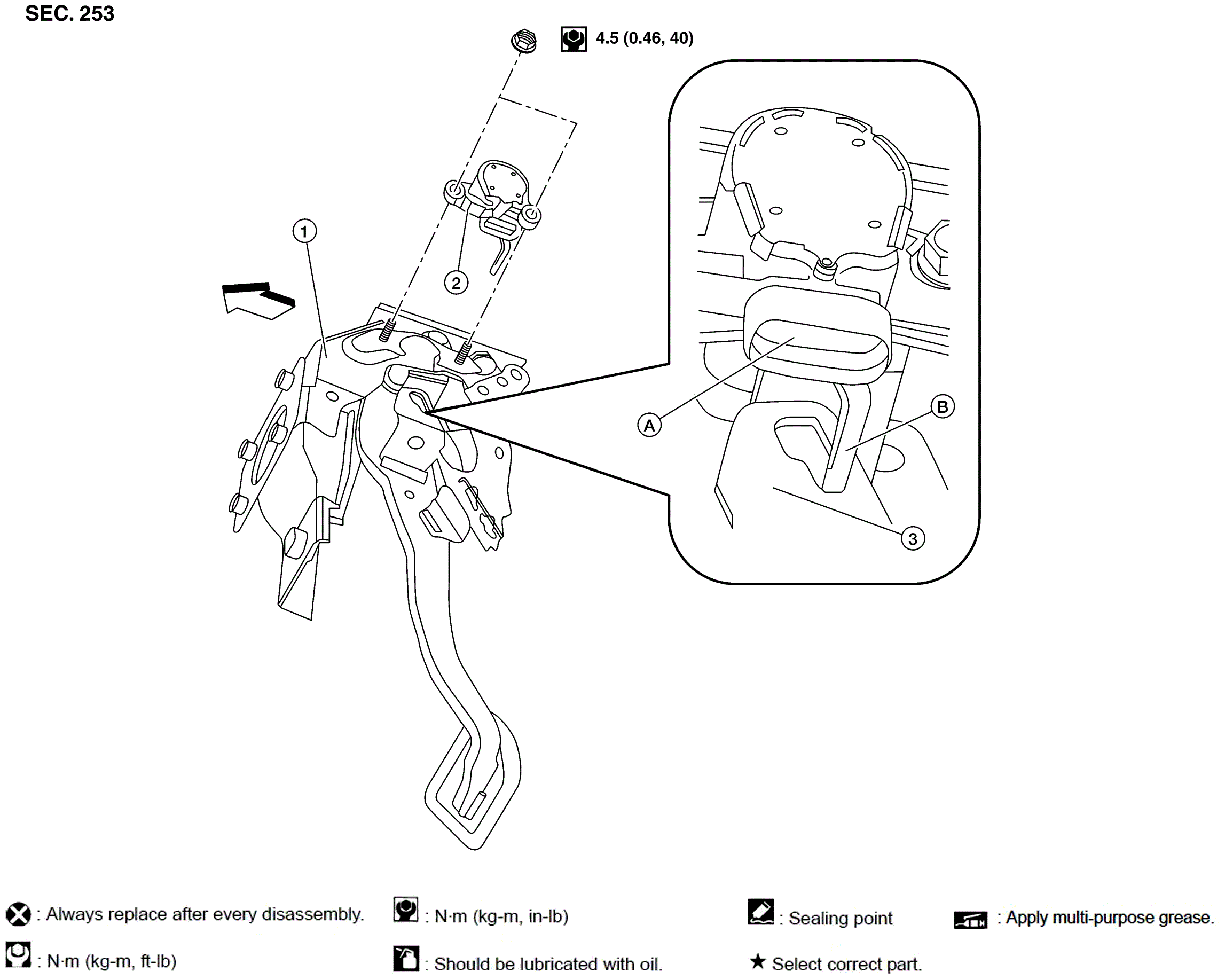

Exploded View With Torque Specifications
WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of NISSAN NORTH AMERICA, INC.
| 1. |
Brake pedal assembly |
2. |
Brake pedal stroke sensor |
3. |
Brake pedal sensor bracket |
| A. |
Brake pedal stroke sensor connector |
B. |
Brake pedal stroke sensor lever |
 |
Front |
