Steering Column: Wiring Diagram

WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

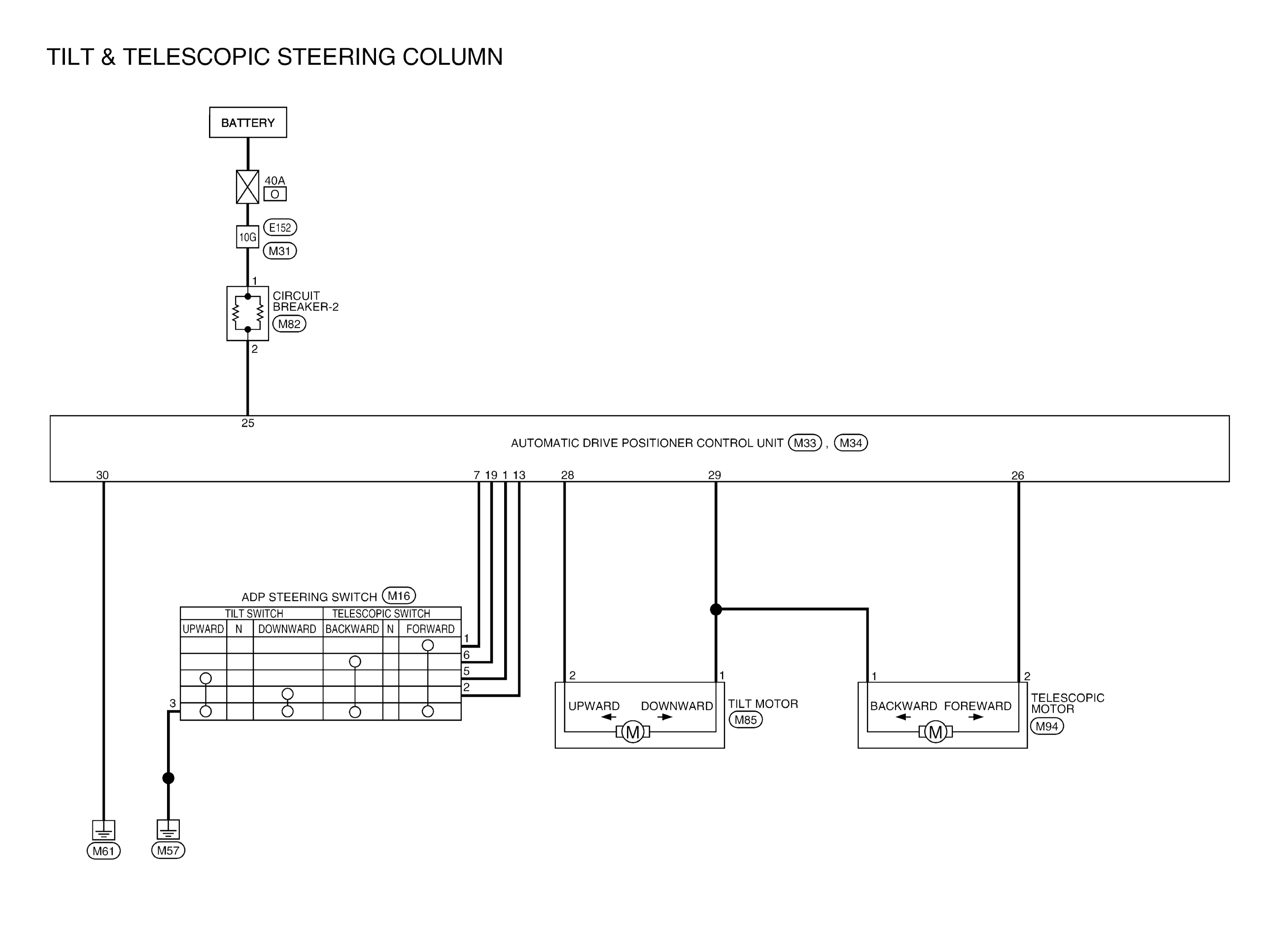

GNSABGWA0122GB-122Courtesy of

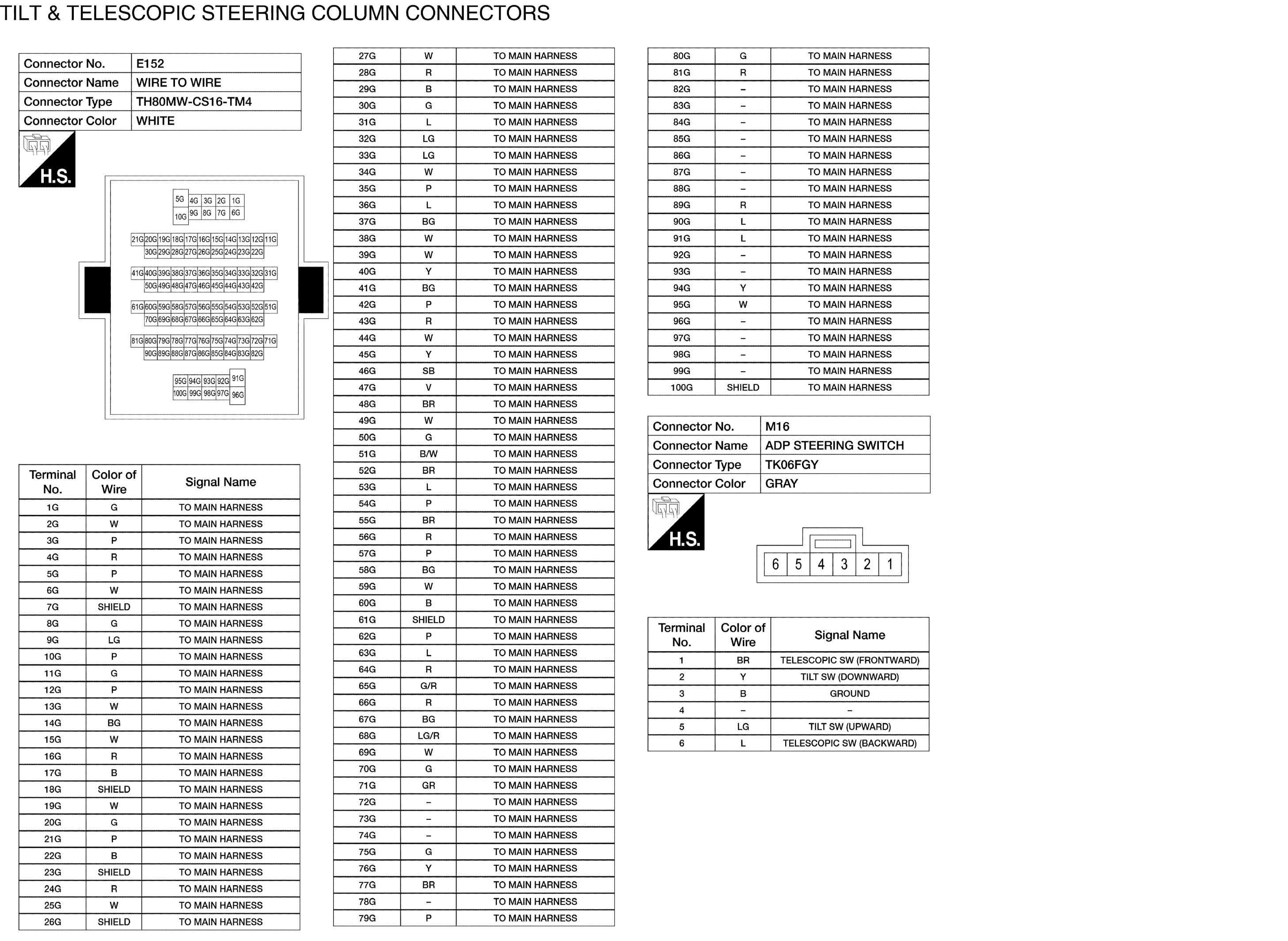

GNSABGIA0195GB-195Courtesy of

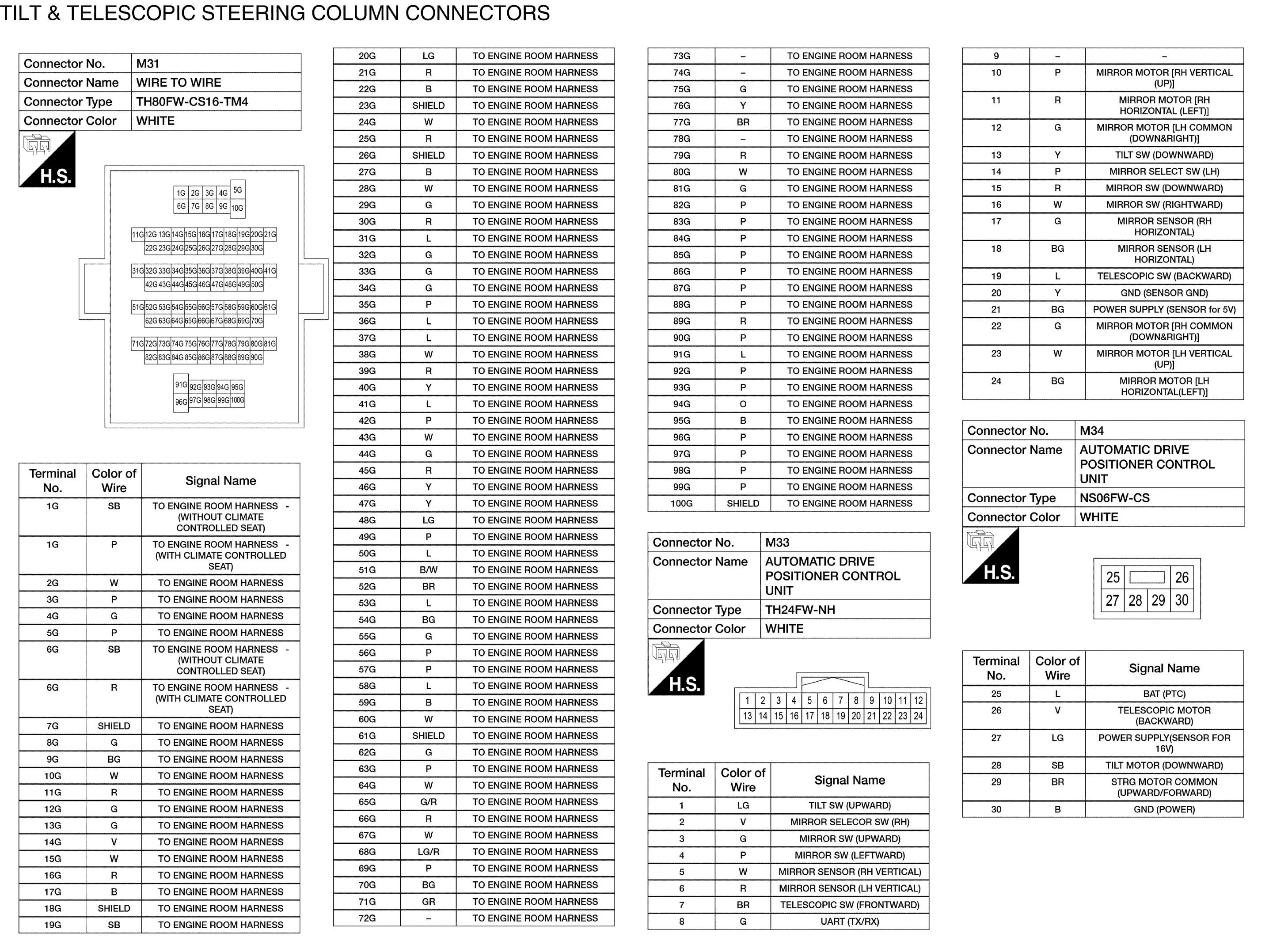

GNSABGIA0196GB-196Courtesy of

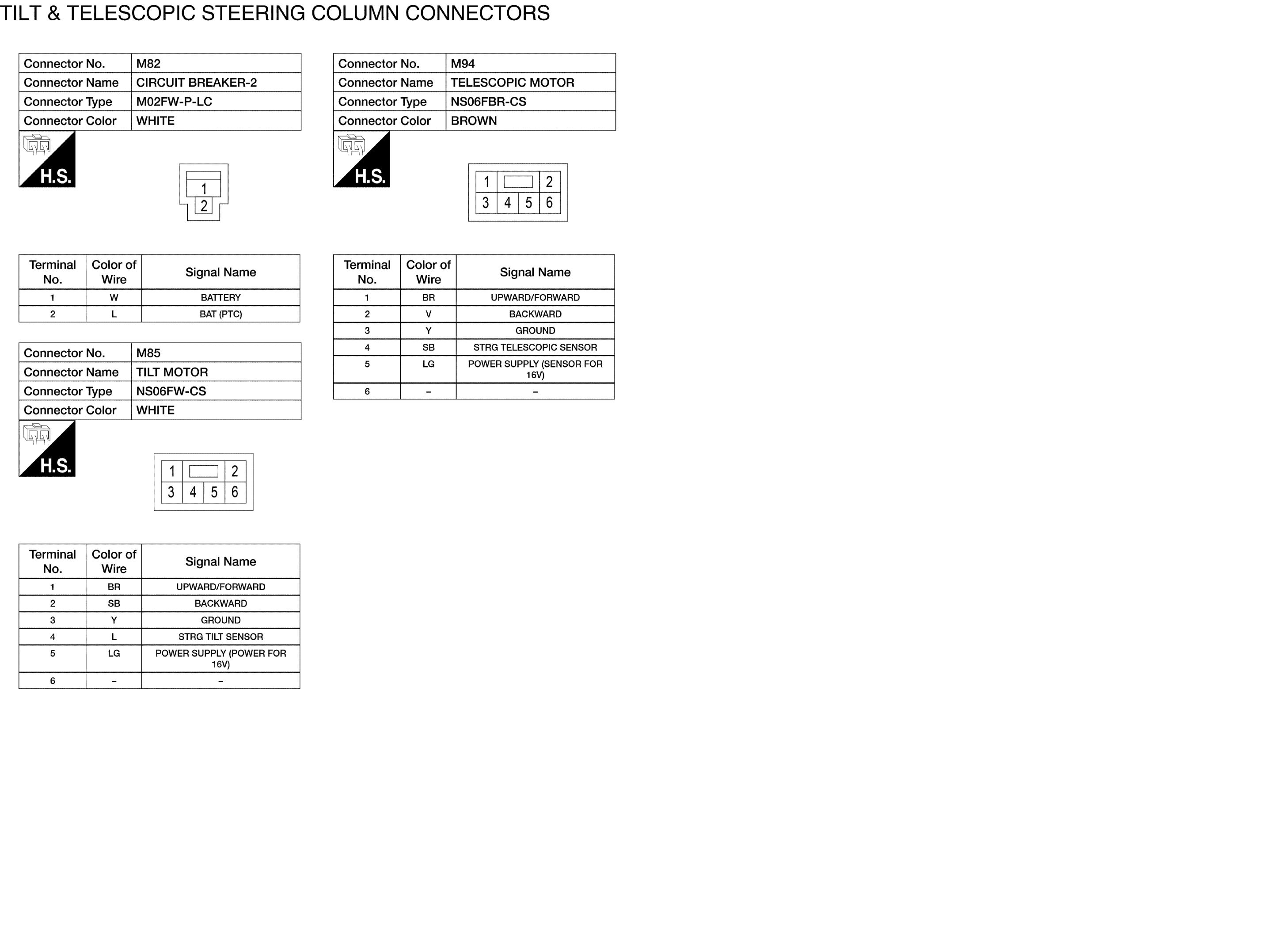

GNSABGIA0201GB-201Courtesy of
