Removal And Installation - AWD: Installation

WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

Installation is in the reverse order of removal.

CAUTION:

With the steering linkage disconnected, the spiral cable may snap by turning the steering wheel beyond the limited number of turns. Secure the steering wheel during installation of the steering gear.

NOTE:

Align slit of the steering intermediate shaft with the projection on the steering gear. Insert the joint until surface (A) contacts surface (B).

Courtesy of

CAUTION:

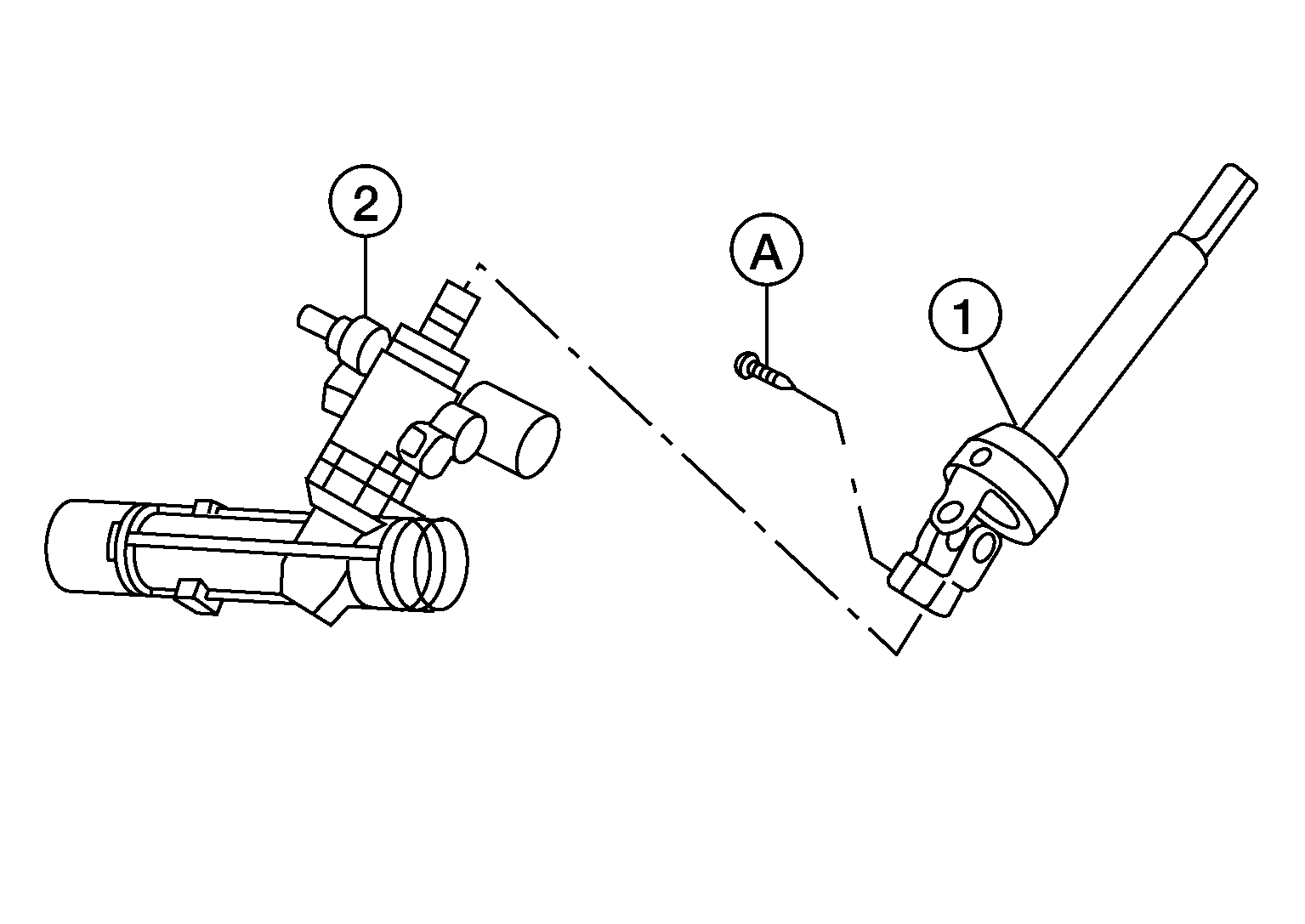

When connecting the steering intermediate shaft (1) to the steering gear (2), first finger-tighten the joint retaining bolt (A); then tighten to specification. The joint retaining bolt is directional. Refer to EXPLODED VIEW .

Courtesy of

WARNING:

After torquing the outer socket nuts, be sure to install the cotter pins through the outer socket stud holes and bend the cotter pin around the outer socket studs.

CAUTION:

Do not reuse O-rings.
Do not reuse steering gear nuts.
Do not reuse cotter pins.

Bleed the air from power steering system. Refer to AIR BLEEDING HYDRAULIC SYSTEM .
Check wheel alignment. Refer to INSPECTION AND ADJUSTMENT .
Adjust the neutral position of the steering angle sensor. Refer to DESCRIPTION .
