Exploded View With Torque Specifications

WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

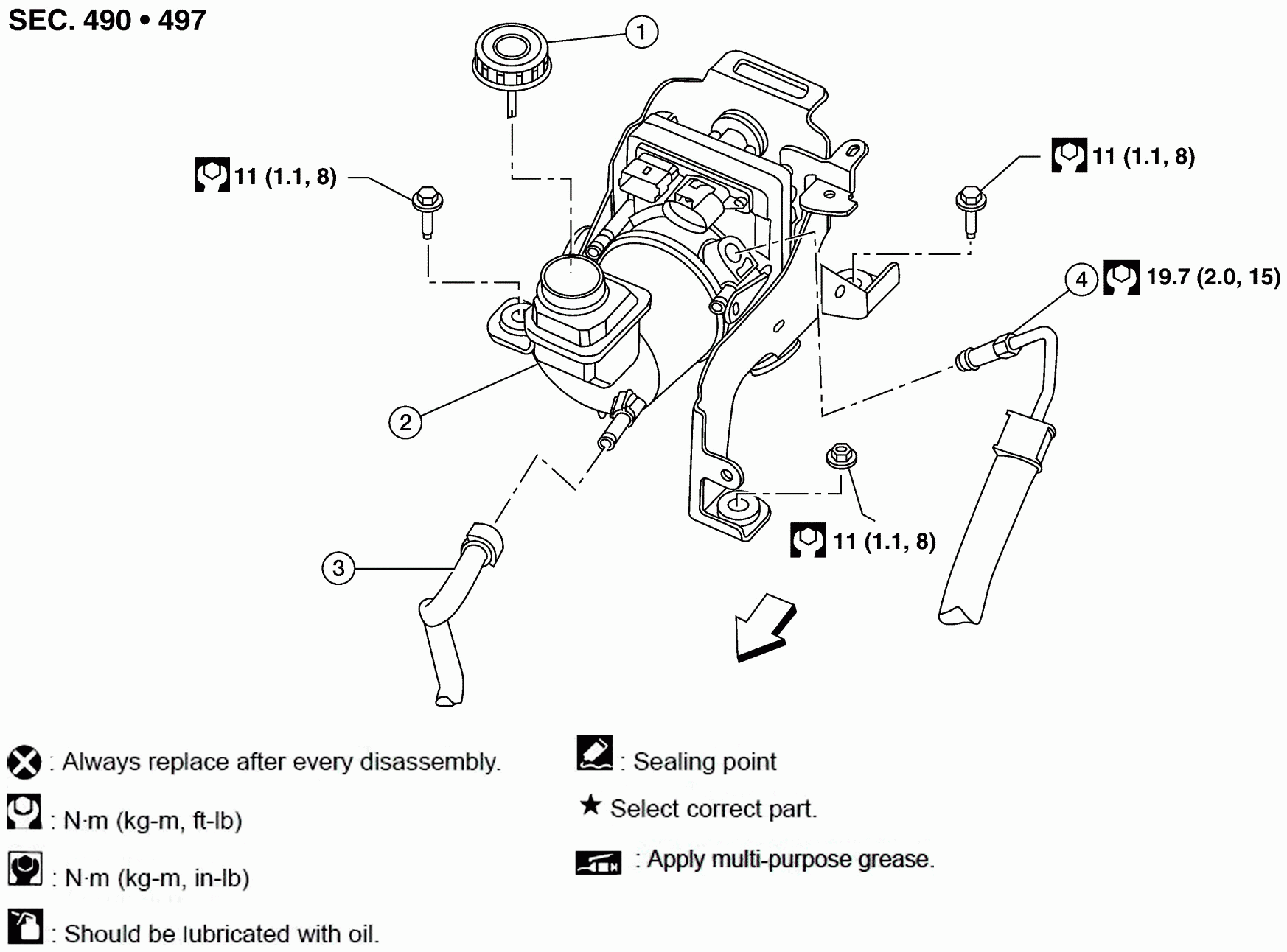

Fig 1: Power Steering Oil Pump With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Power steering reservoir cap	2.	Power steering pump	3.	Low pressure piping
4.	High pressure piping		Front
