Exploded View With Torque Specifications
WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

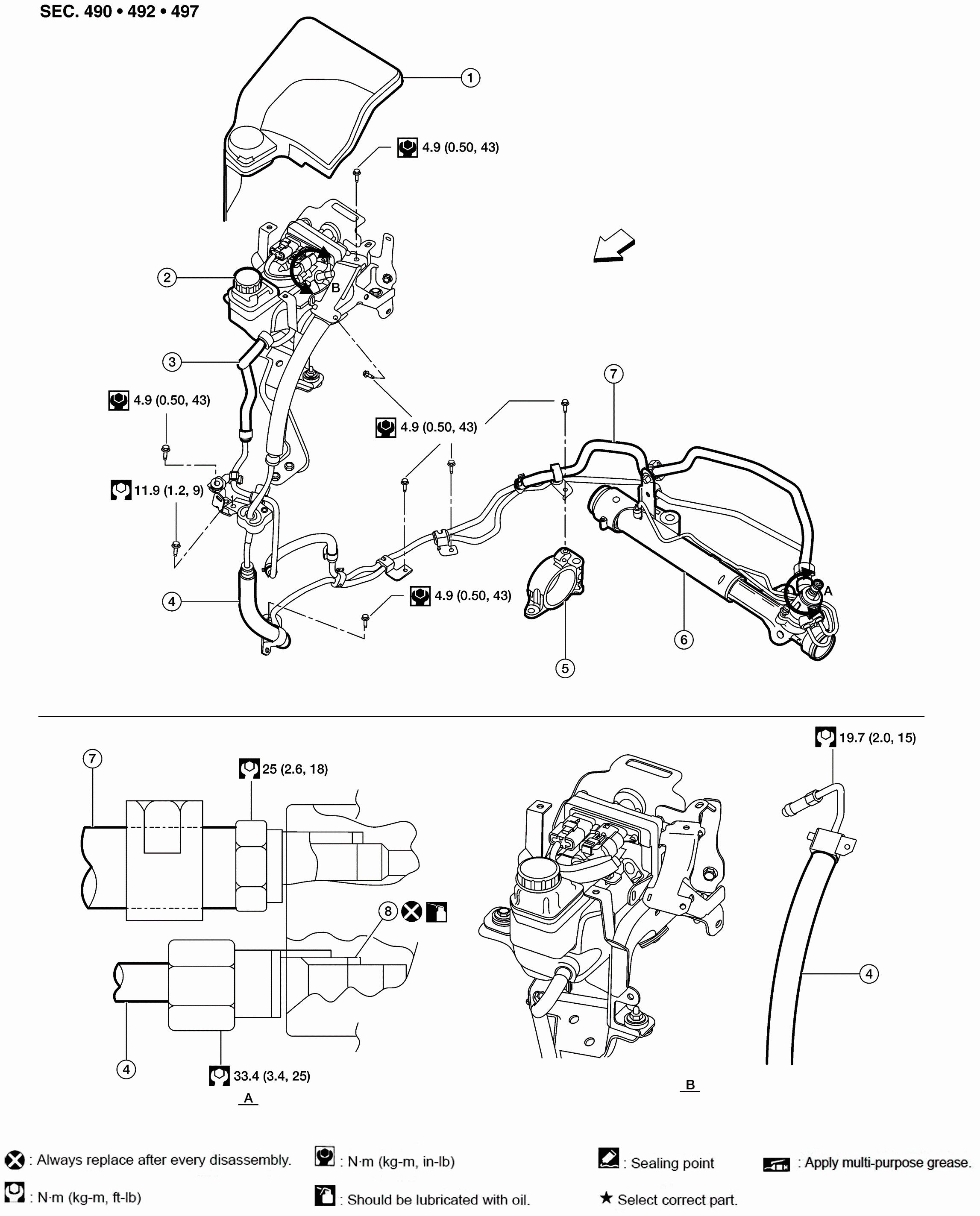

FWD
| 1. | Cover | 2. | Power steering pump | 3. | Low pressure piping (upper) |
| 4. | High pressure piping | 5. | Engine mount | 6. | Power steering gear |
| 7. | Low pressure piping (lower) | 8. | O-ring | A. | Steering gear connection detail |
| B. | Power steering pump connection detail | Front |

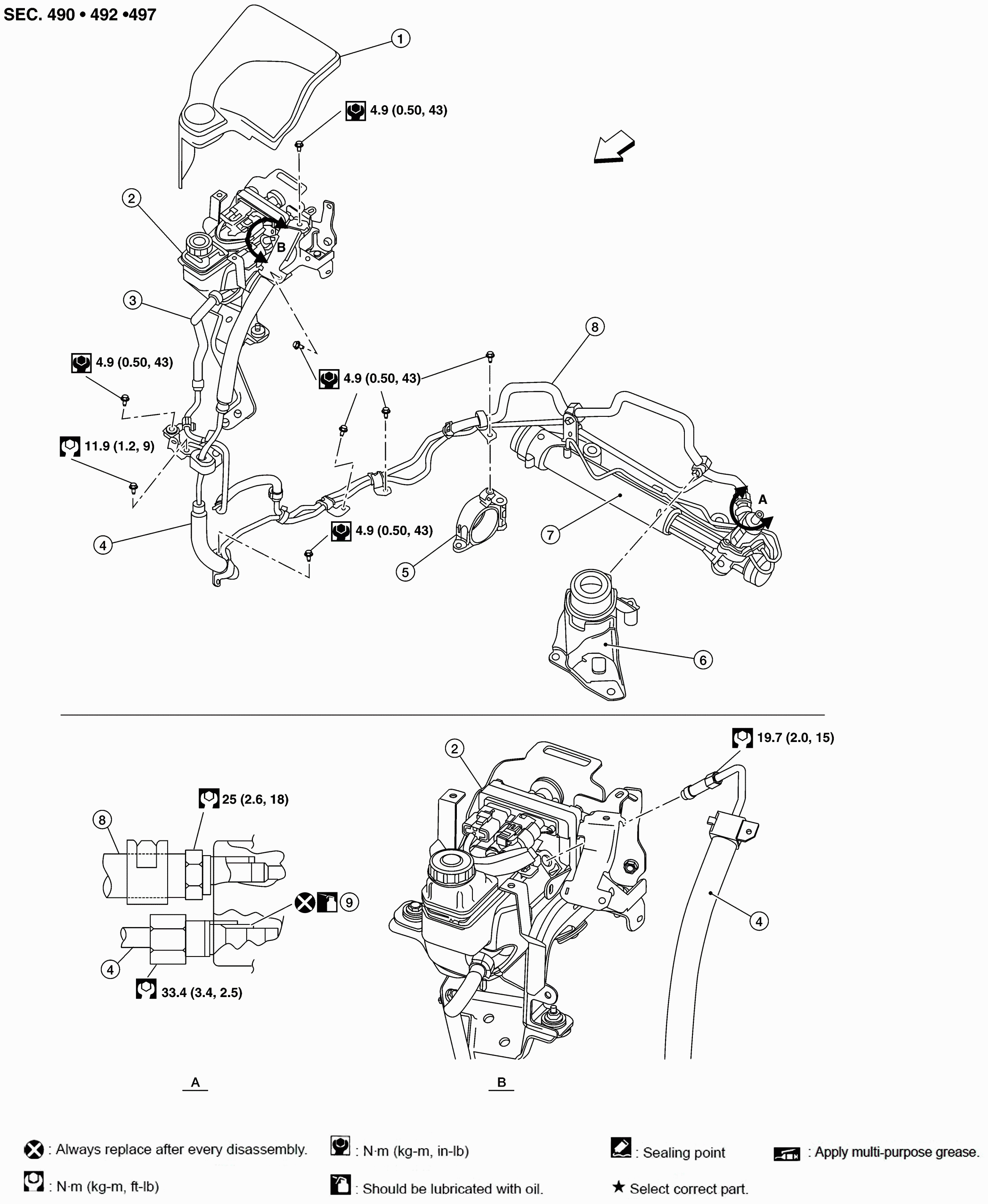

AWD
| 1. | Cover | 2. | Power steering pump | 3. | Low pressure piping (upper) |
| 4. | High pressure piping | 5. | Engine mount | 6. | Engine mount bracket |
| 7. | Power steering gear | 8. | High pressure piping (lower) | 9. | O-ring |
| A. | Steering gear connection detail | B. | Power steering pump connection detail | Front |
