Steering Wheel Turning Force

WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
  1. Park vehicle on a level, dry surface and set parking brake.
  2. Start engine.
  3. Bring power steering fluid up to operating temperature.
  4. Verify that the tires are inflated to the specified pressure. Refer to TIRE AIR PRESSURE .

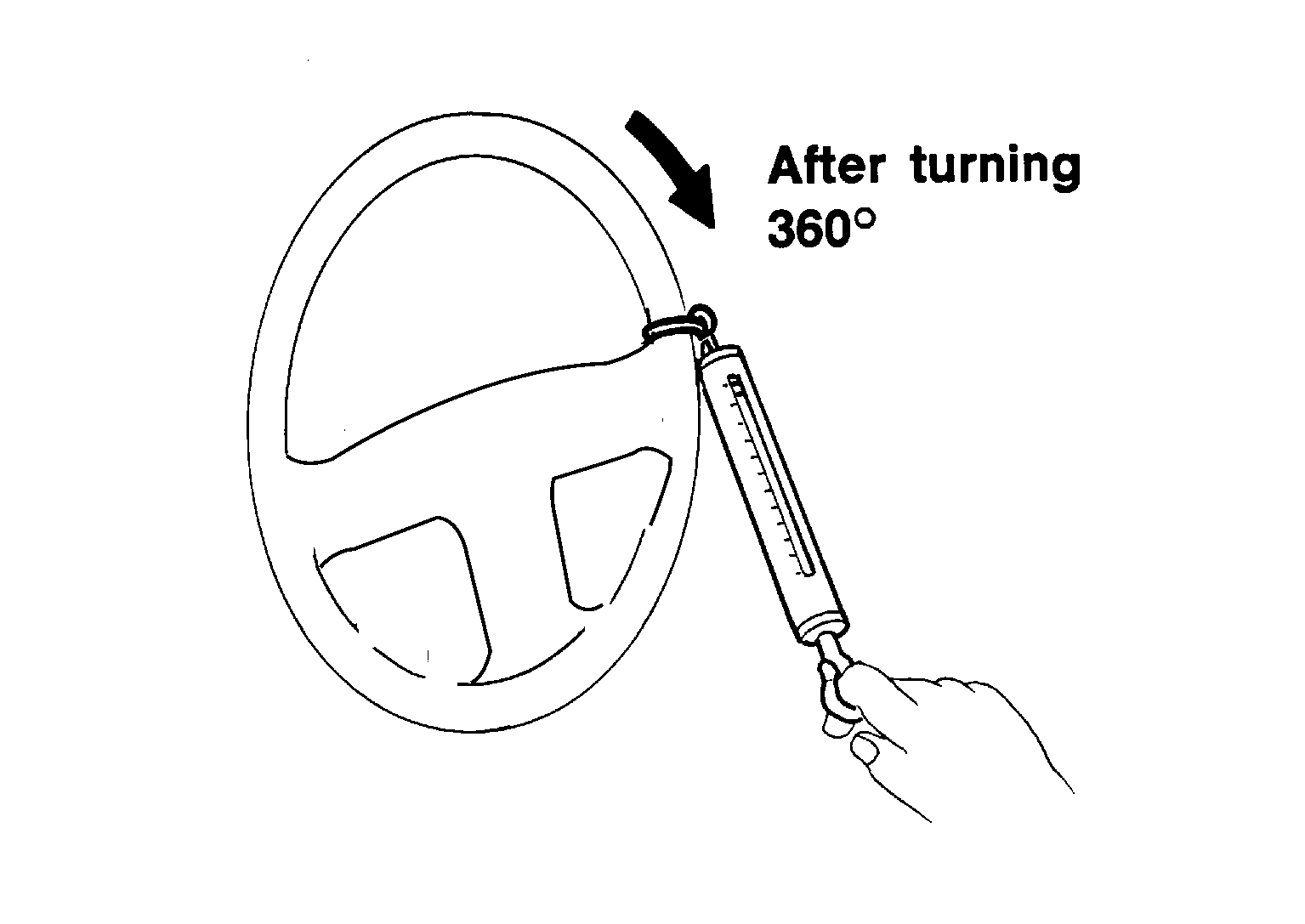

  5. Check steering wheel turning force using Tool when steering wheel has been turned 360° from the neutral position.
    G04134793Courtesy of
    Tool number : (-) (J-44372)
    Steering wheel turning force : Refer to STEERING WHEEL .
  6. If steering wheel turning force is out of specification, inspect steering column. Refer to INSPECTION .
  7. If steering column meets specification, inspect steering gear. Refer to INSPECTION .
