Checking Front Wheel Turning Angle

WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

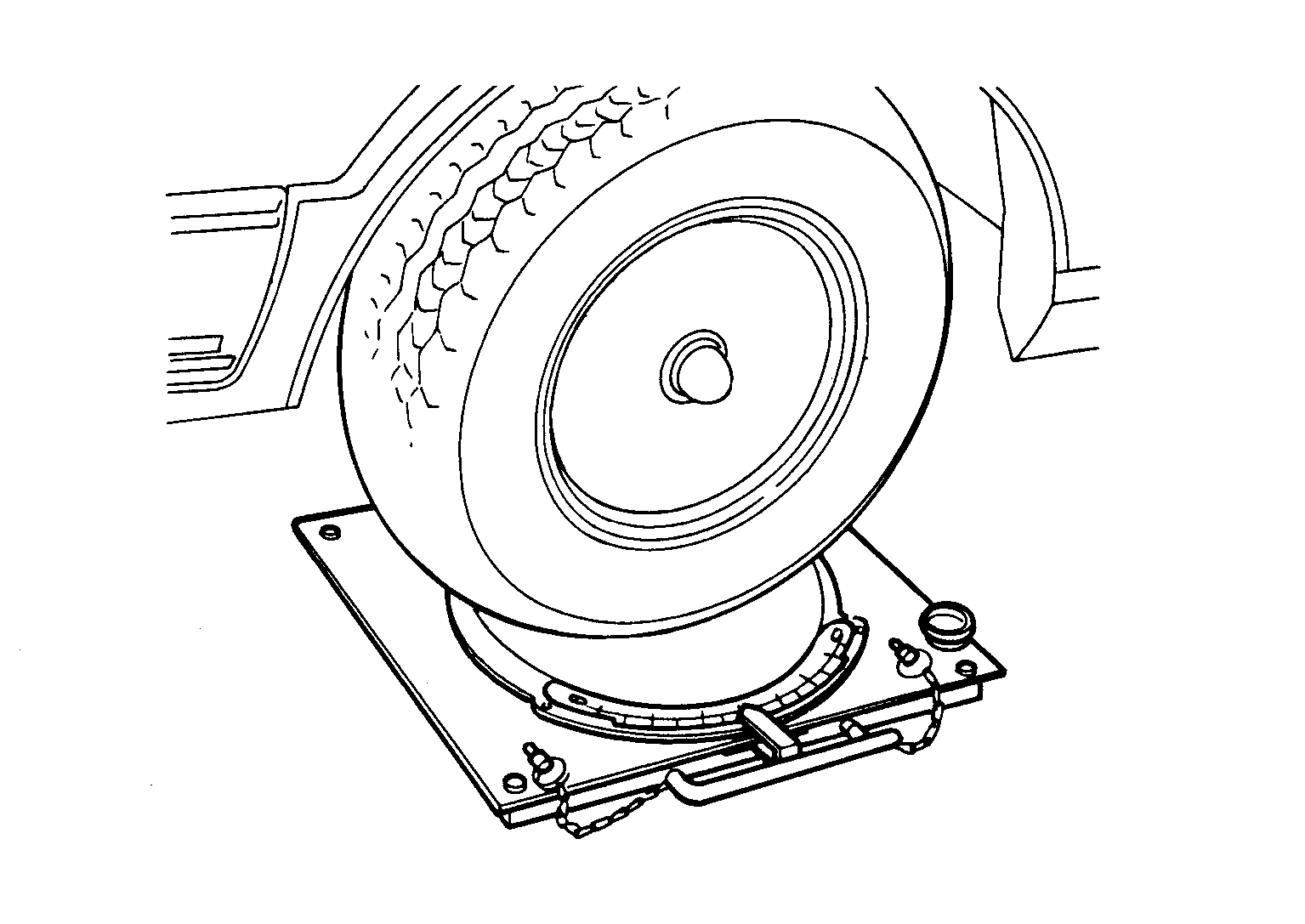

Check front wheel turning angle after toe-in inspection. Place front wheels on turning radius gauges and rear wheels on stands. Check the maximum inner and outer wheel turning angles for LH and RH road wheels.

Courtesy of
Measure the turning angles with the engine at idle, then turn the steering wheel from full left stop to full right stop and measure the turning angle. Refer to STEERING ANGLE .

Courtesy of
Measure the rack stroke specification with vehicle in neutral position. Refer to POWER STEERING GEAR .

Courtesy of
