Outer Socket And Inner Socket
WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
- Ball joint swinging torque

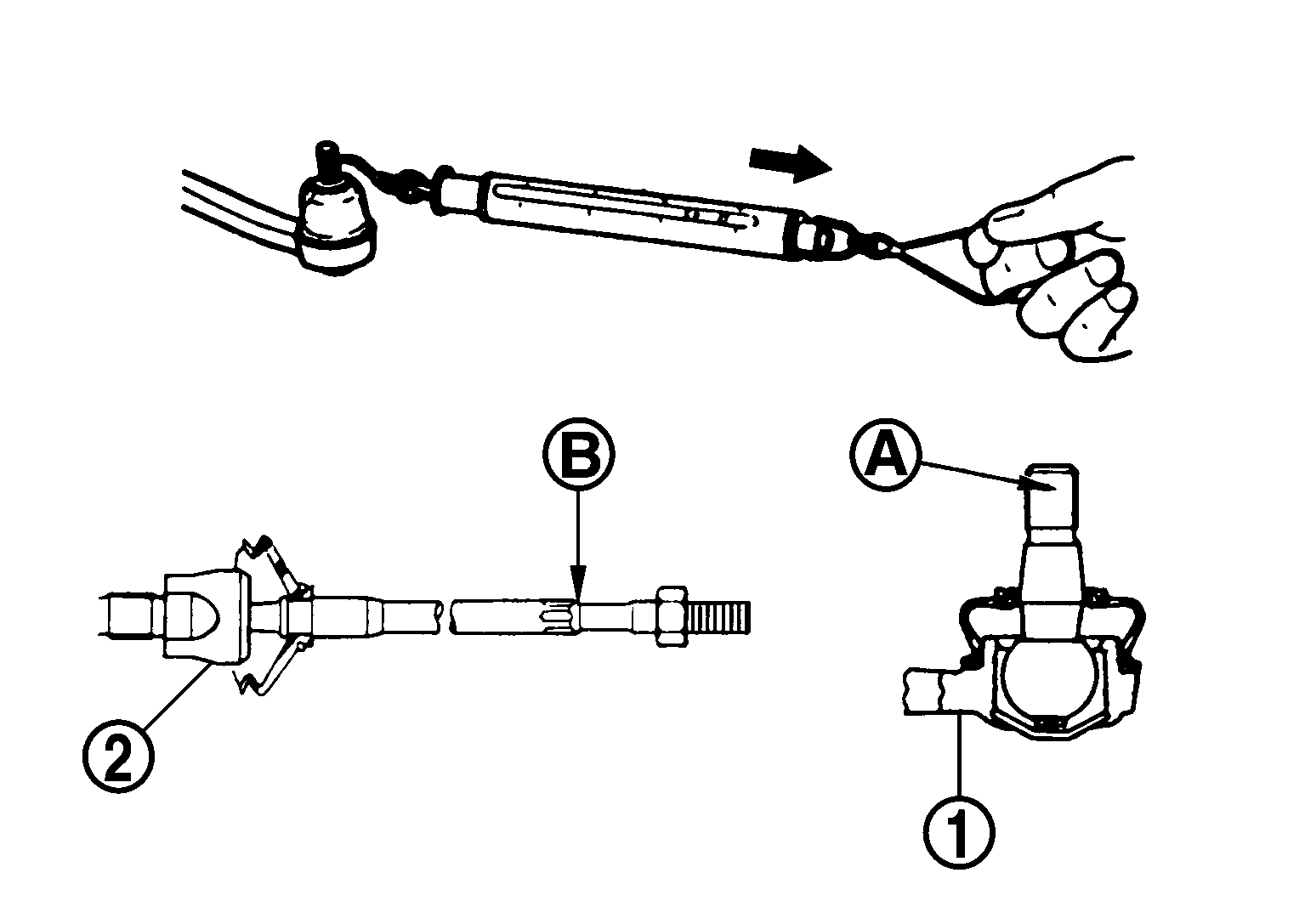

- Hook the Tool at the measuring point and pull the Tool. Make sure that the Tool reads the specified value when ball stud and inner socket start to move. Replace outer socket or inner socket if the measured values are outside the standard.
Measuring point of outer socket (1) : Ball stud upper side (A) Measuring point of inner socket (2) : Point (B) Tool number : - (J-44372) Swinging torque : Refer to POWER STEERING GEAR .
- Hook the Tool at the measuring point and pull the Tool. Make sure that the Tool reads the specified value when ball stud and inner socket start to move. Replace outer socket or inner socket if the measured values are outside the standard.
- Ball joint rotating torque

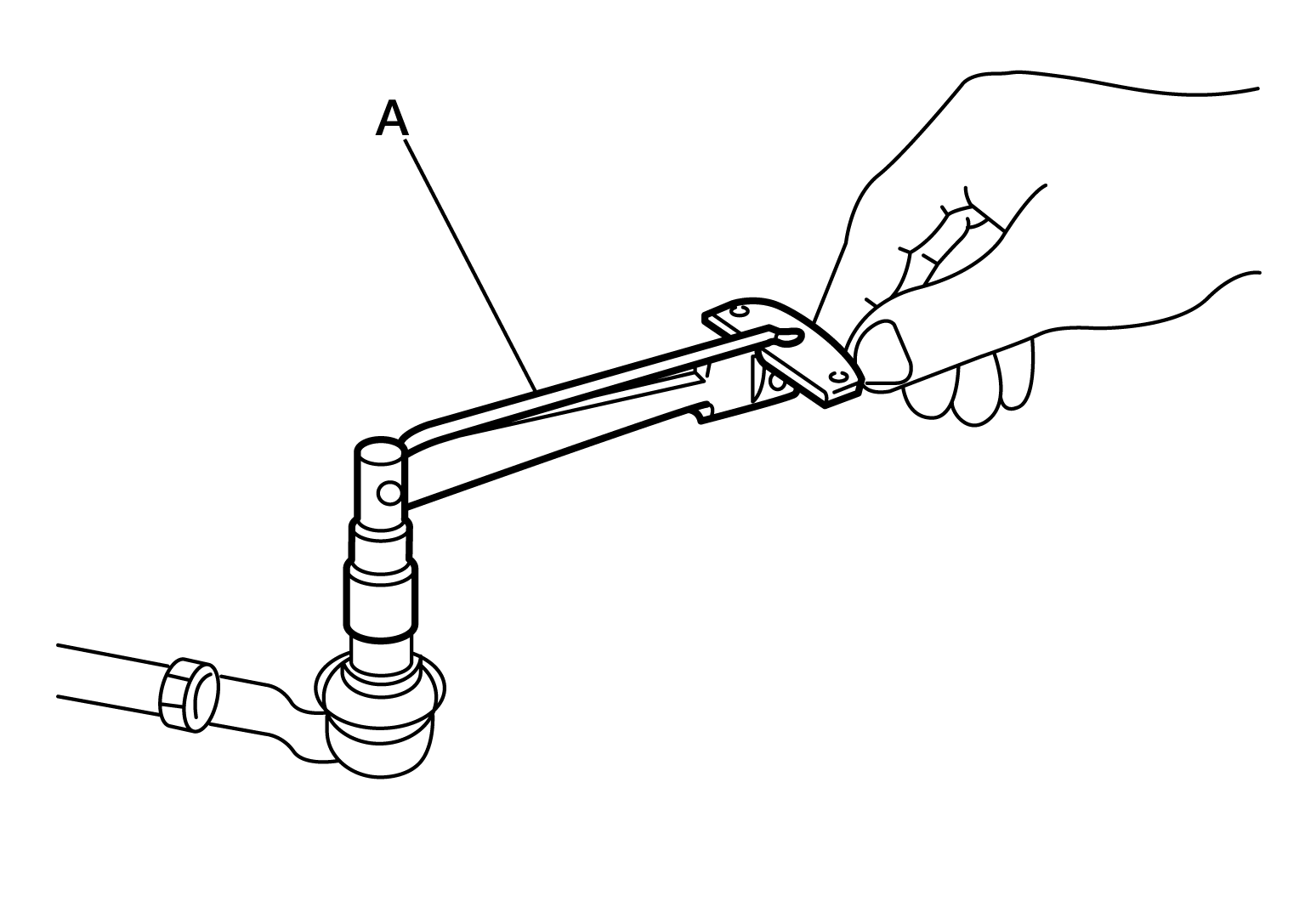

- Make sure that the reading is within the following specified range using suitable tool (A). Replace outer socket if the reading is outside the specification.
Rotating torque : Refer to POWER STEERING GEAR .
- Make sure that the reading is within the following specified range using suitable tool (A). Replace outer socket if the reading is outside the specification.
- Ball joint axial end play
- Apply an axial load of 490 N (50 kg, 111 lb) to ball stud. Measuring the amount of stud movement using a suitable tool, make sure that the value is within specification. Replace outer socket (1) and inner socket (2) if the measured value is outside specification.
Axial end play : Refer to POWER STEERING GEAR .
- Apply an axial load of 490 N (50 kg, 111 lb) to ball stud. Measuring the amount of stud movement using a suitable tool, make sure that the value is within specification. Replace outer socket (1) and inner socket (2) if the measured value is outside specification.
