Exploded View With Torque Specifications

WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

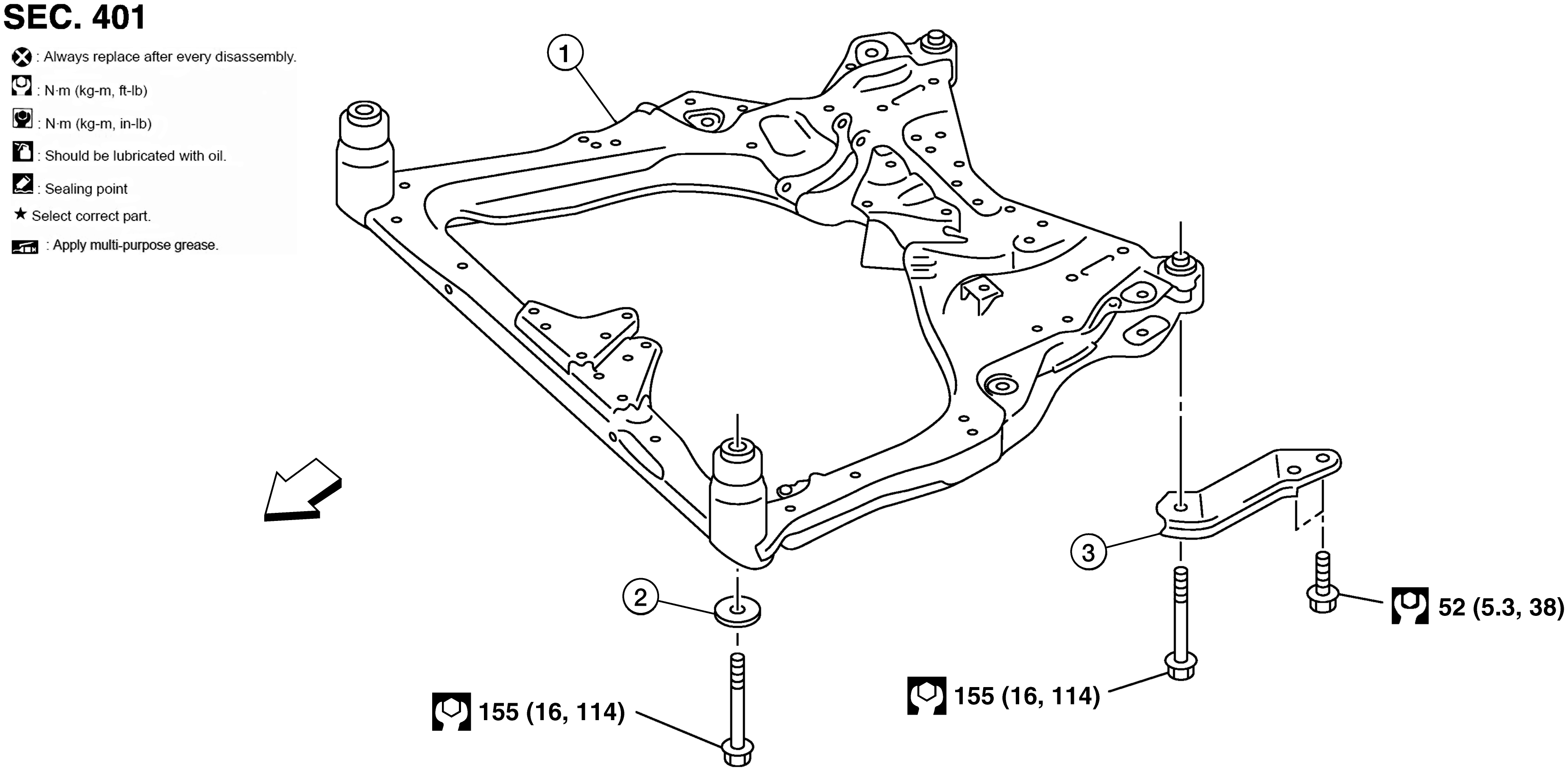

Fig 1: Front Suspension Member With Torque Specifications
GNSAWEIA0242GB-242Courtesy of NISSAN NORTH AMERICA, INC.
1. Front suspension member 2. Rebound stopper 3. Front suspension member stay
ARROW Front
