Exploded View With Torque Specifications

WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

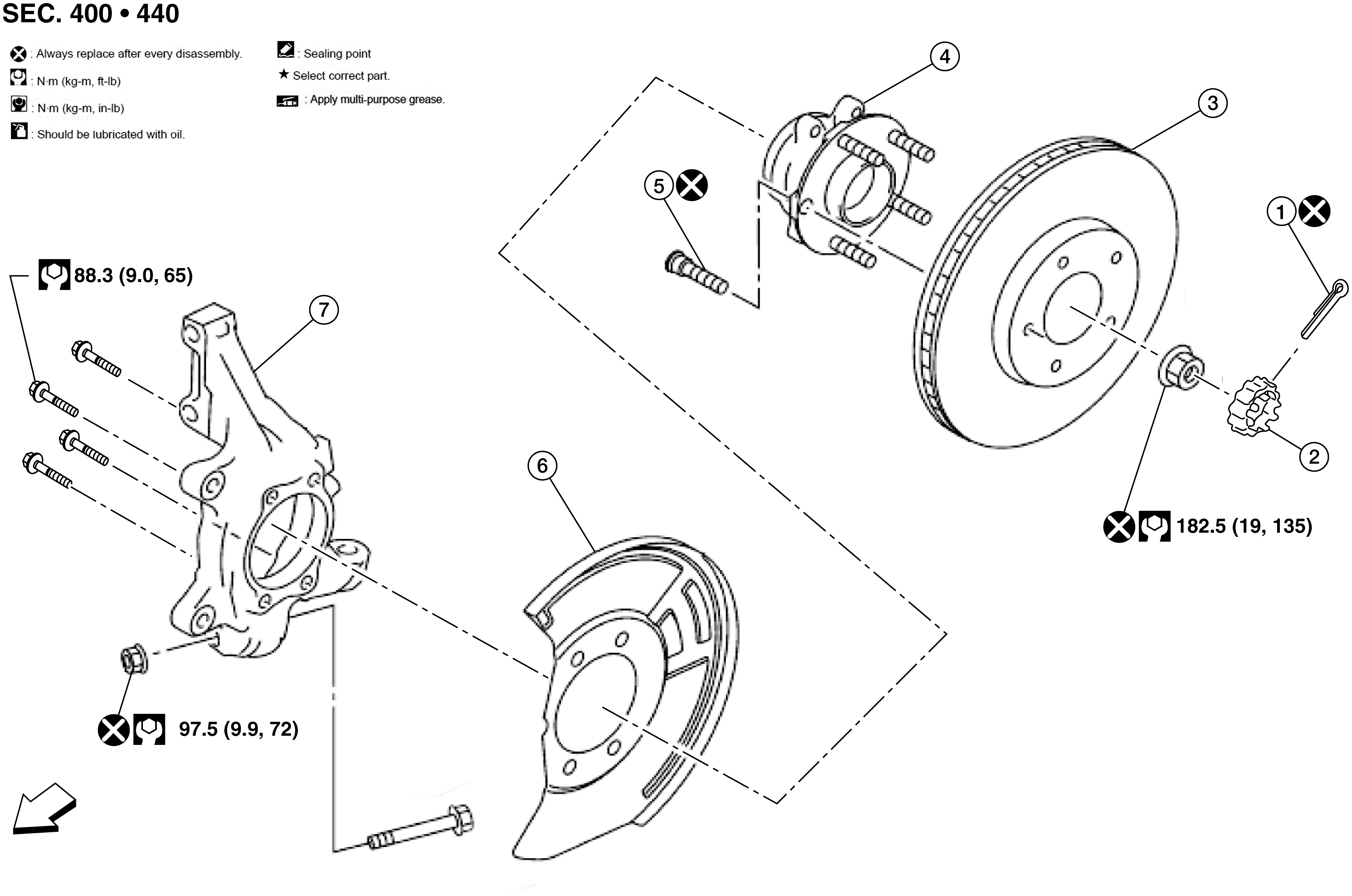

Fig 1: Steering Knuckle With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Cotter pin	2.	Nut retainer	3.	Rotor
4.	Wheel hub and bearing assembly	5.	Wheel hub bolt	6.	Splash guard
7.	Steering knuckle		Front
