Disassembly And Assembly (RH): Notes
WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

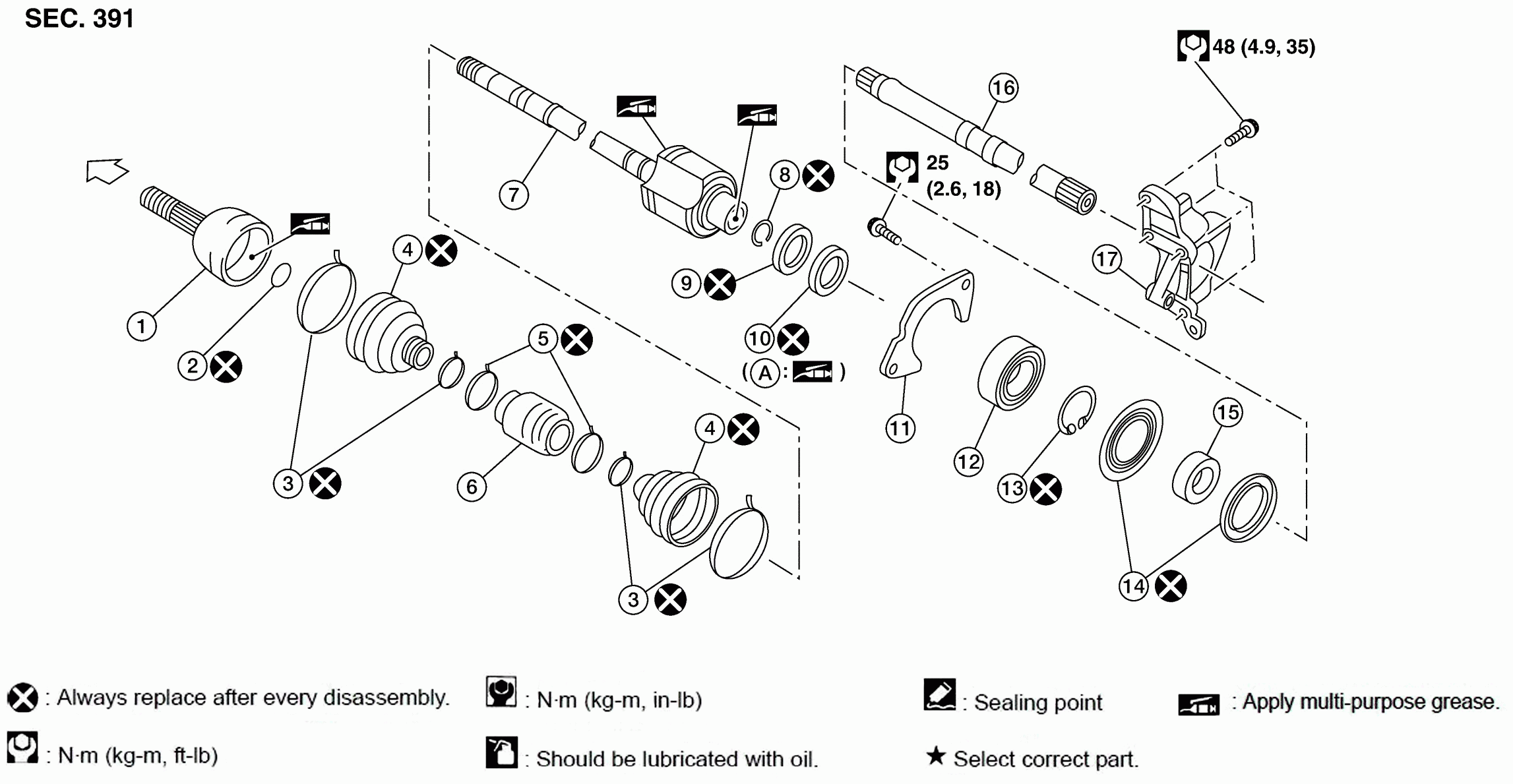

| 1. | Joint sub-assembly | 2. | Circular clip | 3. | Boot band |
| 4. | Boot | 5. | Damper band (if equipped) | 6. | Dynamic damper (if equipped) |
| 7. | Housing assembly | 8. | Circular clip | 9. | Dust shield |
| 10. | Oil seal | 11. | Bearing retainer | 12. | Bearing |
| 13. | Snap ring | 14. | Dust shield | 15. | Collar |
| 16. | Link shaft | 17. | Support bearing bracket | A: | Oil seal lip |
| Wheel side | |||||
| Fill NISSAN Genuine grease or equivalent. | |||||
