Exploded View (RH)

WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

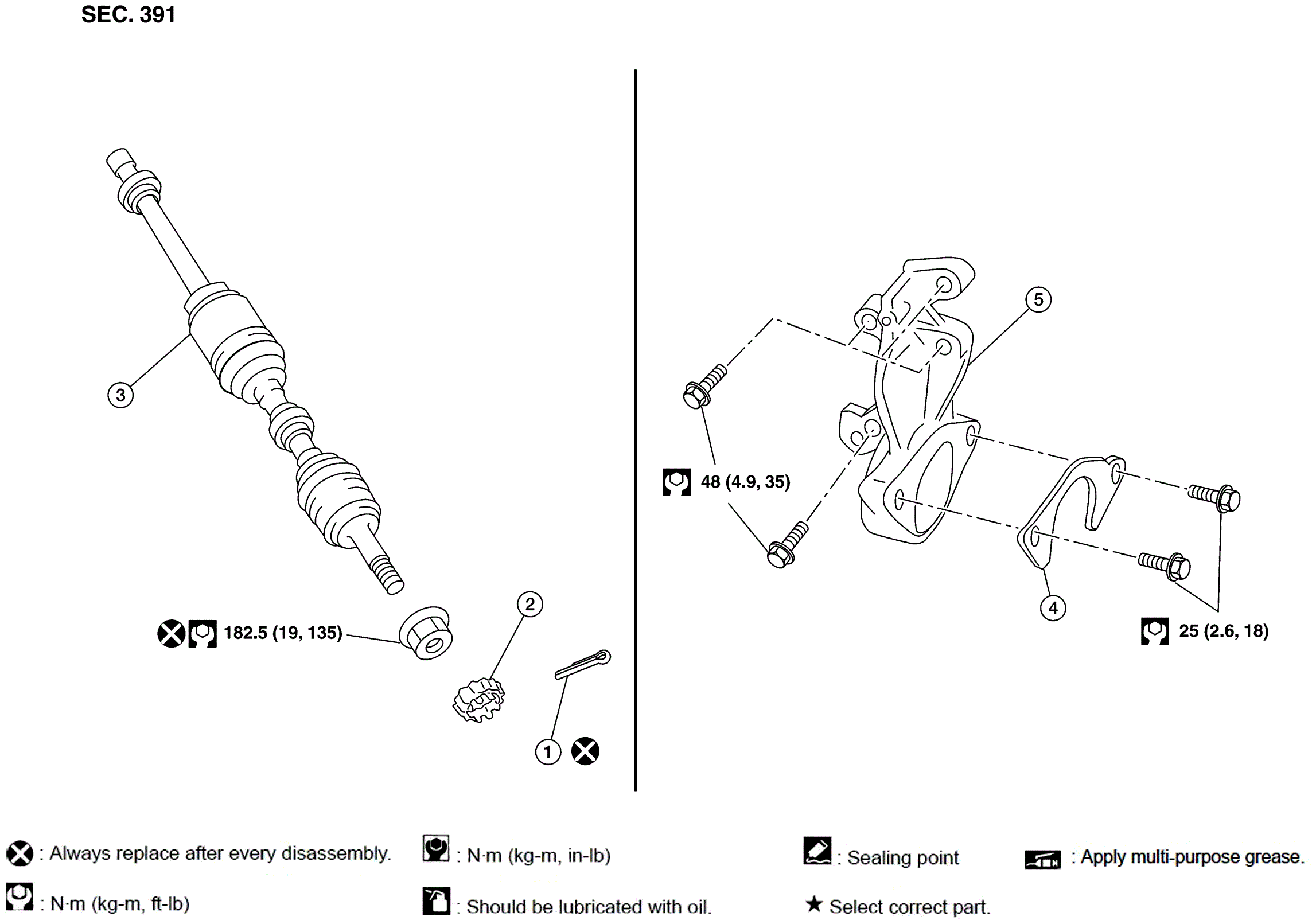

Fig 1: Front Drive Shaft With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Cotter pin	2.	Retainer	3.	Drive shaft
4.	Bearing retainer	5.	Support bearing bracket
