Exploded View With Torque Specifications: LH

WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

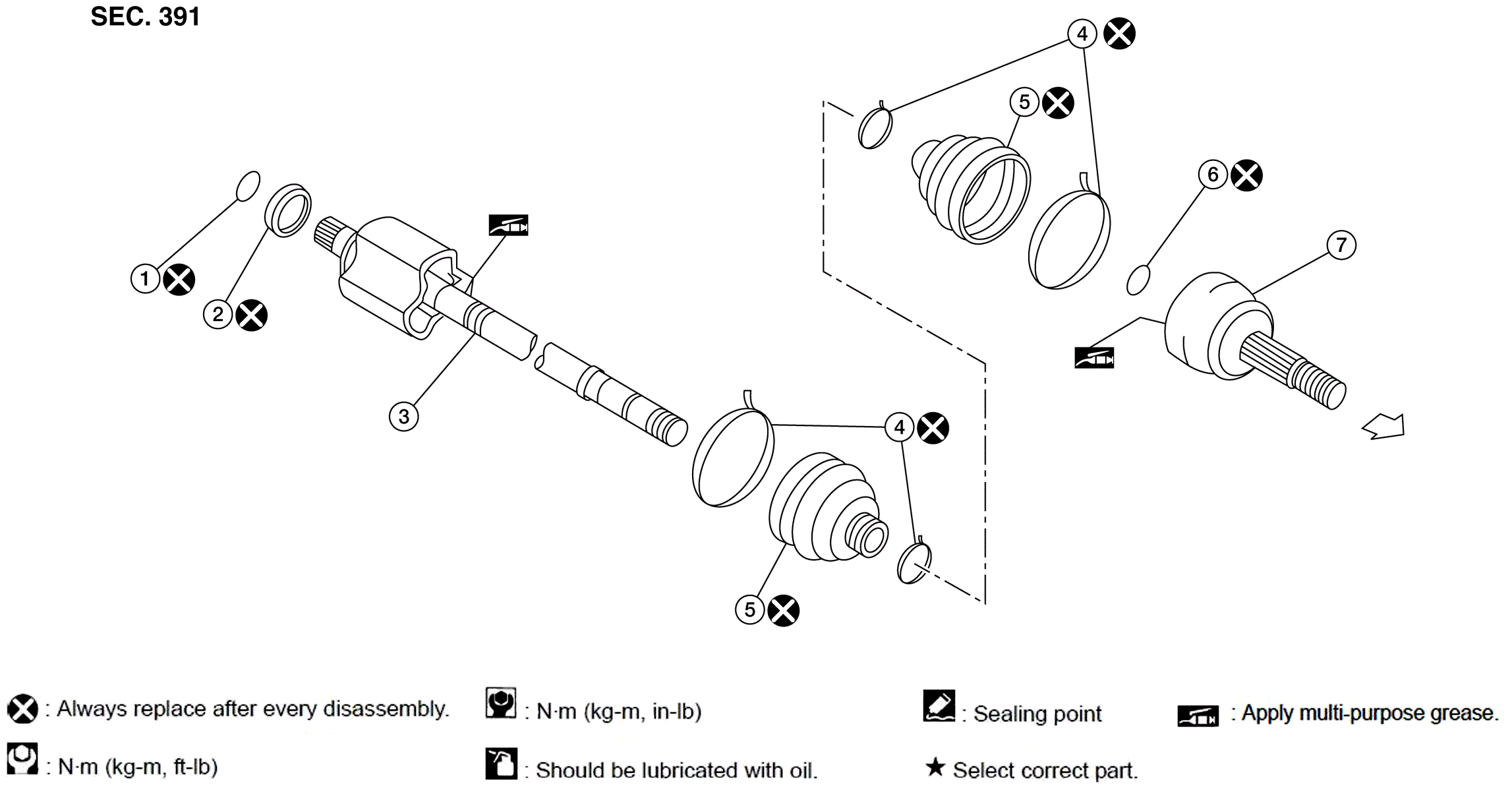

GNSAWDIA0981ZZ-981Courtesy of NISSAN NORTH AMERICA, INC.
1. Circular clip 2. Dust shield 3. Housing assembly
4. Boot band 5. Boot 6. Circular clip
7. Joint sub-assembly ARROW Wheel side
GREASE Fill NISSAN Genuine grease or equivalent.
