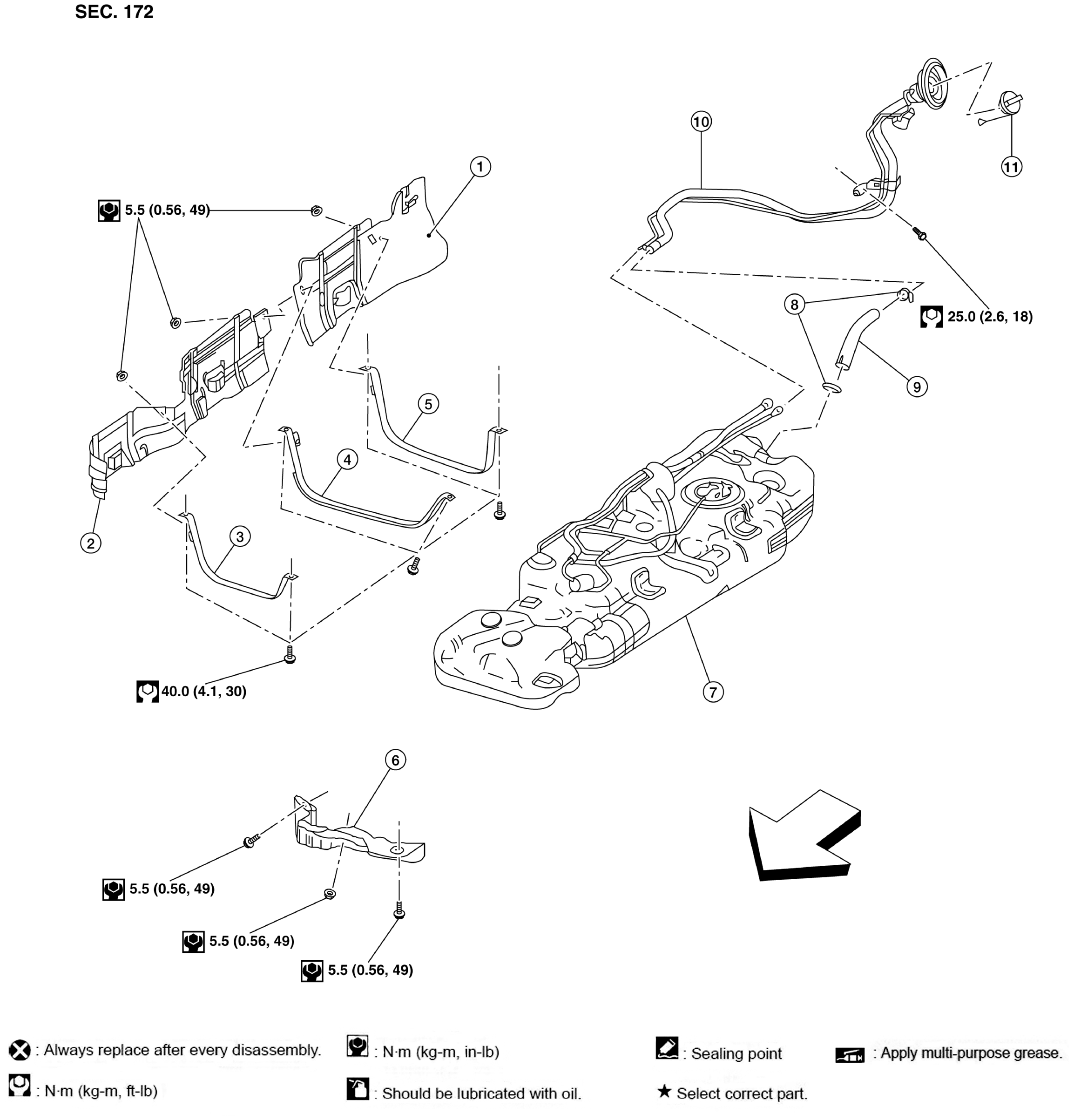

Exploded View With Torque Specifications
WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of NISSAN NORTH AMERICA, INC.
| 1. |
Fuel tank protector 3 |
2. |
Fuel tank protector 2 |
3. |
Fuel tank mounting strap 1 |
| 4. |
Fuel tank mounting strap 2 |
5. |
Fuel tank mounting strap 3 |
6. |
Fuel tank protector 1 |
| 7. |
Fuel tank |
8. |
Clamp |
9. |
Fuel filler hose |
| 10. |
Fuel filler tube |
11. |
Fuel filler cap |
 |
Front |
