Exploded View With Torque Specifications

WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

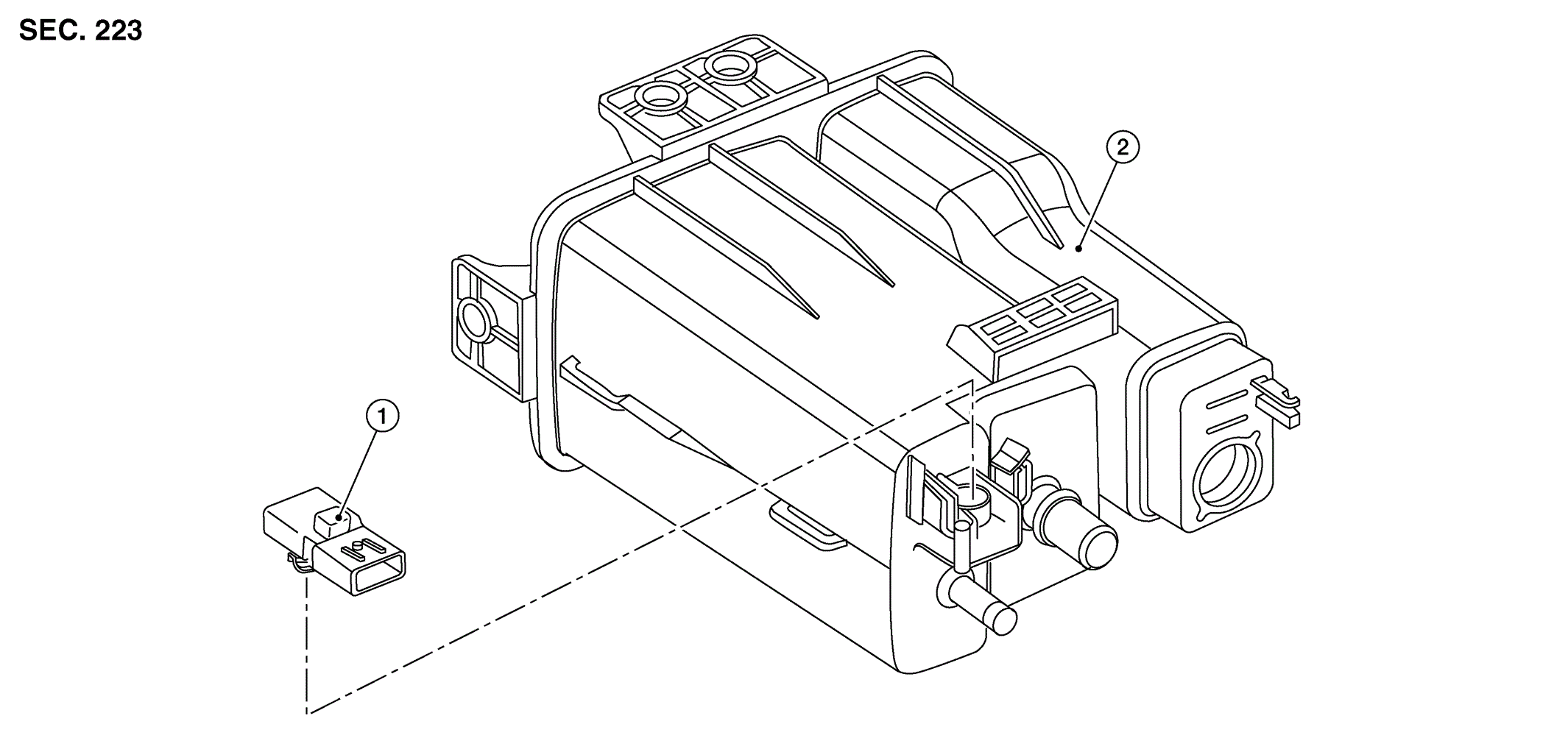

GNSAWBIA2937ZZ-937Courtesy of NISSAN NORTH AMERICA, INC.
1. EVAP canister control pressure sensor 2. EVAP canister
