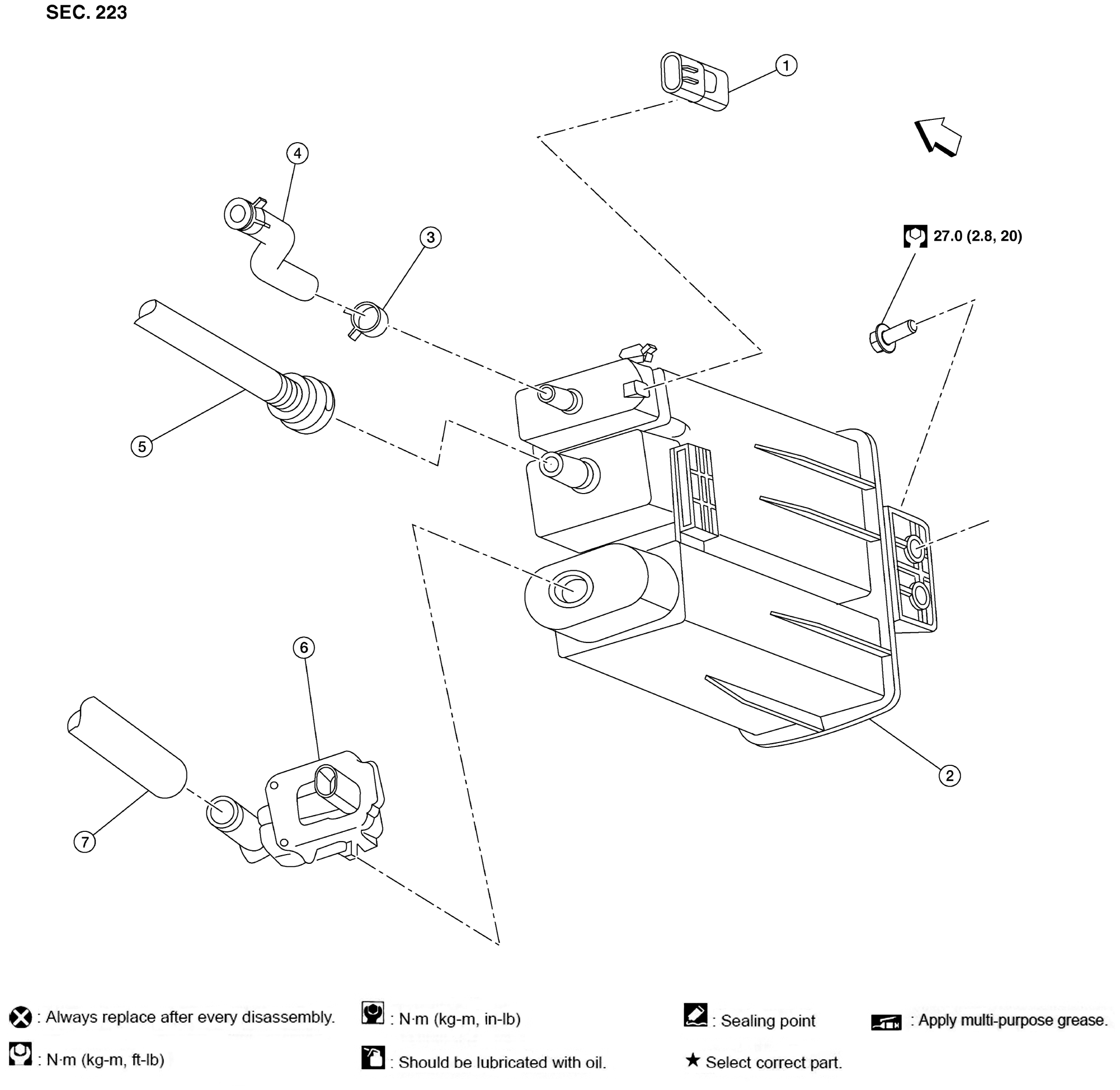

Exploded View With Torque Specifications
WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of NISSAN NORTH AMERICA, INC.
| 1. |
EVAP canister control pressure sensor |
2. |
EVAP canister |
3. |
Hose clamp |
| 4. |
EVAP canister purge hose |
5. |
EVAP canister vent line |
6. |
EVAP canister vent control valve |
| 7. |
EVAP canister vent control valve hose |
 |
Front |
|
|
