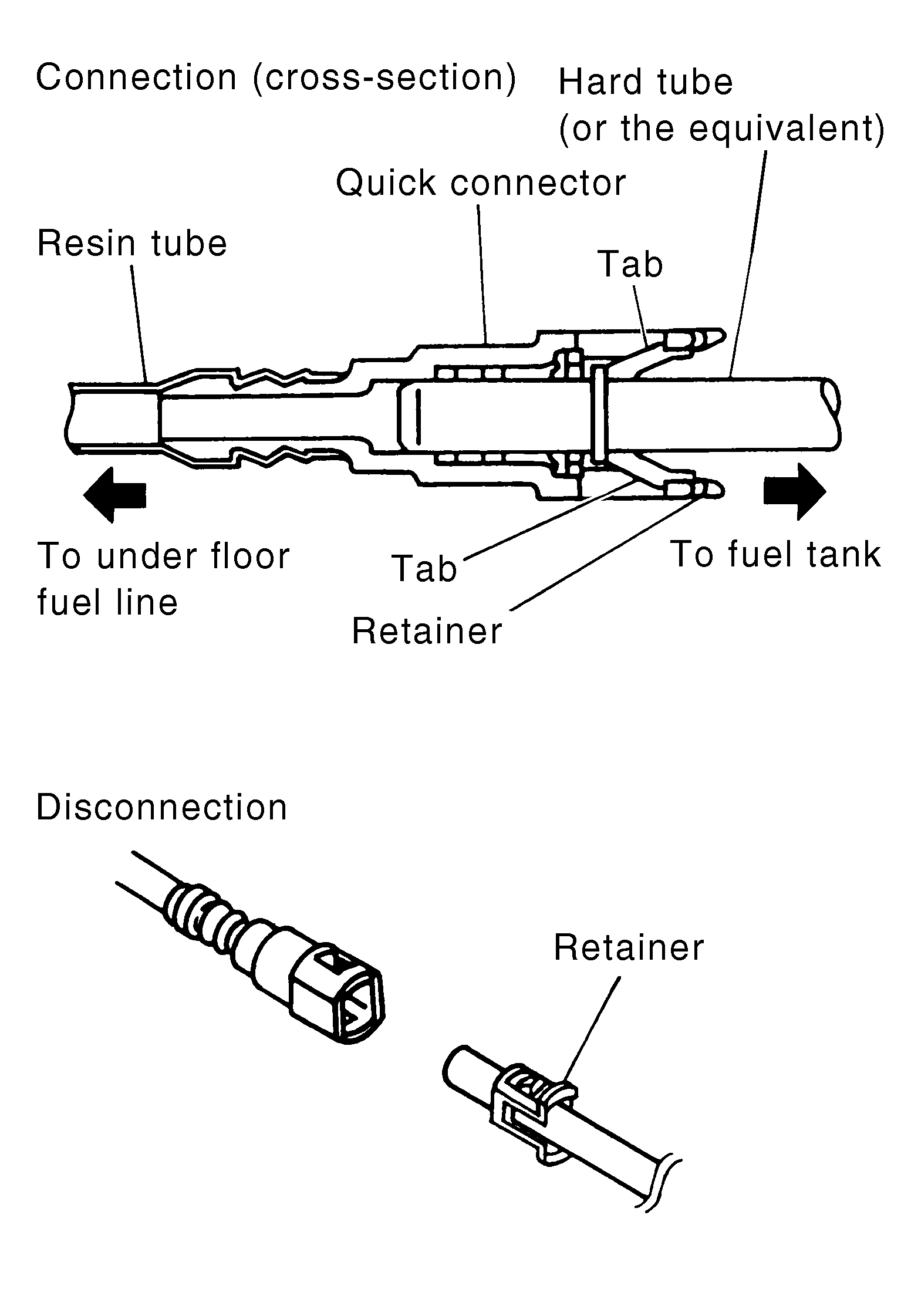

Quick Connector
WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
- After connecting fuel tube quick connectors, make sure quick connectors are secure.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
- Ensure that connector and resin tube do not contact any adjacent parts.
