Exploded View With Torque Specifications
WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

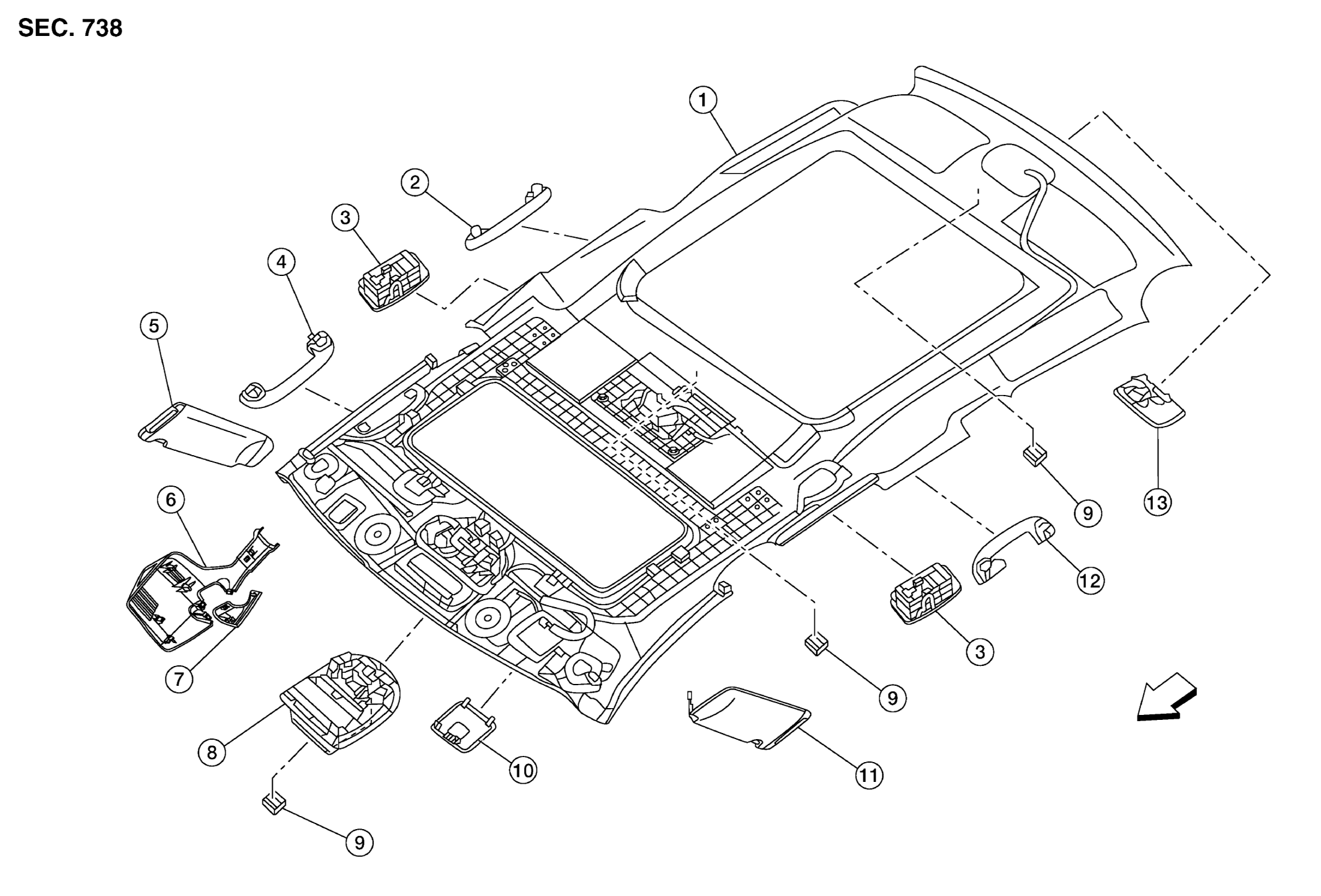

WITH PANORAMIC ROOF GLASS
| 1. | Headlining | 2. | Rear assist grip (RH) | 3. | Personal lamp |
| 4. | Front assist grip (RH) | 5. | Sun visor (RH) | 6. | Lane camera cover (RH) (if equipped) |
| 7. | Lane camera cover (LH) (if equipped) | 8. | Front room/map lamp assembly | 9. | Active noise control microphone (front/center/rear) |
| 10. | Headlining access cover | 11. | Sun visor (LH) | 12. | Assist grip (with coat hanger) |
| 13. | Cargo lamp | ||||
| Front |

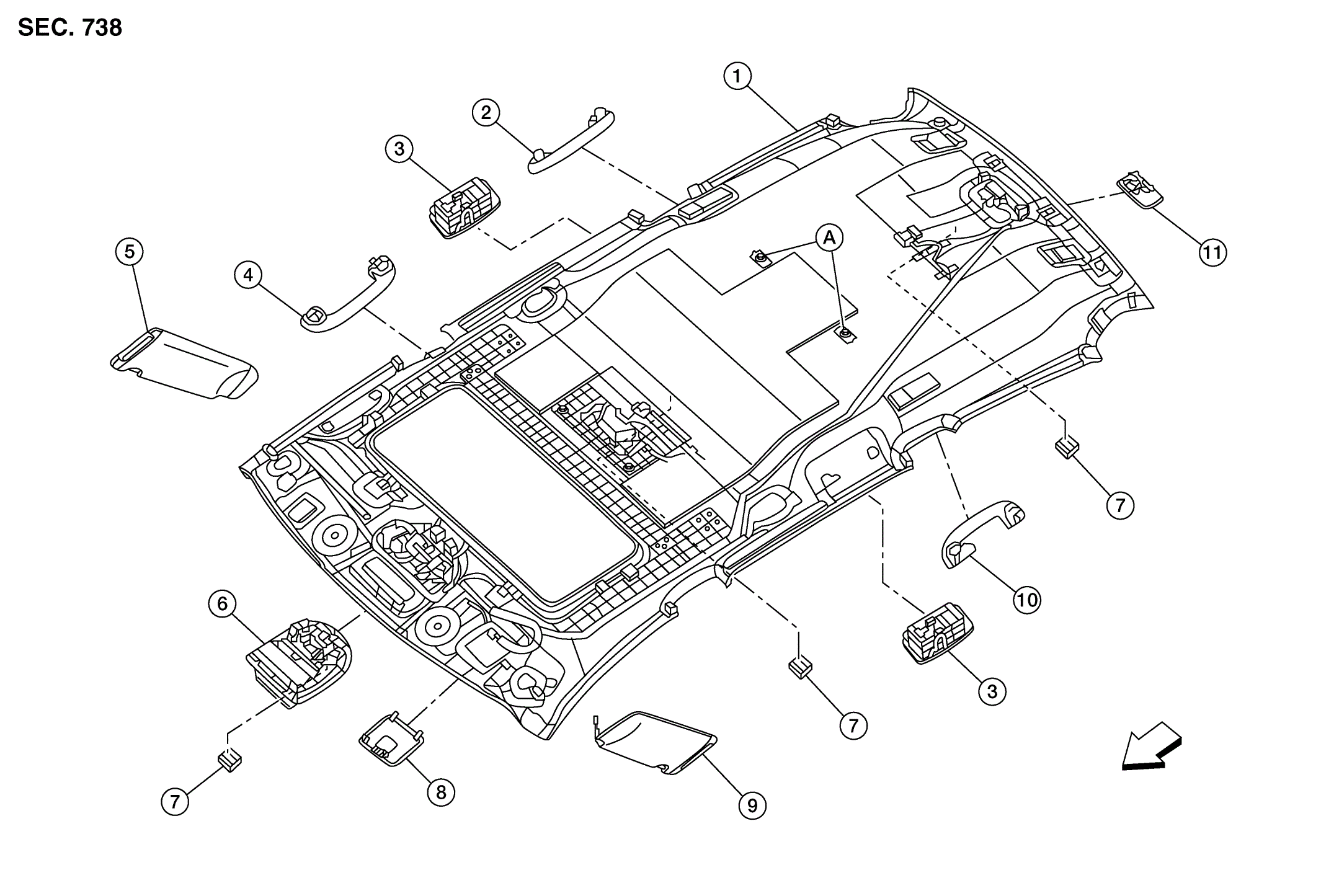

WITHOUT PANORAMIC ROOF GLASS
| 1. | Headlining | 2. | Rear assist grip (RH) | 3. | Personal lamp |
| 4. | Front assist grip (RH) | 5. | Sun visor (RH) | 6. | Front room/map lamp assembly |
| 7. | Active noise control microphone (front/center/rear) | 8. | Headlining access cover | 9. | Sun visor (LH) |
| 10. | Assist grip (with coat hanger) | 11. | Cargo lamp | Front |
